Summary of Contents for aiko STB 255

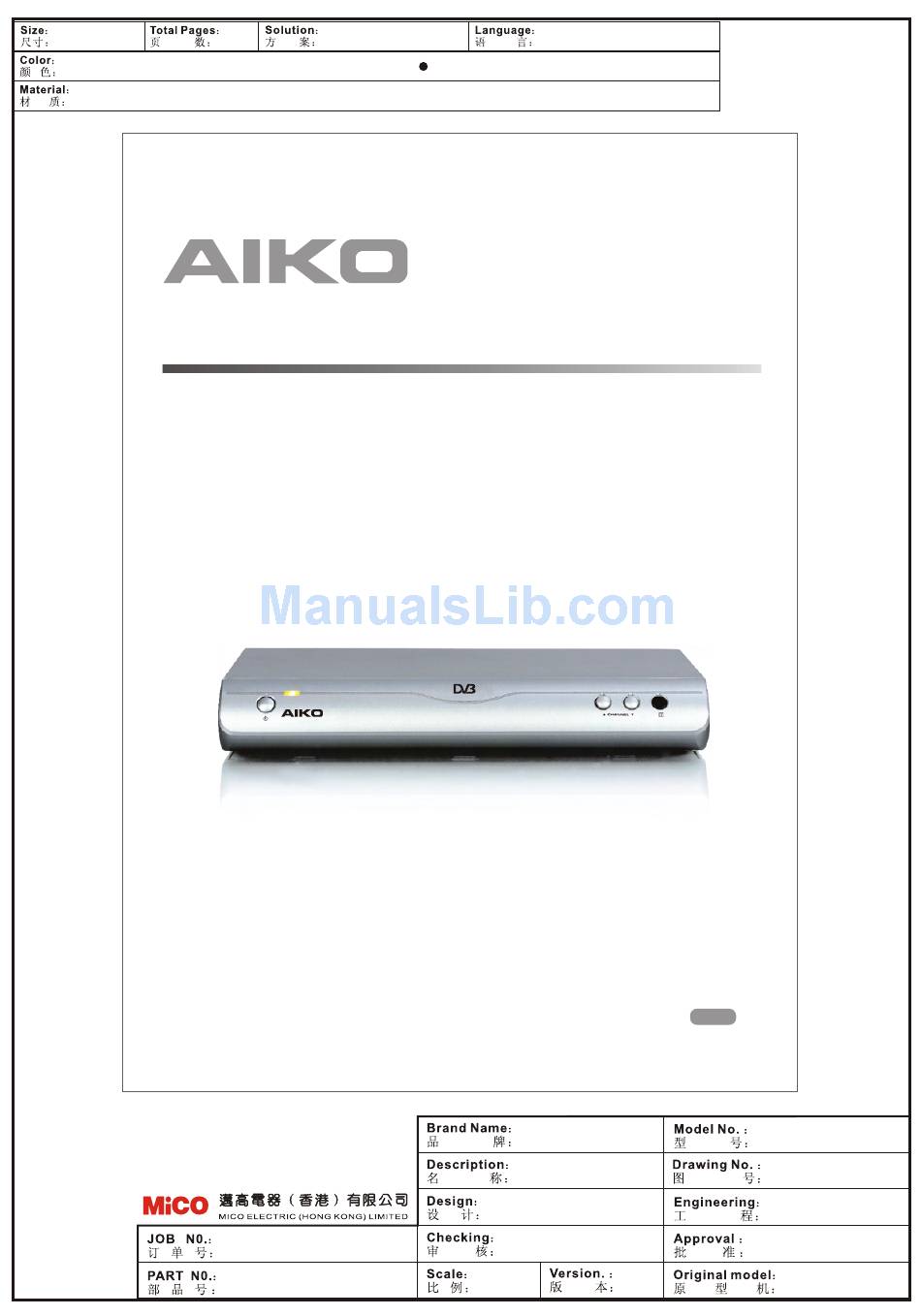

- Page 1 English 143*210MM Ali 3101 Black Single black printing with 70g paper. Set Top Box Digital receiver STB 255 OWNER'S MANUAL STB255 English Read this manual before installation and use. AIKO STB255 IB(English) 00STB255.I01.0.01 CICO 2008.08.08 J080285 P4B1TB255029 V2.0 STB255...
- Page 2 Set Top Box Digital receiver STB 255 OWNER'S MANUAL STB255 English Read this manual before installation and use.
- Page 3 SAFETY INFORMATIONS TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. CAUTION Water and Moisture- do not use this video product near water for example, To reduce the near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or risk of fire and electric shock, do near a swimming pool and the like.
-
Page 4: Table Of Contents
CONTENTS SAFETY INFORMATION INTRODUCTION Front panel Rear panel Remote control SYSTEM CONNECTION General Connection to the TV Connection to the video recorder Connecting a HiFi System GETTING STARTED Welcome page Automatic channel scan Manual channel scan Aerial Adjustment OPERATION Changing channels Access the Electronic Programme Guide(EPG) Accessing the favorite channels CHANNEL... -
Page 5: Introduction
INTRODUCTION About STB Front panel Channel down Standby button Channel up STB255 Power indicator Remote sensor Rear panel TV aerial Component Video AC Mains for an external TV aerial (Y Pb Pr) SERVICE port Coaxial Digital Audio (For update the software) AC 220-240V ~50/60Hz Down Mix Audio... -
Page 6: Remote Control
INTRODUCTION Remote control Power On/Standby (Switch the STB ON/STANDBY mode) INFO (Press for current channel information) RECALL (switch to previous channel) STANDBY MUTE INFO SUBTITLE Channel up/down PAUSE (Pause the current playback picture) RECALL Menu VOL+ (Open up menu) PAUSE Cursor ( to select sub-menu from the VOL-... -
Page 7: System Connection
SYSTEM CONNECTION General There are many different types of TV/VCR and other equipment that you can connect to the STB. In this manual you will see some of the most common ways to connect your equipment. Connection to the TV Green Antenna Y Pb Pr cable... -
Page 8: Getting Started
GETTING STARTED Welcome Page If you use the STB the first time or after you delete all channel information in the STB,the "WELCOMOE PAGE" picture for quick shortcut menu will display . WELCOME PAGE OSD Language Press "1~5" numeric button to enter OSD Language, Region, Tuner Region Power, Auto Scan and Main Menu quickly. -
Page 9: Operation
OPERATION Changing Channels There are four ways of channel selection - stepping through the channel list, selection by number, from the on-screen channel list, and using the electronic programme guide(EPG). Stepping through the channel list: To move through the channel list, press the upward arrow or downward arrow key on the remote control. -
Page 10: Channel
CHANNEL Channel list menu Press "MENU" button to enter the main menu, select "Channel" and press "OK" button Channel to enter the channel menu. TV Channel List Radio Channel List Delete All Favorites Press "UP" or "DOWN" cursor button to select the desired item and press "OK" button Delete All Channels to enter the setting menu. -
Page 11: Radio Channel List
CHANNEL TV Channel list (Continued) Skip: In "Edit Channel" menu, press numeric button "2" ,the selected channel is marked in a skip symbol. After saving and quitting "Edit Channel" menu, the marked channel will be skip while you change the channel in full screen. Press "2"... -
Page 12: System Set Up
SYSTEM SET-UP System setup main menu Use system menu to set OSD Language, TV System, Start up Service, Region and Time, Timer Setting, OSD Setting and Parental Lock. Main Menu Press "MENU" button to enter main menu, select "SETUP" and Channel press "OK"... -
Page 13: Region And Time
SYSTEM SET-UP Region and Time Use this menu to setup country and time. GMT Usage: To set the GMT Usage to Off / User Define / By Region mode. Region and Time Region France GMT Offset: This item is valid only when the setting of "GMT Usage" is "Uesr Define". GMT Usage By Region And the GMT Offset range is "-12:00 ~ +12:00", Increase each half hour... -
Page 14: Tools
Tools Tools main menu Press the "MENU" button to enter the main menu. Tools Main Menu Press the "UP" or "DOWN" cursor button to select "Tools". Channel Information Game Press the "OK" button to enter the sub-menu. Installation Load Factory Default Software Upgrade System Setup Press the "UP"... -
Page 15: Troubleshooting
TROUBLESHOOTING In some region, the digital terrestrial signal may be weak. So you'd better use the antenna in which the booster was built,for watching the weak signal channels. Problem Possible cause What to do Mains lead unplugged Check mains lead Standby light not lit Mains fuse blown Check fuse... -
Page 16: Specifications
SPECIFICATIONS TUNER & CHANNEL RF INPUT CONNECTOR x1 (IEC-TYPE, IEC169-2, FEMALE) RF OUTPUT CONNECTOR x1 (IEC-TYPE, IEC169-2, MALE (LOOPTHROUGH)) FREQUENCY RANGE: 174MHz ~230MHz (VHF) & 470MHz ~862MHz (UHF) SIGNAL LEVEL: -15 ~ -70 dbm DECODER MPEG-2 ISO/IEC 13818 TRANSPORT STREAM PROFILE LEVEL MPEG-2 MAIN PROFILE @MAIN LEVEL MAX.
