SERVICE
THIS SUPPLEMENT CONTAINS EXPLODED VIEW AND PARTS LIST FOR MODEL CE959GT(DARK
GRAY). FOR MORE SERVICING INFORMATION, PLEASE CONSULT THE PREVIOUS SERVICE
MANUAL FOR CE959G WHICH WAS DISTRIBUTED IN JULY 1998.
MICROWAVE OVEN
AMFO
MICROWAVE OVEN
CE959GT (DARK GRAY)
1. Precaution
2. Control Panel
3. Exploded View & Parts List
4. P.C.B Diagram
5. Schematic Diagrams
TIMER
POWER SOURCE
Auto
POWER CONSUMPTION
Auto
OUTPUT POWER
1.
2.
3.
Auto
1 min +
OPERATING FREQUENCY
MAGNETRON
COOLING METHOD
OUTSIDE DIMENSIONS
NET WEIGHT
SHIPPING WEIGHT
Manual
Supplement
CONTENTS
Specifications
99 MINUTES 90 SECONDS
230V/50HZ, AC
MICROWAVE : 1,500W
GRILL : 1,300W
FROM90 TO 900W
(10 LEVEL POWER)
(IEC-705 TEST PROCEDURE)
2,450MHz
OM75PH(31)
COOLING FAN MOTOR
517(W) x 297(H) x 410(D)
20 Kg
22 Kg
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Samsung CE959GT
Summary of Contents for Samsung CE959GT
-
Page 1: Microwave Oven
MICROWAVE OVEN CE959GT (DARK GRAY) SERVICE Manual Supplement THIS SUPPLEMENT CONTAINS EXPLODED VIEW AND PARTS LIST FOR MODEL CE959GT(DARK GRAY). FOR MORE SERVICING INFORMATION, PLEASE CONSULT THE PREVIOUS SERVICE MANUAL FOR CE959G WHICH WAS DISTRIBUTED IN JULY 1998. MICROWAVE OVEN CONTENTS 1. -
Page 2: Exposure To Excessive Microwave Energy
(e) A Microwave leakage check to verify compliance with the Federal performance standard should be performed on each oven prior to release to the owner. Samsung Electronics... -
Page 3: Safety Precautions
16. Always connect a test instrument's ground CENTRAL SERVICE CENTER lead to the instrument chassis ground before connecting the positive lead; always remove the instrument's ground lead last. 10. Service technicians should remove their watches while repairing an MWO. Samsung Electronics... -
Page 4: Special High Voltage Precautions
(Use a screwdriver.) 3. High voltage is maintained within specified limits by close-tolerance, safety-related components and adjustments. If the high voltage exceeds the specified limits, check each of the special components. Fig. 1-1. Discharging the High Voltage Capacitor Samsung Electronics... - Page 5 2. Control Panel Auto Reheat Programs Auto Auto Cook Programs Auto Power Level Button Combi Button Auto Defrost Programs Auto Grill Button More/Less Button Cancel Button 1 min + Clock Setting Button CE959G Start Button Samsung Electronics...
-
Page 6: Exploded Views And Parts List
3. Exploded Views and Parts List 3-1 Exploded Views Samsung Electronics... -
Page 7: Main Parts List
M 21 DE31-10154A MOTOR-DRIVE;M2HJ49ZR02,ST-16,21V,5/6 M 22 DE71-60382A COVER-CEILING;MICASHEET,T0.5,70,133 M 23 DE71-60016A COVER-AIR;PP,2,WHT,M945/M245 M 24 4713-001031 LAMP-INCANDESCENT;230V,173mA,40W,ORG,-,-,25x69mm M 25 DE94-00024A ASSY DOOR;CE959GT-D,DARK-GRAY,AMFO M 26 DE94-00025A ASSY CONTROL-BOX;230V50HZ,CE959GT-D,DARK-GRAY,AMFO M 27 DE61-30006A SUPPORTER-HEATER;ALUMINA,5G,2ND-W/P M 28 DE61-70060A SPRING-PLATE;SK-5,T0.5 M 29 DE61-50490A BRACKET-TCO;SECC1,T0.6,34,58 M 30 DE03-30035A MAGNETRON;OM75PH((31)ESS... -
Page 8: Door Parts List
BUTTON-SELECT(E);ABS(HR0370),-,-,M959-D,D/GRAY C 13 DE64-10127F KNOB-COVER;ABS(HR0370D),-,CE959GT-D C 14 DE66-20182G BUTTON-START;ABS(HR0370D),-,-,DE959GT-D,DARK-GRAY C 15 DE71-60378A COVER-LAMP;POM,T2,W19.4,L27,3G,NTR,RE-446 C 16 DE94-00021A ASSY CONTROL-PANEL;-,CE959GT-D,DARK-GRAY,AMFO 3-5 Body Latch Parts List Ref. No. Parts No. Description/Specification Q'ty Remarks DE66-40001A LATCH-BODY;POM(F20-02) 40GR NTR 3405-000178 SWITCH-MICRO;VP-533A-OF-PS(T85) 250V,15A 3405-000175 SWITCH-MICRO;VP-531A-OF(T85) 250V,15A,20 DE66-90001A LEVER-SWITCH;P.O.M(F20-02) 2 6 NTR 2ND-W... -
Page 9: Standard Parts List
CV-TCO DE60-10098A SCREW-ASSY TAP TITE;PH,TC,M4X8,SWRCH18A,ZPC2,GLD,W M/DRIV DE60-10122A SCREW-TAP TH;TAP,TH,2-4X8,FE,FN C-CEIL DE60-20063A BOLT-FLANGE;M4,10,ZPC3,YEL,MSWR HI-LOW DE60-20063A BOLT-FLANGE;M4,10,ZPC3,YEL,MSWR HI-UPP DE60-10045A SCREW-TAP PH;PH,M3,L6,FEFZY DE60-10066A SCREW-TAP TH;TH,M4,L8,FEFZY,2-SLOT H/DOOR DE60-10012A SCREW-TAP TITE;TH,+,3,M4,L10,SWR10,ZPC2,TOOTH DE60-10098A SCREW-ASSY TAP TITE;PH,TC,M4X8,SWRCH18A,ZPC2,GLD,W DE60-10088A SCREW-TAP PH;PH,M3,L8,FEFZY,PLAIN CON/PANEL DE60-10045A SCREW-TAP PH;PH,M3,L6,FEFZY GR-TCO Samsung Electronics... - Page 10 4. P.C.B Diagrams 4-1 P.C.B Diagrams Samsung Electronics...
- Page 11 C15~C17 2401-000247 C-AL;100uF,20%,10V,GP,-,6.3x11mm,5m 2401-000914 C-AL;22uF,20%,16V,GP,TP,5x11,5 C04,C06 2401-001268 C-AL;4.7uF,20%,50V,GP,TP,5x11,5 2401-001412 C-AL;470uF,20%,35V,GP,TP,10x16,5 2401-001573 C-AL;47uF,20%,50V,GP,TP,6.3x11,2.5 2802-000161 RESONATOR-CERAMIC;4MHz,0.5%,TP,10.0x5.0x7.5mm XTL1 3404-000282 SWITCH-TACT;12Vdc,50mA,120+-30gf,6.2x3.6mm SW01~SW10 3711-000203 CONNECTOR-HEADER;1WALL,3P,1R,3.96mm,ANGLE,SN CN01 3711-000240 CONNECTOR-HEADER;1WALL,4P,1R,3.96mm,STRAIGHT,SN CN02 3711-000881 CONNECTOR-HEADER;BOX,3P,1R,2.5mm,STRAIGHT,SN CN03 DE13-20009A IC;KA7533,DIP IC02 DE39-60001A WIRE-SO COPPER;PI0.6,SN,T,52MM,TAPING_WIRE J01~J03,J05~J15 DE41-10463A P.C.B-MAIN;FR-1,T1.6,W89,L330,CE959G DE60-60012A PIN-EYELET;ID2.1,OD2.5,L3.0,SN,BSP,T0.25 Samsung Electronics...
-
Page 12: Schematic Diagrams
YEL : YELLOW BLK : BLACK BLK BLK Y/G : YELLOW GREEN PRIMARY LATCH DOOR SENSING MONITOR SWITCH SWITCH SWITCH MAGNETRON HIGH VOLTAGE DIODE TO CHASSIS HIGH VOLTAGE CAPACITOR H.V.FUSE SYMBOL COLOR BROWN BLACK BLUE HIGH VOLTAGE TRANSFORMER Samsung Electronics... - Page 13 ELECTRONICS © Samsung Electronics Co., Ltd. November 1998 Printed in Korea DE68-62706B...
Need help?
Do you have a question about the CE959GT and is the answer not in the manual?
Questions and answers

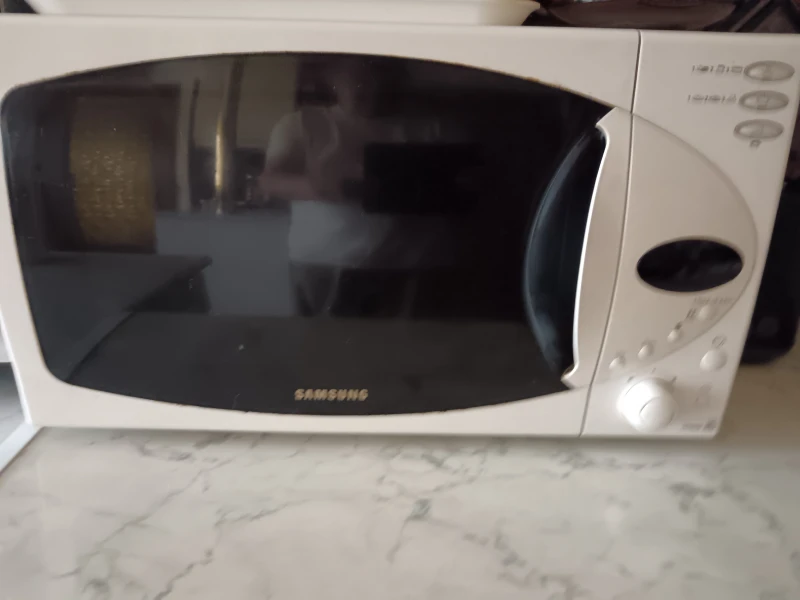

Nem mutatta semmit a kijelző,nem veszi fel az áramot!....
If the Samsung CE959GT display is not showing anything and it is not receiving power, possible issues include:
1. Defective Ass'y PCB – causes no display and no operation.
2. Open low voltage transformer – check Ass'y PCB if LVT is defective.
3. Shorted lead wire harness – check for short circuits.
4. Defective primary latch switch, monitor switch, or door sensing switch – all must be replaced together.
5. Blown fuse – caused by short circuits or faulty components.
Check each component and connection in the power circuit to identify the fault.
This answer is automatically generated
