AV Link CC601 User Manual

Thank you for choosing the CC601 TV bracket. This bracket is constructed from reinforced steel to allow a screen sized from 32" to 65" and up to 45kg
to be mounted on a wall safely. Designed to be easily installed and supplied with all required installation hardware.
Caution:
Please read this manual thoroughly to avoid damage to property or personnel. If unsure of any part of this manual please refer to professional installer
for help:
 This product contains small components that could pose a choking hazard if swallowed, please keep out of reach of children.
 This product is designed for mounting on wall studs or concrete wall. Always ensure the mounting surface will be capable of withstanding the
combined weight of the TV bracket and TV, reinforcement may be required for aged or weak walls.

Safety gear such as gloves and safety goggles must be worn during the installation. A minimum of two people are required throughout the
installation, failure to do so may result in injury or damage.
 This product is design for indoor use only. The bracket must be inspected at least every two months for loose joints or aged parts.

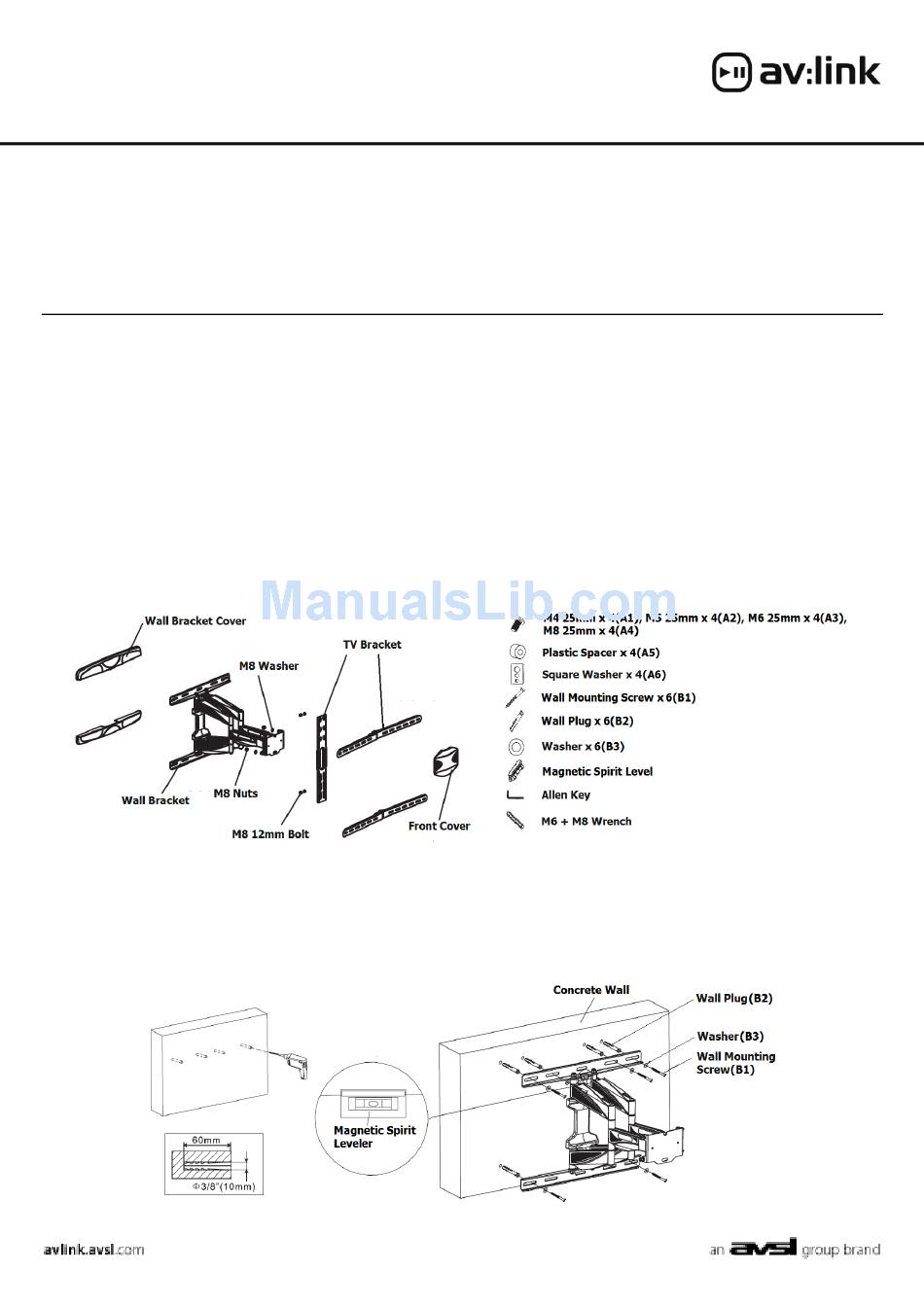

Contents:
Please check all contents listed below are included inside the box. If anything is missing please return to the retailer or dealer.
For this installation you will also require a pencil, tape measure, electric drill, stud finder and a Philips (cross) screw driver.
Step 1 – Fixing wall bracket
For concrete wall installation first of all work out the height of the installation and ensure it is level using the spirit level. Use a pencil to mark where the
mounting holes will be and use an electric drill to drill a hole that is around 10mm in diameter and 60mm deep. Insert the wall plugs into the holes and
install the wall bracket as follows.
Full Motion TV Wall Bracket For Curved or Flat Screens
CC601
Item ref: 129.561UK
User Manual
