Summary of Contents for System Q LAM042

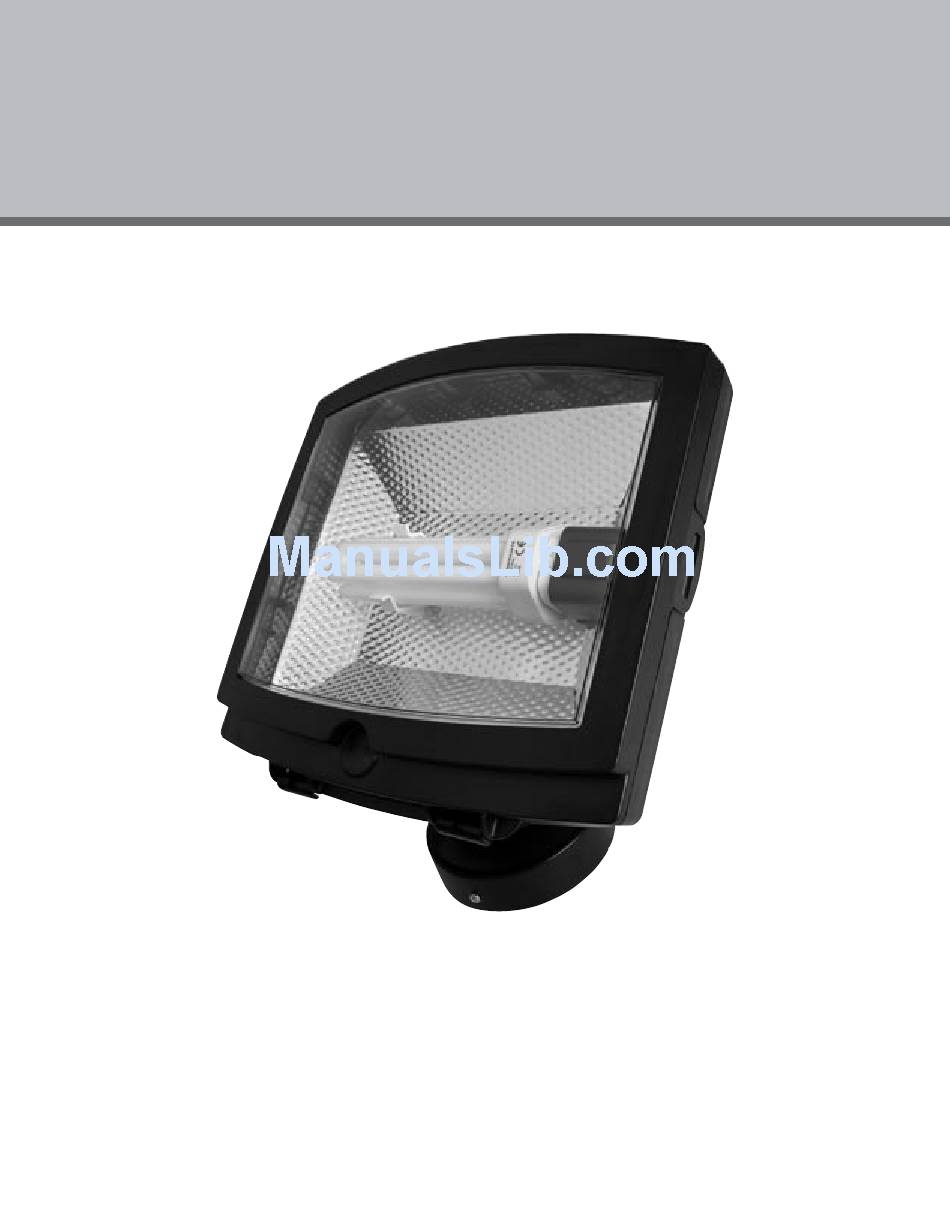

- Page 1 42W ENERGY SAVER FLOODLIGHTS LAM042 Instructions...
- Page 3 Clamping Screws (vertical adjustment) Time...
-
Page 4: General Information
SECTION ONE GENERAL INFORMATION This floodlight features an integral daylight sensing photocell which will automatically switch the light on at dusk and off at dawn or at a time set by the user. Unit is for outdoor use only. Unit must be mounted as a fixed luminaire, and is not suitable for portable use. - Page 5 To fit the bulb, release but do not remove the two screws on the rear of the floodlight (diagram B). Release the clips shown on diagram B at either side of the housing, the floodlight front cover will open and rotate down but will not separate from the main floodlight body. Remove the bulb from its packaging and fit into the lampholder.
-
Page 6: Operation And Testing
SECTION THREE OPERATION AND TESTING SETTING UP FOR AUTOMATIC OPERATION The adjustment controls on the unit (diagram F) should be set as follows. The TIME control determines how long the lamp remains illuminated after activation. There are 5 designated “time on” settings O (or off), 2, 4, 6, 8 hours and dusk/dawn. These settings allow the lamp to illuminate for the designated time on period after darkness falls and the unit is activated. -
Page 7: Technical Specifications
SECTION FOUR TECHNICAL SPECIFICATIONS Power Supply 240V AC ~ 50Hz Lamp Type 240V 42W 4 pin (GX24q-4) Low Energy lamp 2, 4, 6, 8 hours from dusk or dusk/dawn Time On Day & night or night only operation Lux Level Adjustment IP44 (suitable for outdoor use) Environmental Protection Conforms to 73/23/EEC, 89/336/EEC...
