Installation and Quick Start Guide

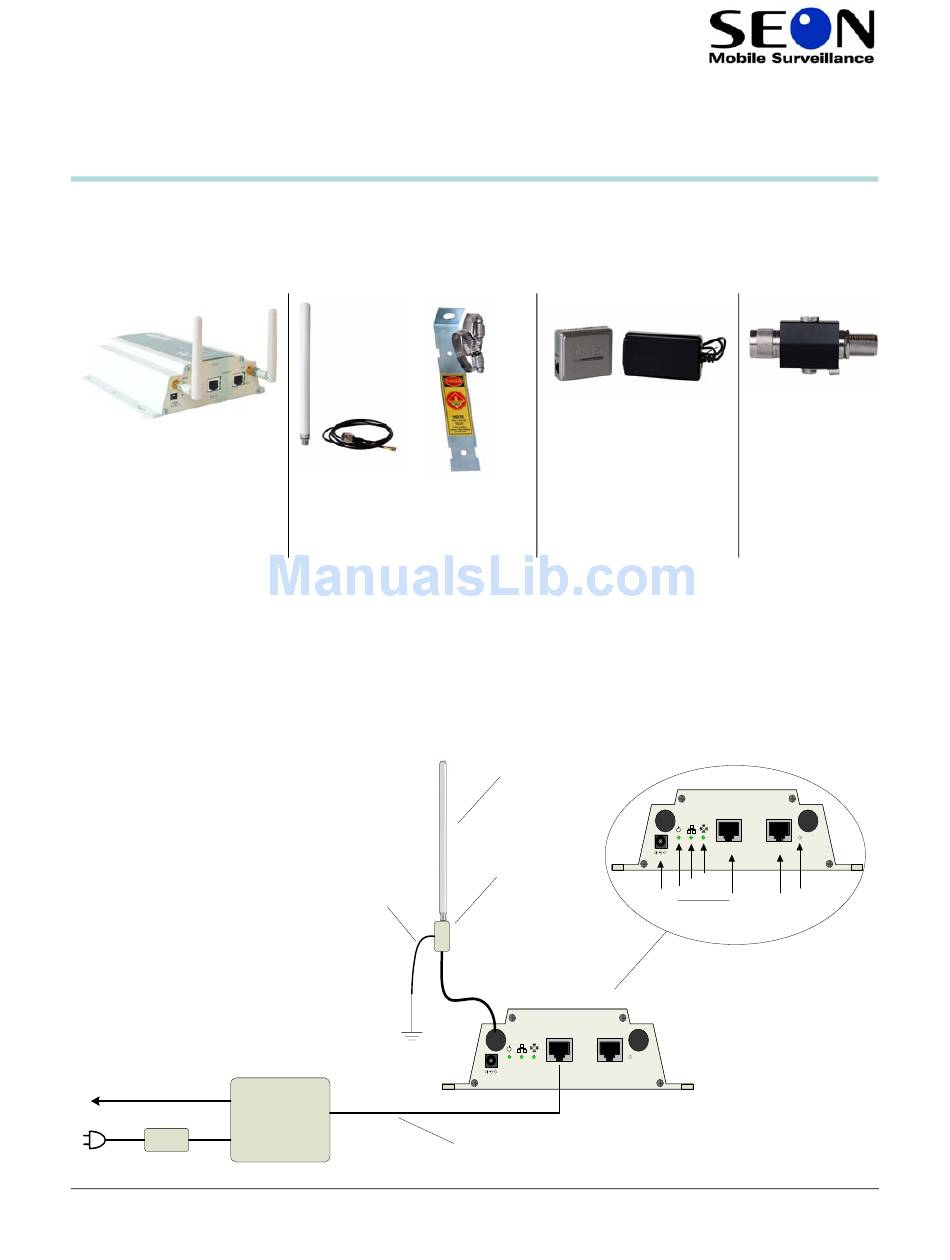

Package Contents (typical)
The contents of a typical installation package are shown below. The actual contents of your installation
package may vary. The installation package include 3 ft Ethernet (CAT5e) cable and mounting hardware.
Smart-Reach Base (single or
dual radio)
Additional components required:
•
Ethernet cable to connect the PoE injector to
length required for your installation.
•
12 AWG stranded wire to connect the ground terminal on the surge protector to a pipe in the ground.
Installation
In a typical installation, the Smart-Reach Base, single radio or dual radio, is mounted indoors.
Power Over Ethernet
Ethernet to
Intranet / Computer
Ethernet
48V DC
700-0068 R001
Smart-Reach™ Base
Omni-directional antenna with
mounting bracket and 6 ft coaxial
cable
Connect to
Earth Ground
Injector
Ethernet + DC
PoE (Power over Ethernet)
injector and AC adapter
Port 1 on the Smart-Reach Base. Purchase the
ETHERNET
Antenna
Surge protector
Smart-Reach™ Base
RADIO 1
MAIN
AUX
ETHERNET
1
2
802.3af
5 VDC
Ethernet cable
(additional
component )
Antenna lightning
(surge) protector,
N-Male to
N-Female
RADIO 1
MAIN
AUX
ETHERNET
1
2
802.3af
5 VDC
Wireless
Ethernet
Power
Power
Ethernet ports
Reset button
connector
Status lights
1
Advertisement
Table of Contents
Summary of Contents for SEON Smart-Reach
- Page 1 • 12 AWG stranded wire to connect the ground terminal on the surge protector to a pipe in the ground. Installation In a typical installation, the Smart-Reach Base, single radio or dual radio, is mounted indoors. Antenna RADIO 1 MAIN ETHERNET 802.3af...
-
Page 2: Installing The Antenna
Quick Start Guide Installing the Antenna The Smart-Reach Base can have a single or dual radio with two antennas for diversity. Each radio has two antenna connections: Main and Aux. In a typical installation, only the Main antenna connection on each radio is used. - Page 3 WARNING: Surge Protection and Grounding If you plan on connecting an outdoor antenna to the Smart-Reach Base, make sure that proper lightning surge protection and grounding precautions are taken according to local electrical code. Failure to do so may result in personal injury, fire, equipment damage, or a voided warranty.
- Page 4 In Windows XP, use Control Panel > Network Connections > Local Area Connection > Properties > Internet Protocol (TCP/IP) > Properties. 3 Disable any wireless connection. Important: To perform any additional configuration, assign an IP address, or to reset the Smart-Reach Base to factory defaults, contact Customer Service. 700-0068 R001...
- Page 5 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experience radio/TV technician for help. Customer Service Contact Information Toll free telephone 1-877-630-7366 or telephone 604-941-0880 Email: service@seon.com ©February 2009. Printed in Canada. All rights reserved. Seon Design Inc. www.seon.com 700-0068 R001...
