LuxHome LHR110EE User Manual

These instructions should be read in conjunction
with your LHK110EK Instruction Guide and should
be retained for future reference.

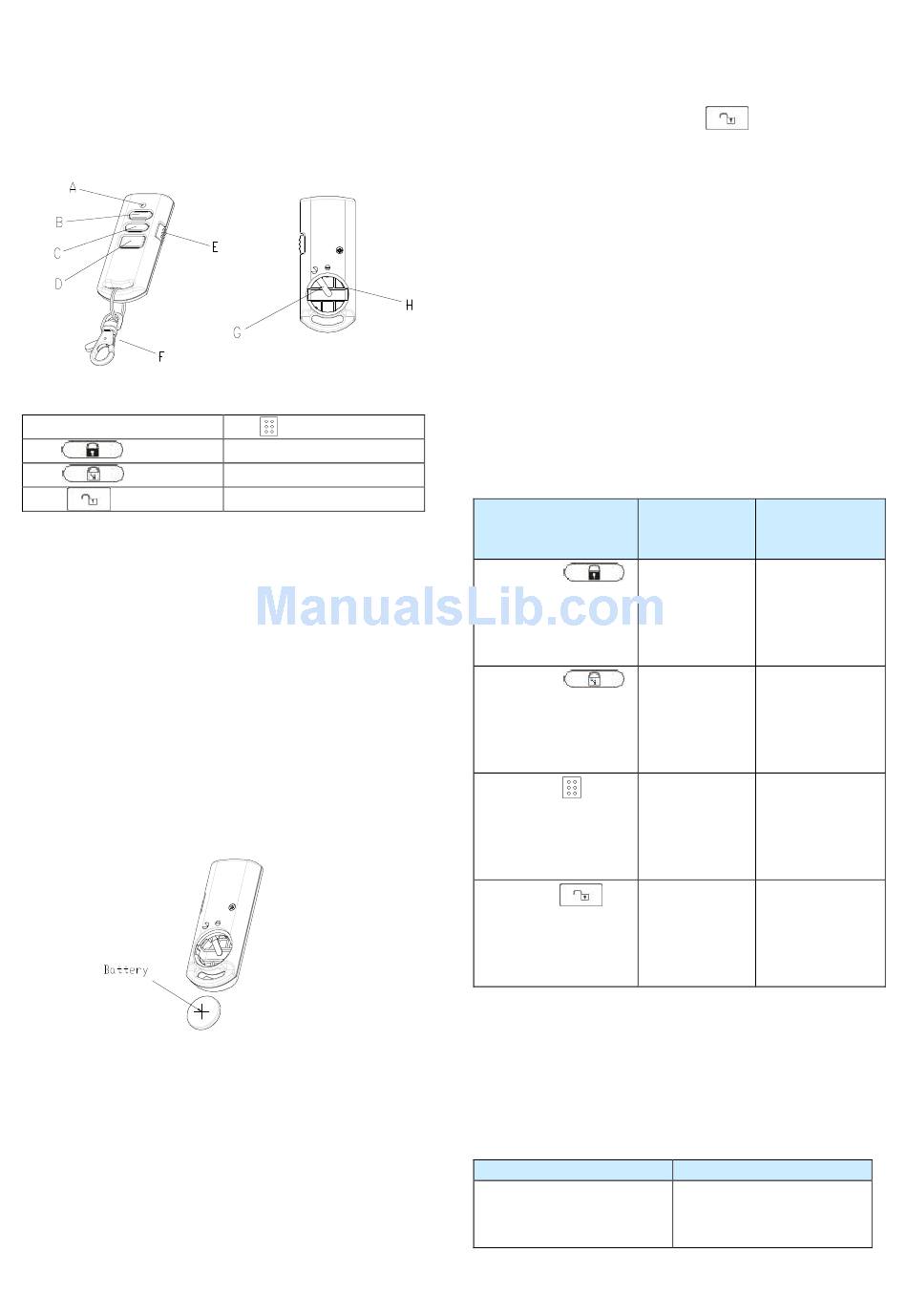

A LED indicator
B Full Arm
C Silent Arm
D Disarm
The LHR110EE is only compatible with the LHK110EK
Smart Home Security System.
The Remote Controller operates on a CR2032 type
Lithium cell battery which under normal conditions will
have typical life of up to 1 year.

Loading the Battery

1. Remove the rear cover by inserting a coin into
the groove and rotating anti-clockwise.
2. Insert the battery ensuring that the +v terminal
faces upwards away from the PCB.
.
3. Fit the rear cover back onto the remote and
using the coin rotate clockwise until the groove
is straight.

Emitting the ID Code

1. Set the Control Panel into ID code learning
mode by going into settings > alarm and
Remote Control LHR110EE

User Manual

E Panic Switch
F Key Chain Ring
G Negative Polarity
H Positive Polarity
choose to add a remote control.
2. Press and hold the
Remote Control for more than 3 seconds. This
will emit the ID code to the control panel.
3. If code learning is successful there will be a
'tick' icon on the Control Panel. If not then
repeat steps 1 and 2.
Note: To remove the Remote Control from the control
panel, simply execute the "Unpair" function on the
panel.

Operation

There are four buttons on the Remote Control, each of
which will transmit a radio signal to the 7-inch Touch
Control Panel. Their functions are listed below:
Operation and LED
Status
Press the
button, the LED
comes on for 1
second
Press the
button, the LED
comes on for 1
second
Press the
button, the LED
comes on for 1
second
Press the
button, the LED
comes on for 1
second
When any button on the Remote Control is pressed the
LED will come on for approximately 1 second and the
radio signal will be transmitted simultaneously.

Troubleshooting

Symptom
LED not illuminating when
any button/switch pressed
1
button on the
Remote Operating
Controller RF Status of
Transmission Control Panel
Full Arm Full Arms the
Control Panel
Silent Arm Silent Arms the
Control Panel
Panic Switch Full Alarm
Condition
Disarm Disarms the
Control Panel
Recommendation
1.
Ensure correct battery
polarity
2.
Replace with new
battery
