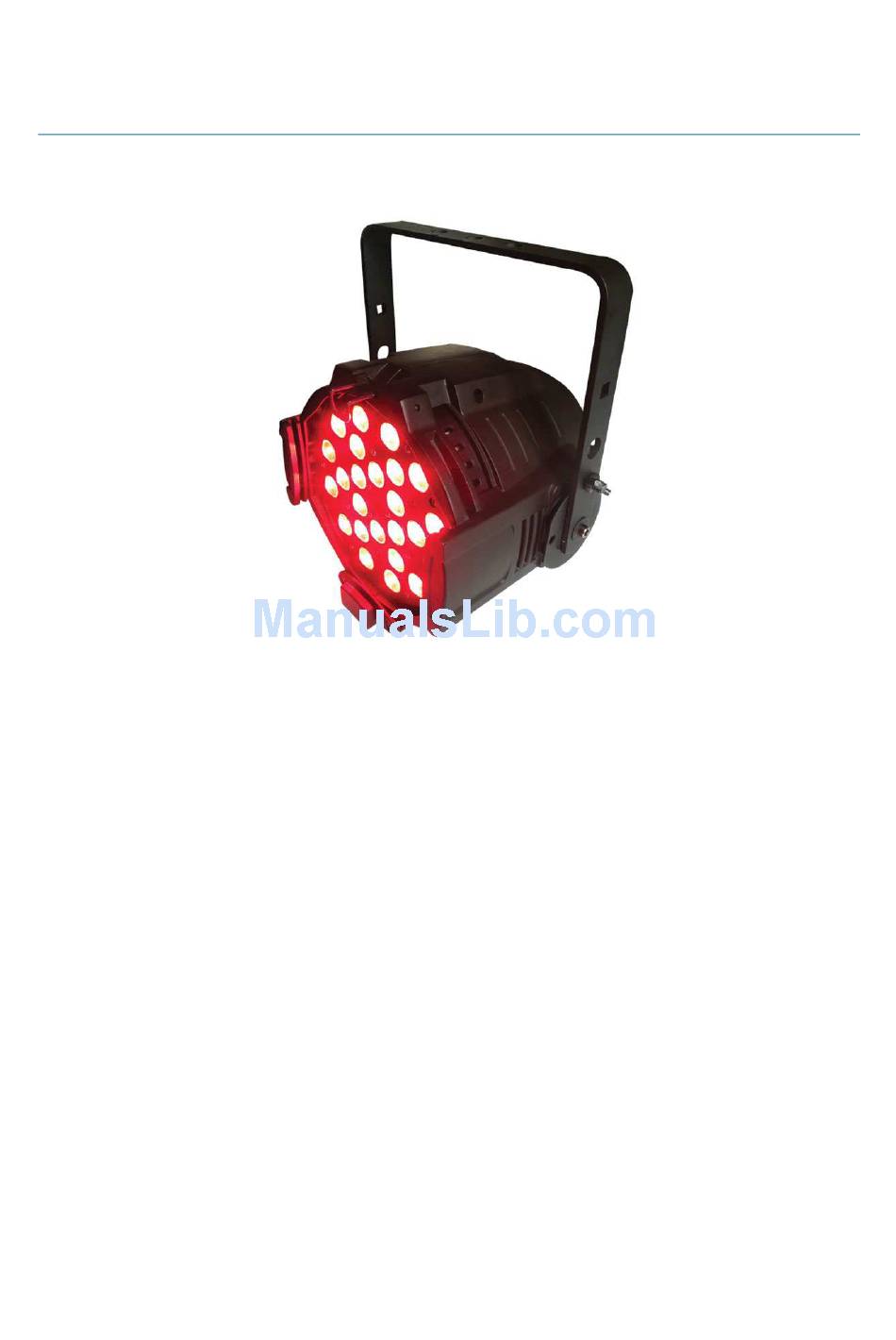

HIGHENDLED YHLL-001TZ-5W 4 in 1 RGBW LED PAR ZOOM
The YHLL-001TZ 4IN1 LED Par can creates a bright array of colors for dynamic stage lighting and scenery
effects. It is widely used in entertainment halls, theaters, clubs. church auditoriums, live stages, etc. The LED
menu is operated via four buttons - MODE, SET UP,UP, & DOWN. The YHLL-001Z 4IN1 has integrated
temperature protection, allowing the light to automatically shut off should the light reach temperatures above
85˚C (181˚F). This allows the unit to cool off in extreme temperatures without damage and while not affecting
other units in operation.The fan speed will be adjusted automatically with the temperature of the LED PAR,the
higher the faster.
Specifications
•
Size:37x27x22CM
•
Weight: 6.2kgs
•
Power input: AC120V/240V 50HZ/60HZ
•
Wattage: 125W
•
LEDS: 24PCS 5W (4 IN 1)
•
Beam angle of LEDs: 25°~60°
•
3PIN female DMX XLR socket and 3PIN male DMX XLR socket
•
Built-in microphone
•
4 button Digital LED menu
Operation Manual
1 of 7 pages
Advertisement
Table of Contents
Summary of Contents for Highendled YHLL-001TZ 4IN1 LED Par
-
Page 1: Specifications
HIGHENDLED YHLL-001TZ-5W 4 in 1 RGBW LED PAR ZOOM The YHLL-001TZ 4IN1 LED Par can creates a bright array of colors for dynamic stage lighting and scenery effects. It is widely used in entertainment halls, theaters, clubs. church auditoriums, live stages, etc. The LED menu is operated via four buttons - MODE, SET UP,UP, &... -
Page 2: Operating Modes
Operating Modes • DMX mode • Manual dimmer color mode • Static color select mode • Auto-run program mode (Continued Color Change&Color Mixing) • Sound-active mode • Other mode Mode Selection Here above six kinds running mode are selected by MODE button.The DP dot of fourth digital tube will be flicker when you operate it ,then the DP dot will be automatically off after 60 seconds if there is no operation.The four digital tube will display the current operation mode.You have to press the MODE button if you want to operate the LED PAR again. - Page 3 AUTO Jumping mode set Select the built-in jumping mode Speed set Adjust the speed of the dreaming/snap MODE program mode Zoom Adjust the beam angle from big to small STATIC Static Color select Select the 15 static colors COLOR Strobe Adjust the strobe speed, is flash SELECT...
- Page 4 AF-(X) Color Mixing Modes 1-8,the Color change program Modes&Color Mixing Modes speed SP(XX) 1-16 and the beam angle from big to small. 1-Lowest Speed 16-Highest Speed Sound-Active Mode 1. Press MODE button until you select SO-(X).Press UP or DOWN to select the Sound-Active Mode 1-8.
- Page 5 signal. Zoom direction 1. Press MODE button until the display reads A.XXX,then press SET UP button to reach"Zd.UP". 2. Press UP or DOWN to select zoom direction up"Zd.UP" or zoom direction down"Zd.dn"."Zd.UP"means that the bigger DMX value,the bigger beam angle;"Zd.dn"means that the bigger DMX value,the smaller beam angle.
- Page 6 7 Channel Configuration Function value 000~255 Red(dim→bright) 000~255 Green(dim→bright) 000~255 Blue(dim→bright) 000~255 White(dim→bright) 000~255 Dimming(dim→bright) 000~015 No function 016~255 Strobe slowest to fastest flash frequency is 0.1HZ-20HZ 000~255 Zoom,adjust the beam angle from the smallest to biggest when it is set to Zoom,adjust the beam angle from the biggest to smallest when it is set to 8 Channel Configuration MODE...
- Page 7 192-199 Color change 1 200-207 Color change 2 208-215 Color change 3 216-223 Color change 4 224-231 Color change 5 232-239 Color change 6 240-247 Sound mode1 Sensitivity 0-255 248-255 Sound mode2 7 of 7 pages...
