Coopers 9071 Instructions Manual

Pole pruner
Hide thumbs
Table of Contents

Advertisement

Quick Links

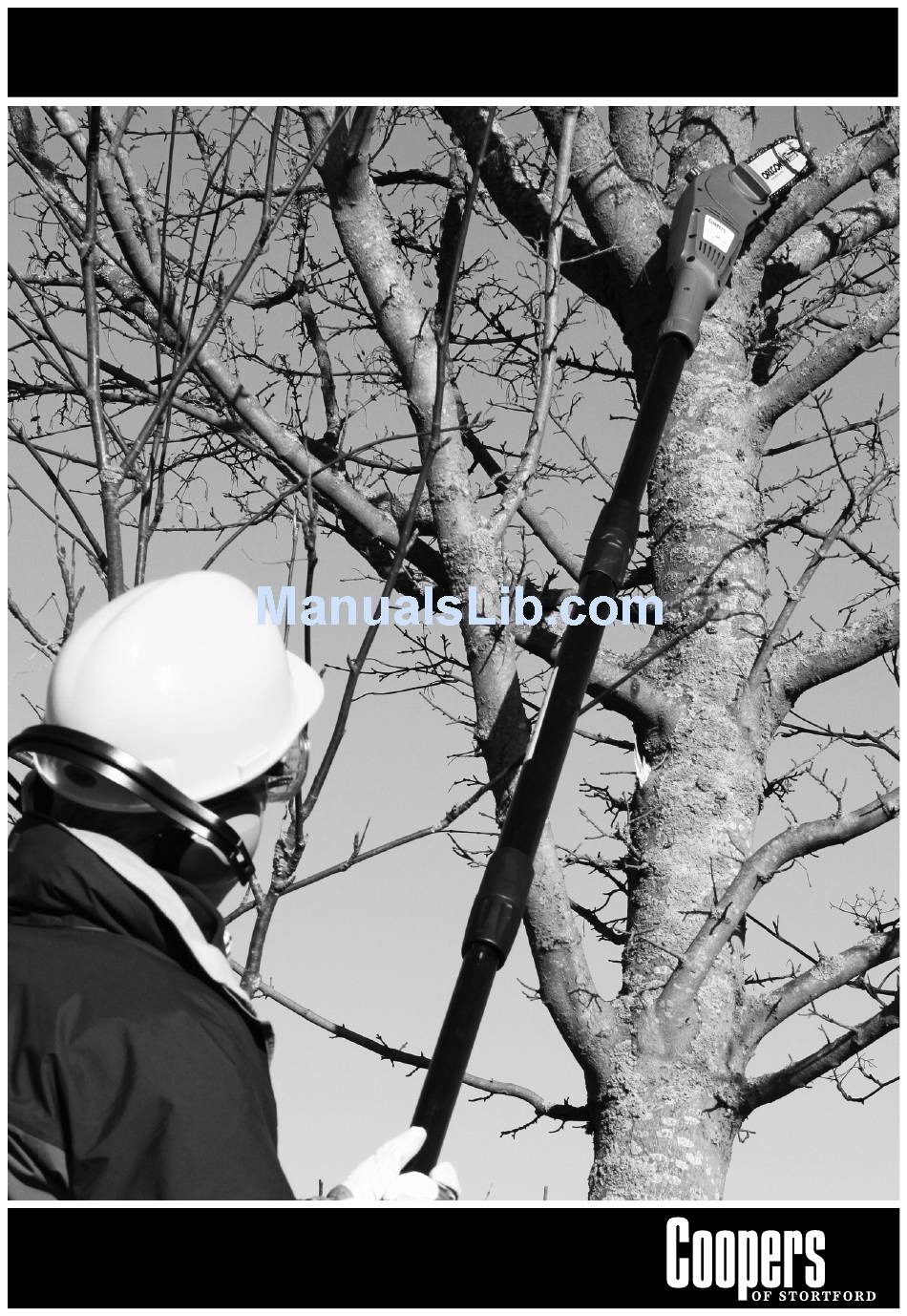

Pole Pruner (Chainsaw)
Instructions
9071
IMPORTANT:
Read and understand these instructions before assembling or operating this Pole Pruner.
Improper use can cause severe injury. Keep these instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9071 and is the answer not in the manual?

Questions and answers

Related Manuals for Coopers 9071

Summary of Contents for Coopers 9071

  • Page 1 Pole Pruner (Chainsaw) Instructions 9071 IMPORTANT: Read and understand these instructions before assembling or operating this Pole Pruner. Improper use can cause severe injury. Keep these instructions for future reference.

  • Page 2: Table Of Contents

    PARTS LIST Content: 1. Guide Bar Parts List 2. Saw Chain Technical Data 4. Guide Bar Knob Safety Instructions 5. Cover Plate Getting Started Operation Cleaning, Maintenance, Storage and Guarantee 7. Inner Pole 1 8. Knob 2 9. Outer Pole 10.

  • Page 3: Symbols On The Machine

    For safe operation and maintenance, symbols are carved in relief on the Max. chain speed (at 1.33 x max. engine power) 11 metres /second machine. According to these indications, please be careful not to make any Chain oil: Coopers of Stortford 500ml Chainsaw Oil mistake. Oil tank capacity: 55ml The port to refuel the “petrol/oil mix”.
  • Page 4 SAFETY INSTRUCTIONS INTENDED/UNINTENDED USE • Wear a hairnet to contain long hair which can get caught in moving parts. When using the unit, the user must arrange to use personal protective • Always wear suitable head, ear and eye protection. equipment according to the instructions.

  • Page 5: Getting Started

    GETTING STARTED SAFETY INSTRUCTIONS Unpacking Remove all items from carton. BEFORE STARTING THE ENGINE 1. The area within a perimeter of 50ft (15m) of the person Check all items for any shipping damage. If you find any damage or if any using the unit should be considered a hazardous area parts are missing, promptly inform the dealer where you bought the Pole into which no one should enter.
  • Page 6 GETTING STARTED 4. Place chain along top groove of guide bar and around guide bar nose, making sure cutting edges of chain are facing in the correct direction. Position chain so cutting edges on top of guide bar face guide bar nose. ASSEMBLY OF POLE PRUNER CAUTION: Do not place chain on saw backwards.

  • Page 7: Operation

    8. Re-install the sprocket cover and tighten the Guide Bar Knob. Then put screw INSTALL INNER POLE 1 in guide bar cover and tighten it. Loose the knob 2. Install the inner pole 1 into the outer pole. Tighten the knob 2. Open the oil cap and pour oil into the motor unit, making sure oil level exceeds the Min.
  • Page 8 OPERATION (4) Cut at high engine speeds. (5) Do not overreach . (6) Follow the manufacturer’s sharpening and maintenance instructions for the saw chain. (7) Only use replacement bars and chains specified by the manufacturer or the equivalent. AVOIDING PULL-IN Pull-in can occur when the bottom of the chain is used for cutting and is stopped suddenly by hitting a foreign object or getting pinched.
  • Page 9 BUCKING AND LIMBING SKATING /BOUNCING (F17) Bucking is cutting a fallen log into smaller When the chainsaw fails to dig in during a cut, the guide bar can begin hopping lengths. Limbing is the removal of or dangerously skidding along the surface of the log or branch, possibly resulting branches from a fallen tree.

  • Page 10: Cleaning, Maintenance, Storage And Guarantee

    CLEANING, MAINTENANCE AND STORAGE WARNING NOTICE: Below are instructions for servicing you Pole Pruner. SAW CHAIN It is very important for smooth and safe operation to keep the saw chain sharp. Cleaning saw body Your cutters need to be sharpened when: WARNING: Unplug Pole Pruner from power source before servicing.

  • Page 11: Troubleshooting Guide

    STORAGE If storing Pole Pruner for more than 30 days, follow steps below. • Remove and clean guide bar and chain. Clean guide bar and chain by soaking in petroleum based solvent or mild soap and water mixture. • Dry guide bar and chain. •...
  • Page 12 • Dispose of the item at the end of its lifespan at your local authorised household waste recycling centre. Hereby declare that this Pole Pruner Chain Saw, model no. 9071 (DB6108, has been designed to comply with the relevant sections of the above referenced specifications. This unit complies with all applicable essential requirements of these directives.
