Ginger Hill Thermee Instruction Manual

Non-contact forehead thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

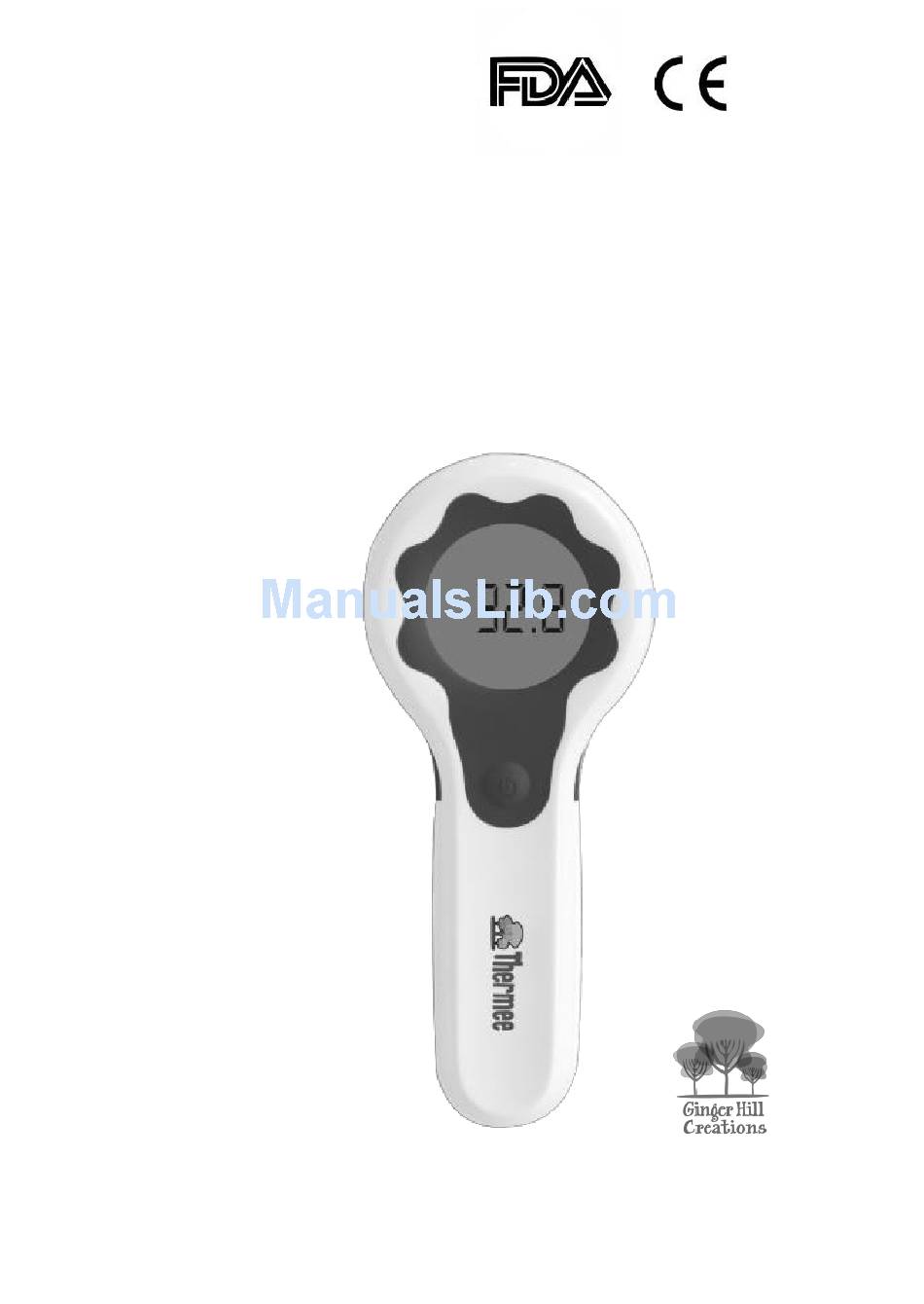

0482
GHC-1001
Thermee
Non-Contact Forehead Thermometer
Instruction manual
V2.5
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thermee and is the answer not in the manual?

Questions and answers

Summary of Contents for Ginger Hill Thermee

  • Page 1: Cover Page

    0482 GHC-1001 Thermee Non-Contact Forehead Thermometer Instruction manual V2.5...

  • Page 2: Introduction

    Introduction Thank you for choosing the NON-contact Digital Infrared Forehead Thermometer from Ginger Hill Creations, Forehead Thermometer for short in these instructions With this unique technology, the forehead thermometer can give you accurate results with non-contact, stable measurement and without the interference from ambient temperature.

  • Page 3: Table Of Contents

    Contents Cover Page……………………………………………………………………..1 Introduction…………………………….…………………………..………….2 Contents…………………………………………………………….…………..3 1.The advantages of our Forehead Thermometer GHC-1001 ....4 2.Necessary safety instructions ..............4 3.Instructions for product designs .............5 4.How to measure with the forehead temperature........6 5.How to measure the milk temperature ...........6 6.Instructions for display and operation ............6 7.Technical specifications ................9 8.After-sale service ..................

  • Page 4: The Advantages Of Our Forehead Thermometer Ghc-1001

    1.The advantages of a Forehead Thermometer Multiple uses (measurement of body temperature and milk temperature) Forehead Thermometer provides measurement of body temperature, which is from 32℃ to 42.2℃(from 89.6℉ to 107.9℉) , and milk temperature, which is from 0℃ to 100.0℃（from 32.0℉ to 212.0℉）. The product consists of ABS common plastics, TPR plastics, temperature sensor, Infrared temperature measuring element, microcomputer controlled circuit and LCD.

  • Page 5: Instructions For Product Designs

    Humidity: 0 - 95% RH, non-condensing Atmospheric pressure: 860hPa to 1060hPa ●The device is not normally used for a newborn baby. ●The device is not a continuous monitoring device. ●The device is not waterproof. Please do not wet it with water or with other liquids.

  • Page 6: How To Measure With The Forehead Temperature

    (4) LCD display screen (5) Battery cover 4.How to measure with the forehead temperature The device measures the infrared energy emitted from the forehead, which will focus through the lens and convert it to a temperature value by the thermopile and measuring circuit. It is recommended that you press button (2) and scan the forehead from one side to another at a distance from ½”...
  • Page 7 shall be one long ring button (2) or hold down button (2), it and green backlit for 3 shall display measured value when seconds. releasing button, which is under 2.When temperature forehead temperature mode. value is Holding down the button and between37.6℃/99.6℉...
  • Page 8 1. The measured value exceeds 0℃/32.0℉ under milk temperature mode. 3 short tick and red 2. The measured value exceeds backlit for 3seconds. 32℃/89.6℉ Under forehead temperature mode. Inquiry for memory data, Storing 20 groups of data Operational method and instruction for Sound and LCD display displays...

  • Page 9: Technical Specifications

    It shall display “ErC” if there is EEPROM data 3 short tick reading error or the correcting process is not and red backlit finished.Please contact your supplier. for 3seconds. There shall be low-voltage signal(no twinkling) when the battery voltage is silence below2.61V±2%.Please replace the battery.
  • Page 10 LCD displays “L ℃” if the measured temperature is below the minimum of measurement range. LCD displays “H ℃” if the measured temperature is below the minimum of measurement range. 7.Abnormal state LCD displays “Er1”if the temperature measurement display circuit is abnormal (fault of SENSOR or the temperature measurement circuit), or the ambient temperature exceed 10℃~40℃(50℉-104℉).

  • Page 11: After-Sale Service

    Any damage caused by improper use is not under the scope of the warranty. Batteries and packaging are not under warranty scope as well. Please return the unit to: Ginger Hill Creations, 16238 Highway 620 N., Suite F-104, Austin TX 78717 for repair or replacement.
  • Page 12 Visit Us! www.GingerHillCreations.com Coupons VIP Reviewers Club Signup Videos Guides Parenting Reports...
