Magnavox 13MC3206 Quick Start Manual

T8201UB_QSG_EN 3/7/06 12:03 PM

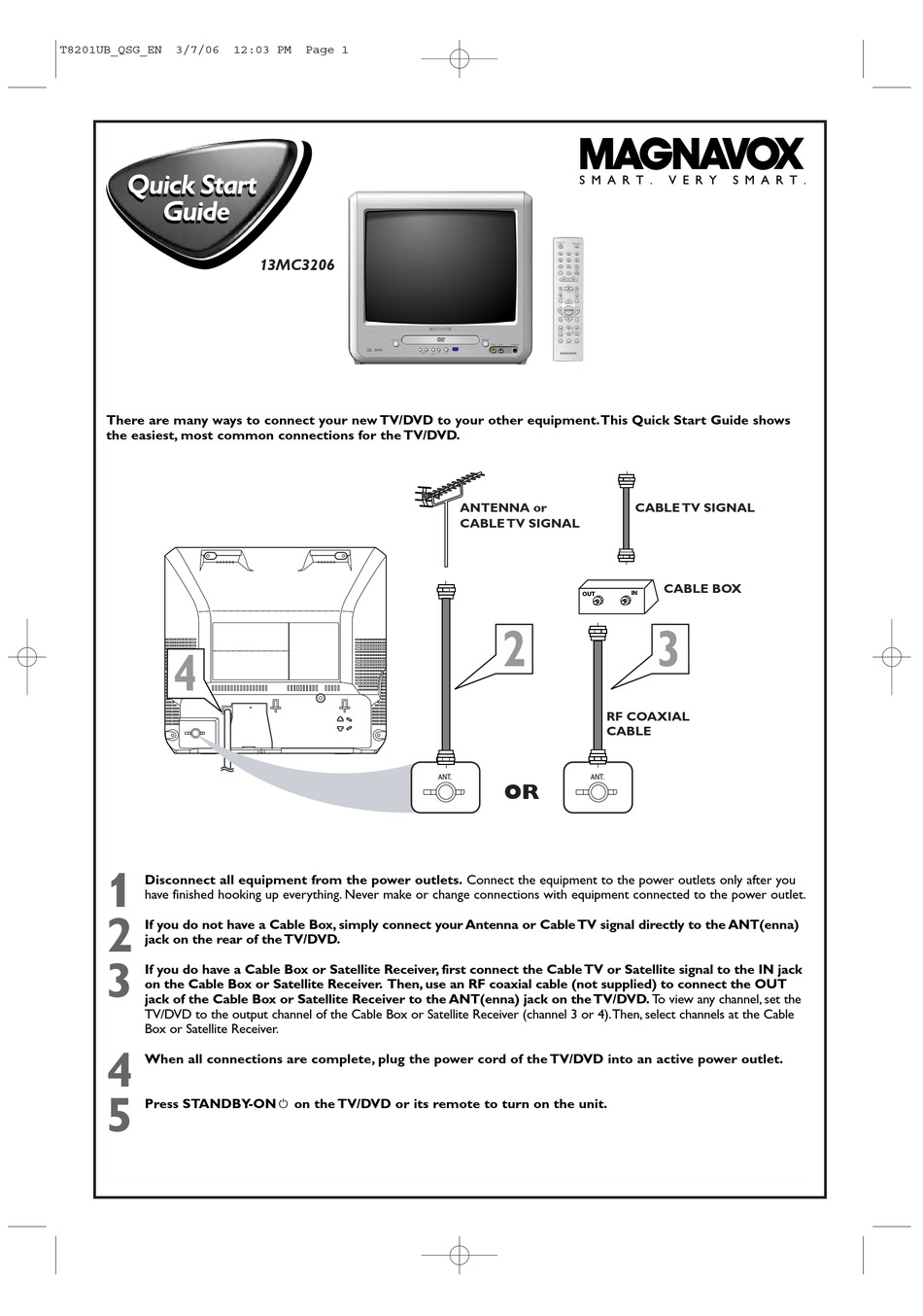

There are many ways to connect your new TV/DVD to your other equipment.This Quick Start Guide shows
the easiest, most common connections for the TV/DVD.
4
1
Disconnect all equipment from the power outlets. Connect the equipment to the power outlets only after you
have finished hooking up everything. Never make or change connections with equipment connected to the power outlet.
2
If you do not have a Cable Box, simply connect your Antenna or Cable TV signal directly to the ANT(enna)
jack on the rear of the TV/DVD.
3
If you do have a Cable Box or Satellite Receiver, first connect the Cable TV or Satellite signal to the IN jack
on the Cable Box or Satellite Receiver. Then, use an RF coaxial cable (not supplied) to connect the OUT
jack of the Cable Box or Satellite Receiver to the ANT(enna) jack on the TV/DVD. To view any channel, set the
TV/DVD to the output channel of the Cable Box or Satellite Receiver (channel 3 or 4).Then, select channels at the Cable
Box or Satellite Receiver.
4
When all connections are complete, plug the power cord of the TV/DVD into an active power outlet.
5
Press STANDBY-ONy on the TV/DVD or its remote to turn on the unit.
Page 1
13MC3206
ANTENNA or
CABLE TV SIGNAL
OUT
2
RF COAXIAL
CABLE
ANT. ANT.
OR
CABLE TV SIGNAL
CABLE BOX
IN
3
