GoShockFree GSF420 User Manual

The two way street
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GSF420
The Two Way Street
http://stores.ebay.com.au/Goshockfree

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSF420 and is the answer not in the manual?

Questions and answers

Related Manuals for GoShockFree GSF420

Summary of Contents for GoShockFree GSF420

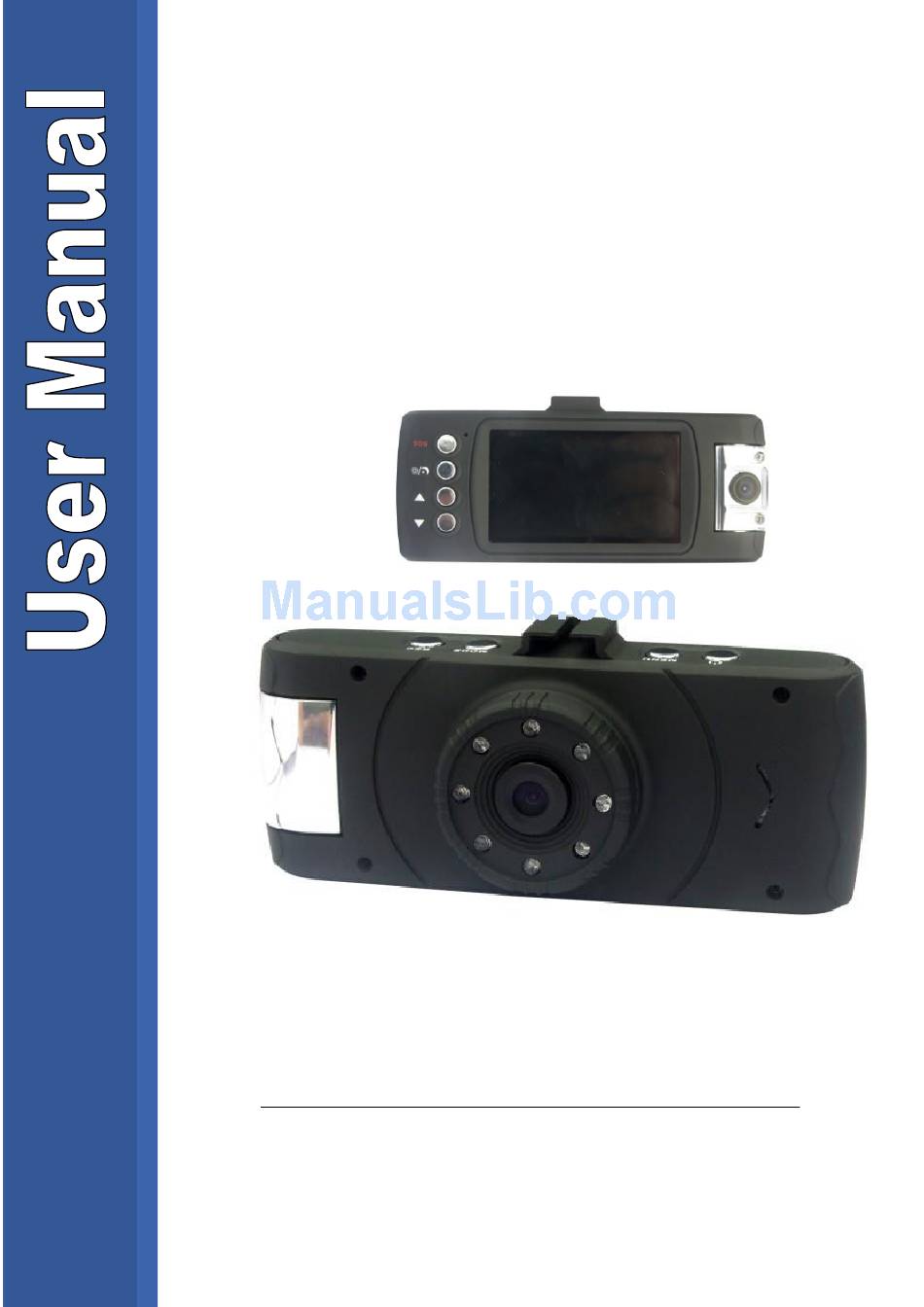

  • Page 1 GSF420 The Two Way Street http://stores.ebay.com.au/Goshockfree...
  • Page 2 Thanks for purchasing this product. Please read the instructions carefully before using this product. • FCC Compliance Statement: This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 3 Caution 1. Do not drop, puncture or disassemble the device; otherwise the warranty will be voided. 2. Avoid all contact with water, and dry hands before using. 3. Use the device with care. Avoid pressing hard on the device body. 4.

  • Page 4: Product Description

    Product Description This DVR (Digital Video Recorder) is a dual-channel simultaneous video recording product dedicated for the evolving need of recording devices for automobiles. It features superior compact digital audio/video recording and high quality photo taking capability, high speed USB2.0 interface, and parallel battery charging and filming operation.

  • Page 5: Specifications

    Specifications Image sensor OV9712 CMOS WXGA HD sensor Video resolution 480P/720P/1080P Language Traditional & simplified Chinese, English, Russian, Japanese, Korean LCD display 2.7” TFT Memory TF card up to 32GB Focus range 12cm～∞ Photo format JPEG Video format Audio Built in microphone and speaker USB2.0 Battery Built-in 3.7V/600mAh lithium battery...
  • Page 6 Included Accesories  USB Cable  Charger  Window Mount  HDMI cable  AV cable...
  • Page 7 Technical Specifications: 1 Front lens 2 Mounting position 3 Speaker 4 Power button 5 MENU button 6 MODE button 7 REC button 8 RESET button 9 TF slot 10 MIC 11 LED light 12 HDMI port 13 USB port 14 SOS button 15 Day/Night mode button 16 UP button 17 DOWN button...

  • Page 8: Button Functions

    Button Functions On and Off MENU Option menu of each operation mode MODE Switch operation mode and corresponding menu Start/Pause/OK ▼ Press it next turn to switch between day/night mode when stand by or operating. Press it shortly to turn on/off night vision IR LED. The status will display on LCD when the button released.

  • Page 9: Date/Time Setup

    Battery: The device includes an in built a 600mAh lithium battery. It will take about 90minutes to charge it completely in off state. The battery can be charged when DVR is in operation. The working current is about 380mA for normal and 580mA for night vision operation.

  • Page 10: Video Recording Mode

    Video Recording Mode: 1. 1. Video is the default mode when powered up, the “ ” icon on the left upper corner will flash. 2. Press “REC” button to pause/resume the recording operation 3. Press the POWER button to switch the camera displayed 4.
  • Page 11 Menu and Mode Menu Mode Resolution (Filming) 480P/720P/1080P Resolution (Photo) 1.3M/3M/5M Filming Interval 2min/5min/10/min/off Back Camera Off/On White Balance Auto/Sunny/Fluorescence/Cloudy/Incandescence The fill light Day mode/ Night mode Voice Recording Off/On Language Simplified Chinese/Traditional Chinese English /Russian /Japanese/Korean Frequency 50Hz/60Hz Date & Time Reformat Confirm/Cancel Default Setup...
