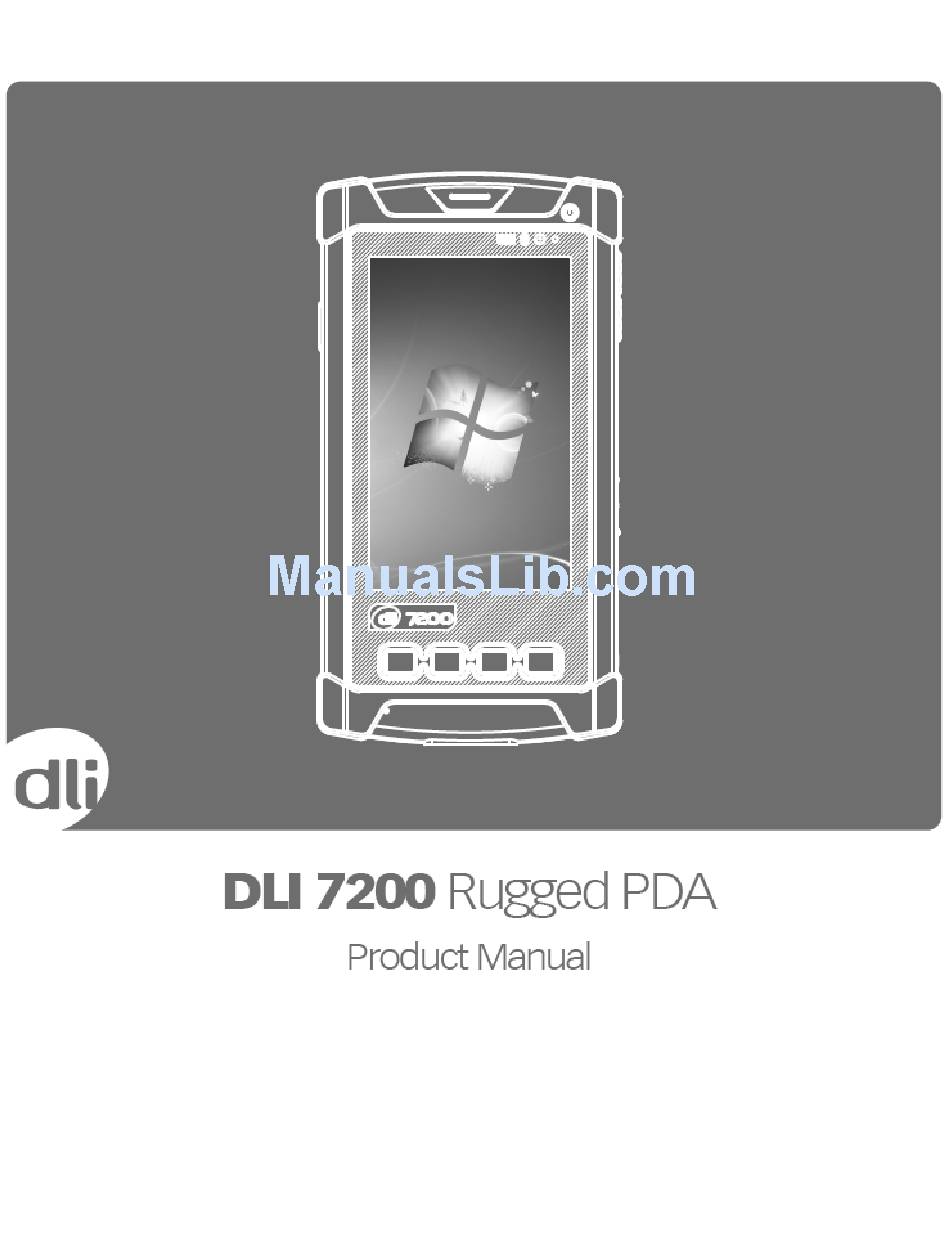

DLI 7200 Product Manual

Rugged
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Rev. 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7200 and is the answer not in the manual?

Questions and answers

Summary of Contents for DLI 7200

  • Page 1 Rev. 1...
  • Page 2 Data Ltd., Inc. (DLI) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult DLI to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of DLI.

  • Page 3: Table Of Contents

    Setting Up the DLI 7200 Terminal ....................9 Unpack the Carton and Verify its Contents ..................9 Battery Status LED ........................10 Charging the Battery in the DLI 7200 .................... 10 Power Management Utility ......................11 Optional Auto Power On & Off Setup .................... 11 Adjusting the Backlight ........................

  • Page 4: Thank You

    Thank You! Data Ltd Inc. would like to thank you for selecting the DLI 7200. The DLI 7200 was designed as a forward thinking product that is modular in design and upgradeable. We thank you, the customer, for giving us the inspiration for the following features: •...

  • Page 5: Hardware Overview

    Hardware Overview Front Panel Ambient Light Sensor Power Button Two Programmable Buttons Programmable Button LCD with Touch Screen Impact Resistant Case Microphone Programmable Keyboard DLI 7200 Product Manual Rev. 1...

  • Page 6: Top Panel

    Disabled or Not Available Refer to Battery Status LED Power section. Page 10 Top Panel Magstripe Reader Part Number 7200B Tether Loop 1D/2D Imager Bottom Panel Charger Cup / Cradle Interface Hand Strap Connector DLI 7200 Product Manual Rev. 1...
  • Page 7 Side Panels w/ Optional 2-in-1 Module Left Side Right Side Headphone Jack Programmable Buttons Programmable Button Mini DLI 7200 Product Manual Rev. 1...

  • Page 8: Back Panel

    Back Panel Part Number 7200A Part Number 7200B 2-in-1 RFID / NFC & MSR 2MP Camera w/ Flash Hot-swappable Hot-swappable Battery Pack Battery Pack (In Stand-by Mode ONLY) (In Stand-by Mode ONLY) DLI 7200 Product Manual Rev. 1...

  • Page 9: Setting Up The Dli 7200 Terminal

    If you ordered peripherals and/or accessories, verify that they are also included with the order. Be sure to keep the original packaging in case the DLI 7200 needs to be returned for service– See page 38. DLI 7200 Product Manual...

  • Page 10: Battery Status Led

    All DLI 7200 batteries have a Battery Life Status. Push the battery symbol and LEDs show the life status. Each LED is ~25% For charging, use only DLI 7200 peripherals and the power cables. Use of peripherals or cables not sold/manufactured by Data Ltd will void the warranty and may damage the terminal.

  • Page 11: Power Management Utility

    Power Management Utility The DLI 7200 includes a comprehensive suite of power management functions. The power management is based upon the ACPI Standard (Advanced Configuration and Power Interface Specification) and is operated within the Embedded Controller (EC) at low level management.

  • Page 12: Adjusting The Backlight

    Brightness levels of the liquid crystal display (LCD) are adjustable based on the lighting conditions by using the Windows Screen Brightness Bar. The DLI 7200 has a built-in Ambient Light Sensor which will auto dim or increase brightness pending the ambient light. Example: if moving into a dark area, the display will dim to help the eyes view the display.

  • Page 13: Using The Stylus

    The terminal stores calibration data and settings on a per-user basis. Calibration: 1. Open Control Panel and select Tablet PC Settings. 2. It is recommended to select Reset before calibrating the display. Once reset, select Calibrate. DLI 7200 Product Manual Rev. 1...
  • Page 14 3. Follow the instructions and the crosshairs to calibrate. 4. Finally select Apply and then OK. The calibration is complete. Do not write on the terminal display with ink pens or use other sharp objects that may damage the display. DLI 7200 Product Manual Rev. 1...

  • Page 15: Using The Programmable Keys

    Using the Programmable Keys The DLI 7200 has 7 integrated function keys. Each key is user configurable via the DLI KeyMon Utility. The keys can be assigned to perform executable applications or Data Ltd. predefined functions. The predefined functions are as follows: Left Button –...
  • Page 16 5. The user is returned to the assign menu once the selection has been chosen from the browser icon. Selecting the apply button saves the change to the key. The path to the application will appear in blue below the Current Assignment. DLI 7200 Product Manual Rev. 1...
  • Page 17 Once you have selected the command, tap the apply button to save. 7. To Close the DLI KeyMon select File and then Exit or tap on the “X” on the top right of the Main Window. This will close the KeyMon GUI but remain in the system tray.

  • Page 18: Using The Wifi Radio

    Using the WiFi Radio The DLI 7200 has a PCIe 802.11a/b/g/n integrated radio. In Windows 7 the radio is configured using the Windows Network and Sharing Center. With older versions of Windows the radio is configured by Intel PROSet. Please contact Technical Support (See page 40) if you have any questions configuring your radio.
  • Page 19 Selecting Set Up a Connection or Network brings up an easy to use wizard that helps create a connection to your network and or the Internet. Choose the option that fits what you need to do. DLI 7200 Product Manual Rev. 1...
  • Page 20 If the SSID is not broadcasted you will need to select ‘Manually connect to a wireless network.’ This option will allow to you create a profile to add the SSID, Security type, and Encryption type. Select Next to connect. DLI 7200 Product Manual Rev. 1...

  • Page 21: Using The Bluetooth Radio

    Using the Bluetooth Radio The internal Bluetooth Class II wireless radio in the DLI 7200 is enabled by default. Microsoft™ Bluetooth software comes pre-installed on your terminal. Pairing an Accessory to the DLI 7200 The icon in the system tray offers shortcuts to the Bluetooth Settings window, the Bluetooth File Transfer Wizard and the Add New Connection Wizard.
  • Page 22 5. After you make the Bluetooth device discoverable, it will show up in the wizard. Select the Bluetooth device and select Next. The Add Bluetooth Device Wizard will search for the Bluetooth device. DLI 7200 Product Manual Rev. 1...
  • Page 23 You have a limited time after selecting Enter the device’s pairing code to input the code. Select Next. If a pairing code is required, please read documentation that came with your Bluetooth device or contact the manufacturer. DLI 7200 Product Manual Rev. 1...
  • Page 24 7. When the device has been successfully paired and added, the wizard is complete and the device is ready to use. Select Close to finish. DLI 7200 Product Manual Rev. 1...

  • Page 25: Using The Barcode Scanner

    Using the Barcode Scanner The DLI 7200 is available with an integrated barcode scanner located at the top of the unit.  Newland® Class 2 Standard Range Imager To Decode a Barcode 1. Point the top of the DLI 7200 terminal directly at the barcode. The Imager faces straight toward of the top panel.

  • Page 26: 3-In-1 Demo Software

    3-in-1 Demo Software The DLI 7200 has an optional 2-in-1 Module and by default comes with a 3-in-1 Demo App on the Desktop. This demo will allow you to test and demonstrate proof of concept of the module. Desktop Icon...
  • Page 27 You can now scan barcode and display the data in the ScanData field.  To close the Scanner, select Disable, Release and Close in that order. Status should display successfully for all three. (Continued on next page) DLI 7200 Product Manual Rev. 1...
  • Page 28 You can now swipe your test card and display the data in the track fields.  To close the MSR, select Disable, Release and Close in that order. Status should display successfully for all three. (Continued on next page) DLI 7200 Product Manual Rev. 1...
  • Page 29 You can now wave your test RFID card and display the data in the track fields.  To close the RFID, select Disable, Release and Close in that order. Status should display successfully for all three. If you have any questions please contact our Support. support@dataltd.com 800.526.1299x774 DLI 7200 Product Manual Rev. 1...

  • Page 30: Sim Card Insertion

    SIM slot. Insert the SIM card with the card contacts facing toward the circuit board. The SIM Card Slot is intended for use of GPRS Wireless Radio ONLY. If you are unaware of what type of WWAN Radio you have please contact DLI Technical Support; (800) 526-1299 x774 or support@dataltd.com.

  • Page 31: Sam Card Installation

    3. On the back of the 2-in-1 there is a SAM Card slot. Follow the instructions on the SAM Card slot. 4. Lastly, line up the 2-in-1 Module on the back of the DLI 7200 and screw the device back down. DO NOT over tighten.

  • Page 32: Using The Gps

    Data Ltd has included in the DLI 7200 a GPS software tool to verify that all functions of the GPS module are working properly.
  • Page 33 Once connected you can verify the Signal Quality, Satellite Location, Latitude, Longitude and Altitude. You can also view the Streaming NMEA data. You must be outside a building as GPS antennas do not work inside buildings. The green bars indicate a lock to a satellite. DLI 7200 Product Manual Rev. 1...

  • Page 34: Dli 7200 Desktop Cradle

    DLI 7200 Desktop Cradle Overview The DLI 7200 Cradle is a Desktop and Vehicle Cradle all in one. It features quick release and lock, flexible mounting, and power options for all types of applications and devices. When the DLI 7200 is seated in the Cradle, the Main Battery is charged in 2 hours. The patent pending RF design provides easier operation using internal and external antennas.

  • Page 35: Front Panel

    The I/O ports and power supply connector are located on the back of the unit. Power Supply Connector The connector is to be used with the DLI series of power supplies. Please see below for a reference of recommended power sources.
  • Page 36 VGA Port The VGA Connector is for an external display to transfer or mirror what is being displayed on the DLI Device. Connector Locations VGA Port Ethernet Power Right Panel K-Lock Two USB Ports DLI 7200 Product Manual Rev. 1...

  • Page 37: Installing Clearance & Airflow

    Integrated Power Filtering DC Converter The DLI 7200 VMC Cradle has an Integrated Power Filter with 10~75V DC/DC Converter. The DLI 7200 Cradle must be installed post ignition with a 10AMP in-line fuse. DC Converter: 10~60V Input...

  • Page 38: Shipping Your Dli Device

    Shipping your DLI Device Proper way to pack your DLI device DO NOT ship any DLI Device without a proper UPS or FedEx container. The DLI Container is not meant for stand-alone shipping.  Place device in foam cover as shown.
  • Page 39   Using a proper UPS or FedEx container, line the bottom Place the closed DLI container inside the lined Shipping with Bubble Wrap, Air Pillows, Packing Foam, etc. Container. The dimensions of the box shown are 27x17x10.  ...

  • Page 40: Limited Warranty

    All provisions of this Limited Warranty are separate and severable, which means that if any provision is held invalid and unenforceable, such determination shall not affect the validity of enforceability of the other provisions hereof. (Continued on next page) DLI 7200 Product Manual Rev. 1...

  • Page 41: Regulatory And Safety Approvals

    The DLI 7200 has the following safety information in the battery well of the terminal DLI 7200 RF terminal is designed to comply with the most current applicable standards on safe levels of RF energy developed by the Institute of Electrical and Electronics Engineers (IEEE) and the American National Standards Institute (ANSI) and has been recommended for adoption by the Federal Communications Commission (FCC).
  • Page 42 The compliance labels are located on the back of the unit: DLI 7200 WPAN (Bluetooth) DLI 7200 GSM/GPRS DLI 7200 802.11 B/G/N Radio The CE Mark on the product indicates that the system has been tested to and conforms to the provisions noted within the 89/336/EEC Electromagnetic Compatibility Directive and the 73/23/EEC and 93/68/EEC Low Voltage Directive.

  • Page 43: Fcc Compliance

    When using accessories where the terminal is worn on the body, the terminal’s touch screen must face away from the body. CAUTION! Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment DLI 7200 Product Manual Rev. 1...
  • Page 44 If you need more information on the collection, reuses, and recycling systems, please contact your local or regional waste administration. You may also contact your supplier for more information on the environmental performances of this product. DLI 7200 Product Manual Rev. 1...
  • Page 45 DLI 7200 Product Manual Rev. 1...
