WArNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death, and could cause
exposure to substances which have been
determined by various state agencies to cause
cancer, birth defects or other reproductive harm.
Read the installation, operating and maintenance
instructions thoroughly before installing or
servicing this equipment.
PLEASE BE SURE TO LEAVE IT WITH THE OWNER WHEN YOU LEAVE THE JOB.
INSTALLATION AND SERVICE MANUAL

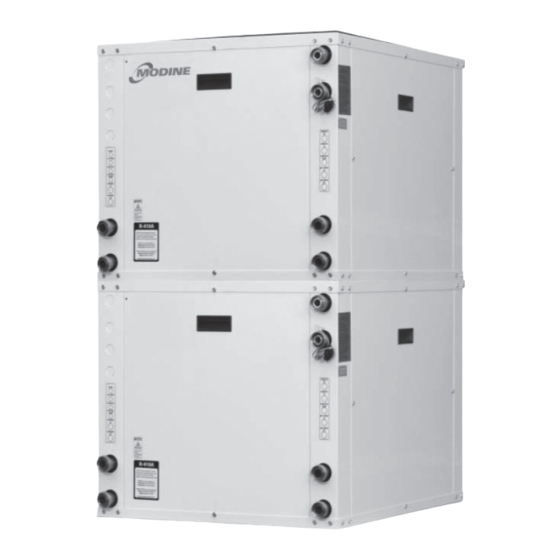

hydronic ground source heat pumps
THIS MANUAL IS THE PROPERTY OF THE OWNER.
models GH and EH
WArNING
This unit contains R-410A high pressure refrigerant.
Hazards exist that could result in personal injury
or death. Installation, maintenance, and service
must only be performed by an HVAC technician
qualifi ed in R-410A refrigerant and using proper
tools and equipment. Due to much higher pressure
of R-410A refrigerant, DO NOT USE service
equipment or tools designed for refrigerants other
than R-410A.
ImpOrTANT
1. The use of this manual is specifi cally intended
for a qualifi ed installation and service agency.
A qualifi ed installation and service agency must
perform all installation and service of these
appliances.
2. GH/EH units contain the refrigerant R-410A.
Review the R-410A Material Safety Data Sheet
(MSDS) for hazards and fi rst aid measures.
3. Refrigerant charging should only be carried out
by an EPA-certifi ed air conditioning contractor.
Inspection On Arrival
1. Inspect unit upon arrival. In case of damage, report it
immediately to transportation company and your local factory
sales representative.
2. Check rating plate on unit to verify that power supply meets
available electric power at point of installation.
3. Inspect unit received for conformance with description of
product ordered (including specifi cations where applicable).
GEO16-504.2
5H0835730000
August, 2015
NOTE:
Energy Star only
applies to certain
configurations.
Advertisement
Table of Contents
Related Manuals for Modine Manufacturing 036
Summary of Contents for Modine Manufacturing 036
-
Page 1: General Information
GEO16-504.2 5H0835730000 August, 2015 INSTALLATION AND SERVICE MANUAL hydronic ground source heat pumps models GH and EH NOTE: Energy Star only applies to certain configurations. WArNING This unit contains R-410A high pressure refrigerant. Hazards exist that could result in personal injury or death. -
Page 2: Table Of Contents
Maintenance ........16 Modine Manufacturing Company. Refer to the rating plate Replacement Parts . -
Page 3: Model/Serial Number Designations
13 - Geo (Source) Coaxial Coil Material (GM) W - Non-Reversible C - Copper 4,5,6 - Nominal Cooling Capacity (MBH) N - Cupronickel 036 - 36,000 Btu/hr 048 - 48,000 Btu/hr 14 - Hydronic (Load) Coaxial Coil Material (HM) 060 - 60,000 Btu/hr C - Copper... -
Page 4: Unit Dimensions
UNIT DIMENSIONS Figure 4.1 - Dimensional Drawings - Models 036-066 Table 4.1 - Dimensions (inches) - Models 036-066 Models 23.13 23.13 23.13 23.13 Overall Cabinet 25.65 25.65 25.65 25.65 32.63 32.63 32.63 32.63 15.44 17.07 15.44 15.44 Electrical 12.82 14.26 12.82... -
Page 5: Unit Dimensions
UNIT DIMENSIONS Figure 5.1 - Dimensional Drawings - Models 096-132 Table 5.1 - Dimensions (inches) - Models 096-132 Models 46.26 46.26 46.26 Overall Cabinet 25.65 25.65 25.65 32.63 32.63 32.63 17.07 15.44 15.44 Electrical 14.26 12.82 12.82 11.76 10.32 10.32 2.00 2.00 2.00... -
Page 6: Danger
UNIT LOCATION / INSTALLATION Preparation Table 6.1 - SI (Metric) Conversion Factors 1. Before installation, ensure that the correct electrical power To Convert Multiply By To Obtain To Convert Multiply By To Obtain supplies are available for the unit. "W.C. 0.24 1.699 /min... -
Page 7: Water Connections
INSTALLATION Water Connections Unit Installation 1. Units should be mounted on a vibration-absorbing pad slightly 1. All units utilize swivel pipe fittings for water connections that are rated for 150 psi. larger than the base of the unit. See Table 7.1 below for Modine vibration pad part numbers. -
Page 8: Water Temperatures Over 125°F Can Cause Severe Burns
INSTALLATION Hot Water Generator (Desuperheater) Figure 8.1 - Typical DHW Piping Diagram Installation (If Equipped) COLD WATER WATER DANGEr Water temperatures over 125°F can cause severe burns AIR VENT instantly resulting in severe injury or death. Feel water before showering or bathing. Ensure that the primary water heating source setpoints are higher than the heat pump water discharge temperature of 120°F. -
Page 9: Warning
INSTALLATION Wiring Figure 9.1 - Terminal Strip WArNING 1. Disconnect power supply before making wiring connections to prevent electrical shock and equipment damage. 2. All appliances must be wired strictly in accordance with the wiring diagram furnished with the appliance. Any wiring different from the wiring diagram could result in a hazard to persons and property. - Page 10 INSTALLATION Open Loop Control Valve Wiring Figure 10.1 - 208-230V Transformer Wiring Always maintain water pressure in the heat exchanger by placing water control valves at the outlet of the unit to prevent mineral precipitation during the off cycle. Pilot operated slow closing valves are recommended to reduce water hammer.
-
Page 11: Electrical Specifications
ELECTRICAL SPECIFICATIONS Table 11.1 - Electrical Ratings Compressor Pumps Digits Total Voltage Models 9 & 10 Rated Voltage Control Unit (min/max) FUSE Load Power Code 02,03 208-230/1/60 197 / 253 20.0 112.0 24.5 29.5 30.0 04,05 208-230/3/60 197 / 253 14.3 95.0 18.8... -
Page 12: Start-Up Procedure
START-UP PROCEDURE START-UP PROCEDURE CAUTION ImpOrTANT Verify that ALL water control valves are open and allow water flow prior to engaging the compressor. Freezing of the Start-up and adjustment procedures must be performed by a coax or water lines can permanently damage the heat pump. qualified service agency. - Page 13 START-UP PROCEDURE Unit Startup Procedure Table 13.1 - Water Pressure Drop, psi (Based on Entering Water Temperature) The Startup / Troubleshooting form found on page 23 of this manual may be used to assist during unit startup. Models 30°F 40°F 60°F 90°F 110°F...
- Page 14 START-UP PROCEDURE Table 14.1 - Typical Operating Conditions Heating - No Desuperheater Entering Water Suction Discharge Source Water Water Flow Superheat Subcool Temperature Pressure Pressure Temperature Drop (gpm/ton) (°F) (°F) (°F) (psig) (psig) (°F) 68-76 285-310 8-12 72-80 290-315 8-12 100-110 315-345 9-13...
-
Page 15: Physical Data
START-UP PROCEDURE / PHYSICAL DATA Table 15.1 - Refrigerant Circuit Malfunctions and Probable Causes ➀ The following chart will assist in troubleshooting and diagnosing causes of a problematic unit. The chart provides general guidance for system measurements relative to typical operating conditions. Symptom Cause Load... -
Page 16: Maintenance
A complete replacement checked on a regular basis. Dirty installations are typically the parts list may be obtained by contacting Modine Manufacturing result of deterioration of iron or galvanized piping or components Company. Refer to the rating plate on the appliance for in the system. -
Page 17: Replacement Parts
MAINTENANCE Cabinet Figure 17.1 - Serial Plate EXAMPLE If a flood occurs, try to expel water as soon as possible. Water contact for any duration will cause corrosion on the cabinet finish. All units mounted on the ground should be installed on an absorption pad. - Page 18 REPLACEMENT PARTS Table 18.1 - Common Replacement Parts Part Description Compressor Code Compressor 5H1028043611 5H1028045111 5H1028045711 5H1028047211 5H1028045111 5H1028045711 5H1028047211 01,03 Compressor Run 5H1036890003 5H1036890007 5H1036890008 5H1036890010 5H1036890007 5H1036890008 5H1036890010 Capacitor Soft Start 5H0834140002 Hot Water Generator Desuperheater (DHW) 5H0834230001 Pump Control Transformer 5H0749490001...
-
Page 19: Troubleshooting
TROUBLESHOOTING General When encountering a unit with operational faults, complete these preliminary system checks before utilizing the troubleshooting charts. In order to maintain system integrity, performance and efficiency, do not install service gauges unless unit operation appears abnormal and all other diagnostic checks are normal. Verify water source and load side temperatures changes against typical operating data. - Page 20 TROUBLESHOOTING Table 20.1 - Troubleshooting Mode Possible Fault Verify Action Cause Htg Clg Power Failure No voltage at line side of compressor contactor. Check disconnect switch and power distribution panel. Open disconnect At heat pump disconnect, voltmeter shows voltage on the Determine why the disconnect switch was opened.
- Page 21 TROUBLESHOOTING Table 21.1 - Troubleshooting Mode Possible Fault Verify Action Cause Htg Clg Check flow center operation. Troubleshoot flow center. Reduced water Manually open water valve and measure water flow. Adjust to proper flow rate. flow Plugged water strainer or filter. Replace or clean, if dirty.
- Page 22 TROUBLESHOOTING Table 22.1 - Troubleshooting Mode Possible Fault Verify Action Cause Loss of control In cooling mode, verify 24VAC at RV coil and at REV If 24VAC exists, troubleshoot RV and coil. If no control signal terminals. signal, troubleshoot aquastat signals. Replace, if defective.
-
Page 23: Start Up/Troubleshooting Form
START UP / TROUBLESHOOTING FORM Customer Name ______________________________________ Date ________________ Address ______________________________________________________________ Loop Type _________________ Model # ____________________________ Serial # ______________________________ Antifreeze _______________ __ Startup __Troubleshooting, Complaint ____________________________________________________________ COOLING CYCLE ANALYSIS HEATING CYCLE ANALYSIS Note: In order to maintain optimal performance, DO NOT hook up pressure gauges during start up procedures. When Note: In order to maintain optimal performance, DO NOT hook up pressure gauges during start up procedures. - Page 24 Burners High Intensity Infrared Units Sheet Metal Parts All Products As Modine Manufacturing Company has a continuous product improvement program, it reserves the right to change design and specifications without notice. Modine Manufacturing Company 1500 DeKoven Avenue Racine, WI 53403 Phone: 1.877.679.4436 (4GEO)
