- Page 1 GNSS S RROW ERIES UICK TART UIDE Release Date: June 2015 (rev 1.0)
- Page 2 OPYRIGHT OTICE © Copyright 2015 Eos Positioning Systems Inc. All rights reserved. No part of this manual may be stored in a retrieval system, transmitted, or reproduced by any means, including, but not limited to photocopy, photograph, digitizing, or otherwise, without the prior written permission from Eos Positioning Systems Inc.
- Page 3 Eos Products by any party other than an Eos approved service center shall render this warranty null and void. Eos does not warrant claims asserted after the end of the warranty period. Eos does not warrant or guarantee the precision or accuracy of positions obtained when using Products.
- Page 4 ARRANTY ERVICE In order to obtain warranty service, the end purchaser must bring the Product to an Eos approved dealer, along with the end purchaser’s proof of purchase. For any questions regarding warranty service or to obtain information regarding the location of any of Eos’s dealers, contact Eos at the following address: Eos Positioning Systems Inc.
-
Page 5: Table Of Contents
1.1 U NPACKING RROW ECEIVER 1.1.1 Arrow Lite GPS - GIS Package ..................... 1 1.1.2 Arrow 100 GNSS - GIS Package ................... 2 1.1.3 Arrow 200 GNSS – High-Accuracy GIS Package..............2 1.1.4 Optional / Replacement Accessories................... 3 ................. 3 1.2 F... -
Page 6: Preface
In the event that your equipment requires service, we recommend that you contact your dealer directly. However, if this is not possible, you must contact Eos Customer Service to obtain a Return Merchandise form before returning any product to Eos. If you are returning a product for repair, you must also provide a fault description. -
Page 7: Document Conventions
OCUMENT ONVENTIONS is used to emphasize certain points. Bold Unless otherwise specified, the terms the Arrow Series , Arrow GNSS, Arrow receiver and Arrow are ™ used for simplicity to describe common features of all three models: Arrow Lite, Arrow 100, and Arrow 200. -
Page 8: Getting Acquainted With Your Arrow
There are two types of packages available: Standard GIS package for the Arrow Lite GPS and Arrow 100 GNSS and the High-Accuracy GIS package for the Arrow 200 GNSS. GIS and Survey accessories and kits are available for any of the three models. -
Page 9: Arrow 100 Gnss - Gis Package
1.1.2 Arrow 100 GNSS - GIS Package 1. Arrow receiver with Arrow Smart Battery Pack 2. Single-Frequency GNSS / LBand Precision Antenna (304) with removable magnets 3. Two-section Antenna Cable 4. Spare Antenna Cable 5. Softhat for Antenna 6. Nylon Carrying Case (belt-clip & shoulder strap) 7. -
Page 10: Optional / Replacement Accessories
Lite GPS, Arrow 100 GNSS and Arrow 200 GNSS. Section 1.2.2 presents the physical characteristics of the Arrow and describes the LED user interface along with considerations on the Smart Li-Ion battery pack. 1.2.1 Arrow Series Features, Comparison and Options Model Arrow Lite GPS Arrow 100 GNSS Arrow 200 GNSS Description Single Frequency GPS... -
Page 11: Receiver Description
NMEA messages • Integrated, field-replaceable Smart Li-Ion battery with built-in charger for full day operation The comparison chart above can be found on our website (www.eos-gnss.com), and offers a more succinct demonstration of the Arrow Series capabilities as well as the differences between models. -
Page 12: Arrow Overview

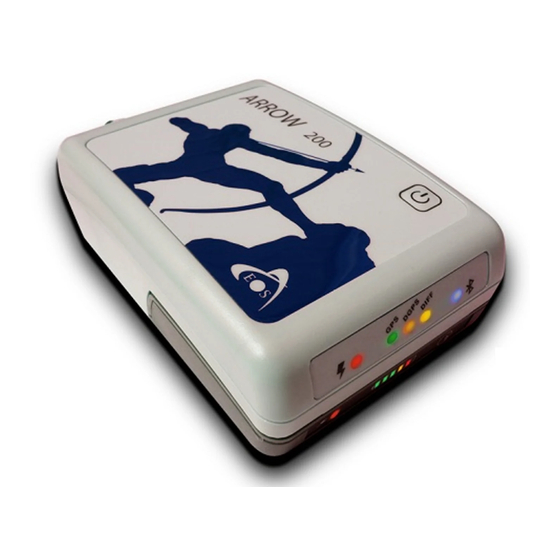

1.2.2.1 Arrow Overview Power Button Smart Battery Pack Antenna Connector (SMA Female) DC Charging Jack 1.7mm Positive Center Pin (9 to 16 VDC Max) Mini USB Receptacle (Type B) Main LED Interface Battery LED Interface #4-40 Mounting Inserts (2x) Battery Thumb Screw Arrow Series Technical Reference Manual... -
Page 13: Led Interface Description
Battery Contacts Watertight Membrane Vent (Do not puncture!) Bluetooth Radio Switch Gasket 1.2.2.2 LED Interface Description The diagnostic LEDs provide a quick indication of the receiver’s status. These LEDs are visible on the front panel and provide the following information: Power Bluetooth GNSS Status... - Page 14 Description Power – This LED illuminates to indicate a power-on status of the Arrow. When battery voltage reaches a low threshold, the Power indicator will start blinking about 15-20 minutes (depending on the model) before auto shut-down. GPS – The GPS green LED will turn on once the Arrow is computing a valid position/fix.
-
Page 15: Battery Care And Maintenance
1.2.2.3 Battery Care and Maintenance The Arrow Smart Battery Pack features the following: 7.2V (nominal) Lithium-Ion cells with a 3,350mAh capacity Integrated charger only requires a power source of 9-16V with 1.5Amp minimum current Intelligent battery fuel gauge with 5-LED display and learning algorithm Li-Ion Safety protection circuitry DC Jack with 1.7mm positive center pin Battery Contacts... -
Page 16: Setting Up Connectivity
2. S ETTING UP ONNECTIVITY Chapter 2 is a guide to setting up Bluetooth and USB connectivity under various Operating Systems. 2.1 B LUETOOTH ONFIGURATION The steps involved in configuring a Bluetooth accessory with a device shows some differences depending on the OS being used (iOS, Android, Windows, Windows Mobile), the revision/version of it and the manufacturer of the Bluetooth Stack installed on the computer (ex. - Page 17 Tap on the Arrow receiver and allow a few seconds for the two to pair and connect. Once the Arrow is connected, Go to the “General”/”About” menu and … Arrow Series Technical Reference Manual...
- Page 18 … tap on the “Arrow GNSS Receiver” that will be listed towards the bottom of the page. Information specific to your Arrow will be provided in this page. Arrow Series Technical Reference Manual...
- Page 19 The Arrow automatically replaces all location information on the iOS device with its more accurate position. You may now launch Eos Tools Eos Tools Pro utility software downloadable from the App Store. The Arrow stores the Bluetooth address of the last iOS device it was paired with. When the two...
-
Page 20: Android Devices
2.1.2 Android Devices To configure the Arrow with an Android device via Bluetooth, go to your Android “Settings” and select the Bluetooth icon. Turn ON the Bluetooth radio and the Arrow will be discovered and listed. Tap on the Arrow under the “Available devices” and allow a few seconds to pair. If your Android application has been written to connect directly to a Bluetooth Port, then the Arrow will be listed and selectable within your application. -
Page 21: Windows
2.1.3 Windows The Arrow follows the Bluetooth v2.1 standard and thus supports Secure Simple Pairing (SSP). In this process, a passkey is not required as the two parties exchange information transparently in the background during the pairing process. Bluetooth Stacks under the Windows operating system should not normally ask for a passkey. - Page 22 In the first window, select the Arrow, click on next and wait for the pairing to complete. During the process there might be an error notification and Windows will try to look for drivers for the Arrow. This is due to a glitch in the Win 7 / Win 8 Microsoft stack trying to pair also with the Apple protocol published by the Arrow.
- Page 23 In order to fix this problem, right click on the Arrow icon and select “Properties” In the “Hardware” tab, a communication port will be assigned to the Arrow for your software to communicate with it. In this example COM7. (Some Bluetooth stacks will assign both an Incoming and an Outgoing port;...
-
Page 24: Example With Windows 10 Native Stack
2.1.3.2 Example with Windows 10 Native Stack In Windows 10, click on the Bluetooth icon on your Taskbar and select “Add a Bluetooth Device”. If the Bluetooth icon does not appear in the Taskbar, this probably means that the Bluetooth radio on your computer is off. - Page 25 After a few seconds, your Arrow will be displayed in the list of available devices with a “Ready to Pair” message. Click on the Arrow name, then on the “Pair” button. After the pairing process, to find out which COM port is assigned to the Arrow, click on “More Bluetooth options”...
-
Page 26: Windows Mobile
2.1.4 Windows Mobile Setting up Bluetooth on Windows Mobile devices requires some extra steps compared to the previous operating systems described in this chapter. The example in this section shows the flow for Windows Mobile 6.1 but the configuration for other versions of Windows Mobile is similar. In your Windows Mobile “Communication Manager”... - Page 27 The next window prompts for a passcode (or passkey): The Arrow Bluetooth Passkey is 1 2 3 4 5 6 7 8 Enter the passcode, then tap “Next”. (Some versions of Windows Mobile might ask to enter the passcode again; just tap next to ignore this 2 request).
- Page 28 In this next step, a COM port will be assigned manually to the Arrow. Select the “COM Ports” tab in the bottom menu, and then tap on “New Outgoing Port”. Select the newly paired Arrow and tap on “Next”. In the pull-down menu, all COM ports will be listed. Select COM9 or COM8. (It is highly recommended to select a COM port in the upper values, usually between COM9 and COM6 (as most of the ones with lower numbers will already be in used internally by Windows Mobile but unfortunately listed here in this pull-down)).
-
Page 29: Installing The Usb Drivers For Windows
Windows, please download the latest drivers install file from the Download section of www.eos-gnss.com Launch the Installer file and click on “Extract” at the bottom of the welcome window. If a warning message from Windows appears: “The requested operation requires elevation” then you must run the executable in Administrator mode. - Page 30 Serial Port Driver. To find the port number assigned to the Arrow, go to your Device Manager and right-click on the “Eos GNSS Receiver” icon and select “Properties”. On the Properties window, select the “Hardware” tab to view the COM port assignment (COM12) in the example below.
-
Page 31: Available Software Utilities From Eos
Eos Tools Pro Eos Tools Pro includes all the features of Eos Tools for iOS and adds an NTrip Client to connect to an NTrip caster to receiver differential corrections over the Internet.
