Summary of Contents for Davis Instruments 8105

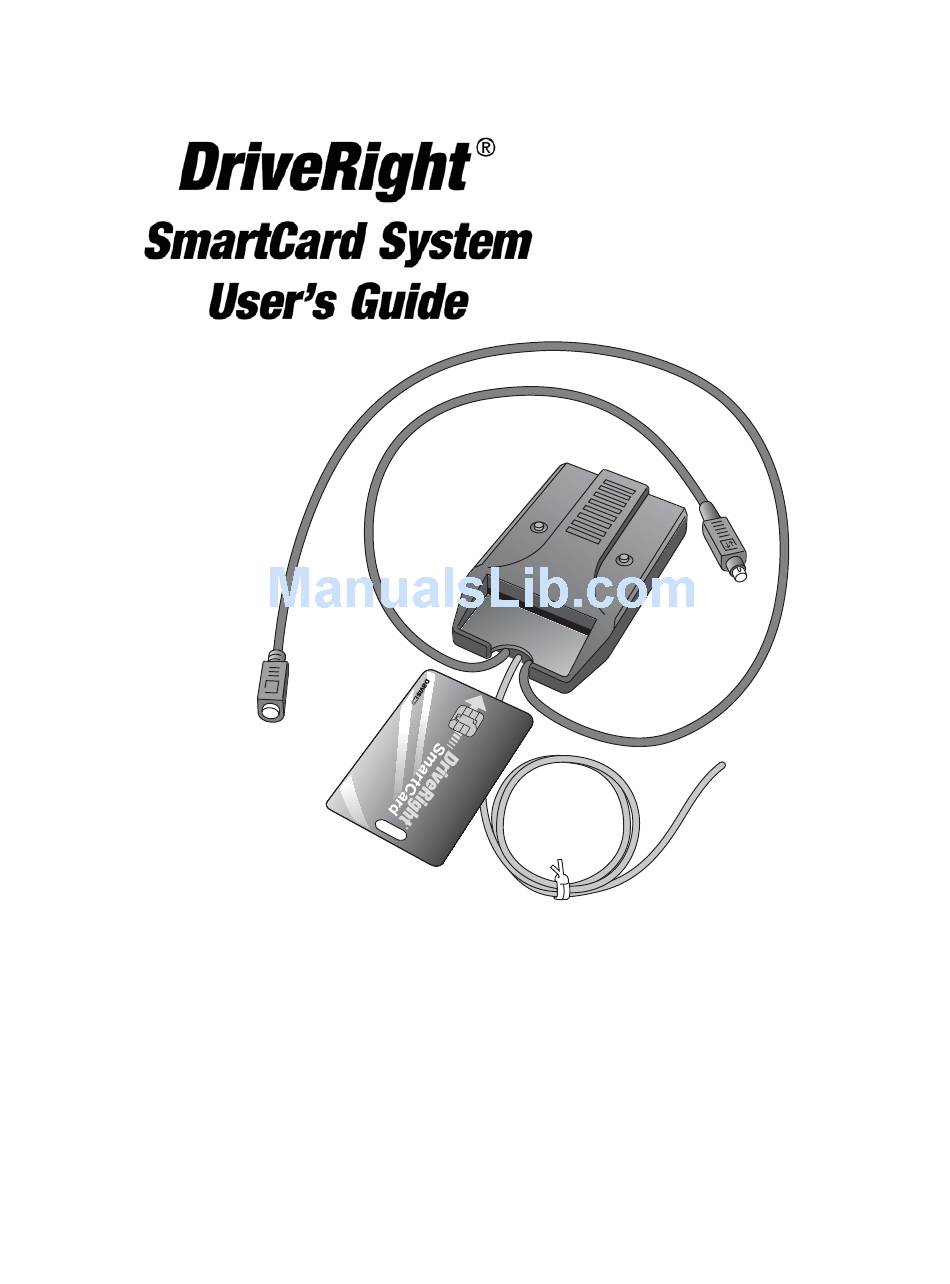

- Page 1 Includes: SmartCard On-Board Reader (#8105) SmartCard Desktop Reader (#8108) SmartCards, Pack of 10 (#8112) Starter Interrupter Kit (#8116)
-
Page 2: Table Of Contents
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modification not expressly approved in writing by Davis Instruments may void the warranty and void the user's authority to operate this equipment. -
Page 3: Introduction
The DriveRight SmartCard System allows you to download DriveRight data from any DriveRight device using the SmartCard On-Board Reader (#8105), transport it to a computer easily using the SmartCard Desktop Reader (#8108) and SmartCards (#8112), and also transfer administrative data from the com- puter to the DriveRight. - Page 4 T h e S m a r t C a r d S y s t e m The DriveRight Fleet Management Software (FMS) is used to configure the SmartCard with pertinent information, such as the assigned vehicle, Driver ID, and card type.
-
Page 5: On-Board Reader Installation
O n - B o a r d R e a d e r I n s t a l l a t i o n SmartCard Desktop Reader The Desktop Reader is connected to a computer via a free USB port. The Desktop Reader works in conjunc- tion with the FMS software to down- load DriveRight data via the... -
Page 6: Connecting The On-Board Reader
C o n n e c t i n g t h e O n - B o a r d R e a d e r ® Velcro Tabs (6) SmartCard On-Board Reader Double-Sided Foam Tape (8) #6 X 1/2" Flat Head Self-Tapping 5-1/2"... -
Page 7: Mounting The On-Board Reader
M o u n t i n g t h e O n - B o a r d R e a d e r 3. Connect the On-Board Reader’s male connector to the female connector attached to the GPS module cable or the Digital Input Adapter Cable. See the diagrams below for help on disconnecting and connecting the cables properly: Disconnecting Cables:... - Page 8 M o u n t i n g t h e O n - B o a r d R e a d e r Thread the DriveRight connector cable down one of the large inner grooves. Thread the GPS module or Digital Input connector cable down the other large inner groove.
- Page 9 M o u n t i n g t h e O n - B o a r d R e a d e r Mounting with Customer-Provided Mounting Plate If the other mounting options do not work for you, you can create your own mounting plate using the following diagram: 4"...
- Page 10 M o u n t i n g t h e O n - B o a r d R e a d e r 2.25" (57 mm) 11/64" (4.4 mm) Hole with Countersink Template to scale To install the optional mounting plate: #6 x 1/2"...
-
Page 11: Using The On-Board Reader
U s i n g t h e O n - B o a r d R e a d e r Using the On-Board Reader Logging In To log in to the On-Board Reader, simply insert the supplied SmartCard into the On- Board Reader before starting up the vehicle. - Page 12 U s i n g t h e O n - B o a r d R e a d e r logs a user out in 10 minutes, but automatic logout time can be set to any time period using the DriveRight FMS software.The Auto Logout time period is stored on each SmartCard and can be set individually for every vehicle and driver in the fleet.
-
Page 13: Using The Desktop Reader
U s i n g t h e D e s k t o p R e a d e r ght. Use the Administrative SmartCard to change settings on multiple DriveR- ight devices in sequence. To upload configuration information to a DriveRight: 1. - Page 14 I n s t a l l i n g t h e S t a r t e r I n t e r r u p t e r K i t Components The Starter Interrupter Kit comes with the components and hardware shown in the following illustration.
- Page 15 I n s t a l l i n g t h e S t a r t e r I n t e r r u p t e r K i t Starter 60 Amp Solenoid Key Switch Starter Power Starter Switch Wire Butt...
-
Page 16: Specifications
(510) 670-0589 – Fax to Technical Support support@davisnet.com – E-mail to Technical Support info@davisnet.com – E-mail to Davis Instruments www.davisnet.com – Product documentation is available on the DriveRight Support section of our web site. Watch for FAQs and other updates.
