GT/GTR Series
VHF/UHF TRANSCEIVER
Professional Portable Radios
User Manual

Advertisement

Table of Contents
loading

Summary of Contents for Wireless Pacific GT Series

  • Page 1 GT/GTR Series VHF/UHF TRANSCEIVER Professional Portable Radios User Manual...
  • Page 2: Table Of Contents

    Table of Contents Parts Name & Functions ������������������������������������������������������������1 Fitting & Removing the Battery Pack ���������������������������������������2 • To Install the battery pack �����������������������������������������������2 • To remove the battery pack ������������������������������������������2 Charging the Battery Pack �������������������������������������������������������2 Symbol Description �������������������������������������������������������������������3 Basic Operation �������������������������������������������������������������������������4 •...
  • Page 3 GTR Menu Selection ������������������������������������������������������������������������8 • Squelch level ���������������������������������������������������������������������������8 • VOX sensitivity Level ��������������������������������������������������������������8 • Beep ����������������������������������������������������������������������������������������8 • TX power selection ������������������������������������������������������������������8 • Keypad lock/unlock ��������������������������������������������������������������8 GTR dealer programmable functions ��������������������������������������������9 • Busy Lockout On/Off ��������������������������������������������������������������9 • Burst Tone ��������������������������������������������������������������������������������9 • Talk around ������������������������������������������������������������������������������9 •...
  • Page 4: Parts Name & Functions

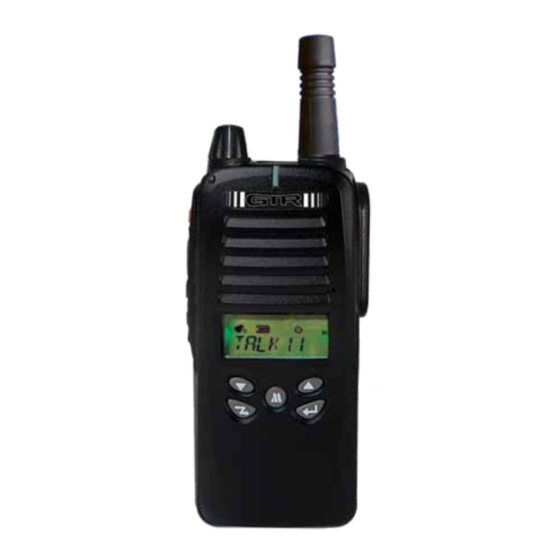

    Part Names & Functions Antenna connector Channel selector SIDE Volume Off/On FRONT Ext� Spk Mic Cover LED: shows radio status Release Red: transmitting Green: receiving Amber: interference or user with different tone squelch Loudspeaker Microphone LCD display Up/down buttons Enter button Battery Menu button Scan button...
  • Page 5: Fitting & Removing The Battery Pack

    Fitting & Removing the Battery Pack • To Install the battery pack 1] Fit the bottom edge of the battery pack into the holes of the transceiver cabinet bottom� 2] Push the battery pack down to the transceiver aluminum chassis till the end clicks� •...
  • Page 6: Symbol Description

    GTR LCD Display Symbols : selected channel is the priority channel� : channel has Busy Channel Lockout feature� : channel with CTCSS (Continuous Tone Coded Squelch)� : channel with DCS (Digital Coded Squelch)� : channel with signalling (2/5 tone) feature� : channel with DTMF feature : monitor feature is activated�...
  • Page 7: Basic Operation

    The channel name alias is re-programmable by your dealer. The GT series portable is configured with On-Site 16 channels� On-site 16 allows you select up to 15 standard plus a special safety 16th chan- nel to choose from�...
  • Page 8: Monitor

    • Voice protection operation (GT series only) imply press the C button while turning on the radio to enable Voice protection (scrambler) operation. Voice protection scrambling modifies your voice rendering it very difficult for other who may be listening to your radio traffic such as others sharing the frequency or those with scanners, to understand what is being said�...
  • Page 9: Channel Scan

    Alternate Programming The GTR and GT series radios can be programmed with a vast variety of the features� Some of which are listed in the following pages� If you feel they may allow you to make better use of your radios, then contact your dealer to discuss� They will be happy to discuss your specific application and then arrange the required re-programming for a nominal charge�...
  • Page 10: Gtr Scan/Voting Operation

    GTR Scan/Voting Operation • Scan operation To scan all the channels your dealer has programmed into the scan list, press but- ton� The icon will appear on the LCD and you will notice the channel numbers cy- cling continuously� The radio will stop and stay on a busy channel and will then resume when stay time has expired�...
  • Page 11: Gtr Menu Selection

    GTR Menu Selection • button can be locked to stop user access in the programming software� This prevents the following settings being changed by end users� Your dealer is able to setup the following menu items by the PC programmer� •...
  • Page 12: Gtr Dealer Programmable Functions

    GTR dealer programmable functions • Busy Lock Out : BCLO (Busy Channel LockOut); BTLO (Busy Tone LockOut) Lockout type LCD show icon Lockout type LCD show icon BCLO RBCLO (flash) BTLO RBTLO (flash), BCLO: prevents Tx when the channel is busy with other users� (RBCLO-repeater use) BTLO: prevents Tx when receiving a signal from your own group�...
  • Page 13: Emergency Call

    • Emergency call There are siren, revert channel, trigger time, auto VOX on & command code param- eters that can be set by your dealer. By default the radio is configured to be triggered by pressing the A key for 3 seconds� Display radios within your group will show the emer- gency code on their LCD display�...
  • Page 14: Gt Dealer Programmable Functions

    GT dealer programmable functions Ask your dealer about programming your GT series with the following functions: The programmable buttons A/B/C/D can be tailored according to your need� In general, the radio will beep a “DU” sound when the programmed function is enabled (by either long press or short press)� Repeat the same procedure to disable this function, and the radio will beep a “DuDu”...
  • Page 15 Taking care of your radio & rules to know Your radio will continue to be a valuable work tool with care and attention� Some general rules are: Don’t leave your radio in very hot areas like on the car dashboard in summer� Keep the battery charged when not in use�...
  • Page 16 © Copyright 2012...
