Therm-App TH for Thermography -

High Resolution

Mobile Thermal Imaging Tool

Operation Manual

Table of Contents

Need help?

Do you have a question about the TH and is the answer not in the manual?

Questions and answers

Summary of Contents for Therm-App TH

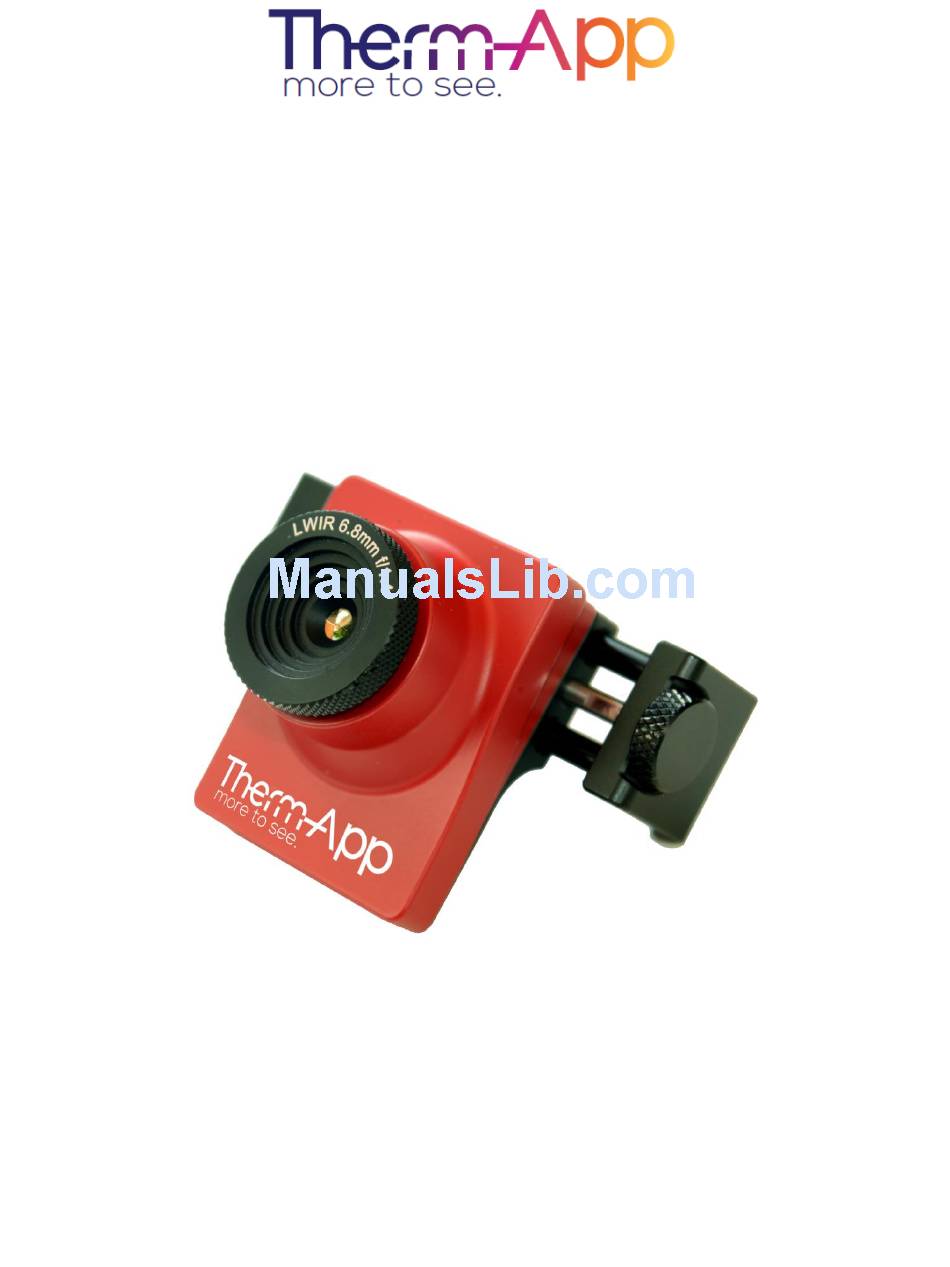

Page 1 Therm-App TH for Thermography - High Resolution Mobile Thermal Imaging Tool Operation Manual...
Page 2: Table Of Contents
Quick Start Guide Therm-App Operation Manual Copyright © 2014 Therm-App, All rights reserved. ® Visit Therm-App website: www.therm-app.com Table of Contents Quick Start Guide....................3 Safety and Caution Notes ................. 4 Product Description................... 5 Android Device Minimum Requirements ............6 Opening the Therm-App Box ................
Page 3: Quick Start Guide
Make sure the Android device is compatible with  the Android Device Minimum Requirements.  Visit the Google Play online store and download the free Therm-App Basic app, or scan the QR code.  Install the Therm-App basic application on your Android device.
Page 4: Safety And Caution Notes
Read this document in full, as well as the warranty document provided with the product.  Do not drop Therm-App or apply pressure on the IR lens to avoid breaking the lens. If the IR lens breaks, do not touch the broken pieces. Touching the broken lens pieces can cause injury.
Page 5: Product Description
Therm-App Operation Manual Product Description Therm-App is a revolutionary concept that extends human vision by turning an Android device into a thermal camera. This lightweight, modular, high resolution device clips onto your Android device. Therm-App provides your Android device with a capability of a powerful camera, able to display, record, and share thermal images.
Page 6: Android Device Minimum Requirements
Android Device Minimum Requirements Therm-App Operation Manual Android Device Minimum Requirements  Therm-App was designed to work with Android OS ver. 4.1 or above. Due to modifications and variations made by mobile manufacturers and operators there could be cases of non- compatibility. ...
Page 7: Opening The Therm-App Box
(OS) is either version 4.1 or above excluding 5.0 and above, supporting USB On-The-Go.  Visit the Google Play online store, download and install the free Therm-App Basic app, or scan the QR code. Document: UM-TAH68AQ-1100_A Page 7 of 22...
Page 8 (or similar) message should be shown and the Therm-App application, if already installed, should start automatically. Notes: For the first use of the Therm-App device with an Android device, an initialization process that involves downloading of data must be completed.
Page 9: Application Operation
Therm-App Operation Manual Application Operation Initialization  This section is relevant to the first connection between the Therm-App device and the Android device.  The Android device asks for your permission to associate the USB port with the Therm-App application.
Page 10 Application Operation Therm-App Operation Manual Upper Toolbar The upper toolbar includes: Settings button (1) – for configuring the Therm-App TH Settings.  Quick access button – allows for quick access to settings needed while  taking measurments Temperature bar (3) – presents the range of temperatures currently ...
Page 11 Application Operation Therm-App Operation Manual Setting Thermography Color When the Thermography mode is selected, the Therm-App device image can be displayed using one of four palettes. To change the selected palette: Swipe the main screen left or right to toggle between palettes (or tap the Thermography Color option on the Therm-App Settings screen).
Page 12 Application Operation Therm-App Operation Manual Setting Manual Temperature Scale  By pressing the left or right temperature scale reading number, a drop down scale allows for manually fixing the range. After choosing the fixed temperature, touch anywhere on the screen to continue.
Page 13 Export – allows for defining which files (such as IR Photo, Color  Photo, Screenshots, and more) are created and shared when using Therm-App TH. Here you’ll also be able to link Therm-App TH to your DropBox account for auto upload. Maintenance – performs bad pixel repair.
Page 14 Application Operation Therm-App Operation Manual Imaging Mode The Therm-App device image can be displayed in one of two modes. To change the imaging mode: Tap the Imaging Mode option on the Therm-App Settings screen. Select one of the following modes: ...
Page 15 Application Operation Therm-App Operation Manual Adjusting the Reflected Temperature  Reflected temperature represents the energy emitted by the surrounding objects and reflected by the measured surface. Setting this value accurately is important if the Emissivity value is low.  To adjust the reflected temperature: ...
Page 16 Application Operation Therm-App Operation Manual Thermography Settings Units – choose between Celsius and Farenheit.  Emmisivity – change the Emissivity according to the measured item’s  charestatistic and material. Reflected temperatures – improve temperature readings by  adjusting this value for reflected background correction.
Page 17 Therm-App Operation Manual General Settings Record Audio – Enable or disable audio recording during video  recording. Watermark on Snapshot – enable or disable the Therm-App  watermark on images. Disable screen timeout – allows you to disable the devices’ default ...
Page 18 Cloud Accounts DropBox - Therm-App outputs can be uploaded automatically to a DropBox account. Use the “click to link” for linking the Therm-App TH app with your DropBox account. Uplaod from Media Folder – upload files marked for saving on the media folder.
Page 19 Application Operation Therm-App Operation Manual Bad Pixel Repair During extensive operation of the thermal sensor, or due to mechanical shocks, some of the pixels may need repair. Bad pixels are observed as pixels that are darker or brighter than their surroundings. To eliminate these "bad pixels"...
Page 20: Specifications
Application Operation Therm-App Operation Manual Specifications Resolution 384 x 288 pixels (>110,000 pixels ) Accuracy ± 2°C or 2% (@25°C) whichever is higher Sensitivity NETD < 0.10°C Scene Temperature range 0 – 200 °C NUC calibration Shutterless Calibration Routine Est. 2 years...
Page 21: Troubleshooting
 The Therm-App Basic application is installed from Google Play.  Therm-App and the Android device are connected properly via a USB-OTG cable.  Verify that your cable is OTG compatible: Plug the USB OTG cable into the Android device USB port.
Page 22 Ensure that line of sight is not blocked by glass or other transparent materials. Unfocused image Image blurred Turn the lens focus ring while pointing the Therm-App device to a sharp edged object. Do not turn the lens focus ring too far as the lens could slip out of place.
