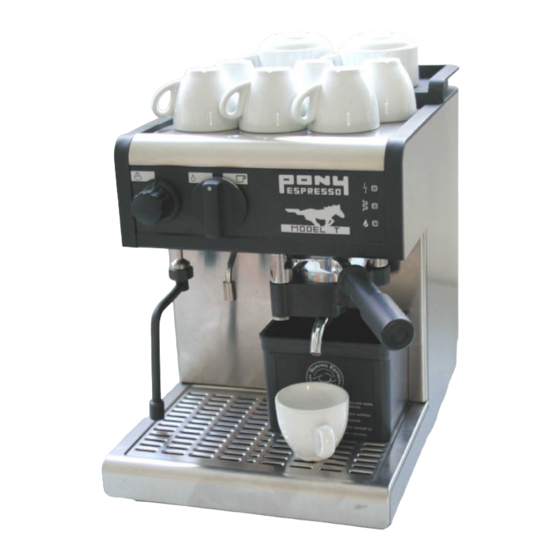

Pony Espresso T 134 Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Pony Espresso Manuals
  4. Coffee Maker
  5. T 134
  6. Instructions for use manual

Pony Espresso T 134 Instructions For Use Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

NOTICE
TECHNIQUE
MODELE PONY T 134
06/02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T 134 and is the answer not in the manual?

Questions and answers

Related Manuals for Pony Espresso T 134

Summary of Contents for Pony Espresso T 134

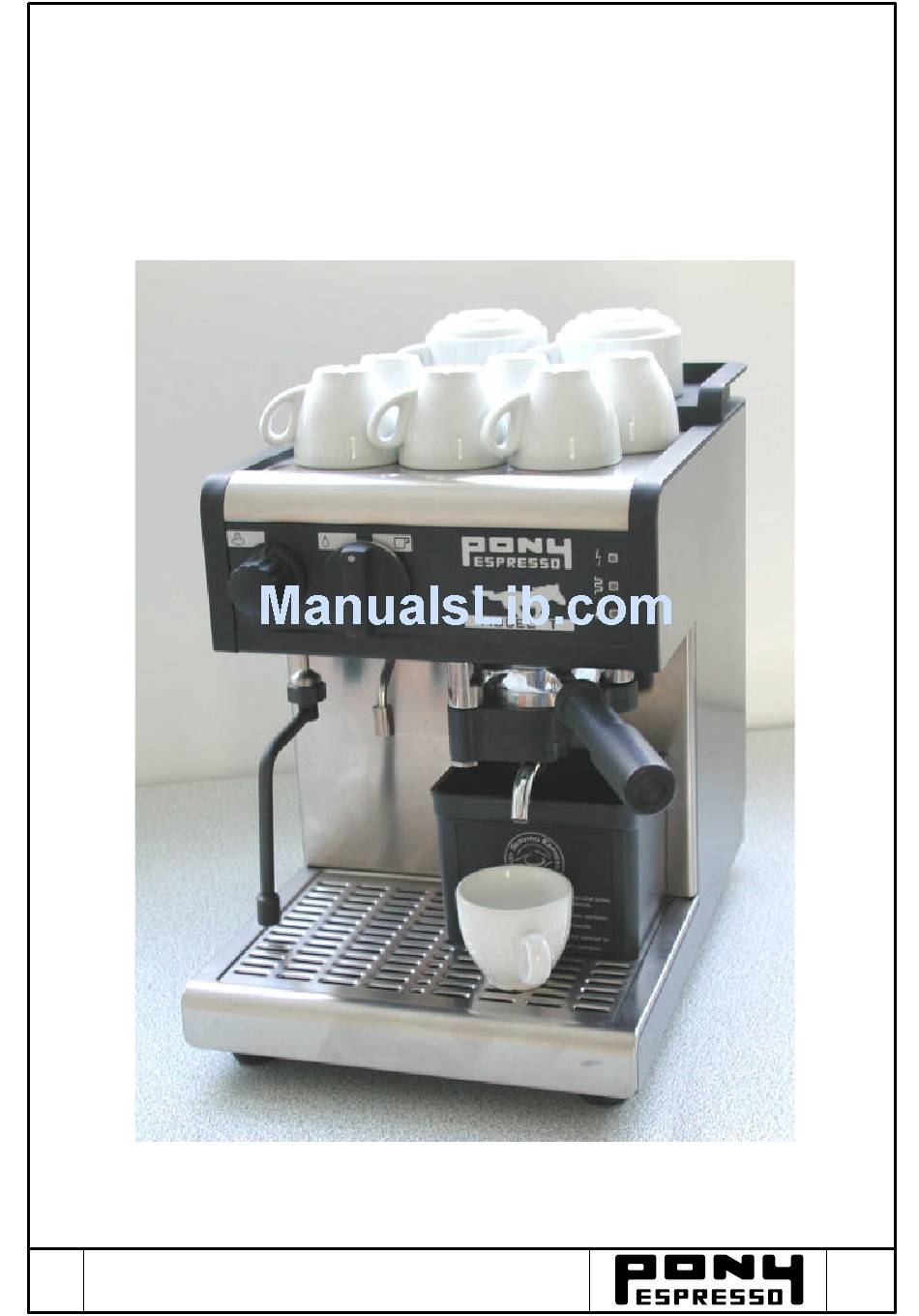

  • Page 1 NOTICE TECHNIQUE MODELE PONY T 134 06/02...

  • Page 2: Save These Instructions

    IMPORTANT SAFEGUARD • Appliance is for household use and that all servicing shall be performed by an authorized service representative. • All the instructions mentioned in this book must be read carefully. • Do not touch hot surfaces such as: cup warmer tray, infusion unit, steam outlet or hot water outlet.
  • Page 3 The electrical supply must be protected and rated according to prevailing local standards,according to the following data: MODEL Tension Frequency Power Current PONY T 134 (COFFEE - STEAM - HOT WATER) 120 V 60 Hz 1800 W 15 A The machine is not to be operated at any other voltage than described on the name plate.
  • Page 4 OPERATION • START-UP − Before starting up the machine, it must be checked that all water and electrical supplies are in accordance with the previous pages. − Fill the water tank. − Put the switch (F) of the machine on position "1". The heating now takes place automatically.
  • Page 5 DAILY MAINTENANCE Attention: Do not use pressure sprays or hoses to clean the machine. Likewise, the machine must never be immersed in a liquid. On each end of use, the different parts must be cleaned as follows: • Coffee infusion assembly (Fig. 2) −...
  • Page 6 TROUBLE SHOOTING • NO COFFEE: WHEN TURNING THE SELECTING BUTTON TO MAKE COFFEE, NOTHING IS HAPPENING. - Check if there is water in the tank (the water lack light may be burnt out) - If there is water, control the functioning of the water lack microruptor ref. PN0340. By pressing and raising the tank, the light must be extinguished and enlightened.
  • Page 7 * If the boiler is cold, cold water is going out by the steam outlet: Check - the heating element ref. PN0771 - the thermofuses ref. PN1970 or PN1971 - the thermostat 150°C ref. PN0880 * If when heating the milk the foam is not taking form: - Check the little hole at the top of the teflon steam outlet ref.
  • Page 8 MODELE / MODEL VOLT POIDS / WEIGHT PONY T 134 (CAFE – VAPEUR – EAU CHAUDE) (COFFEE – STEAM – HOT WATER) 120 V 60 Hz 1800 W 15 A 15 Kg CAPACITES / CAPACITY 4 Lit. RESERVOIR / WATER TANK...
  • Page 9 PLANCHE / PLATE : 20 N° CODE DESIGNATION PN0010 Carrosserie peinte / Painted body PY7064 Boîte à pod / Pod box 45902 Autocollant boite a pod PONY T / Sticker Pod box PN0030 Couvercle réservoir noir / Black tank cover PN0040 Chauffe-tasses / Cup-warmer PN0050...
  • Page 10 1810 E S E...
  • Page 11 PLANCHE / PLATE : 30 N° CODE DESIGNATION PN0155 Rondelle plate 6,5x18x1,5 zinguée blanc / White washer (zinc) AE-13A Ecrou hexagonal M6 (UNI5588) / Nut stainless M6 PN0280 Réservoir d'eau (fumée) / Water tank (smoke) PN0290 Carter intérieur / Internal casing PN0295 Profil en caoutchouc T33 / Rubber profile CN-30...
  • Page 12 1300 1850 1840 2580 1870 ; 1 x2 ; 1 x2 2720 2710 2700...
  • Page 13 PLANCHE / PLATE : 40 N° CODE DESIGNATION PN0130 Vis Parker 2,9x9,5 TC nickelée / Nickel-plated 2,9x9,5 screw PH-32 Rondelle plate Z 6 / Washer AE-13A Ecrou hexagonal M6 (UNI5588) / Nut Stainless M6 PG-125 Ecrou rapid 2,5 / Nut-Faston PN0340 Minirupteur E.P.E.
  • Page 14 1240 1250 1540 1260 2830 1810 2820 1270 1070 1780 1280 1340 1290 1370 1341 1380 1342 1230 1390 1360 1400 1350 1410 1430 1420 1425 1440 1450 1490 1460 1530 1480 1520 1510 1500 MODELE PONY T 134 06/02...
  • Page 15 PLANCHE / PLATE : 50 N° CODE DESIGNATION 1130 33402 Filtre N°2 ILLY / Filter 33mm N°2 1140 PY7063 Entonnoir / Funnel 1145 DO-197A Bouchon de nettoyage / Cleaning cap 1150 33002 Adaptateur filtre ILLY / ILLY filter adaptor 1160 27800 Joint torique 2,62x52,07 (NBR) / Gasket 2,62x52,07 1170...
  • Page 16 1750 1760 2900 2910 1740 1745 1130 1140 1145 1150 1160 1170 1180 1190 1200 1210 1220 1580 1790 1950 1960 1940 1860 1550 2680 1590 1560 2940 2980 2960 2970 2950 A - H MODELE PONY T 134 06/02...
  • Page 17 PLANCHE / PLATE : 60 N° CODE DESIGNATION PN0130 Vis Parker 2,9x9,5 TC nickelée / Nickel-plated screw 2,9x9,5 PG-49 Ecrou hexagonal M3 / Nut M3 PN0400 Vis M4x8 TH en laiton / Brass screw M4x8 PN0410 Rondelle plate Z3 / Flat washer Rondelle dentelée ∅...
  • Page 18 2755 2740 2750 1x10 2730 1300 1890 1880 1040 1060 1895 1010 1020 1030 1910 1020 1060 1090 2770 1120 MODELE PONY T 134 06/02...
  • Page 19 DIVERS / OTHER ITEMS N° CODE DESIGNATION 1620 PN2990 Câblage électrique PONY T vapeur 120V UL / Elec. wiring 120V UL steam PonyT 1630 PN1633 Chaudière complète PONY T café 120V / Complete boiler 120V coffee PonyT 1650 PN1652 Chaudière vapeur assemblée 120V / Assembled steam boiler 120V 1710 97047 Livre d'instructions PONY T anglais / PonyT Instructions book...
  • Page 20 LISTE DES COMPOSANTS CHAUDIERE VAPEUR / LIST OF STEAM BOILER COMPONENTS Ref. PN1652 (voir planche n°60 / see plate n°60) N° CODE DESIGNATION PN0400 Vis M4x8 TH en laiton / Brass screw M4x8 Rondelle dentelée ∅ 4 / Washer 4 CN-343 PG-14 Ecrou hexagonal M4 zingué...
  • Page 21 ECHANGEUR CAFE COFFEE HEAT-EXCHANGER DECOMP. POMPE CAFE COFFEE PUMP EV CAFE COFFEE EV SORTIE CAFE DISTRIBUTEUR CAFE / EAU CHAUDE COFFEE SPOUT COFFEE / HOT WATER DISTRIBUTOR EV VAPEUR STEAM EV RESERVOIR TANK SORTIE EAU CHAUDE POMPE VAPEUR HOT WATER OUTLET STEAM PUMP SORTIE VAPEUR STEAM OULET...
  • Page 22 M.C. Carte CAFE COFFEE Card MORS I.V. MORS TMF A TMF B TMF A Carte VAPEUR STEAM Card MORS TMF A TMF A TMF B T150 T150 Interrupteur Général / ON-OFF switch Relais / Relay Résistance chaudière café / Coffee heating element MORS Bornier / Plug NO/NC Contact relais / Relay contacts...
  • Page 23 Lampe rouge sécurité manque d’ eau / Water safety light Thermostat café / coffee thermostat Sécurité manque d’ eau / Water safety switch TMF A Thermofusible 216°C / Thermofuse Interrupteur café / Coffee switch TMF B Thermofusible 167°C / Thermofuse SCHEMA DE CABLAGE 06/02 PONY T 134...
  • Page 24 PONYT 134 FIRST EMERGENCY PER PARTS LIST LISTE DES PIECES DETACHEES DE 1ERE URGENCE QUANTITES D E S I G N A T I O N CODE MACHINES 083500 Spray Douchette inox PN1340 Gasket Ø tore 1,78 x 18,77 int Joint torique Ø...
  • Page 25 PONYT 134 FIRST EMERGENCY PER PARTS LIST LISTE DES PIECES DETACHEES DE 1ERE URGENCE QUANTITES D E S I G N A T I O N CODE MACHINES PN1580 Tube rislan L : 200 Tube 8-4 L : 200 PN1590 Tube rislan L : 380 Tube 6-3 L : 380 PN1633...
