Summary of Contents for EcoReco M series

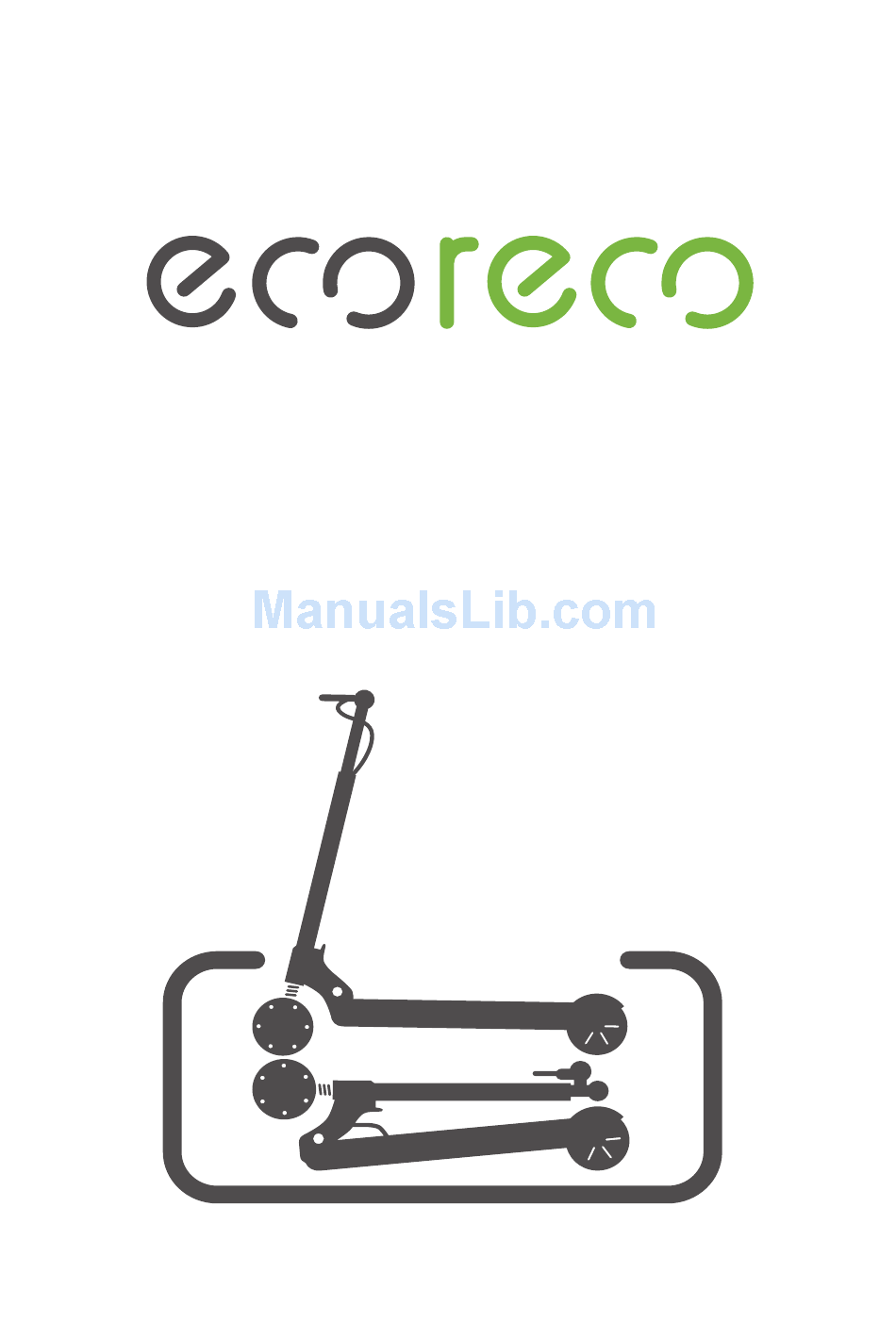

  • Page 1 PERSONAL MOBILITY REDEFINED M SERIES OWNER’S MANUAL...
  • Page 4: Table Of Contents

    CONTENTS INTRODUCTION GENERAL GUIDANCE EcoReco SCOOTER COMPONENTS RECHARGEABLE BATTERY AND CHARGER DASHBOARD AND THROTTLE UNIT BRAKE TECHNICAL SPECIFICATIONS EcoReco SCOOTER OPERATION SAFETY REQUIREMENTS AND CHECKS BEFORE OPERATION UNFOLDING FOR OPERATION OPERATING TIPS FOLDING FOR TRANSPORT/STORAGE TOP SPEED CONFIGURATION CLEANING AND SERVICING...
  • Page 5: Introduction

    Welcome to the EcoReco community! Thank you for choosing an EcoReco electric scooter for your eco-friendly recreation and commuting. You will soon experience first-hand that the EcoReco scooter is a compact, efficient, and economic personal transportation vehicle. This manual provides an overview of the function, operation, maintenance and warranty of your new scooter.
  • Page 6: General Guidance

    The battery is pre-charged to 50% out of box for your convenience. The EcoReco scooter undergoes several test rides and charge cycles at the factory for quality assurance purposes. The dashboard might display a few charging cycles and miles ridden at the date of receipt.
  • Page 7: Ecoreco Scooter Components

    EcoReco E-SCOOTER Handlebars Handlebar sleeves T-bar Stem Positioning pin Dashboard and throttle unit Brake lever T-bar tightening knob Securing latch Fixing lever Foot deck Charging socket Kickstand Rear suspension *M5 only Rear wheel brake...
  • Page 8: Rechargeable Battery And Charger

    BATTERY CONDITIONING The EcoReco battery is pre-charged to 50% out of box for your convenience so you can ride it right away. Use the EcoReco charger to recharge the battery when the battery reading on the dashboard is low. The most efficient zone to charge is in between 1-4 bars.
  • Page 9 Contact EcoReco to order a replacement charger. A damaged charger could cause personal injury or short circuit the scooter electronics, voiding the warranty. Do not carry out independent repairs on the battery, charger or cables. Contact EcoReco or your dealer for your service needs.
  • Page 10 Please charge your EcoReco scooter in full before storing it for long periods. Avoid storing the scooter under direct sunlight or in wet environments. Even when it is not in use, monitor the battery status or recharge your EcoReco scooter fully every 3 months to prevent a self-induced deep discharge.
  • Page 11: Dashboard And Throttle Unit

    (c) Numerical Speedometer: (Current velocity of the scooter, it shows “0” when standstill) (d) Charging Cycle Counter. Note For quality assurance, an EcoReco scooter must go through several test rides and charging cycles. Therefore, the 0D0 and Charging Counter modes might display miles ridden and charging cycles upon receipt.
  • Page 12: Brake

    BRAKE The brake lever for the rear wheel brake is on the left handlebar. To slow down or stop the scooter when it is powered on and moving, squeeze the brake lever. The drum brake on the rear wheel does not kick in until after the brake lever is fully pressed.
  • Page 13: Technical Specifications

    TECHNICAL SPECIFICATIONS Charging time 2 hrs(80%) to 4.5 hrs(100%)* Load maximum 260 lb Total weight 34 lb Engine performance 250 W Battery LiFePO4 36V 8 Ah Wheel size 6.3 x 1.9 in Size “upright” (operation mode) 38 x 22 x 46 in Size “folded”...
  • Page 14: Ecoreco Scooter Operation

    Please contact our customer support team or an authorized dealer. DISPOSAL You are already making a major contribution to environmental protection by riding your EcoReco scooter. To further avoid unnecessary pollution: Dispose of your EcoReco scooter and all associated components (such as batteries) through authorized disposal facilities.
  • Page 15: Unfolding For Operation

    UNFOLDING FOR OPERATION Refer to the “EcoReco scooter components” section if needed. Press down the fixing lever, and lift up the stem from the deck unitl it clicks into place. Lift up the securing lever and secure it against the stem.
  • Page 16 Loosen the T-bar tightening knob. Pull out the T-bar extension and lock it into position (with the positioning pin) at the preferred height. Tighten the T-bar tightening knob. Warning Fail to tighten the knob might result in unintented stress on the positioning pin and failure to hold the handlebar height during operation.
  • Page 17: Operating Tips

    Riding the scooter without power does not damage it. Do not turn on the power until you feel confident“rolling”. Press the EcoReco power button on the dashboard for 2 seconds until the display lights up. The scooter is now ready for you to get on and take off.
  • Page 18: Folding For Transport/Storage

    FOLDING FOR TRANSPORT/STORAGE This section describes how to fold the scooter for transport or storage. Refer to the “EcoReco scooter components” section if needed. Do not operate the scooter when it is “folded.” Turn off the scooter. (The scooter also shuts off automatically if inactive for 3 minutes.)
  • Page 19 Loosen the T-bar tightening knob. Push in the positioning pin and push the T-bar extension down into the stem. Push down the securing latch.
  • Page 20 Lift the stem, so that the front wheel is slightly off the ground, then press down the fixing lever. Fold the stem down to the deck. To carry the scooter, lift it up by the stem.
  • Page 21: Top Speed Configuration

    TOP SPEED CONFIGURATION Open the foot deck. Remove the 8 hex screws using a hex driver. Identify 3 pairs of connectors with matching colors (labeled kick-start, 12.5 mph, and 7.5 mph) near the rear wheel wire. Configure the top speed: Once connecting the 2 ends of the 12.5mph wire, you would configure the top speed to be 12.5 mph.
  • Page 22: Cleaning And Servicing

    Do not hang any object by the wires attached to the handlebars. SERVICE Repair and maintenance services must be performed by the EcoReco service team or authorized dealers. Unauthorized actions might lead to a loss of the warranty. For repair and maintenance, please visit http://ecorecoscooter.com/faq/ or contact...
  • Page 23: Limited Manufacturer Warranty

    CUSTOMERS. EcoReco, a California Corporation, expressly warrants that each of its products is free from defects in line with the state-of-the-art in terms of materials and manufacturing under normal operating conditions and according to proper use for a period of 180 days from the date of original purchase.
  • Page 24: Not Included In The Warranty

    NOT INCLUDED IN THE WARRANTY Damage to the vehicle brought on by improper use or operation under abnormal conditions. Racing, competitive or commercial use, or modification of the product shall void this express limited warranty. Damage incurred by road chips, hailstones, de-icing salt, industrial fumes, improper care (eg, poor battery charging) or unsuitable care of products.
  • Page 25: Other Disclaimers

    EcoReco; (c) purchaser acknowledges that there is an inherent risk in the operation of motorcycles, bicycles, mopeds, and all EcoReco scooters, and herewith assumes the risk of any injury arising from operation of any EcoReco scooters.
  • Page 26: Declaration Of Conformity

    EN6100-6-1:2007 EN71-1, EN71-2, EN71-3 EN14619 EN60335-1 The CE symbol as below is to be found on EcoReco E-Scooter. The producers confirm that EcoReco E-Scooter accords with all regulations for using the CE symbol. Hamburg, March 2013 Jay Sung EcoReco Corporation, U.S.A.
  • Page 28 EcoReco Electric Scooter EcoReco Corporation (U.S.A) ecorecoscooter.com customer.service ecorecoscooter.com 1608 W Campbell Ave, # 280 Campbell, California 95008 © 2015 EcoReco Corp. All rights reserved. Version 4.4 This manual is made from 100% recycled paper, continuing EcoReco's commitment to protect our environment.
