Summary of Contents for Abstract Data ADE-10

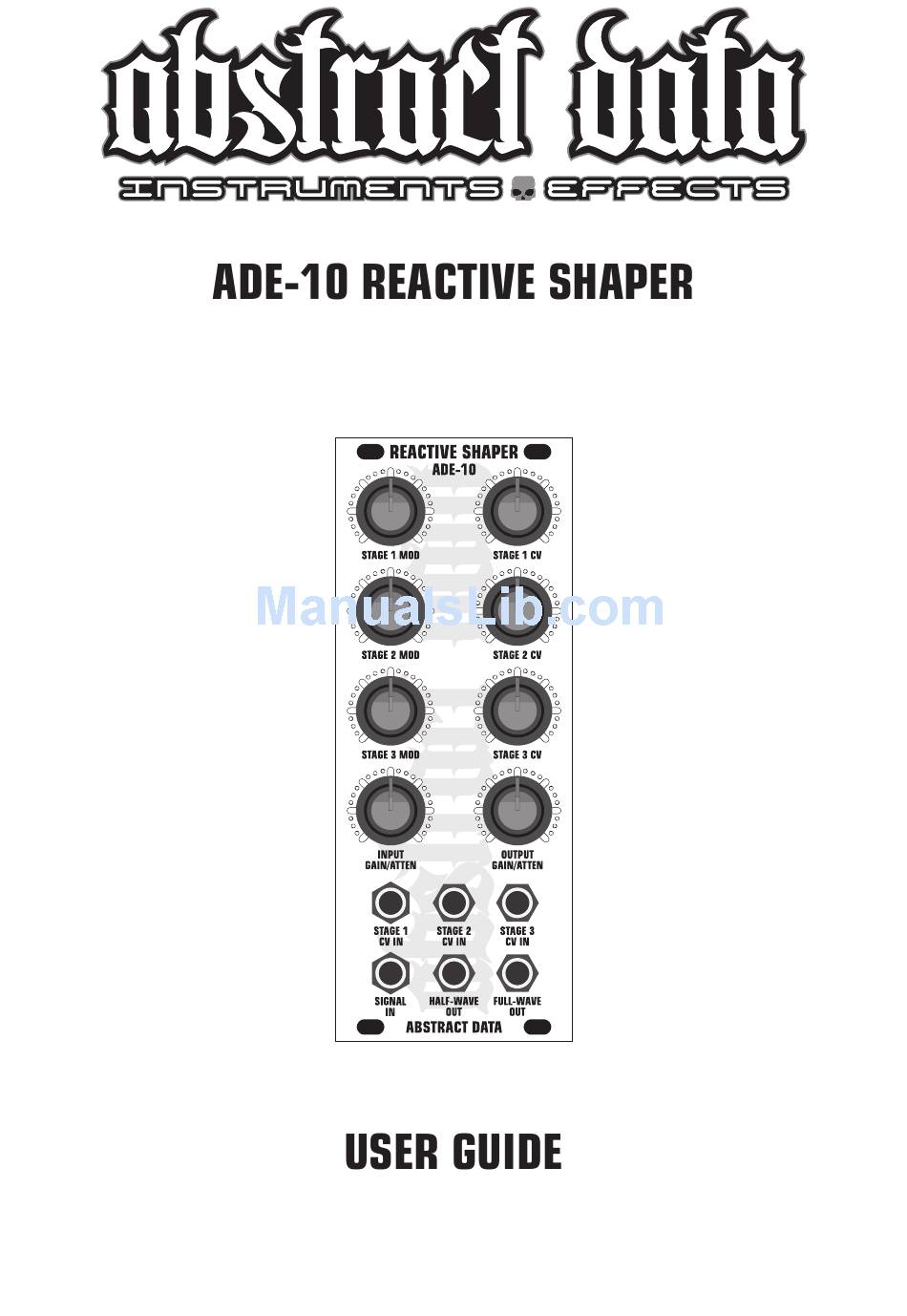

- Page 1 3-Stage Shaping, Folding & Feedback Module with Dedicated CV Control and Dual Outputs © 2011 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.0 October 2011...
-
Page 2: Mounting Holes
DC-coupled, half-wave rectified output, allows positive AC and DC signals FULL-WAVE OUT: DC-coupled, full-wave output, allows +/- AC and DC signals MOUNTING HOLES: Accepts M2.5 or M3 screws in Doepfer or Analogue Systems spacing width © 2011 Abstract Data Ltd. http://www.abstractdata.biz info@abstractdata.biz Version 1.0 October 2011... - Page 3 The RED stripe on the supplied power cable connects to the NEGATIVE (-12V) rail on the ADE-10 with the RED stripe facing DOWN. This is marked on the back of the ADE-10 PCB as “-12 RED”.
-
Page 4: Operation
The output of each stage will vary slightly based on the type of waveform that is used as the initial input. This is due to the way the ADE-10 adds and reacts to the harmonic content of the input waveform and then, in turn, the output waveform of the preceding stage - thus, the term ‘reactive’... - Page 5 Page 5 of 7 The diagram below shows an approximation of the effect that each stage of the ADE-10 has on each of the three primary waveform types when the control for each stage is used in isolation and turned to full.
- Page 6 6: CV Page 6 of 7 The external CV inputs of the ADE-10 should accept any CV, LFO or audio signal within a range of approximately +/-10V, however, CV content outside the range of 0-5V DC will be clipped and blocked internally.
- Page 7 The rear panel of the ADE-10 has exposed parts and connections. Please ensure when handling the ADE-10 that the unit is held by the sides of the front panel or the sides of the PCB.
