MediaMatrix VSC-51 Quick Setup Manual

Full hd video scaler switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
VSC-51 Quick Set-Up Guide
Version 1.7.0a.1
February 6, 2014

Advertisement

Table of Contents
loading

Related Manuals for MediaMatrix VSC-51

Summary of Contents for MediaMatrix VSC-51

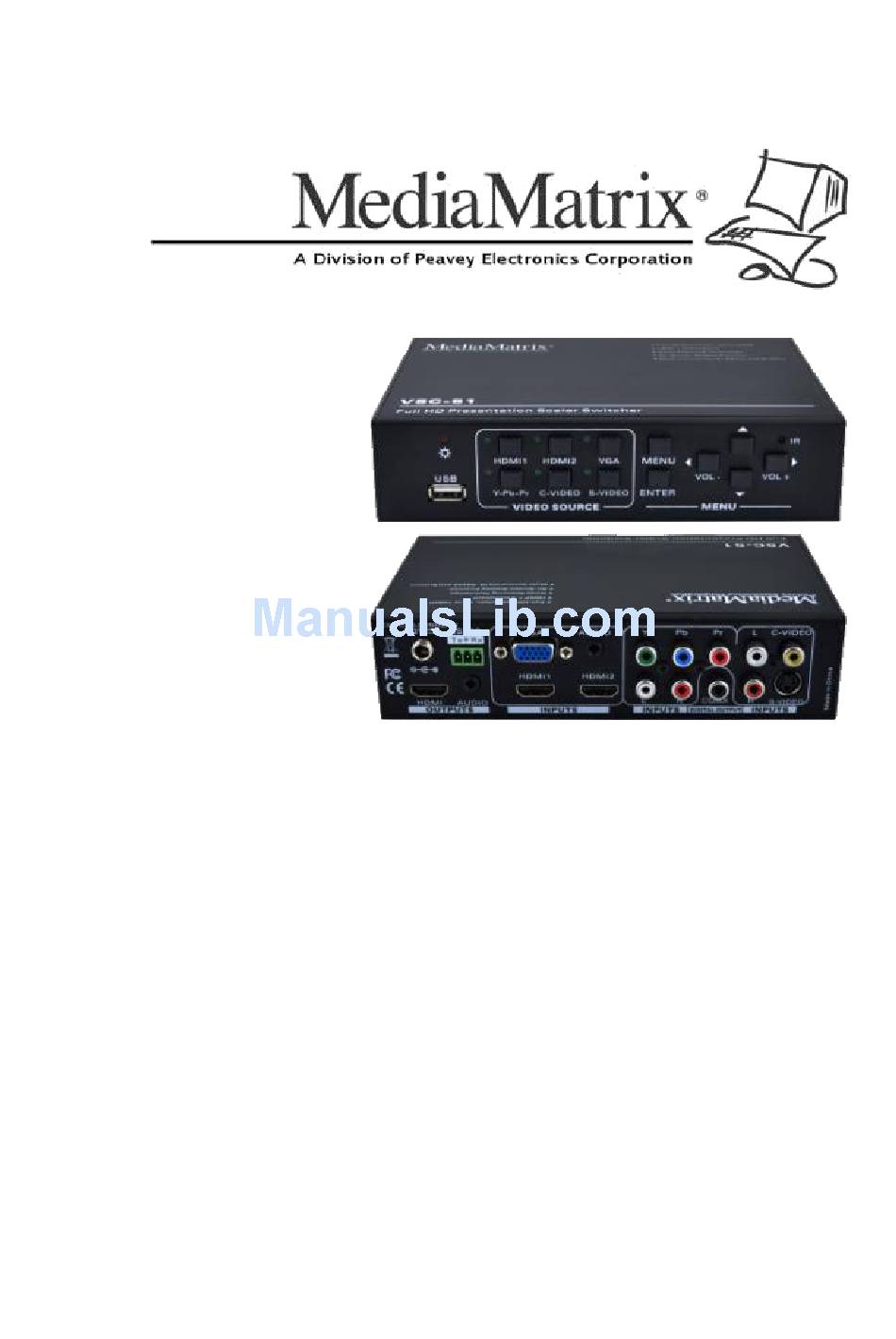

  • Page 1 VSC-51 Quick Set-Up Guide Version 1.7.0a.1 February 6, 2014...

  • Page 2: Copyright Notice

    The ratc-server component is based in part on the work of the libwebsockets project: http://libwebsockets.org. Prepared by Peavey Digital Research, 6 Elm Place, Eynsham, Oxford, OX29 4BD, UK. Email:mmtechsupport@peavey.com. Scope This guide describes how to configure a VSC-51 Mini Video Scaler with basic settings. Version 1.7.0a.1 February 6, 2014...

  • Page 3: Important Safety Instructions

    1 - Important safety instructions Warning: When using electrical products, basic cautions should always be followed, including the following: 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6.
  • Page 4 b) colored green or colored green and yellow. c) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black. d) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

  • Page 5: What's In The Box

    2 - Introduction What is VSC-51? VSC-51 is a full HD video scaler switcher. The device scales and switches any HDMI, VGA, YPbPr, C-Video or S-video video signal to HDMI up to 1080P. It is controllable via buttons on the front, the IR sensor and the RS232 port. It has 6 video inputs and 5 audio inputs.
  • Page 6 VSC-51 front and rear 1. POWER: Lit (red) when the external power supply is connected properly. 2. USB input. This is used for firmware updates, or to play JPEG presentations, or MP3 audio. Note: These features are controlled using the On-Screen Display (OSD), so a video display must be connected to the HDMI output.
  • Page 7 1. 12V DC: External power supply connector. 2. RS232: Serial connector for bi-directional pass-thru communications. 3. VGA video input. 4. VGA stereo audio input. 5. YPbPr and stereo audio input. 6. S-Video/C-Video and stereo audio input. 7. HDMI output. Embedded with digital audio with level controlled by scaler. 8.

  • Page 8: Infrared Remote Control

    Infrared remote control Source selection controls. Audio is automatically selected when video is selected. Special features not available using front panel. OSD and volume controls. Output resolution selection controls. Tip: The output resolution can be set using the OSD, RS-232 serial commands, or using the remote control.
  • Page 9 3 - Setting up the unit using the Introduction The product provides an On-Screen Display (OSD) menu with support for English and Chinese languages. Note: Many of the features are used only during initial installation and setup. Specifying the picture parameters The first icon from the left of the OSD menu is used to set the picture parameters.
  • Page 10 Specifying the audio parameters The second icon from the left of the OSD menu is used to set the audio parameters. The settings include sound effect presets, bass, treble, balance, scene mode, surround and smart volume setting. Note: Not all parameters are available with all inputs. Specifying the system parameters The third icon from the left of the OSD menu is used to set the system parameters.
  • Page 11 The fourth icon from the left of the OSD menu is used to browse the contents of a USB flash disk inserted into the USB port at the front of the VSC-51. You can play MP3 files and view JPG files.
  • Page 12 When you select USB, the screen below will be displayed. You can browse the available folders and select files from the USB flash disk. Use the arrow buttons to navigate, and the ENTER button to confirm a selection. Use the MENU button to return to the previous page.

  • Page 13: Maintaining The Unit

    4 - Maintaining the unit Updating the firmware You can update the firmware on the VSC-51 using a flash disk inserted into the USB port at the front. MediaMatrix Technical Support (mailto:mmtechsupport@peavey.com) will provide you with the files you need to install on the flash drive and explain the procedure.
  • Page 14 Problem What to do Waves on image If the output image has waves, especially if the waves move up or down, check that all devices and components (video players, computers, etc.) are grounded properly. Static or waves become Possibly due to incorrect grounding. Check grounding stronger when connecting immediately.

  • Page 15: Reference Information

    5 - Reference information Specification Video input Video output Input 2 HDMI, 1 VGA, 1 Output 1 HDMI YPbPr, 1 C-Video1 S-Video, 1 USB multimedia input Video signal HDMI 1.3/DVI, Video signal HDMI VGA, RGBHV, RGBs, RGsB, RsBsGs, SECAM, PAL, NTSC 3.58, NTSC 4.42, MPEG /AVI /JPG for USB input...
  • Page 16 Audio input Audio output Input 3 Stereo Audio Output stereo audio, S/PDIF (RCA), 2 embedded COAX, and HDMI HDMI audio audio Input connector RCA for YPbPr, Output connector 3.5mm jack for line C-Video & S-Video audio, RCA for audio, 3.5mm jack CO-AX audio for VGA audio, (SPDIF), HDMI for...

  • Page 17: Supported Video Formats

    Supported video formats VSC-51 supports many types of video signals, including C-Video, S-Video, YPbPr, VGA and HDMI. All inputs are scaled to the selected HDMI format output. C-Video and S-Video input  Supports PAL, SECAM and NTSC formats.  From the OSD, the aspect ratio can be set to full-screen, wide screen or 4:3.

  • Page 18: Ypbpr Input

    YPbPr input The aspect ratio can be set to full-screen, wide screen or 4:3. The maximum bandwidth is 170MHz. Input resolution Display parameter Frame Scanning Frame Refresh Aspect mapping lines frequency rate Hz ratio 720 x 480 I 15.75 720 x 480 P 31.5 720 x 576 I 15.625...

  • Page 19: Hdmi Input

    HDMI input HDMI features:  Digital embedded audio decoding, passing analog audio to the 3.5mm (1/8”) stereo output.  Changeable aspect ratio (full-screen, wide screen, 4:3, auto-adjust).  Support for HDCP1.3, compatible with DVI signal. Resolution Resolution 640×480@60Hz 1024×768@70Hz 640×480@72Hz 1024×768@75Hz 640×480@75Hz 1280×1024@75Hz...
  • Page 20 Communication protocols and command codes Command Function Feedback Example 0600% MUTE Mute On 0601% Unmute Mute Off 0602% Audio level up Volume: XX 0603% Audio level down Volume: XX 0604% Lock the front panel buttons Panel Locked 0605% Unlock the front panel buttons Panel UnLocked Preset the volume.
  • Page 21 Brightness: XX 0637% Check the contrast Contrast: XX 0638% Check the saturation Saturation: XX 0639% Check sharpness Sharpness: XX 0640% Check the color temperature Color Temp: XX 0699% Check the firmware version VSC-51 V XXXXX February 6, 2014 Version 1.7.0a.1...
  • Page 22 Command Function Feedback Example 0644% OSD CHANNEL display enabled OSD Source: Display Shield OSD CHANNEL (all OSD features OSD Channel (Source):No 0645% disabled) Display 0646% Volume Bar display enable Volume Bar: Display 0647% Volume Bar display disable Volume Bar: No Display Enable digital audio（HDMI and SPDIF）...

  • Page 23: Warranty Statement

    End Users: Take the defective product and your dated sales receipt What This Warranty Does Not Cover or other proof of purchase to your Authorized MediaMatrix Systems Integrator or Authorized Peavey Service Center. System The Warranty does not cover: (1) damage caused by accident,...
  • Page 24 MediaMatrix® A Division of Peavey Electronics Corp. 5022 Hartley Peavey Drive, Meridian Mississippi, 39305, USA Phone: 866.662.8750 http://mediamatrix.peavey.com Features & Specifications subject to change without notice Copyright © 2014, All Rights Reserved 80307514...
