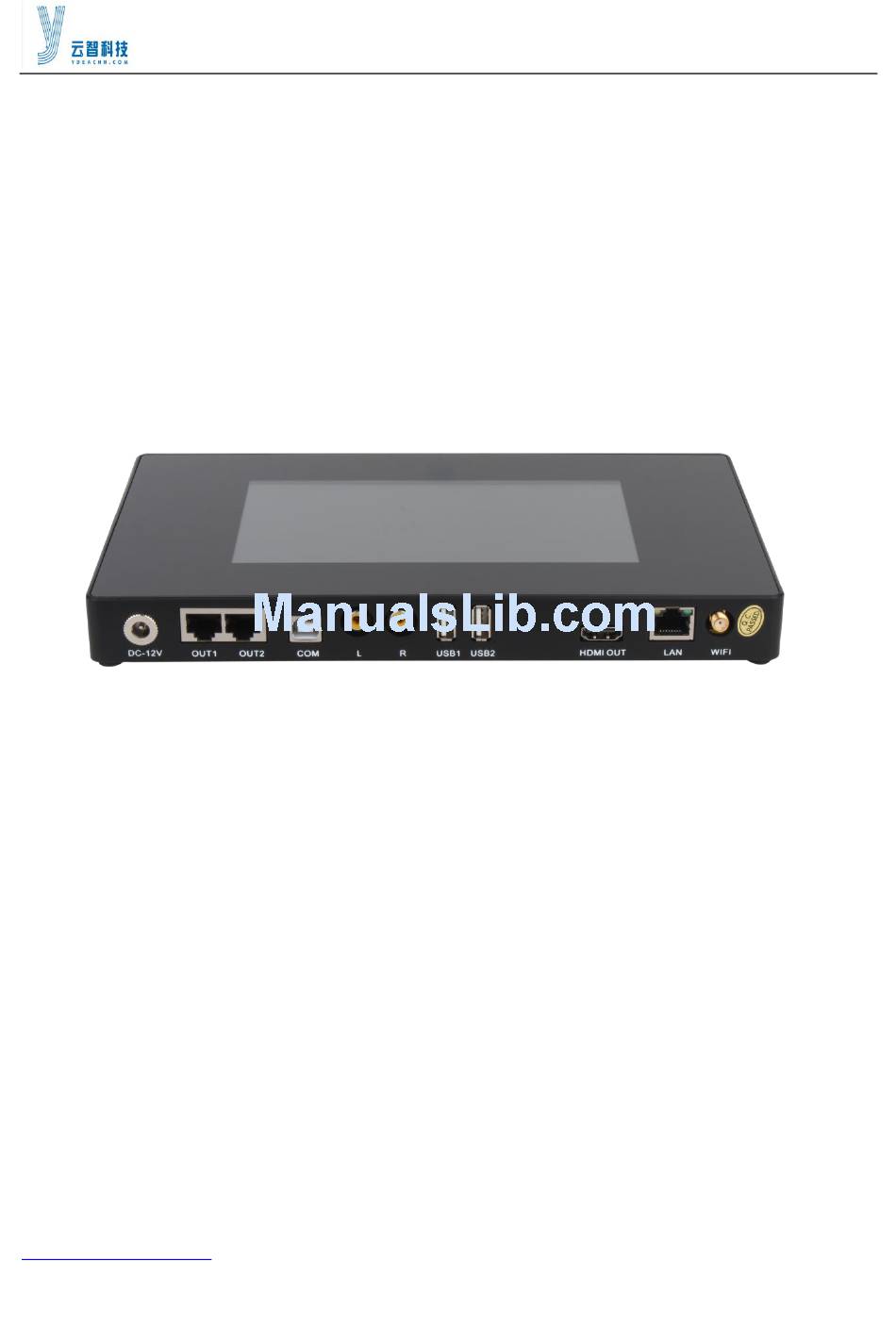

Media Player Mdea User Manual

• Version: V03

• Date:

2015-05-19

http://www.ydeachn.com/

Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor

Table of Contents

Need help?

Do you have a question about the Mdea and is the answer not in the manual?

Questions and answers

Summary of Contents for Ydeachn Mdea

Page 1 Service Hotline: 400-666-9216 Media Player Mdea User Manual • Version: V03 • Date: 2015-05-19 http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 2: Table Of Contents
5.3 Client software ..............................33 5.4Cluster Software ............................54 1 System Overview Mdea is YDEA TECH for the advertising market, introduced a new low-cost integration of innovative LED display information release system, mainly for advertising network publishing, http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 3: System Features
 standalone media player Mdea own media player, you can use as a PC host to achieve a single player, integrated hardware codec module can support 1080p HD video decoding and playback; content can be played after the store will make a good play on the hard disk and U disk.
Page 4: Technical Specifications
Electrical Specifications Power Switching Power Supply ( 12V ) Temperature 0℃～60℃ Consumption ≦5W Size (L× W) 206 mm × 100 mm (L× W) http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 5: System Solutions
5.1 Control Software 5.1.1 Software Installation 1) In the APP File Manager, find the installation package (YdeaLED v 1.1.2.apk), double click the install package. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 6 3) The installation is complete, in the pop-up interface, click on the [Done]. 5.1.2 Software Uninstall 1) Click [System settings]-[Apps], click the YdeaLED icon, click the [Uninstall] button. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 7 5.1.3 Software Control Instructions Note: 1) According to the actual use of Mdea, the control software settings is divided into three modes, which is C3.0A mode, C3.0B mode, Micro mode. 2) C3.0A mode and C3.0B mode is suitable for situations when Mdea.do not connected to the distributor.
Page 8 3) On the menu of [Selecting the version] you can find three versions.Here you need to select C3.0A mode or C3.0B mode. After setting, click [Back] button.on the bottom of the screen. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 9 0. [Horizontal width]: set the actual width Mdea load, the default is 1024. [Vertical height]: set the actual height Mdea load, the default is 600.
Page 10 5) Click the [SCREEN CONNECTION SETTINGS] on the top of the screen. You need to set Screen connection in the interface. [Port]: Mdea has two output ports, labeled "OUT1" and "OUT2", using which port to output, and you Should select [port1] or [ port2] in this interface. In the bottom of the port, select [Simple Screen].
Page 11 See description of all the menu in"C3.0A mode and C3.0B mode"). 3) The distributor set: Click [DISTRIBUTOR SET] on the top of the screen, enter the interface. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 12 Service Hotline: 400-666-9216  [Port of master controller]: Mdea has two output ports, labeled "OUT1" and "OUT2", using which port to output, and you Should select [port1] or [ port2] in this interface.  [Load Mode]: There are four load mode. Which mode to use in the receiving card program has been fixed.
Page 13 [function] interface, there are ability to view the location, a single gray, gray-automatic, you can set the LED display Upon completion of the test. Set whether boot or not. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 14  Click the icon to the top right corner of the screen, enter the setup interface, you can set the brightness and grayscale settings. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 15: Studio Software
5.2 Studio software 5.2.1 Software Installation 1) In the APP of File Manager, find the installation package (YdeaStudio v2.1.4.apk), double click the install package. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 16 2) In the pop-up interface, click on the [Install]. 3) The installation is complete, in the pop-up interface, click on the [Done]. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 17 1) Click [System settings]-[Apps], click the YdeaLED icon, click the [Uninstall] button. 2) In the pop-up interface, click [Uninstall] to complete the uninstall. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 18 Click the icon on the desktop, enter the player interface. 2. Login settings: 2.1 according to demand free to set username and password of the Mdea. Convenient mobile client to control. 2.2 If the username and password has been set, you can directly click below icon, select the corresponding user name.
Page 19 3.6 The interface can be the first to use the default values, and then into the software, and then modify it. 3.7 parameter setting is completed, click [Next]. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 20 4.2 The interface can be the first to use the default values, then after entering the software, and then modify it. 4.3 setup is complete, click [Finish !!], you can enter the playback interface. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 21 : Enter the video playlist: Click on the menu, you can enter the interface which you can add files, Click the [Choose] menu and you can go to the storage directory of the Mdea. Into the corresponding directory, check the audio, pictures, video files, and then click "OK" to add a video to this screen.
Page 22 Add video to the screen displayed, check the video, and then click on the video, you can play the newly added video. Enter timing list: playlist can be timed video playback within a set time frame. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 23 1) Add a timing scheme: the interface menu settings, set after save after save the system will automatically match the program is in the time period, the case of the execution timing play http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 24 After setting the Video list and Timing list, you can click the Back Menu on the left of the screen and enter the playback main interface.  ： Play next added to the list of files. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 25 ： Lock / Unlock window settings currently doing.  ：You can individually adjust the volume of multiple windows.  ：Click this button will close the video playback window. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 26 Click on the icon shown below, the setting menu will appear on the right of the screen. Software setup menu as shown below. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 27 Service Hotline: 400-666-9216 1) User Information: You can display the station Mdea player device name and password; the user list connected clients and equipment 2) System Settings http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 28 Service Hotline: 400-666-9216  Network Set: when connected to a wireless network, the Mdea and the mobile phone must be connected to the same router. When use WIFI hotspot the Mdea created, the mobile phone need to connect to the WIFI hotspot.
Page 29 Service Hotline: 400-666-9216  Auto startup: Automatically starts the software Mdea player to boot.  Login set: select whether or not to retain a number of settings just entered the time of playback software.  transfer path: You can set the device to connect the client to transfer files to this path. Use the default path.
Page 30 You can set text overlay scrolling speed, font size, color, orientation, location and so on. 5 Clock Set: You can select the number of virtual clock and the clock, set the initial size and position http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 31 Click on the menu, then enter the interactive effect of the interface, click on the corresponding picture will be displayed in the corresponding window, click on the picture. Mainly used for mobile http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 32 If there is a video window can not get and out of bounds, perform this function, all the intermediate stacked display window on the canvas. Software information: http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 33: Client Software
5.3 Client software 5.3.1 Software Installation 1) In the file manager, find the installation package (YdeaPlayer.apk), click on the installation package, as shown. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 34 Service Hotline: 400-666-9216 Click [install] to install software. 5.3.2 Software Uninstall Click [System Settings] - [ Manage apps], click YdeaLED icon, http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 35 Service Hotline: 400-666-9216 Click[Uninstall]button. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 36 1) Before landing must first set the login nickname (default is Default). In the [User information] of the Ydea studio software, it is possible to view the name of the mobile client. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 37 2) After set the client name, click [Scanning device]. It will enter the following interface. If you are using a router to connect to WIFI, you can use multiple phones to control more than one player. If you are using the Mdea WIFI hotspot to connect, only use multiple phones to control a player. http://www.ydeachn.com/...
Page 38 Service Hotline: 400-666-9216 3)After the scan is complete, the device will enter the following interface. Click on the menu as shown. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 39 [User Information] of Ydeastudio. 5) After the password is entered correctly, enter the following interface.How many windows the http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 40 YdeaStudio. 6) If you enter the window_1, will appear the following five sub-menu. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 41 After the upload is complete, choose whether to play immediately or not. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 42 Service Hotline: 400-666-9216  Playback control: Return to the main interface, then click [Playback control]. It will enter into the following interface http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 43 Service Hotline: 400-666-9216  ：Click on the menu, it will search for all multimedia files the Mdea existence. Including video and pictures and so on.  ： Play previous file.  ：Play the current file.  ： Pause the current file.
Page 44  delete a single file: Slide single file to the left, it will appear as shown in the delete menu, click to delete a single file. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 45 Return to the main menu, enter the [window set] interface, you can set the window’s location,size and so on.  Timing set: Return to the main menu, enter the [Time set] interface, you can set the timer. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 46 Service Hotline: 400-666-9216  Sending interaction: Return to the main menu, enter the [Sending interaction] interface. You can use the phone to Sending interaction. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 47 Service Hotline: 400-666-9216 Select the corresponding picture, will enter into the following interface, then press and hold the corresponding picture, then pushed upwards. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 48: System Settings
 System Settings: enter the main menu, click on the icon below, or click on the main menu, the system can be set up. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 49: System Set
Service Hotline: 400-666-9216  System set: Click [System Set], there will be brightness, sound and other settings, after the setting, click [save]. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 50 Service Hotline: 400-666-9216  Restart: Click [Restart] to enter the following interface, then click [restart] menu the corresponding Mdea can be restarted.  Window set: Click on the menu, you can manage the Mdea’s already existing window. Specifically as shown.
Page 51 Service Hotline: 400-666-9216  Insert text: Click on the menu, you can enter [Insert text] interface, spots the desired character in the window. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 52 Service Hotline: 400-666-9216  Clock set: Click on the menu, you can set the clock. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 53 Service Hotline: 400-666-9216  Time conrection: Click on the menu, you can correct the system time . But the Mdea does not built-in battery. So corrected time will change after a power outage.  Softeware information： Click on the menu, you can view the software version.
Page 54: Cluster Software
5.4Cluster Software 5.4.1 Software Installation 1) In the file manager, find the installation package (YdeaPlayer.apk), click on the installation package, as shown. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 55 Service Hotline: 400-666-9216 2) At the prompt screen, click [install] button. 3) After the installation is complete, the prompt interface, click [Finish] button. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 56 Service Hotline: 400-666-9216 5.4.2 Software Uninstall 1) Click [System Settings] - [Apps], click YdeaLED icon, click [Uninstall] button. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 57 Click YdeaPlayer icon, enter the user login screen, first log in to the software, the need for client registration. As shown below. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
Page 58 Note: If the display registration fails, check the IP address filled in correctly, DS service on the server is turned on. When the software to communicate with the server, the server's firewall must be closed. http://www.ydeachn.com/ Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor...
