Summary of Contents for Rescea RVH-AXP35-VF

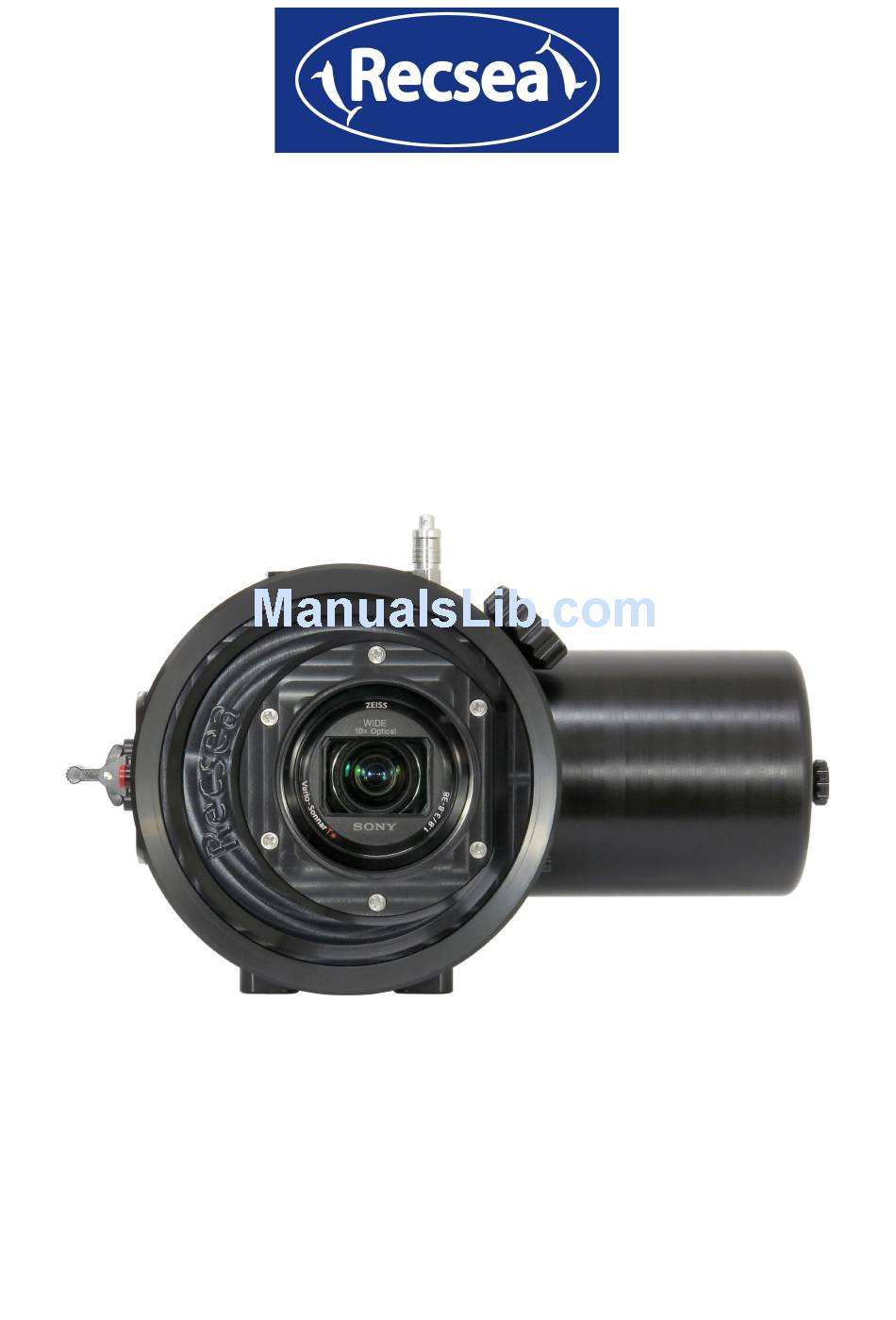

- Page 1 SONY FDR-AX30/AX33/AXP33/AXP35 4K Camcorders Waterproof Housings Recsea RVH-AXP35-LCD RVH-AXP35-VF MANUAL Please read this manual before use. NTF CORPORATION UH Division http://www.seatool.net...
-
Page 2: Features Of This Product
INTRODUCTION SONY FDR-AX30/AX33/AXP33/AXP35 Waterproof Housing RVH-AXP35 ※ Thank you for purchasing the RVH-AXP35 Waterproof Housing. ※ To ensure proper and safe use, please thoroughly read this manual. ※ Improper use may cause leakage causing irreparable damage to your digital video camera. - Page 3 ※ Manual Ring Dial and Manual Button. ※ Removable LCD Port and LCD Port Cover (RVH-AXP35-LCD) (RVH-AXP35-VF) ※ M67 Lens Port. ※ RECSEA original Secure-Latch locking system for easy opening and closing. ※ EO 26-5FBRA-4 and Aquatica Bulkhead Ports for external monitors.
- Page 4 RVH-AXP35-LCD / RVH-AXP35-LCD RVH-AXP35-LCD RVH-AXP35-VF...
- Page 5 RVH-AXP35-LCD RVH-AXP35-VF ※ Viewfinder - For use with camera's viewfinder. Can easily be replaced with optional INON 45° Viewfinder Unit witout the need of an adapter.
- Page 6 ※The RVH-AXP35-LCD and RVH-AX35-VF come with a SONY RM-VPR1 Remote Controller unit installed. Do NOT attempt to remove it. Should you experience problems with the unit, contact SEATOOL/RECSEA or the dealer of from which purchase was made. NOTE: Camera’s NIGHTSHOT Light cannot be used with this housing. REMOTE COMMAND FUNCTIONS ・Power Button Turns camera only ON and OFF.
-
Page 7: Handling Precautions
HOUSING MANUAL CONTROL FUNCTIONS ・Manual Button ・Manual Dial Zoom Focus Exposure IRIS Shutter Speed AE Shift White Balance Shift RESET NOTE: Desired camera manual functions must be assigned to prior to use with housing. ※ The housing Manual Dial is designed to turn the camera dial back and forth via friction from the O-ring that come in contact with camera inside the housing. - Page 8 To OPEN RVH-AXP35 back cover, while pressing the Lock Levers (1) on both sides of the housing pull the Secure-Latches (2) away from the back cover. RVH-AXP35-LCD With housing LCD Port removed and camera LCD open, set camera (Camera Tray attached) into position as shown below taking care to line up the Camera Tray Posts with the grooves on the Camera Tray.
- Page 9 ※ When installing camera take care that camera's Grip Belt does not cause an obstruction. ※ With RVH-AXP35-VF be sure to extend camera's viewfinder. If this is not done the camera will not be turned ON when using the Remote Commander. Camera will remain ON until the Power Button is used to turn camera OFF, or until Power Save setting engages.
- Page 10 ※ Gently tuck access cable into housing so that it does not cause an obstruction when attaching the back cover. ※ Please perform proper O-ring and O-ring Contact Surface maintenance prior to attaching and closing the back cover. Pay special attention to the grease condition making sure the O-ring is free of contaminants and seated uniformly in the O-ring groove with no twists or bulges.
- Page 11 Button engages. 4. After LCD is attached, set the LCD Dial. INSTALLING LCD PORT COVER (RVH-AXP35-VF) ※ Please conduct the following operations in a clean area with low humidity and dust. ※ Please perform proper LCD Port Cover O-ring and housing port contact surface maintenance prior to installation.
-
Page 12: Using The Viewfinder
2. Making sure the cover is resting evenly on port, push the cover into the port until it is fully seated. 3. Rotate cover clockwise until it stops with an audible “click” as the LCD Port Lock Button engages. USING THE VIEWFINDER The housing Viewfinder is interchangeable with INON 45°Viewfinder Unit, no modification or adapter required. - Page 13 For Vacuum: Pull Valve Sleeve downward. Plug will automatically rise from Valve. Remove Plug from Valve. Attach Gauge to Valve. Pump Housing to -0.04 MPa. (Note: While pumping the Gauge will fluctuate.) Wait for approximately 10 minutes. a. If there is no pressure change, the housing is air and water tight. b.
- Page 14 Attach Gauge to Valve. Press Repressurize Button and wait unit the Gauge reads 0 MPa. Remove Gauge and attach Plug. To remove LCD Port or LCD Port Cover, while pressing LCD Port Lock Button turn LCD Port or LCD Port Cover counterclockwise until it stops. Carefully remove from Housing Port.
-
Page 15: Important Notes
Back Cover: POM LCD Port : POM (RVH-AXP35-LCD) LCD Port Cover : POM (RVH-AXP35-VF) Lens, LCD Port Window, Viewfinder: Hard Coat Acrylic Levers, Buttons, Dials, Levers: POM, PVC Screws, Springs, Shafts: Stainless Steel, Galvanized/SUS Grip & Tray: Corrosion-resistant Aluminum Alloy, Anodized Size RVH-AXP35-LCD Approx. -
Page 16: Insurance Information
INSURANCE INFORMATION ※ We strongly recommend insuring your camera. For more information please contact your dealer. CONSUMABLE PARTS ※ For replacement of consumable parts such as O-rings please contact your dealer or Seatool/Recsea. ORIGINAL RECSEA OPTIONS The following items are optional. Please contact Seatool/Recsea or your local dealer if you wish to purchase. - Page 17 MEMO...
- Page 18 MEMO...
- Page 19 MEMO...
-
Page 20: Warranty Information
One year from purchase Purchase Date Year Month Product Name SONY FDR-AX30/AX33/AXP33/AXP35 Waterproof Housing Product Number RVH-AXP35-LCD RVH-AXP35-VF □ □ Dealer Name Serial Number ※Dealer: Stamp your company name and contact information, purchase date, model and serial number. Seatool/Recsea Manufacturing & Sales...
