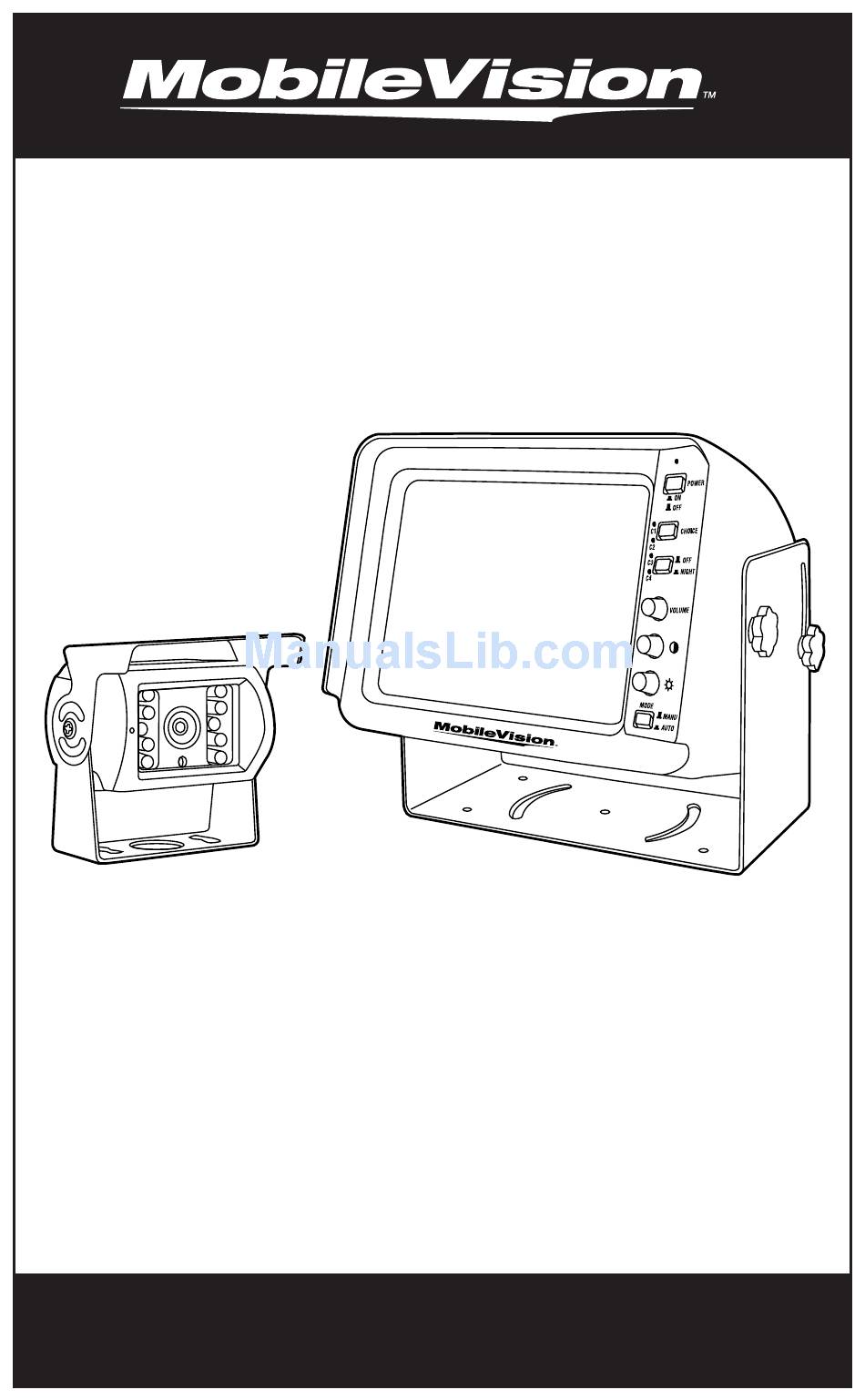

- Page 1 Owner’s Manual 7" Black and White Rearview Security Camera System Model: MCS-700BW For Technical Assistance, please call (800) 638-3600, or visit www.magnadyne.com...
-
Page 2: Table Of Contents
Magnadyne Corporation disclaims any and all liability that may result from failure to install and operate in any other manner in which this was intended. -
Page 3: Monitor Features
6. Volume Control General Operation The MCS-700BW back up safety device uses a 7" black and white monitor and a rear mounted camera (and optional side cameras) to allow a clear view and audio of the area immediately behind your vehicle. The back up safety device will automatically activate when the ignition key is turned on and the vehicle is put into reverse. -
Page 4: Monitor Basic Features
Monitor Basic Features 1. LED Power Indicator When illuminated the monitor is "On". 2. Power Button This button turns the monitor "On" and "Off". Note: The ignition key must be switched to the "On" position for proper operation. 3. Camera Selection Button If your vehicle has two or more cameras press this button to display other cameras views on the monitor. -
Page 5: Camera Basic Features
Monitor Basic Features Multiple Camera System MAN (manual) position: Refer to the LED camera selection indicators to identify what camera view is being displayed on the monitor. If your system has multiple cameras (C1) will show the rear camera view. If C2, C3 or C4 are selected the monitor’s picture will show the view of camera selected. -
Page 6: Maintenance
Maintenance Although this Rearview Security System requires little care, you can still maintain its condition and performance by following these steps: • Keep the system away from excessive moisture, extreme heat or cold, and magnetic fields. • Occasionally clean the camera lens and monitor screen with damp soft cloth. Should you experience any problem with the system please refer to the troubleshooting guide prior to returning your system for repair. -
Page 7: Trouble Shooting
Troubleshooting Only qualified personnel should remove the cover or service this unit. The warranty will become invalid if factory security seal is broken. Symptoms Unstable Image Cloudy Image No Power Specifications Monitor: CRT: 7" Deflection Angle: 90° Input Voltage: 11V ~ 32V (DC) Output Voltage: 10.5V ±0.2V (DC) Power Consumption:... -
Page 8: Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
