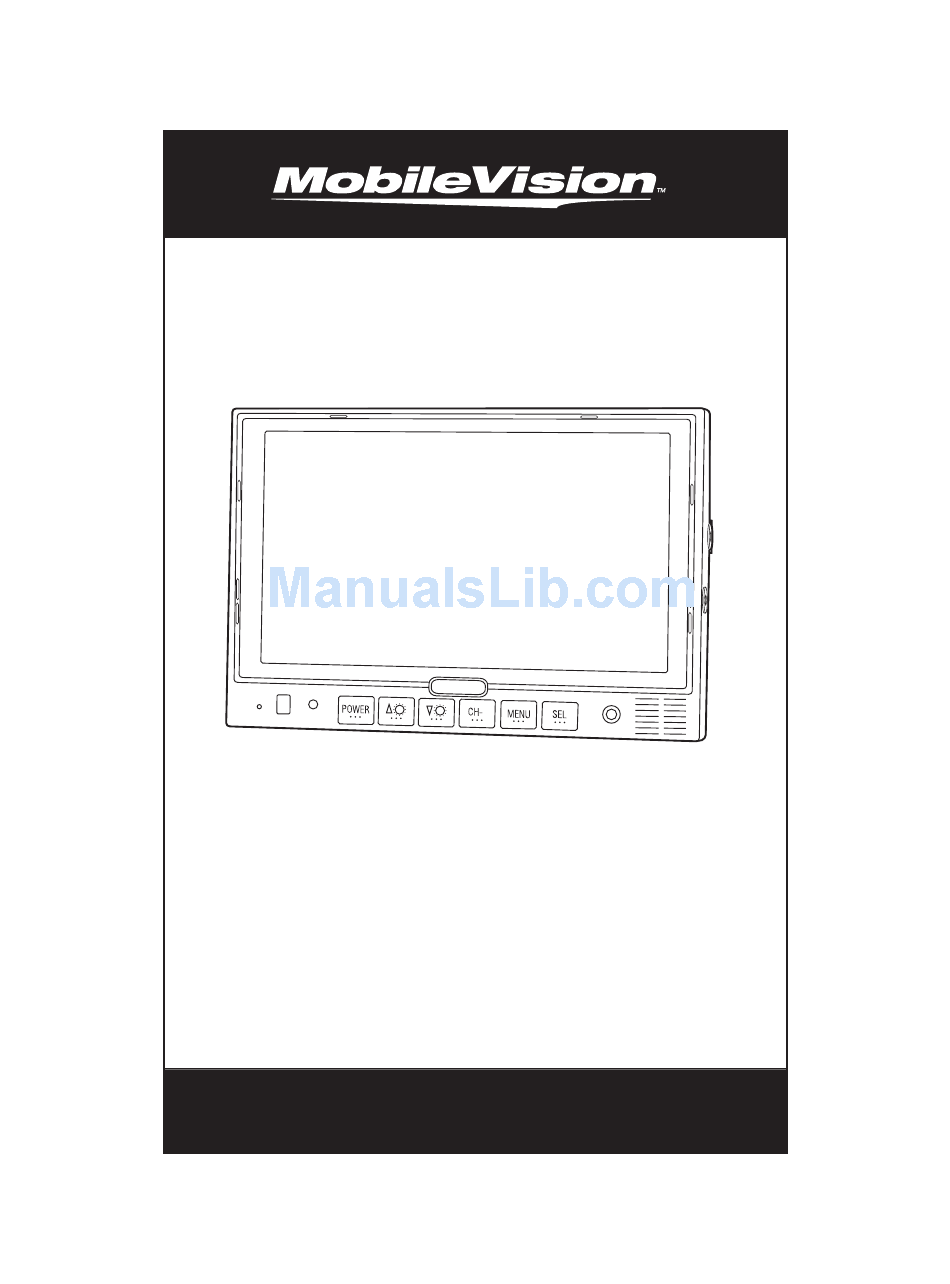

  • Page 1 Owner’s/Installation Manual 7" Color LCD Monitor Model: M125C For Technical Assistance, please call (800) 638-3600, or visit www.magnadyne.com...
  • Page 2: Table Of Contents

    Magnadyne Corporation disclaims any and all liability that may result from failure to install and operate in any other manner in which this was intended.
  • Page 3: Monitor Features And Controls

    Monitor Features and Controls 1. LCD Screen 2. IR Sensor: Receives signal from the remote control. 3. LED Power Indicator: A red LED indicates the vehicle’s ignition is “On” and the monitor is in the “stand- by” mode. When the vehicle is put into reverse or the turn signals are used the camera’s image will automatically appear on the display.
  • Page 4: Remote Control Functions

    Remote Control Functions 1. Mute: Push to "Mute" the volume. : Press this button to select between a Mirror or Normal screen image. : Press this button to flip the screen image vertically. 3. POWER: Press this button to turn the unit "On"...
  • Page 5 General Operation Camera View Selection and A/V Input: Left Side Camera: The left side view camera (CAM1) is designed to automatically turn on whenever the vehicle’s left turn signal is activated. Right Side Camera: The right side view camera (CAM2) is designed to automatically turn on whenever the vehicle’s right turn signal is activated.
  • Page 6 General Operation (continued) Monitor Adjustment The monitor has three basic menus: Picture, Option and System. To scroll through the three basic menus continuously press the MENU button. Picture Menu Press the Menu button on either the monitor front panel or remote control until the PICTURE menu screen is displayed.
  • Page 7: Technical Specifications

    Front Panel Video Input Yellow RCA: Video (Cable Not Supplied) Auxiliary Video Input You can connect the video output signal of a digital camera, camcorder or video device. Select the auxiliary video input mode by pressing the SEL button on the monitor until DVD appears in the display.
  • Page 8: Wiring Diagram

    Wiring Diagram Red Wire: 12 Volt Switched (DC 12~32V) Black Wire: Ground (GND) White Wire: Left Trigger (LEFT TRIG) Gray Wire: Right Trigger (RIGHT TRIG) Green Wire: Rear Trigger (REAR TRIG) 1. +12 Volts 5. Ground 2. N/A 4. Video 3.
  • Page 9: Installation Instructions

    Installation Instructions The monitor can be mounted via a pedestal-mount, U-support bracket or a flush-mount. Pedestal Mounting the Monitor 1. Loosen the thumb wheel on the base support so the nut attached to the thumb wheel can slide into the monitor’s mounting channel. 2.
  • Page 10 Installation Instructions Flush Mounting the Monitor 1. Locate a suitable location for mounting the monitor (In-Dash, In-Wall, Headrest, etc.). Then cut a 7-1/8" (W) x 4-7/8" (H) opening and insert and secure the flush-mount housing. 2. After securing the housing, insert the monitor into the housing. Do Not Apply Pressure Directly to the LCD Monitor’s Screen.
  • Page 11: Maintenance

    Maintenance Although this monitor requires little care, you can still maintain its condition and performance by following these steps: • Keep the system away from excessive moisture, extreme heat or cold, and magnetic fields. • Occasionally clean the monitor screen with damp soft cloth. Should you experience any problem with the system please refer to the troubleshooting guide prior to returning your system for repair.
  • Page 12: Warranty

    Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product.
