Summary of Contents for MobileVision REARVIEW MIRROR/MONITOR M35

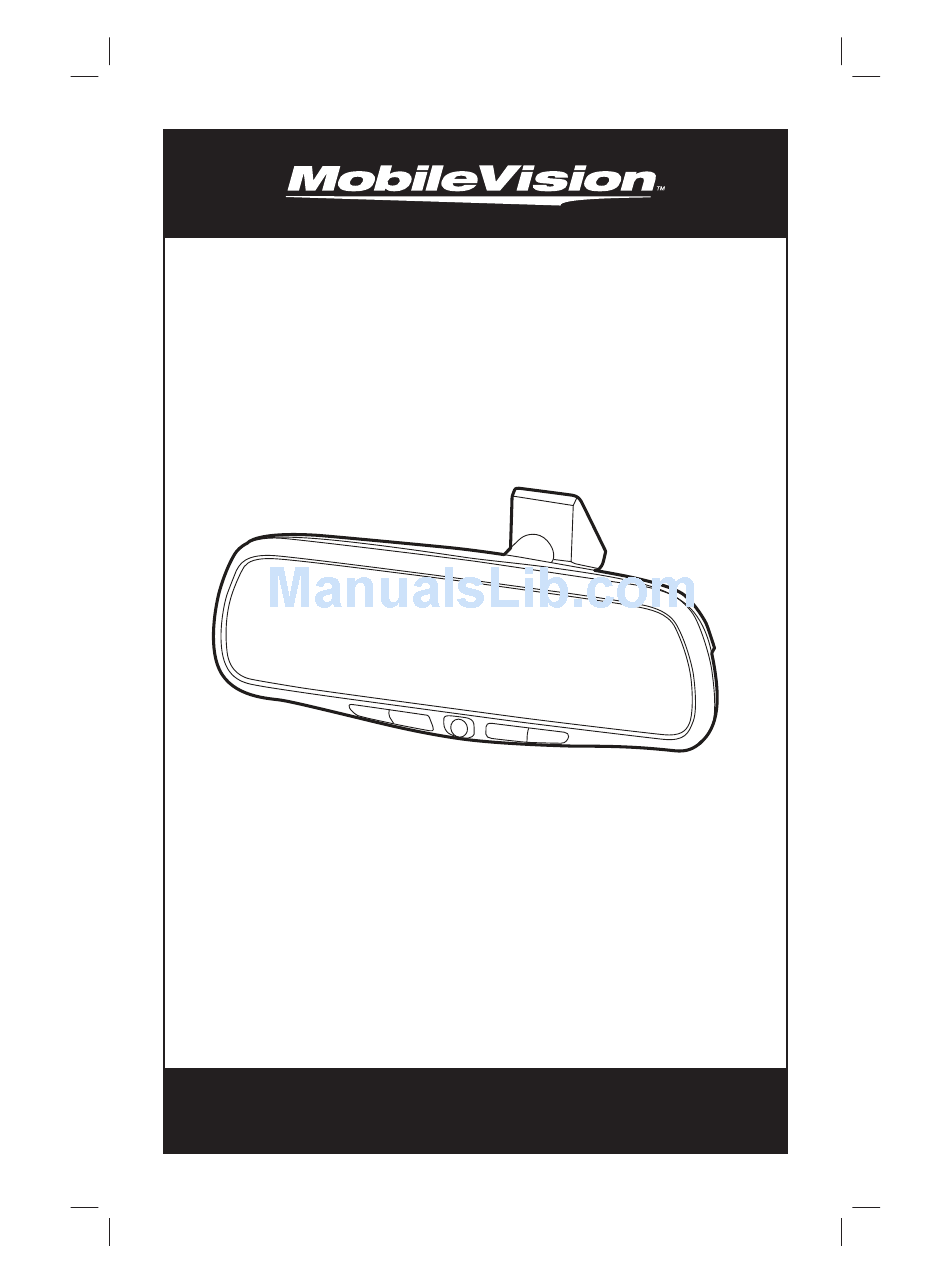

- Page 1 Operation and Installation Manual Rearview Mirror/Monitor Model: M35 For Technical Assistance, please call (800) 638-3600, or visit www.magnadyne.com...
-
Page 2: Table Of Contents
Magnadyne Corporation assumes no responsibility whatsoever for any injury or accidental death resulting from the failure to properly install and operate this equipment. Magnadyne also dis- claims any and all liability that may result from failure to install and operate in any other manner in which this was intended. -
Page 3: Mirror/Monitor Features
Mirror/Monitor Features 1. 4.3” LCD Monitor 2. Rearview Camera Selection Button (CAM) 3. Power On Indication LED 4. Adjustment Button for Image Settings 5. Rearview Mirror Glass General Operation The mirror/monitor automatically activates every time the ignition key is turned “On”. The mir- ror/monitor will turn Off when the ignition is turned to the “Off”... -
Page 4: Maintenance
Maintenance Though your Rearview Observation System requires little care, you can still maintain its condi- tion and performance by follow these steps: • Keep your system away from excessive moisture, extreme heat or cold, and magnetic fields. • To avoid damage, do not place external devices or other objects on top of the mirror. •... -
Page 5: Electrical Connections
Electrical Connections Brown Wire Connect to Backup Light (+12V) Black Wire To Ground Red Wire To Switched +12V Red Wire To Camera Yellow RCA (Video) Rearview Camera (Not Supplied) -
Page 6: Troubleshooting
Troubleshooting Symptoms The mirror/monitor does not power On after car is started. No video signal appears while reversing the car. Video image is not sharp enough. Specifications General Power Supply: 12VDC Power Consumption: <6W Max. Current Draw: <800mA Video Input: 1Vp-p/75 Impedance Operating Temperature Range: -10 to 60 Degrees C Display... -
Page 7: One (1) Year Limited Warranty
Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at the option of the Magnadyne Corporation or its authorized agents, if said product or part is found defective in materials or workmanship, when properly connected and operating on the correct power requirements designated for the specific product. - Page 8 © Copyright 2011 M35-UM Magnadyne Corporation Rev. A 5-5-11...
