Summary of Contents for Califone 2395-02 Music MakerPlus

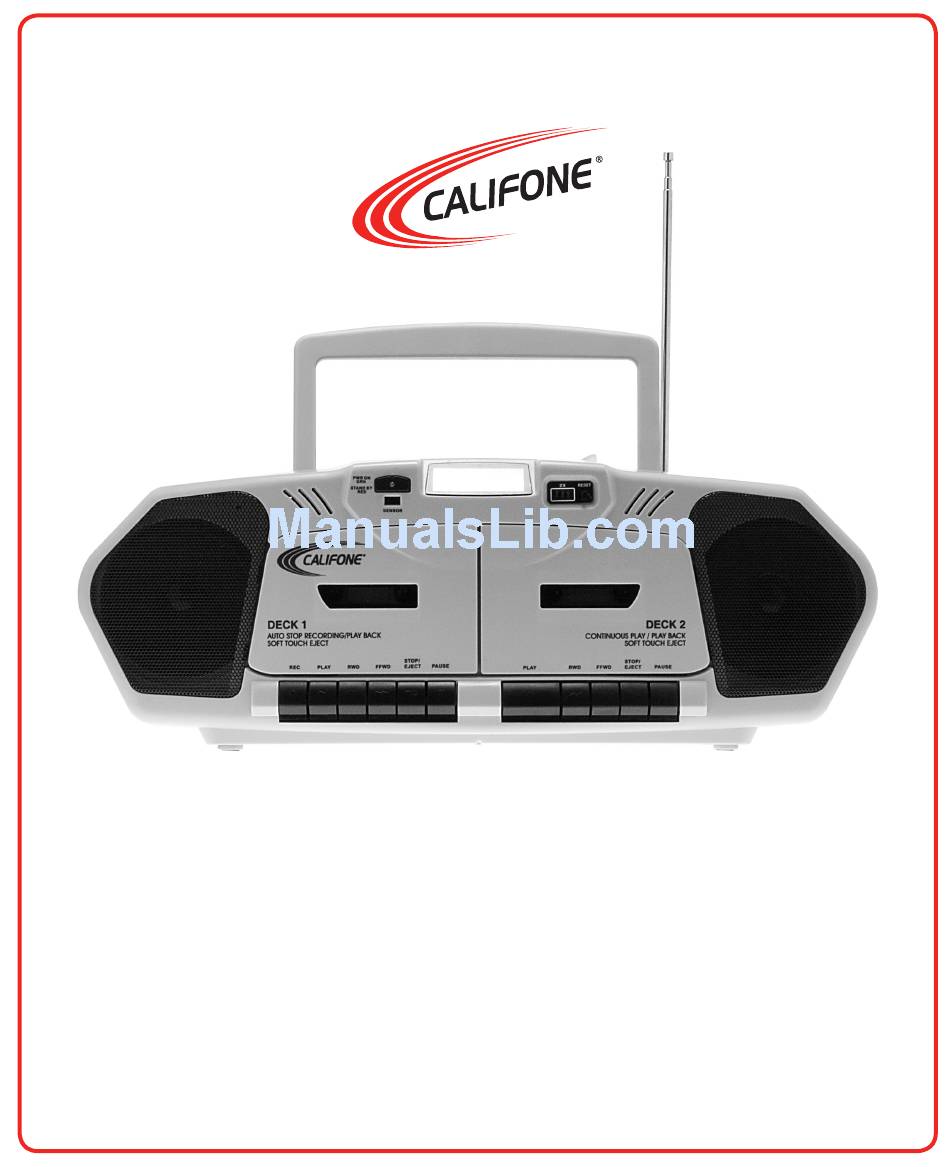

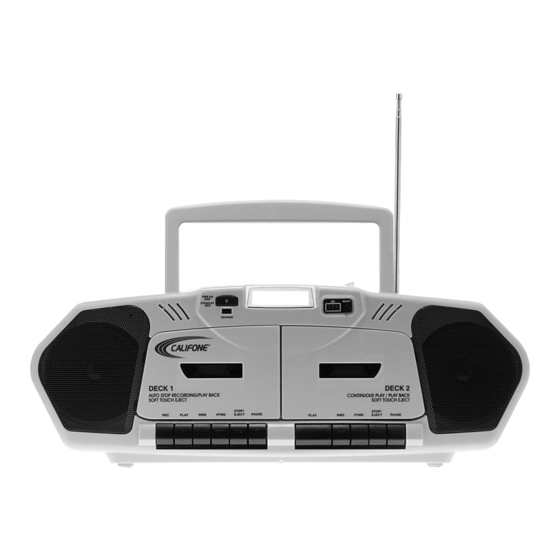

- Page 1 2395-02 Music Maker Plus ™ Dual Cassette Multimedia Player/Recorder califone.com User Manual...
- Page 2 Califone prepaid. Collect shipments will be refused. Unpacking your Music Maker Plus Player/Recorder Please DO NOT SHIP ANY UNIT TO THE FACTORY WITH- Check carefully for damage which may have taken place OUT PRIOR AUTHORIZATION AND INSTRUCTIONS.
-
Page 3: Initial Setup
FROM BATTERY CORROSION IS NOT COVERED UNDER WARRANTY. NOTE: Califone cassette recorders are designed for use only with 60-minute Type 1 Normal Bias recording tape. Using a longer tape could prematurely wear out the cassette tape or cause damage to the 2395-02. -
Page 4: Front View
Front View Back View... -
Page 5: Top View
Top View Features Listing Power On Record Power/Standby Switch Random LCD Display Play Time Tape 3.5 mm Headphone Jack AM/FM 1/4” Headphone Jack External Speaker Jacks Volume Down Microphone Jack Volume Up Mic. Remote On/Off Jack Treble Up Internal Built-in mic Treble Down Balance Control Bass Up... -
Page 6: Getting Started
Getting Started When the ‘Power’ button (1) is depressed the LED (2) to the left of the LCD display (3) will be red for standby mode. Pushing the LED will cause the LED to be green indicating the unit is fully powered up. •... -
Page 7: Programming Stations
Radio Function continued Programming Stations Twenty FM stations and Twelve AM stations can be saved in memory with the ‘PRESET’ (16) function. • To save a station into memory, first select a station and then press the ‘PROGRAM’ (17) button to see ‘_ _’... -
Page 8: Repeat Playing
CD Function The CD player will accept both 12 cm and 8 cm discs and will read CD, CD-R and CD-RW formats. • Before opening the CD door (18) the LCD will show dashed lines. Open the CD door and the LCD display ‘... -
Page 9: Memory Programming
CD Function continued Memory Programming Up to 16 tracks can be programmed. With the CD stopped press the ‘PROGRAM’ button one time. Select a track to play by pushing the ‘Skip Forward’ | or ‘Skip Back’ |button. Push the ‘PROGRAM’ button again to enter another track to save in memory. - Page 10 CD Function continued To search forward or backward to a particular point on a track during playback Press and hold the (‘SKIP’|) or (‘SKIP’ |) buttons to search forward or backward through the current track. Playback resumes at the point you release the button. Program Playback Up to 20 tracks can be programmed for playback.
- Page 11 Cassette Function continued To Fast Wind/Rewind Press the REWIND’ (42) (43) or ‘FAST-FORWARD’ (44) (45) key. Press the ‘STOP/EJECT’ key to stop winding at the desired position. During fast winding, regular play, or recording, the tape will stop automatically when its end is reached. Continuous Play from one cassette deck to the other cassette deck 1.
-
Page 12: Headphone Listening
Two headphone jacks are located on the Music Maker Plus™ - a single 3.5 mm jack (26) on the top and one 1/4” phone jack (27) on the rear of the cabinet. A jackbox can be plugged into either for multiple listeners. Califone recommends using headphones for group listening situations. 2924AVPS... -
Page 13: Other Features And Functions
Microphone Jack To record using a dynamic microphone, plug into the 3.5mm jack (29) on the rear of the cabinet. Another jack, 2.5mm (30) is provided for use with Califone model 4805AV microphone with remote Start/Stop. RC-2300 Remote Control • The RC 2300 provides most functions available on the Music Maker Plus™ controls. It does not, however, function with tape operations. -
Page 14: Specifications
Care and Maintenance continued Cassette Maintenance & Service Cleaning The heads, capstan and pinch roller should be cleaned from time to time to prevent buildup of tape oxide, which degrades performance. 1. Remove cassette tape before cleaning. 2. Clean the head of all visible, reddish-brown oxide with a cotton-tipped swab moistened with a methyl alcohol or any solution specifically manufactured for this purpose. -
Page 15: Troubleshooting
Troubleshooting PROBLEMS ITEMS TO CHECK General The unit does not operate. Is the AC power cord unplugged? Are the batteries fully charged? Cassette Cassette cannot be loaded. Is cassette being loaded properly? Is the PLAY key depressed? The tape does not move. Is the PAUSE key depressed? The tape gets caught in the tape Is the pinch roller or capstan dirty? -
Page 16: Important Safety Instructions
TAKEN SO THAT THE GROUNDING OR POLARIZATION MEANS OF THE APPLIANCE ARE NOT DEFEATED. Califone® International Inc. • 1145 Arroyo Avenue, # A • San Fernando, CA 91340 USA Toll Free 800.722.0500 | Toll Free Fax 877.402.2248 International Customers call 818.407.2400 or Fax 818.407.2405 califone.com...
