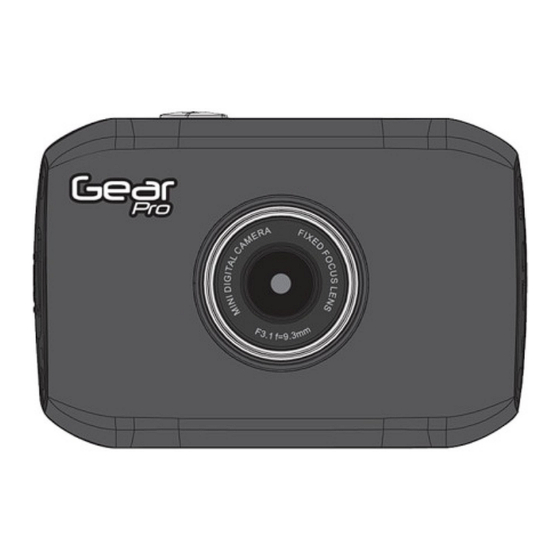

Summary of Contents for Sound Around GDV123SL Gear Pro
-
Page 2: Mounting Accessories
Mounting Accessories... -
Page 3: Waterproof Case
WATERPROOF CASE 1.Clamp 2. Shutter Release 3. Power Button 1. Insert a finger at the half circle of the Clamp by prying the clamp up away from the case. 2. Before sealing the case, inspect the water sealing gasket to be sure it’s in good condition. You can test the gasket by closing the case without inserting the camera. -
Page 4: Handlebar Seatpost Mount
HANDLEBAR SEATPOST MOUNT -20 Screw 2. Locking Wheel 3. Bar Clamp Bolt 4. Bar Clamp 5. Tilt Knob 1. The camera dose not have a standard tripod mount. For all the accessories with a 1/4-20 screw, the camera must be enclosed in with the waterproof case or in the included mounting adapter. - Page 5 7. Loosen the Tilt Knob, to adjust for the proper aiming angle; then tighten the knob. 8. Panning adjustments can be made by loosening the Locking Wheel, adjust the pan angle; then tighten the wheel. HELMET MOUNTING SYSTEM 1.Helmet Belt 2.Helmet Mount -20 Screw 4.Locking Wheel...
- Page 6 SHIELD 1. This Mounting Adapter allows you to attach mounting accessories that have a 1/4-20 screw. 2. The camera will clip right in to this adapter.
- Page 7 Quick User Guide...
- Page 8 This user's manual has referred to the latest information we had when this user’s manual was made. The screen display and illustrations are used in this user's manual for the purpose of introducing details of this digital camera in a more specific and direct way. Difference may arise between these displays and illustrations and the digital camera actually available for you due to difference in technological development and production batch, under which case, the actual functions of this video camera shall prevail.
- Page 9 ventilated place. Do not place the video camera in a high temperature, moist or dusty place. Please check if the video camera can operate normally before use. If dirt or stain is accumulated on the video camera or on its lens, use soft, clean and dry rag to wipe it away gently.
- Page 10 Electrostatic or electromagnetic field exists around the memory card. 5. This memory card is taken out or power supply is interrupted when this video camera or computer is connected to the memory card (i.e. during reading, writing and formatting). Touch the metal contact surface of the memory card with fingers or metal materials. System Requirements Operating System Microsoft Windows2000, XP, Vista, 7...
- Page 11 ⑻Lens ⑴Memory card slot ⑼LCD TFT ⑵Reset ⑽Working Indicator Light ⑶USB slot ⑾Indicator Light for charging ⑷Power button ⑿Wrist strap eyelet ⑸MIC ⑹Shutter button ⑺Mode Switch:...
- Page 12 1. Charge the built-in lithium battery Indicator Light for charging is on. USB Cable Connect the video camera with computer for charging in the shutdown state. The indicator light for charging is on at this time and will be off after charging. In general, it can be fully charged after 2-4 hours.
- Page 13 Use of Memory Card Push the memory card into the card slot according to the concave lettering beside the slot of memory card till it is completely inserted. To take out the memory card, gently press the end of the memory card inward and it will pop up. Note: No built-in memory is available in this video camera.
- Page 14 Startup/Shutdown 3.1 Startup: Press the POWER button for 3 seconds, the screen is displayed and the camera is on. 3.2. Shutdown: Press the POWER Key, and the camera will be shut down. . Automatic shutdown: when the idle time of the video camera reaches the time for automatic shutdown, it will be shut down automatically to save power.
- Page 15 Conversion between Function Modes Three modes are available for this video camera, i.e. picture taking mode, video recording mode and vehicle-mounted mode. Conversion is available via the mode switch after startup. Picture taking mode: pictures can be taken; Video recording mode: video can be recorded; Vehicle-mounted mode: videotape can be recorded.
- Page 16 5. Indicator light Busy light: when the camera is busy (such as, recording a film, taking photos, automatic off-screen), the busy light will be on. Charging light: when the light is on for a long time, it prompts the user that the camera is charging. 6.
- Page 17 : means that the memory card is inserted at present. : digital zoom icon, click it and enlarge it. : digital zoom icon, click and minify it. : visual shutter, touch this visible frame for taking photos or recording. : battery icon, represents the power status of the battery. : represents the status of digital zoom.
- Page 18 : means that the memory is been inserted at present. : digital zoom icon, click it to enlarge. : digital zoom icon, click it to minify. : visual shutter, touch this visible frame for taking photos or recording. : battery icon, indicates the power status of the battery. : represents the status of digital zoom.
- Page 19 1 00:12:18 timer, indicating that the camera can still record for 12 minutes and 18 seconds. : mode icon, representing that the camera is in vehicle-mounted mode. : video size, click this icon to select 720P, VGA. : represents that the memory card has been inserted . : digital zoom icon, click it to enlarge.
- Page 20 Note: the screen will be off automatically during recording process in order to save power; user can press the power button shortly to start the screen and restore display. Playback mode: 9.1 After starting up and entering the previewing state, click the playback icon ( ) at the lower right corner of the LCD to switch to the playback mode: Click...
- Page 21 9.2 Movie clips playing: Click to pause playing, click to play forward, and click to play backward. 9.3 File deletion: Click YES to delete the current file immediately, or click NO to cancel the request of deletion.
- Page 22 Apply on the personal computer Connect to personal computer The camera is provided with the plug and play function. Connect the device to the computer with USB line under turning-on state, then it will be switched into the movable hard disk mode. Icon of movable disk will appear on the window of “my computer”.
-
Page 23: Technical Parameters
Technical parameters Image sensor 1.3 million pixel (CMOS) Function mode videoing, taking photos, vehicle-mounted mode, removable disk Camera lens F3.1 f=9.3mm Digital zooming 4 times Shutter Electronic shutter LCD display screen 2.0-inch touch screen Image resolution 5M (2592×1944), 3M (2048×1536), 1M(1280×1024) Video resolution VGA: 640x480 (60 frames/second), 720P:1280x720 (30 frames/second) White balance... - Page 24 This symbol indicates that the relevant electrical product or battery should not be disposed of as general household waste in Europe. To ensure the correct waste treatment of the product and battery, please dispose them in accordance to any applicable local laws of requirement for disposal of electrical equipment or batteries.
