Professional Installer Highly Recommended
The manufacturer will not warrant any faulty installations,
and damage to existing structures or any other
fixtures / fittings as a result of incorrect installation.

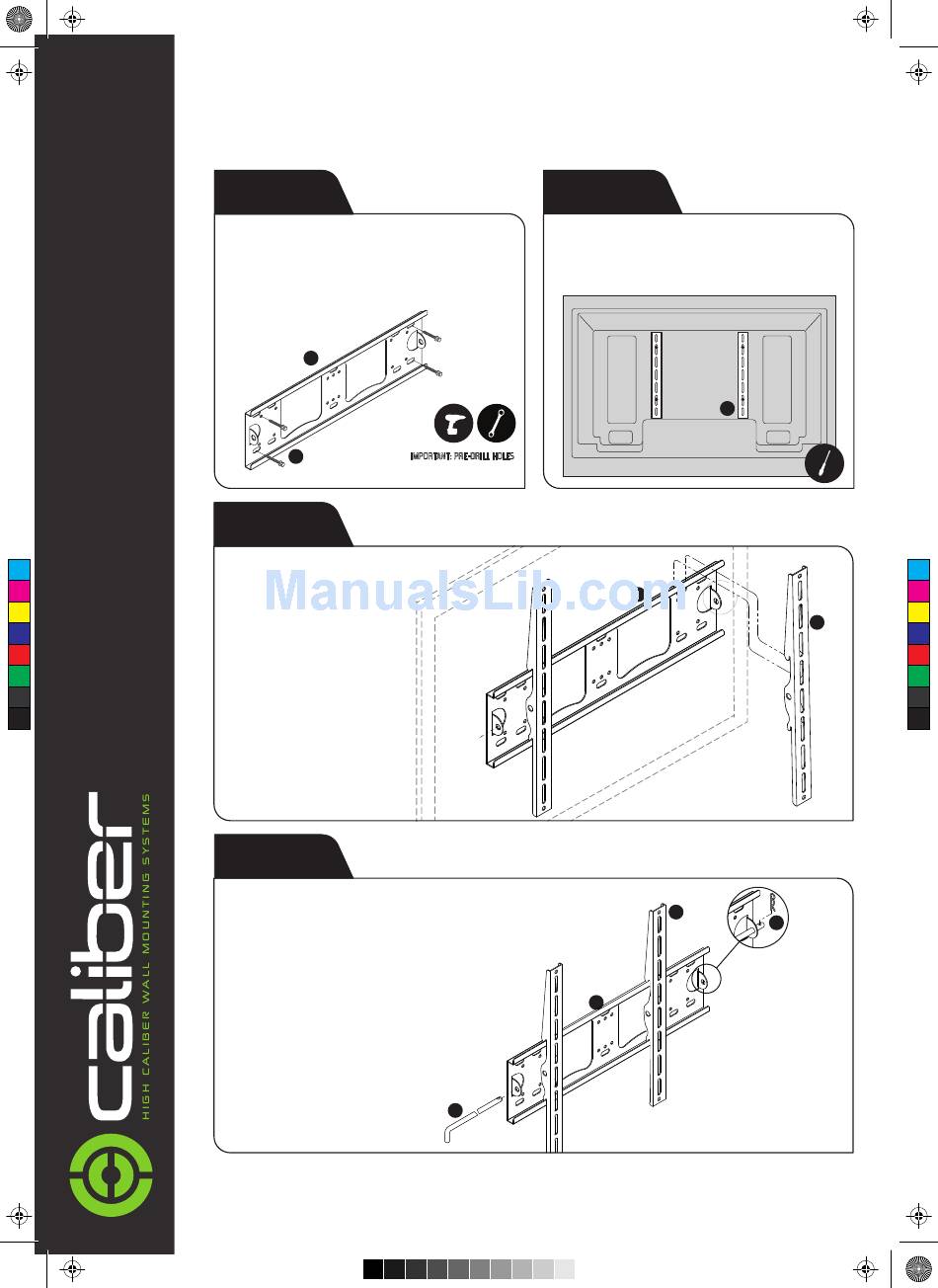

STEP 1
Mount bracket to wall.
Select a position for the wall bracket (1). If screwing into a
plasterboard wall, use a stud finder to locate a beam behind the
plasterboard to secure to. If fixing to a concrete/brick wall, we
recommend the use of plastic wall anchors (6). Using the wall
bracket as a stencil, hold the wall bracket in position and use a
pencil through the screw holes to mark the locations on the wall for
drilling. (See Additional Tools required section for drill bit sizes) Affix
to wall using wall screws (5).
1
5
Make sure bracket is secured to joists,
or anchors are used for concrete.
STEP 3 STEP 3
Position mount over bracket.
Once the railings (2) are firmly
attached to the TV hook the railings
onto the wall bracket (1).
STEP 4
Fasten mount to bracket.
Slide the locking bar (3) through
bracket (1) guide holes and holes in
both railings (2) to secure them into
place. Use locking pin (4) provided to
secure locking bar.
STEP 2
Locate screw fixtures in the back of your TV and attach
railings (2) using the screws provided.
The screw size required will vary on each TV so we have
provided you with a range to choose from (M5, M6, M8).
Optional: Insert spacers if back of TV is not a flat.
IMPORTANT: PRE-DRILL HOLES
3
DISTRIBUTED BY RVM AUSTRALIA t: (08) 9417 9944 e: sales@rvm.com.au
CAL-F4040
FIXED TV
WALL MOUNT BRACKET
Mount railing to TV.
2
1
2
1
2
4
