Summary of Contents for Revo Supersystem

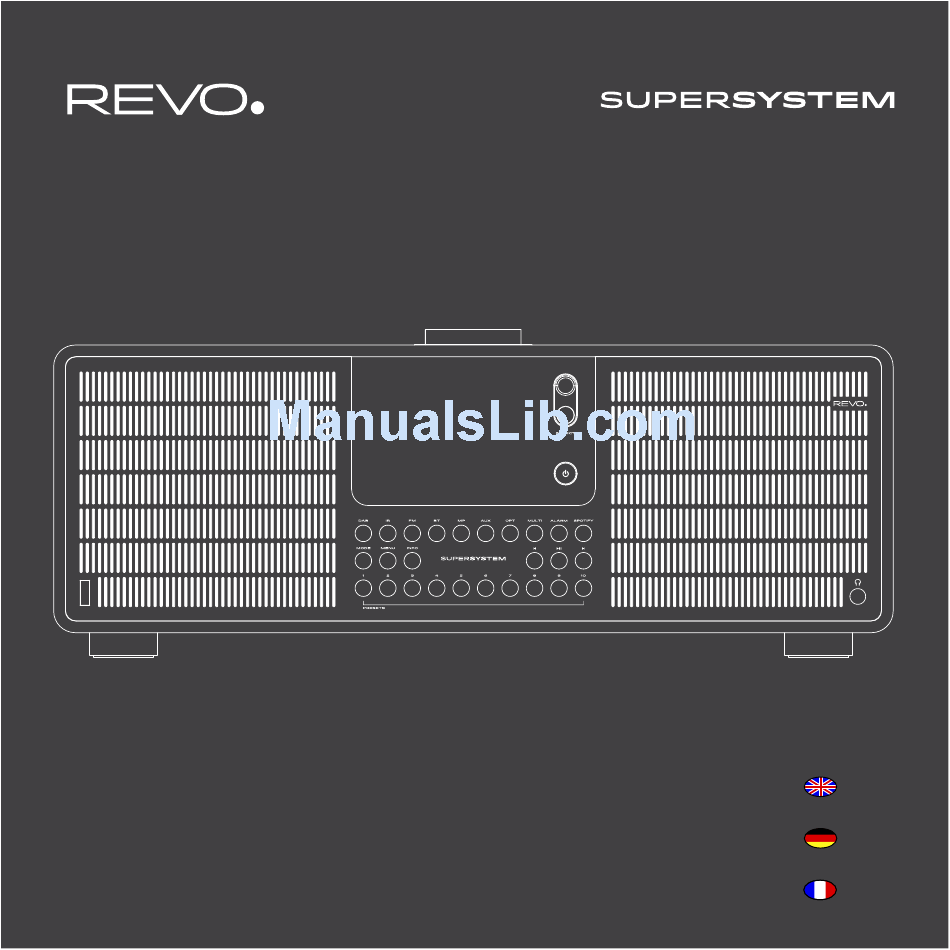

Page 1 English Owner’s Guide Deutsch v1.0 Français...
Page 2: Technical Support
WARRANTY Should you encounter problems using this product, please refer to the Revo Technologies Ltd warrants to the end user that this product will troubleshooting section on page 41 of this owner’s guide. be free from defects in materials and workmanship in the course of Alternatively, call Revo technical support on : normal use for a period of one year from the date of purchase.
Page 3: Table Of Contents
Should any item be missing or damaged, please contact your point 28 - 30 Spotify Connect of purchase or call Revo directly on +44 (0) 1555 66 61 61 31 - 33 UNDOK App Control and Multiroom NOTE: All packaging should be retained for possible future use,...
Page 4: Anatomy
ANATOMY OF SUPERSYSTEM Volume Dial Power/Standby Joystick Controller Select Button Touch-Snooze Area USB Charging Port 3.5 Headphone Connector Quick Keys : Direct access buttons to prinipal modes and menus Station Presets 1 - 10 Media Keys Telescopic Antenna DC Power Socket...
Page 5: Remote Control
Select Presets 1 - 8 BATTERY REPLACEMENT The SUPERSYSTEM remote control is powered by two AAA batteries. Depending on usage, the batteries should happily run for between 1 and 2 years. Replace the batteries when button presses seem sluggish, or when...
Page 6: Power Supply
POWER SUPPLY (PSU) Your SUPERSYSTEM is supplied with a multi-region power supply, meaning that it can be operated in a number of countries around the world. AUSTRALIA Select the correct plug for your country then connect it to the transformer block.
Page 7 In order for you to get the most from your device, it is important for you to understand how its joystick and menu system operates. JOYSTICK CONTROL SUPERSYSTEM uses a joystick based control system for ease of use. The joystick controller has four functions and is used in conjunction ‘UP’...
Page 8: Setup Wizard
USING THE SETUP WIZARD The ﬁ rst time you use SUPERSYSTEM you will be asked whether you would like to run the SETUP WIZARD. The ‘WIZARD’ will run through a series of questions, and is the simplest way to get your device up and running.
Page 9 F G H I J K L M N O P Q Select (back space) if you have entered an incorrect BKSP character. SUPERSYSTEM will save the password into its memory. There will be no need to re-enter the password again.
Page 10: Dab Mode
DAB Mode intro screen is displayed. Scan When in DAB MODE for the ﬁ rst time, SUPERSYSTEM will automatically Stations : 21 perform a full scan to see what stations are being broadcast in your Scanning area, before storing them alphabetically in the memory.
Page 11 BBC 6Mus BBC Gael FAVOURITE STATION PRESETS SUPERSYSTEM allows you to store your favourite stations as presets, either via its 10 front-panel mounted ‘hot-keys’, or the numbered preset buttons located on the remote control. To store the station you are currently listening to as a preset, simply BBC Radio 6Music press and hold a preset button until “Preset Stored”...
Page 12: Dab Mode Menu Options
DAB MODE MENU OPTIONS STATION INFO In DAB MODE, SUPERSYSTEM is capable of displaying various pieces of information on its screen. By pressing the button, you can sequentially cycle through the following types of information. BBC Radio 6Music N ow P l ay in g : Gl as ve ga s...
Page 13 DAB MODE MENU OPTIONS DYNAMIC RANGE COMPRESSION (DRC) If you are listening to music with a high dynamic range in a noisy environment (for example, classical music while cooking), you may DRC Low wish to compress the audio’s dynamic range. This has the effect of DRC High DRC Off making quiet sounds louder, and loud sounds quieter.
Page 14: Fm Mode.
Chamber Music 2009 FAVOURITE STATION PRESETS SUPERSYSTEM allows you to store your favourite stations as presets, ei- ther via its 10 front panel-mounted ‘hot-keys’, or the numbered preset buttons located on the remote control. To store the station you are currently listening to as a preset, simply press and hold a preset button until “Preset Stored”...
Page 15: Fm Mode / Aux-In Mode / Optical In Mode
AUX IN MODE AUX IN MODE allows you to play audio from an external source (such as an MP3 player) through your SUPERSYSTEM. To do so, connect your external audio source to the 3.5mm AUX IN connector on the rear of SUPERSYSTEM.
Page 16: Bluetooth
This connection is stored in the memory of both devices, meaning Tod ay’ s D ate : 05/ 11/ 14 that once you ‘pair’ a particular device with SUPERSYSTEM, you shouldn’t have to go through the pairing process again. HOW TO PAIR A BLUETOOTH DEVICE WITH SUPERSYSTEM...
Page 17 SUPERSYSTEM will remember up to 8 individual Bluetooth devices. When you reach the point of having a 9th device you wish to pair, SUPERSYSTEM will pair with the 9th device and automatically erase the oldest-paired device from its memory.
Page 18: Internet Radio Mode
INTERNET RADIO MODE GETTING STARTED To enter INTERNET RADIO MODE, press the button on the front Internet panel, or press the button until the INTERNET RADIO Mode radio intro screen is displayed. On entering the INTERNET RADIO MAIN MENU you will be offered the choice of accessing the LAST LISTENED station or selecting a new one.
Page 19 TUVWXYZ CANCEL If your station is found, simply select to listen. If you searched for a keyword, SUPERSYSTEM will list all the stations found that contain that particular keyword. Scroll through the list and select your station. CHOOSING A PODCAST BBC Radio 1 Podcasts (also referred to as ‘Listen Again’) are searched and...
Page 20 INTERNET RADIO MODE MY FAVOURITES It is possible to compile a list (or lists) of your favourite stations, allowing quick and easy access to a number of stations from different countries and genres. To do this you must ﬁ rst register your radio with the Frontier Silicon Radio Portal.
Page 21 > stations originating from the UNTIED KINGDOM. Likewise, if you are Highlighted Stations > Alternative > using your SUPERSYSTEM in Germany, this selection will display only Ambient > Big Band > stations that are being broadcast from Germany. Select this option to navigate either all of the available local stations,...
Page 22: Internet Radio Portal
In order to access these features you must ﬁ rst register your radio. REGISTERING YOUR SUPERSYSTEM In order to register your SUPERSYSTEM, you will need your unique access code. To ﬁ nd the access code, ﬁ rstly enter INTERNET RADIO MODE, then press .
Page 23: Setting Up A Music Server
SETTING UP A MUSIC SERVER In order for SUPERSYSTEM to be able to play music ﬁ les from a connected computer, the computer must ﬁ rst be set up for media sharing. UPnP media sharing allows devices like SUPERSYSTEM to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre.
Page 24: Music Player Mode / Usb Charging
SETTING UP A MUSIC SERVER SHARING MEDIA WITH A MAC In order to connect SUPERSYSTEM to your Apple Mac, a third party UPnP server application is required. There are a number of applications available to download from the Internet. One such application is EyeConnect. This is an easy to install media sharing application that enables SUPERSYSTEM to stream audio.
Page 25 MUSIC PLAYER MODE PLAYING MUSIC FROM A USB MEMORY STICK Firstly plug your USB stick into the USB socket on SUPERSYSTEM’S front panel. Friendly Fires -01-Jump.MP3 Selecting USB PLAYBACK from the MUSIC PLAYER MENU will display -02-Paris.MP3 the contents of the memory stick in the form of a list of ﬁ lenames.
Page 26 (typically Windows Media Player). The ﬁ rst menu shows a list of media types, for example music, video, pictures and playlists. SUPERSYSTEM, can only play music and playlists. There is also a search function, which ﬁ nds tracks in a similar way to Internet radio search, as described on page 19.
Page 27 MUSIC PLAYER MODE PLAYLISTS SUPERSYSTEM is capable of holding a queue of up to 500 tracks in its playlist. Playlist tracks can be mixed from multiple and UPnP servers devices. To manage the playlist, select MY PLAYLIST from the MUSIC PLAYER MENU.
Page 28 How It Works – You’ve just walked through the door, listening to your favourite playlist on your phone. With Spotify Connect, simply hit play on your SUPERSYSTEM (when in Spotify mode) and the music instantly ﬁ res up, right where you left off – ensuring you never miss a beat.
Page 29: Spotify Connect
SPOTIFY CONNECT To initiate Spotify on SUPERSYSTEM, ﬁ rstly ensure that both your SUPERSYSTEM and iOS/Android device are on the same wiﬁ network and that you are running the latest version of the Spotify app on your device. As a song is playing on your device, tap the Now Playing bar to bring up the Playing screen.
Page 30 SUPERSYSTEM. The audio is streaming directly from Spotify to SUPERSYSTEM, and the Spotify app is only being used as a remote control for the service. This means that your phone/tablet can be used for making calls and can even be switched off without any disruption to the music.
Page 31 SuperSystem itself. UNDOK App This innovative and easy-to-use application not only acts as a full remote control for a single SuperSystem, but is also the control hub for your entire multriroom system if you’re using more than one UNDOK-enabled device.
Page 32 MULTIROOM UNDOK MULTIROOM SETUP If you are running more than one SuperSystem (or other UNDOK-enabled device) on the same network you can create a multiroom system without using the UNDOK app. To begin, press the button on the front panel to enter the multroom setup menu.
Page 33 UNDOK app. SPOTIFY CONNECT - MULTIROOM If you are using the Spotify app with your SuperSystem (see page 28) it is also compatible with the UNDOK mulitroom environment. If you have created a mulitroom group (named e.g.
Page 34: Alarm Clock
ALARM CLOCK SETTING AN ALARM Alarms SUPERSYSTEM is able to store two individual alarm settings. To set or Alarm 1: Off [06:55AM] change an alarm, either press the button, or select MENU, then Alarm 2: Off [07:50AM] MAIN MENU, then ALARMS. Select which of the ALARM SETTINGS (Alarm 1 or Alarm 2) you would like to modify or enable.
Page 35 MAIN MENU, then SLEEP . You can now set the 15 MINS SLEEP timer to any one of the following; 15, 30, 45 or 60 minutes. When you have selected a sleep duration, SUPERSYSTEM will return to the MAIN MENU. Press to return to the NOW PLAYING screen.
Page 36: System Settings
SYSTEM SETTINGS EQUALISER SUPERSYSTEM provides the user with a signiﬁ cant degree of control over its standard (factory default) audio settings. This includes control over BASS and TREBLE, LOUDNESS and the ability to use one of a number of preset EQ settings. It is also possible to create your own personalised EQ setting - known as “My EQ”.
Page 37 Simpliﬁ es the setup of SUPERSYSTEM’S internet connection by taking you through step-by-step instructions. PBC WLAN SETUP : Used to pair your SUPERSYSTEM with a router that uses WPS security. VIEW SETTINGS : View the MAC address, Wlan region, etc.
Page 38 SET FORMAT : Choose whether you would like to use 12hr or 24hr formats. Update from DAB : Automatically takes time/date from the DAB signal. SUPERSYSTEM needs to have been operated in DAB MODE (and have received a Auto update signal) before this information can be extracted.
Page 39 Software updates are carried out ‘over-the-air’, via your broadband connection. SUPERSYSTEM will check for software updates each time it is switched on, and if an update is available, will ask you to conﬁ rm that you’d like to go ahead and commence the download.
Page 40 SYSTEM SETTINGS SETUP WIZARD The SETUP WIZARD automatically runs when you ﬁ rst power up your SUPERSYSTEM, and it can be accessed again in this menu. It simpliﬁ es the set-up of both time/date and internet settings, by running System settings through a series of questions.
Page 41: Troubleshooting
MENU > SYSTEM SETTINGS > NETWORK > VIEW SETTINGS and add to router list NOTE: SUPERSYSTEM has separate MAC addresses for wired and wireless networks; only the current network adaptor method address is displayed, but the other address can be obtained by changing the ﬁ...
Page 42 Bluetooth Mode: Can’t connect to Select BT DISCONNECT from a paired device the Bluetooth Menu and delete SUPERSYSTEM’s proﬁ le from your Bluetooth device, then re-pair the devices as normal Bluetooth Mode: Poor audio • Your Bluetooth device may be...
Page 43: Error Messages
No UPnP media found No UPnP servers found. Service not available (DAB) No DAB reception. Unauthorised Access not grated by UPnP server. Allow access for SUPERSYSTEM in UPnP server settings. Update failed Software upgrade failed. Network not ready problem with connection to router.
Page 44 TECHNICAL SUPPORT TEL - + 44 (0) 1555 666161 E-MAIL - support@revo.co.uk WEB - www.revo.co.uk/support...
