1 Hardware Overview
Power/Network
LED Indicator
Wireless LED
Indicator
LED (for PIR Model)
Built-in
Microphone
Power/Network
LED Indicator
Wireless LED
Indicator

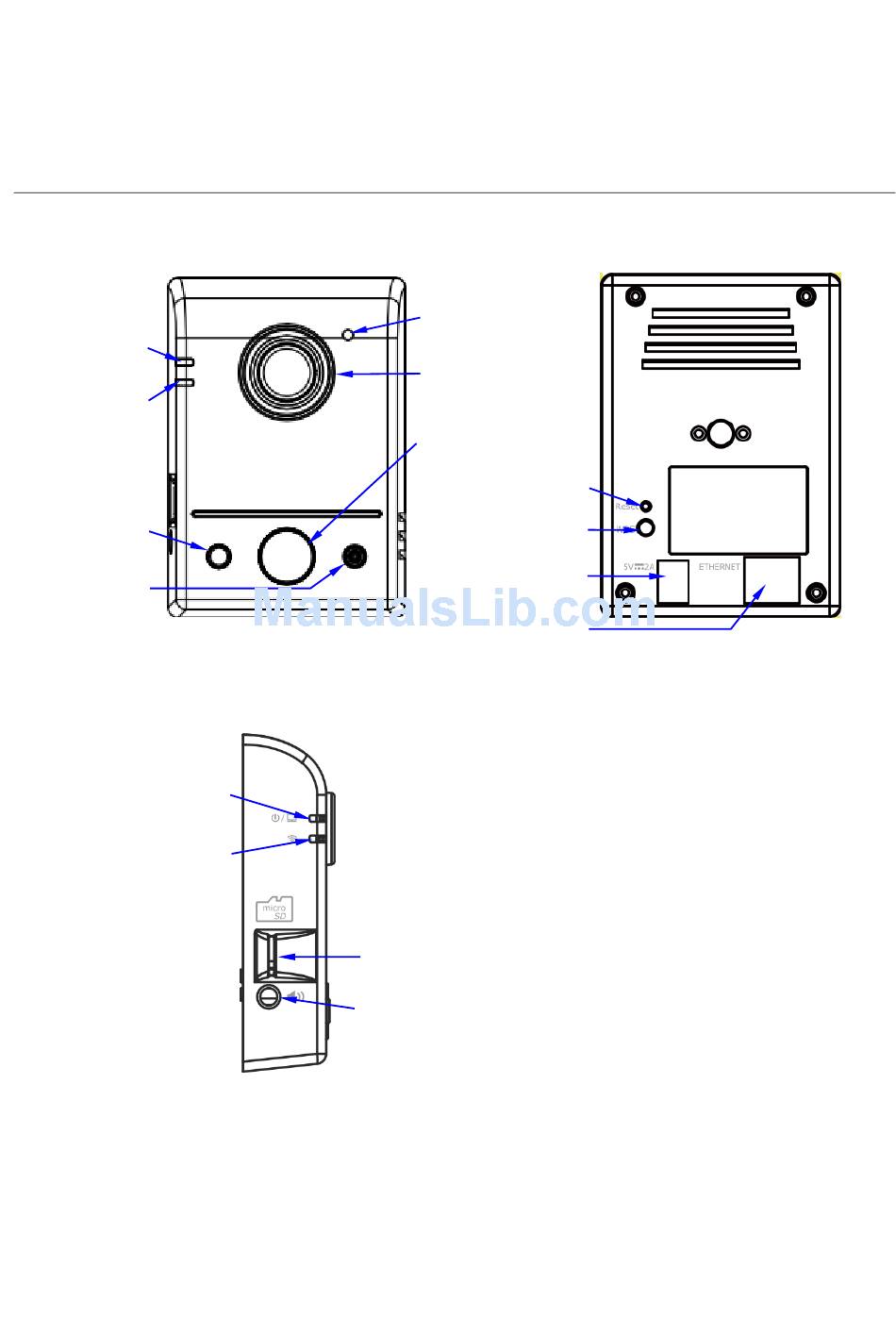

Figure 1-1 RP-SB101W and RP-SB101WI Wi-Fi Network Camera Outer Shell Profiles
Quick Guide
Front View
Micro SD Card Slot
Speaker
Left Side View
Light Sensor
Focus
Adjustment Ring
Infrared LED (IR Model)
PIR Sensor (PIR Model)
Reset Button
WPS Button
DC5V Input
Network
Connector
1
Label
Rear View
Advertisement
Table of Contents
Related Manuals for Repotec RP-SB101WI
Summary of Contents for Repotec RP-SB101WI
-
Page 1: Hardware Overview
WPS Button LED (for PIR Model) DC5V Input Built-in Microphone Network Connector Front View Rear View Power/Network LED Indicator Wireless LED Indicator Micro SD Card Slot Speaker Left Side View Figure 1-1 RP-SB101W and RP-SB101WI Wi-Fi Network Camera Outer Shell Profiles... - Page 2 2 Connecting Camera to Network The PC host is required only to set up the camera Power Adaptor with “Installation Guide Wizard” program when the camera Power/Network LED Indicator does not light LAN Router up in green within few seconds after power on. Figure 2-1 Connecting Camera to Network with PC/Notebook/Ultrabook 1.
- Page 3 If the upper LED does not turn green (or the lower LED does not turn blue), it means your Camera failed to properly connect with Internet. Proceed to Section 4, “Installation Guide Wizard” for more detailed installation guide to help you achieve Internet connection successfully. 3 CloudLync Registration 3.1 CloudLync Registration by Smartphones/Tablets 1.
- Page 4 2. Touch “CloudLync App” icon to launch CloudLync. The following dialog will then display. (iPhone/iPad Display) (Android Mobile Display) Figure 3-3 Creating & Registering New CloudLync Account in CloudLync App Then touch the “Create Account” button to create your new CloudLync account. ...
- Page 5 3. With CloudLync account successfully implemented, the “Camera List” dialog will display to prompt you to start the new Camera(s) registration process as described below: NOTE: Make sure the Camera(s) is properly connected with Internet. 1) Touch the “Add Camera” button 2) Touch the “Next”...
- Page 6 Activation card (with Activate Code and QR Code) is unique to each Camera. It is included in the Camera package. Note that the card contains data that are very crucial to initial and subsequent installations of your camera. Effort should be made to preserve the card. (Front Side View) (Rear Side View) Figure 3-4 Unique Activation Card for Each Individual Camera...
