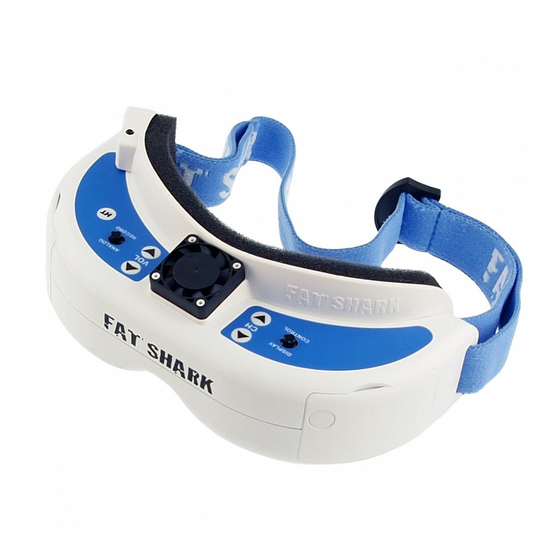

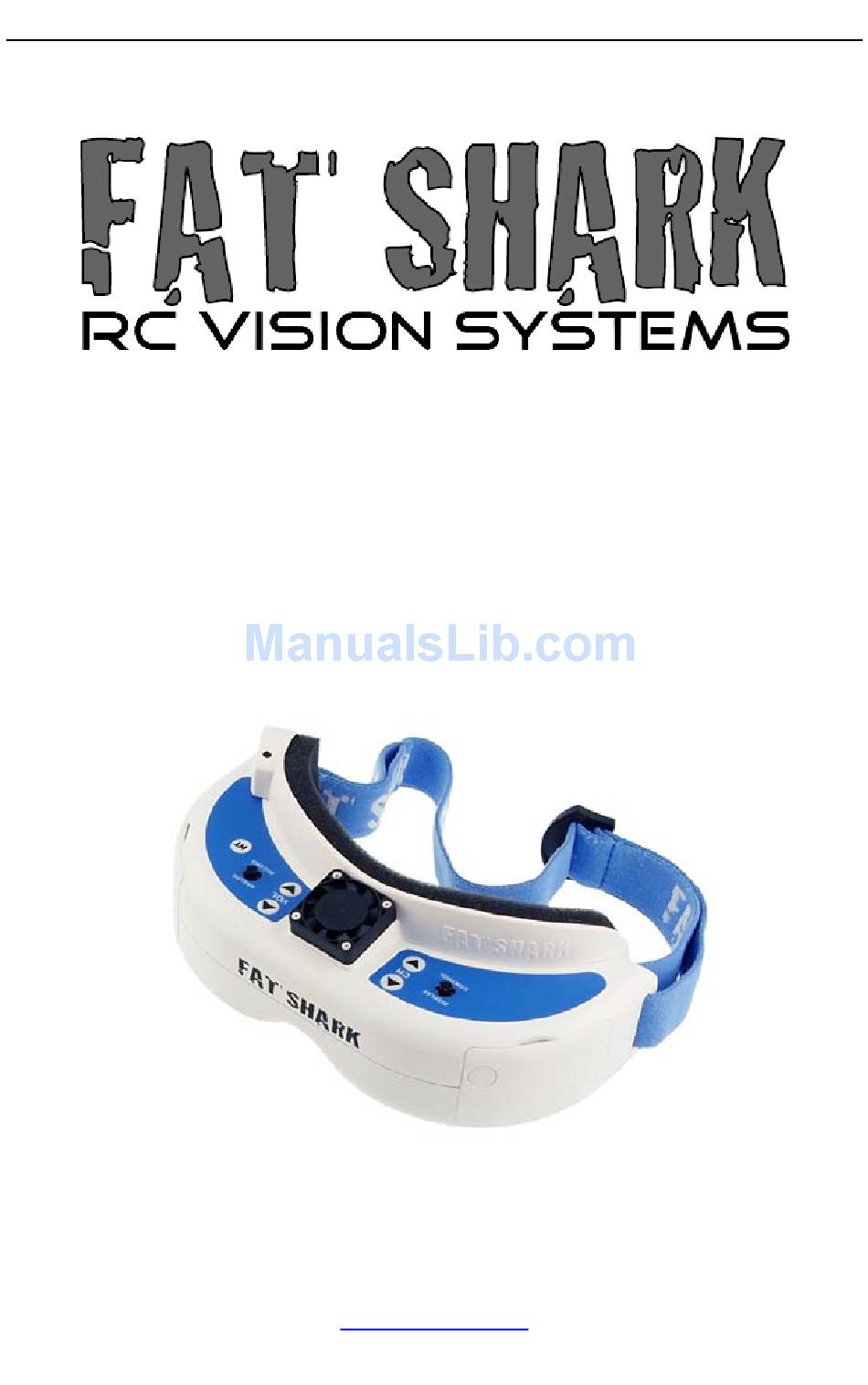

- Page 1 Fat Shark RC Vision Systems DOMINATOR V3 MODEL FSV1063 USER MANUAL Revision A 09/10/2015 For more product information, please visit: www.fatshark.com All Rights Reserved...
-
Page 2: Table Of Contents
Warranty ..........................12 Introduction Congratulations on purchasing Fat Shark Dominator V3 modular WVGA FPV video goggle with analog recording DVR, and HDMI support up to 720p. To ensure your continued enjoyment, please take the time to read through this operating manual thoroughly before using. -
Page 3: Product Contents
Fat Shark RC Vision Systems Product Contents Carry Case DominatorV3 Headset w/ White Faceplate 7.4V, 1800mAh Li-po Battery w/ LED Indicator Battery Discharge Adapter AV Cable Mini to Mini HDMI Cable w/ Adapters Manual... -
Page 4: Controls Diagram
Fat Shark RC Vision Systems Controls Diagram Head Tracker Brightness(left/right) Contrast(forward/back) start/stop/playback 2D or 3D Mode(vertical) control Volume Level Channel Selection IPD Adjusters Receiver on/off Indicator (Power to Rx module) Earphone Jack PS/2 Data Port (Head Tracker) Mini HDMI port... -
Page 5: Headset Operation
Fat Shark RC Vision Systems Headset Operation Controls Brightness/contrast control: pressing left and right increases/decreases display contrast. Press forward/back increases/decreases brightness. Display mode selection: Goggles will boot up in 2D analog. Vertical press of the contrast/brightness button scrolls through the following modes: Analog 2D/3D/ HDMI 2D/3D. -
Page 6: Av Cable Pinout
Fat Shark RC Vision Systems AV Cable Pinout Gr ound Video AudR 3.5mm AV Connector: Yellow: Video, White: Audio Left, Red: Audio Right HDMI input The HDMI port can be connected to HDMI devices via the HDMI mini port. Recommend to... -
Page 7: 1800Ma Battery Pack
(battery includes discharge lead adapter for advanced chargers). Note: this battery can still be charged via the barrel connector with the original Fat Shark headset battery charger. Battery Charging The 7.4V, 1800mAh lithium polymer battery pack is equipped with a 3 pole balance... -
Page 8: Accessories
Refer to head tracker module manual for up to date and detailed menu setup instructions. For individual radio setup instructions please visit our head tracking support forum at www.FPVlab.com Forum: Sponsors Gate/Fat Shark/Head tracker radio support. Receiver Modules (1.3G/2.4G/5.8G) Refer to module manuals for frequency chart. -
Page 9: Diopter Lens
Fat Shark RC Vision Systems Diopter Lens For near sighted users, diopter lens insert sets are available that include -2, -4 and -6 dpt. Peel off rubber eye cups and insert into slots seated in front of the lens. Replace rubber.. -
Page 10: Specifications
Fat Shark RC Vision Systems Specifications Optics: FOV (field of view): 30° diagonal Optics Type: Plastic optics (binocular 6p direct view optical engine) Interpupillary Distance (IPD): 59 to 69 mm (adjustable) Optional Diopter Lens Inserts: -2, -4, -6 dpt Display:... -
Page 11: Operational Advice
Fat Shark RC Vision Systems Operational Advice • For best performance, select a channel that has the least amount of interference. While the transmitter is turned OFF, turn on the video headset and look at the screen as you check each channel. -
Page 12: Trouble Shooting
Fat Shark RC Vision Systems Trouble Shooting Observation Possible Cause/Solution No image, display is - No power supplied. Check power connections. completely dark No image, display is glowing - If using wireless module, turn on RX power on bottom of dark grey headset.
