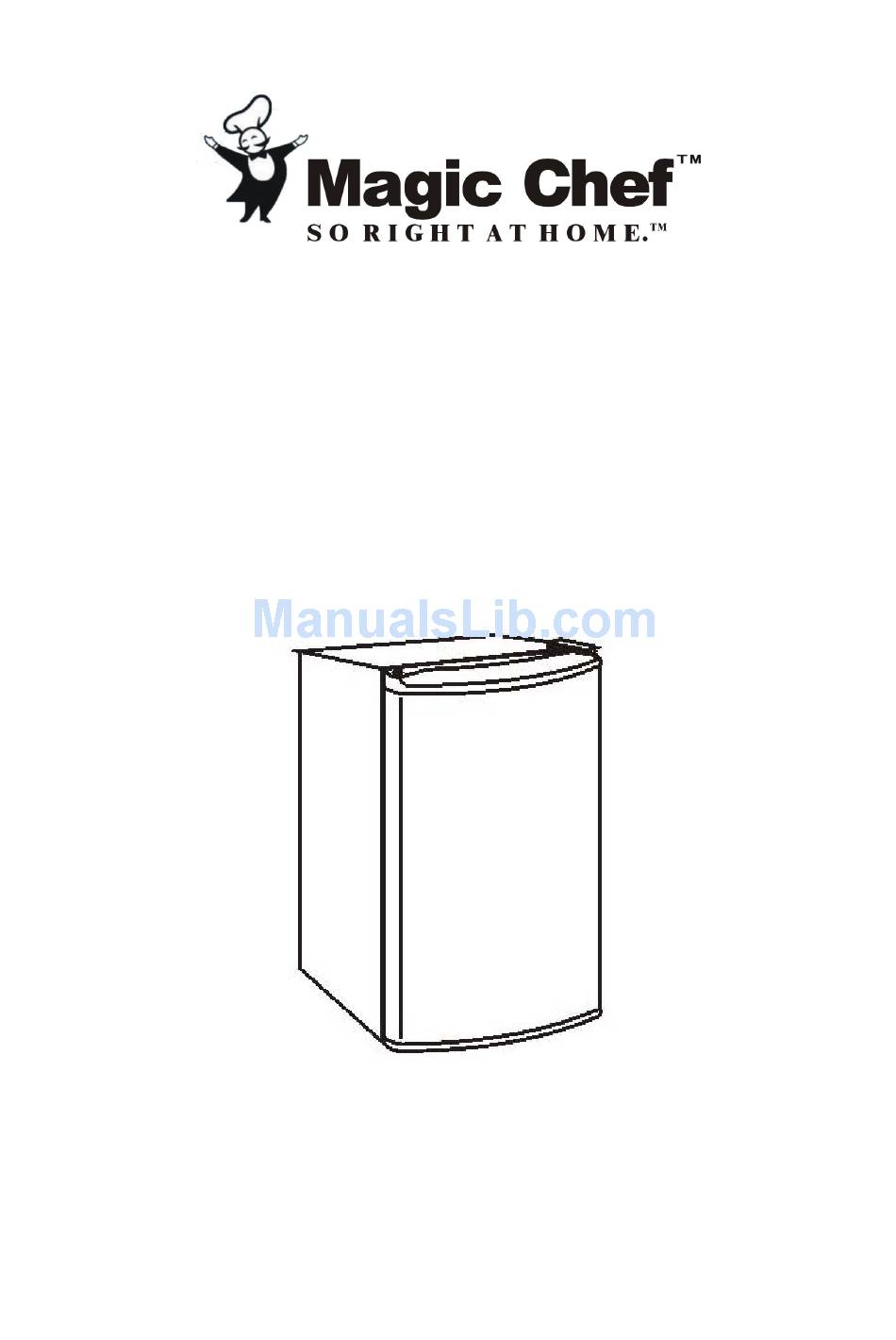

- Page 1 3.6 CU.FT. REFRIGERATOR Model No.: To ensure proper use of this appliance and your safety, please read the following instructions completely before operating this appliance. INSTRUCTION MANUAL MCBR360W MCBR360B MCBR360S...
-
Page 2: Table Of Contents
TABLE OF CONTENTS NAMES OF THE PARTS……………………………………………………… 2 SPECIFICATIONS…………………………………………………………….. IMPORTANT SAFETY INSTRUCTIONS………………………….………… 4 INSTALLATION INSTRUCTION BEFORE USING YOUR REFRIGERATOR ………………………... 4 INSTALLING YOUR REFRIGERATOR ………………………..…… 4 ELECTRICAL CONNECTION………………………………………… 5 OPERATING YOUR REFRIGERATOR TEMPERATURE CONTROL………………………………………….. 6 ICE TRAY………………………………………………………...……… 6 THE CHILLER COMPARTMENT……………………………..………. 6 HOW TO DEFROST ……………………………………………..……. -
Page 3: Names Of The Parts
NAMES OF THE PARTS MODEL NO. MCBR360W / MCBR360B / MCBR360S (1) Shelf (2) Freezer Compartment (3) Drain Pan (4) Temperature Control Box (5) Temperature Control Dial (6) Can Dispenser (7) Rack (8) Bottle Rack (9) Door Liner WARNING : Never touch the interior of the Freezer Chamber or frozen foods in the... -
Page 4: Specifications
SPECIFICATIONS – Model # MCBR360W/B/S Product Description Magic Chef Refrigerator Model No. MCBR360W / B / S Capacity 3.6 Cu. Ft. Unit Dimensions Width Height Depth ( inches ) 18.5” 32.5” 19.3” Net Weight ( lbs) 50 ( lbs ) -
Page 5: Important Safety Instructions
Installing Your Refrigerator This appliance is designed to be free standing only, and should not be recessed or built-in. • Place your refrigerator on a floor that is strong enough to support the refrigerator when it is fully • loaded. -
Page 6: Electrical Connection
The cord should be secured behind the refrigerator and not left exposed or dangling to prevent accidental injury. Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle. Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. -
Page 7: Operating Your Refrigerator
If the unit is unplugged, loses power; you must wait 3 to 5 minutes before restarting the • unit. If you attempt to restart before this time delay, the refrigerator will not start. Large amounts of food will lower the cooling efficiency of the appliance. -
Page 8: Care And Maintenance
Be sure the refrigerator stays in the upright position during transportation. • Energy Saving Tips The refrigerator should be located in the coolest area of the room, away from heat producing • appliances or heating ducts, and out of the direct sunlight. -
Page 9: Troubleshooting Guide
TROUBLESHOOTING GUIDE You can solve many common refrigerator problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling for service. PROBLEM Refrigerator does not operate. - Page 10 Moisture forms on outside of refrigerator. The door will not close properly. can adequately support refrigerator. refrigerator by putting wood or metal shims under part of the refrigerator. The refrigerator is touching the wall. Re-level the refrigerator and move it from the wall.
-
Page 11: Refrigerator Warranty
One- Year For Service or Assistance please call 888 775-0202. Or visit us on the web at www.magicchef-ewave.com to request warranty service. warrants each new Refrigerator to be free from defects in warrants the compressor (parts only) to MC Appliance Corporation.
