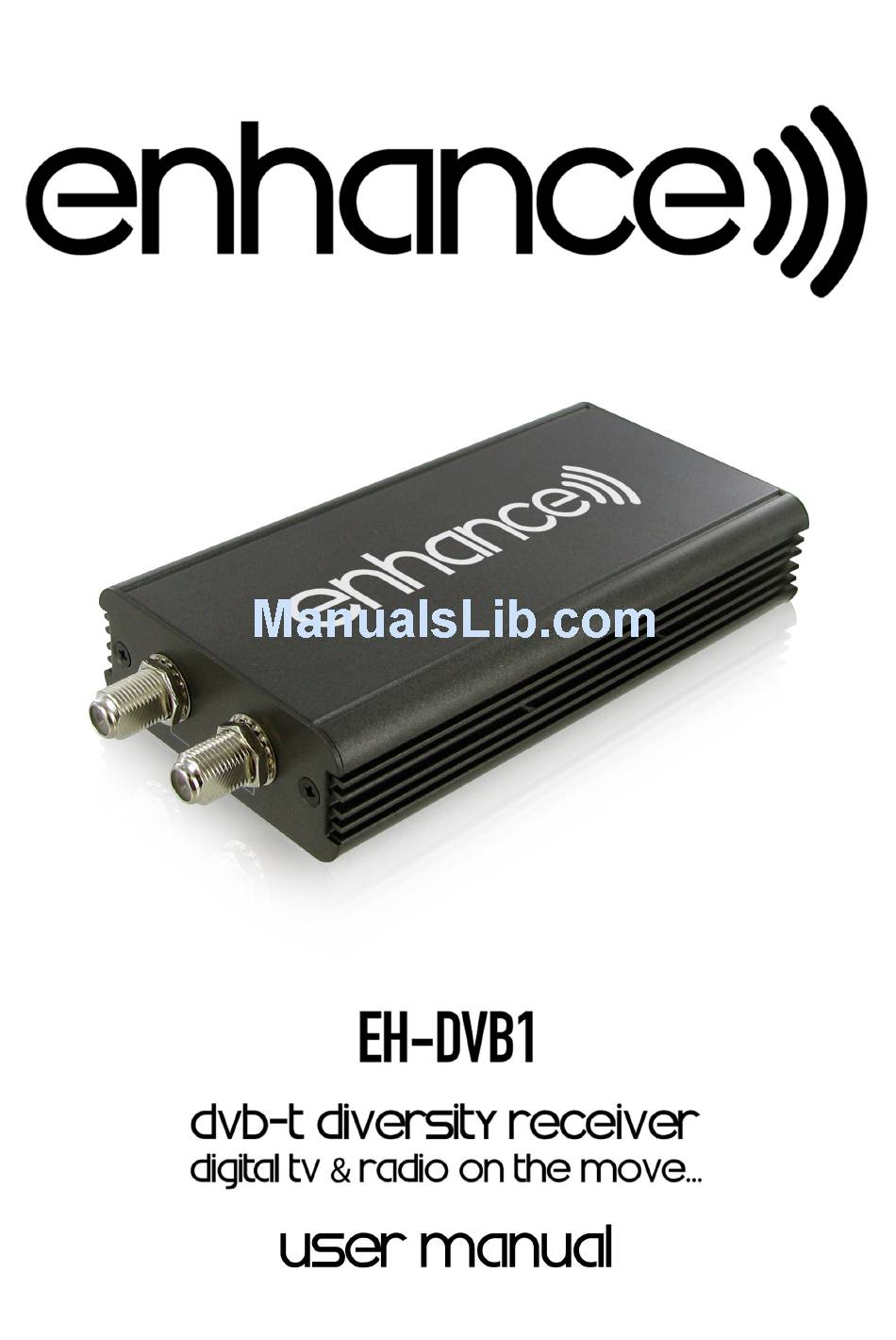

ENHANCE EH-DVB1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH-DVB1 and is the answer not in the manual?

Questions and answers

Summary of Contents for ENHANCE EH-DVB1

  • Page 2 The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance The lighting flash with arrowhead symbol within an CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK – equilateral triangle is intended to alert the user to the DO NOT REMOVE COVER (OR BACK) presence of uninsulated dangerous voltage within the...
  • Page 3 Precaution Preface On Safety Do not attempt to install or service your DVB-T receiver by yourself. Installation or servicing  by people without training and experiencing in electronic equipment and automotive accessories may be dangerous and could expose you to the risk of electric shock or other hazards.

  • Page 4: Table Of Contents

    Table of Contents Quick Guide for First-time User ............9 I.1. DVB-T TV Watching ................9 I.2. DVB-T Radio Listening ..............12 II. DVB-T TV/Radio Menu ..............13 II.1. Radio ..................13 II.2. Program List ................13 II.3. Automatic Channel Search ............14 II.4.

  • Page 5: Front Panel

    Unit Description & Installation Guide Front Panel (1) Ant. in (1) Ant. In: Antenna connection port (NOTE: This unit provides +5V antenna power on these inputs for the supplied powered active antennas) Back Side (3) Power/AV/IR port (2) Power LED (4) Software Upgrade (2) Power: “Power”...

  • Page 6: Antenna Connection

    Antenna Connection DVB-T reception will vary from vehicle to vehicle and you may have to try several mounting positions to determine which position provides the strongest signal in your vehicle. We recommend for one antenna to be mounted at the front and one at the rear of the vehicle.
  • Page 7 Remote Control Operations (13) Button name Function SOURCE No function POWER Select power-on or stand-by CH ▲ Select channel up or move the cursor up (14) MENU Enter the setup menu (15) Select the highlighted item (16) VOL Select volume down or move the cursor left (17) CH▼...
  • Page 8 Accessories o Connection cable o Remote control o IR extension cable o 2 pcs active antennas (optional)

  • Page 9: Quick Guide For First-Time User

    I. Quick Guide for First-time User I.1. DVB-T TV Watching Step 1: Turn on the unit 1. Turn on the vehicles ACC or IGN. (Or start the vehicle) 2. When the unit has power, the POWER LED indicator will illuminate GREEN. 3.
  • Page 10 Step 3: Press [OK] button to enter the scan setup. Step 4: Select your own OSD Language, your located region, whether it’s summer time at present. 1. Use [CH▲]/[CH] buttons to highlight the item. 2. Use [VOL] button to set the highlight item. 3.
  • Page 11 Step 5: Perform auto search to find available DVB-T channels. 1. Use [CH▲]/[CH] buttons to highlight the Auto Search item. 2. Press [OK] button to start. Step 6: Job well-done! You can now sit back and enjoy your mobile TV. NOTE: Keep [OK] button pressed to change the aspect ratio of current TV program.

  • Page 12: Dvb-T Radio Listening

    I.2. DVB-T Radio Listening 1. Press [Menu] to trigger DVB-T TV Menu. Use [CH▲] / [CH] / [VOL] / [VOL] buttons to browse DVB-T menu to highlight Radio menu item and then press [OK] button to enter the radio mode. 2.

  • Page 13: Dvb-T Tv/Radio Menu

    II. DVB-T TV/Radio Menu After entering the DVB-T TV or Radio service, press [MENU] button to show DVB-T TV/Radio menu. By navigating the different options, you can have access to the program list, the channel management, the automatic channel search function, the DVB-T audio settings, the channel info, the subtitle function, the teletext, and the system setting.

  • Page 14: Ii.3. Automatic Channel Search

    II.3. Automatic Channel Search To search available channels automatically. 1. Browse the TV menu screen using [CH▲] / [CH] / [VOL] / [VOL] buttons to highlight the automatic search option. Press [OK] button to enter. NOTE: you can also press [AUTO] button to enter Automatic Channel Search while enjoying DVB-T TV/Radio.

  • Page 15: Ii.5. Channel Information

    II.5. Channel Information Provide the information of current service’s system parameters and signal information. 1. Browse the TV menu screen using [CH▲] / [CH] / [VOL] / [VOL] buttons to highlight the channel information option. NOTE: you can also press [INFO] button to enter Channel Information while enjoying DVB-T TV/Radio.
  • Page 16 Users can restore the channels by deactivating the function.

  • Page 17: Ii.7. Subtitle

     Lock a Channel Access 1. After entering the channel editing menu, select “LOCK” visual-button on screen by pressing [VOL]/[VOL] buttons. 2. Press [OK] button to activate or deactivate it. NOTE: Users need to key passwords when they watch locked channels. Please refer to IV.2.9.

  • Page 18: Ii.9. System Settings

    II.9. System Settings To enter system settings menu. In this menu you can have access to display setting, region/language settings, time settings, software version, and reset default. II.9.1 Display Setting To set up TV system (PAL, NTSC, AUTO) and the aspect ratio. 1.

  • Page 19: Ii.9.3 Region/Language

    the options. 3. Select one by pressing the [OK] button or exit the setting by pressing the [EXIT]/[MENU] button. 4. After adjusting, press [EXIT]/[MENU] button to exit the “Time Settings”. II.9.3 Region/Language To set up the OSD language and DVB-T regional settings. 1.

  • Page 20: Trouble Shooting Q&A

    III. Trouble Shooting Q&A Most of the troubleshooting issues can be easily solved. The common cases and their respective solutions are listed in the table below. If the problem persists, please contact the after sales service. Problem Possible Reason Solution The power cord is not properly Check the power wire inserted into the unit.

  • Page 21: Specification

    IV. Specification Features DVB-T Reception Best in class performance of DVB-T TV reception (Diversity-2) RF Input Passive and active antenna supported. Antenna F-type antenna Frequency range VHF (170-230 MHz) and UHF band (470-862 MHz) RF input impedance 75 Ohm Channel bandwidth 6/7/8 MHz TV System Transmission standard...
