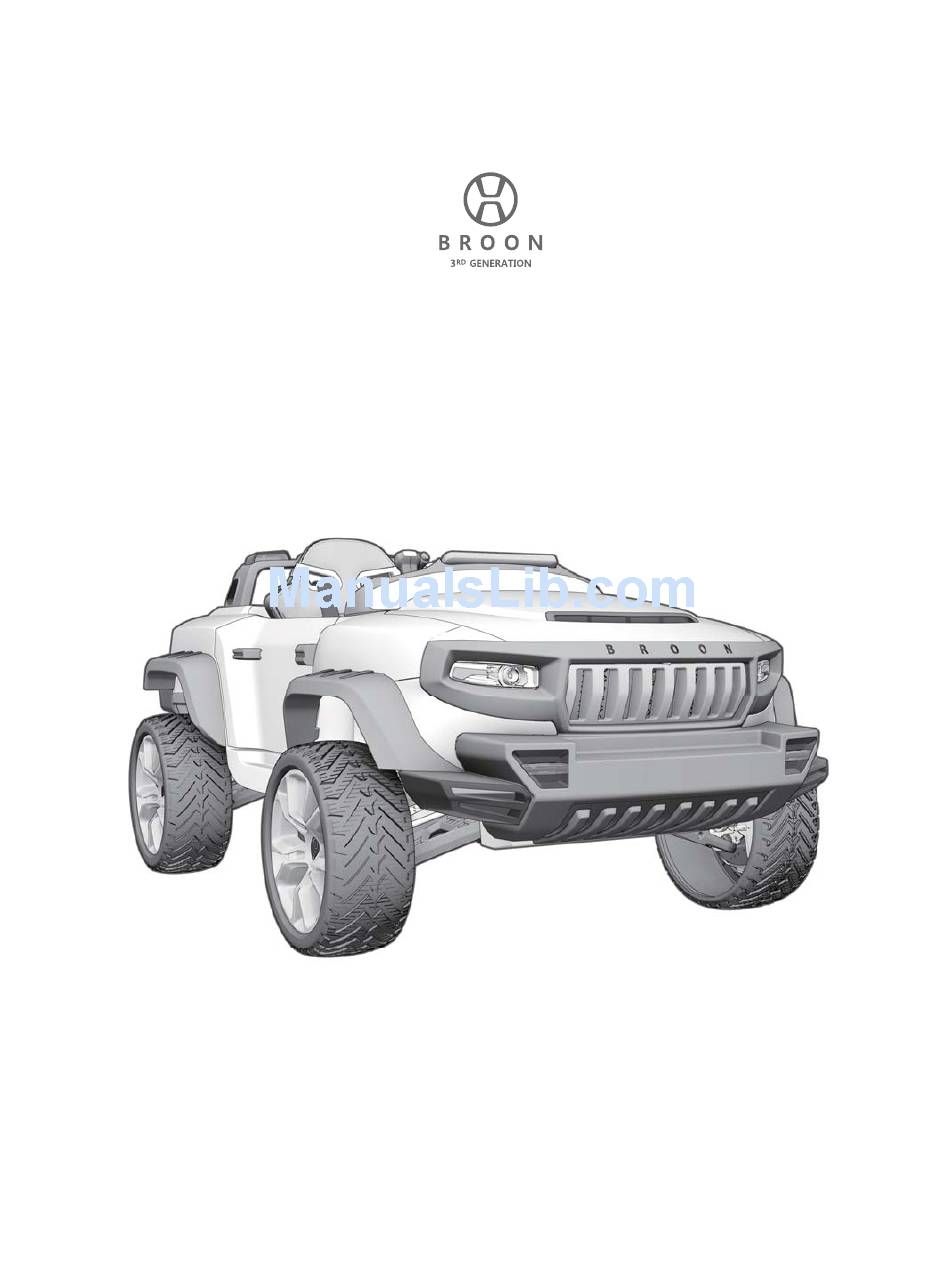

- Page 1 BROON T870 The Instructions Manual Please make sure to read the instruction manual thoroughly before use. Some changes can be made for improvement without notice. Specifics could vary by different versions of the product.
- Page 2 - The content of this instruction manual could change for improvements without notice. - For any difficulties or discomfort in using the product, please contact us via calling your near service center or the store of purchase. You can also contact us via our website at www.broon.co.kr.
- Page 3 We do our best to give your beloved sons and daughters the first-in-lifetime experience of driving the vehicle which will be shared and talked forever. Again thank you for choosing BROON T8 Series, an unforgettable experience. BROON...
- Page 4 Contents 1. Precautions ▷ Instructions / Cautions for Safety (p.01) 2. Components ▷ Component images (p.02) 3. Product Exploded View ▷ External exploded view and part names (p.03~04) 4. Product Assembly Instruction ▷ Tire set (p.05) ▷ Seat assembly and roll cage separation (p.06) ▷...
- Page 5 Contents (p.20) ▷ Precise-Diagnostics ▷ Warning Message Description (p.21 ~ 22) 8. Audio System / Update (p.23) ▷ Audio features and updates related 9. Vehicle Operation Method ▷ Turning ON battery / Dashboard Power Switch / Lock setting and operation (p.24) 10.
- Page 6 ▶ Check product safety before boarding to prevent any accident. ▶ Never let children touch the wheels or running vehicle. ▶ Please be familiar with how to manage the adjustable seat belt of the product. ▶ Please have the seatbelt on at all times. BROON 01...
- Page 7 Tire set X 4 / Disc X 4 Tire set X 4 / Disc X 4 T8 body Seat(with seatbelt included) (Disc is separated) Instrument panel Roll cage Hexagon wrench (Tablet PC, Handle) Wheel bolt X 20 Charger Instruction manual Remote controller BROON 02...
- Page 8 3. Product Exploded View_ External view and part names BROON 03...
- Page 9 3. Product Exploded View_ Internal view and part name BROON 04...
- Page 10 ③ Tighten the bolts with the hexagonal wrench. 4set 20ea ※ Never detach the safety caps from the wheel. Seat assembly ※Please check the alignment of the holes on the car and the holes on the back and bottom-side of the seat. BROON 05...
- Page 11 Press the button Roll cage separation Push internal bottoms on each side of roll cage as show w w n ① on the image. ② Pull up at the same time as you push bottoms. ② ① ① BROON 06...
- Page 12 4 holes and the bump on the panel. ※ Plug in the panel until it clicks as illustrated below. Instrument Panel Removal ※ Pull the part in the i i mage to safely remove th h e panel. BROON 07...
- Page 13 ※ Be carefu not to open the bonnet with force to avoid breaking the part. Sticker Placement Guide to Metallic BROON Sticker Placement Please place the included BROON sticker on the displayed area on the picture (intaglio part). BROON 08...
- Page 14 Unscrew the bolts on the battery case and open the case cover. Have the batteries replaced as below a a nd close the cover with the bolts re-screw w ed. All sockets must connect. ※ The quantity of the battery packs may vary by different versions. BROON 09...
- Page 15 ▶Recharging time was measured by our genuine recharger from HENES co., ltd. ▶Battery’s recharging time and duration can differ by recharging condition and environment, so please use the time table only for reference. ※ Only the original charger and battery are recommended for use. BROON 10...
- Page 16 ▶ Never use cross use the battery with old and new battery or different types of batteries. ▶ Please beware of the battery circuit output. It may cause severe damage to the product, if the battery circuit output(+/-) is not connected properly. BROON 11...
- Page 17 ⑦ Turn signal buttons : Left, right lamp ON / OFF function ⑧ Accelerator pedal : Pedal controls the speed of the vehicle ⑨ Brake pedal : The vehicle's brake pedal (manual control mode only) ⑩ Opener Key : Opens the hood / trunk BROON 12...
- Page 18 Brake : Opens the Brake Mode change window. ⑮ Light : Opens the Light control window. Lock : Opens the Tablet PC lock control window. : Opens the Mp3 player window. Setting : Opens the vehicle information and settings window. BROON 13...
- Page 19 When new pattern is registered, the lock status gets turned off and the application goes back to factory setting. ※ You can alway cancel your initial input and insert a new pattern by clicking the lock icon on the screen. BROON 14...
- Page 20 Auto Brake: The vehicle stops when the accelerator pedal is released. Manual Brake: The vehicle stops when the brake pedal is pressed. Using the manual brake mode requires extra training. Please use this mode when your child is properly trained. BROON 15...
- Page 21 Store and Play your favorite music on the tablet PC. Uploading procedure is found on P. 25. Language Setting – Setting The language displayed on the app can be adjusted. The language changes only apply to the app, not the tablet PC. BROON 16...
- Page 22 If the battery level becomes low, a warning message appears. When it is completely discharged, the vehicle operation automatically stops for safety. Total Driving Distance / Remaining Distance It displays the total driven distance, and the remaining distance. BROON 17...
- Page 23 Setting – Music, Video It takes you to the tablet PC MP3 Player. The Gallery app in the tablet PC home menu will allow video playbacks and you can also download movie apps on Google Play. BROON 18...
- Page 24 The light signal can be detected with the auto-diagnosis but physical defects of LED light should be checked physically. If the test results comes out to be Normal If any problem is detected (It can be found at the results tab) BROON 19...
- Page 25 If the signal is weak, or before the test begins, a window The final results window can be found at the results tab. appears as above. Other results window is displayed in the same way BROON 20 as the automatic diagnosis.
- Page 26 When the operate the vehicle again. communication adequately reestablished, The message also appears when the proximity warning message disappears and the vehicle becomes between the remote and the vehicle becomes too far. operational. BROON 21...
- Page 27 It appears when you try to change setting on the tablet It appears when you try to access the settings menu when it is locked. Please change settings with the tablet while the vehicle is in operation. Please stop the vehilce unlocked. and try again. BROON 22...
- Page 28 6' FDUG UHPRYDO 6HWWLQJ 6WRUDJH 8QPRXQW6' FDUG ! The system can recognize up to 32 GB SD cards. For more information regarding system updates, please visit our Broon homepage. (www.broon.co.kr) Updating the mainboard The mainboard can be located as illustrated below.
- Page 29 ① Touch the lock icon to bring up pattern input window. ② Touch the lock icon to bring up pattern input window. ③ When setting is completed, lock the system again and run the vehicle. ※If it is a touch pad, please refer to Pg. 25. BROON 24...
-
Page 30: Remote Control
Power 3V DC (AAA 1.5V x 2 battery) Indicator It indicates signal strength and battery level. 40 ± 5M (It varies by circumstances) Transmission / reception distance Keep a safe distance for child safety. Etc. Emergency stop function BROON 25... -
Page 31: Product Description
Port for system updates It is used for updating the software. Please use the original cable to avoid system failures. Receiver ( HRC-V14-01 ) It is installed inside the vehicle which should never be removed or dissembled by users. BROON 26... - Page 32 - Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries Please note that the remote control signal can be interfered which affects the control stability. So please keep a safe distance from the vehicle to maintain stable connection. BROON 27...
- Page 33 1 5HPRWH FRQWURO B 3URGXFW )XQFWLRQ 3OHDVH XQORFN WKH WDEOHW 3& WRXFK SDG DQG FKDQJH WKH V\VWHP WR UHPRWH FRQWURO PRGH EHIRUH XVLQJ WKH UHPRWH FRQWURO IXQFWLRQ Steering Handle 5LJKW WXUQ 7ZLVW WKH KDQGOH FORFNZLVH /HIW WXUQ 7ZLVW WKH KDQGOH FRXQWHUFORFNZLVH 5LJKW WXUQ /HIW WXUQ 5LJKW WXUQ...
- Page 34 5HPRWH FRQWURO B 3URGXFW )XQFWLRQ (PHUJHQF\ 6WRS )XQFWLRQ 3UHVV WKH HPHUJHQF\ VWRS EXWWRQ WR DFWLYDWHGHDFWLYDWH HPHUJHQF\ VWRS PRGH 3UHVV RQFH IRU HPHUJHQF\ VWRS SUHVV RQFH PRUH WR UHRSHUDWH :KHQ LW LV LQ HPHUJHQF\ VWRS PRGH DFFHOHUDWLRQVWHHULQJ LV GLVDEOHG (PHUJHQF\ 6WRS %XWWRQ ※:KHQ LQ HPHUJHQF\ VWRS PRGH WKH /(' LQGLFDWRU EOLQNV RUDQJH 9LEUDWLRQ...
- Page 35 - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. BROON 30...
- Page 36 If the motor is damaged, please contact the service center or the place of purchase. The product is structured with the exterior armor loaded on the platform, so please have at least 2 people to support the bottom of the platform when moving the vehicle. BROON 31...
- Page 37 Why is there noise from the battery during recharging? If the surroundings are quiet enough such noise can be heard, however it is normal. Why the battery warms up while recharging? It is normal that the charger warms up during recharging. It is not a breakdown BROON 32...
- Page 38 Built in electronic voltage measuring device Current measurement Built in electronic voltage measuring device Frequency 2.4Ghz Protocol Bluetooth 4.0 LE (It can only be paired with BROON's exclusive receiver) Remote 8bits Micro Controller Unit Control RF performance Receiver Sensitivity(Rx) : -93dBm, Output Power(Tx) : 4dBm...
- Page 39 Stereo speaker 2 channels stereo-sound quality speaker Audio system MP3 player connected with a vehicle Battery Management Intelligent BMS using accumulated driving data system BROON T8 Tablet System 4.4.2 Dual-Core 1.5Ghz Internal(Flash) 8GB Memory 7inch Wide LCD (1024x600) TFT 256K Display 802.11 b/g/n...
- Page 40 The most beautiful, perfect, and artistic structure ever. A breathtaking revolution of vehicles for kids, the 3rd Generation BROON. Head office & Factory : 52, Hamansandan 3-gil, Gunbuk-myeon, Haman-gun, Gyeongsangnam-do, Korea (637-821) Tel: +82-2-1644-2362 Fax: +82.70.8270.3330 Email: biz@henes.co.kr http://www.broon.co.kr...
