Intellinet 509060 Quick Installation Manual

1-port usb wireless print server
Hide thumbs Also See for 509060:

Advertisement

Quick Links

Download this manual See also: User Manual
1-Port
USB
WireleSS
Print
Server
qUick
inStallation
gUide
Model 509060
INT-509060-QIG-0508-01

Advertisement

loading
Need help?

Need help?

Do you have a question about the 509060 and is the answer not in the manual?

Questions and answers

Related Manuals for Intellinet 509060

Summary of Contents for Intellinet 509060

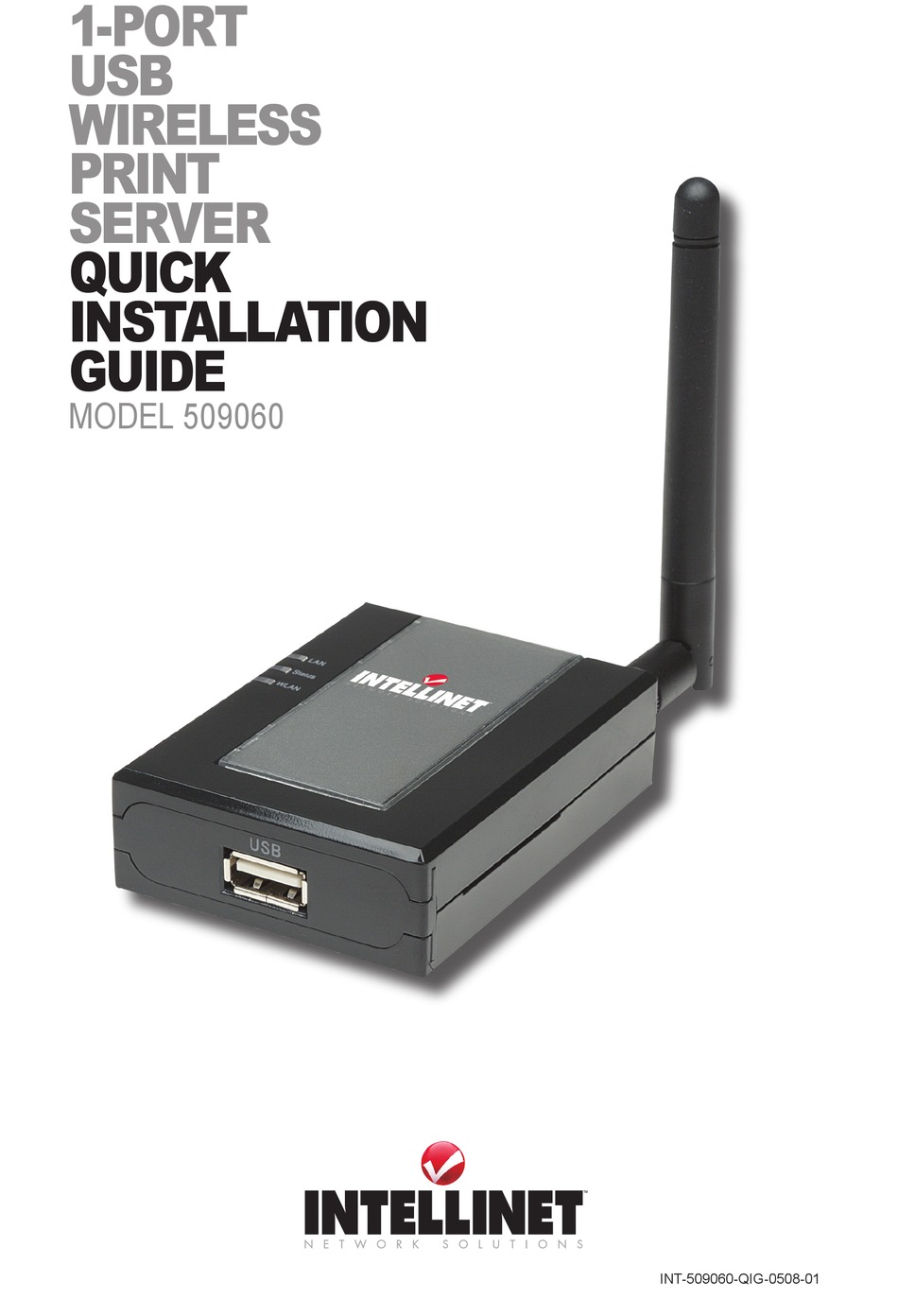

  • Page 1 1-Port WireleSS Print Server qUick inStallation gUide Model 509060 INT-509060-QIG-0508-01...

  • Page 2: Safety & Compliance Statements

    CD enclosed with this product; 2) on the Web site listed below; or 3) in some cases, printed and enclosed with this product. Contact your INTellINeT NeTWoRK SolUTIoNS dealer with comments or questions, or visit www.intellinet-network.com for information on the latest software and firmware updates, related products and additional contact information.

  • Page 3: Hardware Installation

    hardWare inStallation 1. Connect the 1-Port USB Wireless Print Server to the printer you want to share on the network. 2. Connect the print server to your network by attaching the network cable to the UTP port of the print server. 3.
  • Page 4 3. When the Print Server Utilities screen displays, click “Next.” 4. Click “Next” to install the utilities in the default folder, or click “Change” to specify the destination folder where you would like to install the utilities.
  • Page 5 5. Select the components you want to install. It is highly recommended that all provided components be installed. Click “Next” to continue. 6. Click “Install.”...
  • Page 6 7. The system will start to install the utilities automatically. 8. You have completed the installation phase and can prepare to configure the print server. The “Choose Print Server” field will list all print servers within the network. Select the print server you would like to configure and click “Next.”...
  • Page 7 9. Specify a recognizable name for the print server and click “Next.” 10. Specify the IP address for the print server manually, or click “Next” to keep the default IP address.
  • Page 8 11. The configuration summary is displayed on the next screen. You’ve now completed the print server setup. Click “Finish” and your system will automatically add the network port of the print server to your PC. 12. The Administrator Installation procedure is complete. Click “Finish.”...
  • Page 9 Client Utilities Installation The Client Installation program is a wizard-driven procedure which that performs the following tasks: • Installs client utilities and drivers onto your PC. • Automatically adds all network ports to your PC. The network port driver supports network protocol auto-detection. It will automatically select an available network protocol (TCP/IP, IPX or NetBEUI) of the client computer to connect to the print server.
  • Page 10 3. When the Print Server Utilities screen displays, click “Next.” 4. Click “Next” to install the utilities in the default folder, or click “Change” to specify the destination folder where you would like to install the utilities.
  • Page 11 5. Click “Install.” 6. The system will automatically start to install the utilities.
  • Page 12 7. The installation procedure is complete, and you can now set up the client’s computer. All network ports of the print servers detected on the network will automatically be added to your PC. Click “Continue.” Note: If there are no print servers currently detected on the network, click “Continue”...

  • Page 13: Windows Add Printer Procedure

    Windows Add Printer Procedure After adding a network port of the print server to your PC through either the Administrator or Client Installation program, you can follow one of the procedures below to add a printer to your Windows operating system. Windows Vista 1.
  • Page 14 5. Select the printer manufacturer and the printer model and click “Next.” If your printer is not on the list, click “Have Disk…” to install the driver of the printer. After installation, the printer model will be added to the list. 6.
  • Page 15 7. The printer drivers are being installed. 8. At this point, it’s recommended that you print a test page. Click “Finish.”...
  • Page 16 9. When the printer is shown as being added to the Printers page, you’ve added the printer to your computer successfully. Now you can start to print from your computer to the print server. Windows XP 1. On the desktop, go to Start, then Settings, then select “Printers and Faxes.” 2.
  • Page 17 4. Select “Local printer attached to this computer” and make sure that “Automatically detect and install my Plug and Play printer” is not selected. Click “Next.” 5. From the drop-down menu in the “Use the following port” field, choose the suitable print server network port created during the Administrator Installation or Client Installation process.
  • Page 18 6. Select the printer manufacturer and the printer model and click “Next.” If your printer is not on the list, click “Have Disk…” to install the driver of the printer. After installation, the printer model will be added to the list. 7.
  • Page 19 8. Choose whether or not to print a test page. (It’s recommended.) Click “Next.” 9. You’ve successfully added the printer to the PC. The printer information is displayed on the screen. Click “Finish.” You can now start to print from your PC to the print server.
  • Page 20 INTELLINET NETWORK SOLUTIONS ™ offers a complete line of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com. Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
