Summary of Contents for KW Metalltechnik Thermal-Imager A4
-

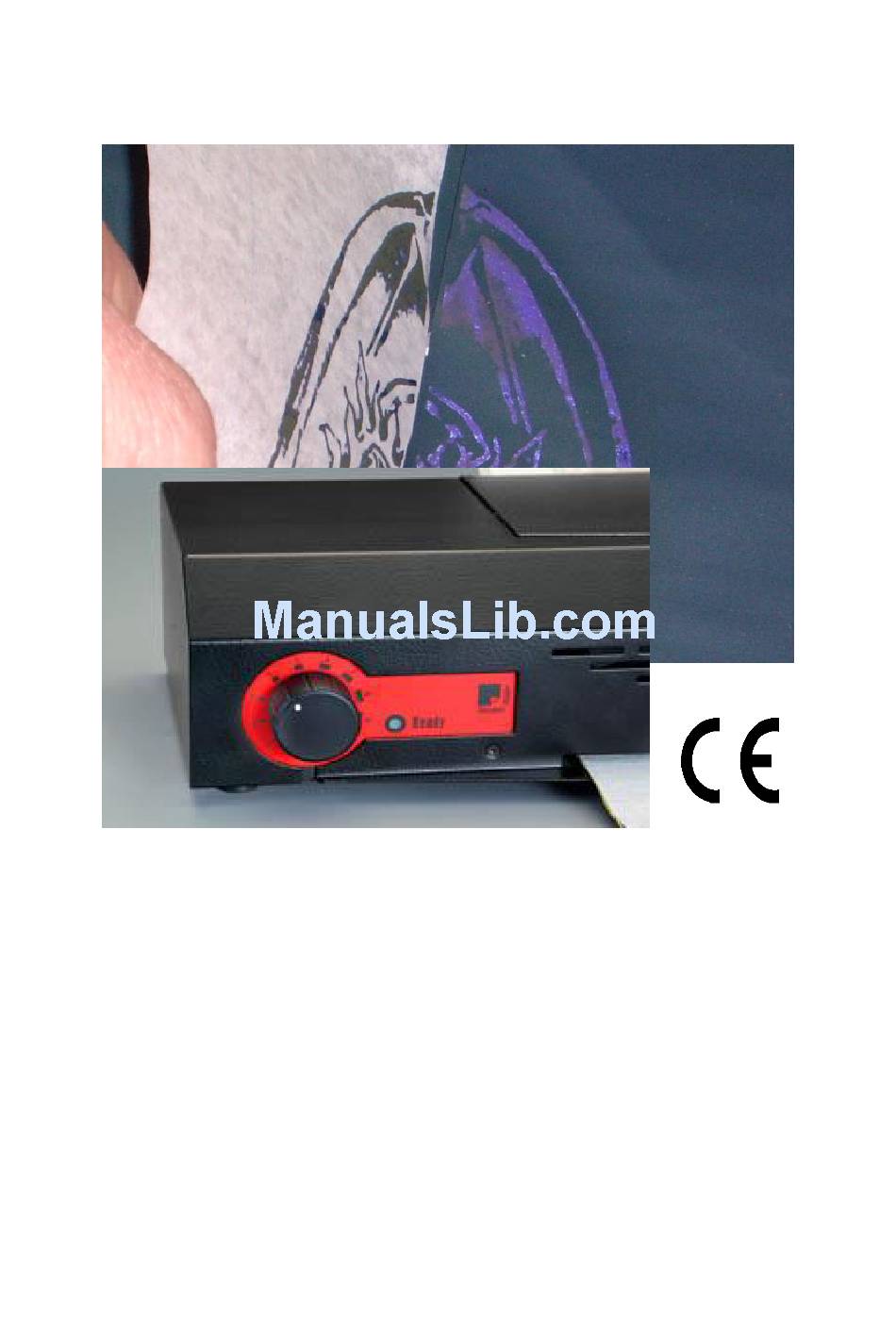

Page 1: Thermal-Imager
115 V/230 V-0107 Thermal-Imager User´s Manual... - Page 2 w w w . t h e r m o c o p i e r . c o m...
- Page 3 Krönauer & Werner KG Made in Germany Distribution worldwide: Panenka Design Produkte Muenchen Hauptstrasse 7a D-85649 Otterloh Tel.: +49-(0)8104-8899606 Fax: +49-(0)8104-8899607 e-mail: info@pdpm.de Web: www.thermocopier.com With any technical problem, please contact your local sales office: © 2013 by KW Metalltechnik...
-
Page 4: Table Of Contents
Security advices .............. 8 The right location ............10 Unpacking and installation ........11 Using the Thermal-Imager .......... 12 Copying ................. 13 Cleaning ................. 14 Troubleshooting ............15 Warranty ............... 16 Technical Data .............. 17 © 2013 by KW Metalltechnik... -
Page 5: Declaration Of Conformity
Take care that your cable is fitted with an 13 Amp plug, if a plug without a fuse is used, make sure that the fuse in the distribution board is 13 Amp and the cable is able to handle this current. © 2013 by KW Metalltechnik... - Page 6 . The following symbol indicates an important hint for your safety ! Disregarding this subject may cause physical harm to you or damage to the device ! © 2013 by KW Metalltechnik...
-
Page 7: Important Hints
(fans working) if you don't use your Thermal-Imager anymore. To disconnect the device from the power supply completely, remove the AC power plug from the wall socket. Never operate the Thermal-Imager without using a suitable carrier ! © 2013 by KW Metalltechnik... -
Page 8: Security Advices
(e.g. overnight)! But make sure that this doesn't happen when machine is still in cooling down process! Warning Avoid the potential of electrical shock by ensuring that the system is properly grounded. © 2013 by KW Metalltechnik... - Page 9 3. Call an authorized service representative to correct the problem. Warning Before opening the cover, always make sure, that the device is switched off and the power cord is disconnected from the electrical outlet! © 2013 by KW Metalltechnik...
-
Page 10: The Right Location
Tilted or uneven surfaces may cause mechanical or paperfeeding problems. Retain the Thermal-Imager cardboard box and packing materials for shipping purposes. There must be sufficent (min. 10 cm - 4 inch) room around the device to ensure adequate ventilation ! © 2013 by KW Metalltechnik... -
Page 11: Unpacking And Installation
4.) Store all packing-materials as carton, foam-parts and the allen-key if you want to ship the copier in future! 5.) Always insert the waxed thermal units into the carrier when making tattoo-stencils; this helps to keep the machine clean inside! © 2013 by KW Metalltechnik... -
Page 12: Using The Thermal-Imager
The green LED flashes The device will retract the carrier and start the illumination automatically. Smaller documents should be placed in the middle of the slot. © 2013 by KW Metalltechnik... -
Page 13: Copying
As carriers are mentioned to be wearing parts, you must replace them at time. Your local sales office should be able to deliver suitable spare parts, just ask them ! © 2013 by KW Metalltechnik... -
Page 14: Cleaning
Rotate the rollers forward pressing the inner button (A) and repeat the above cleaning procedures until the rollers are clean. 4. Close the Thermal-Imager. Your device is now ready for use. © 2013 by KW Metalltechnik... -
Page 15: Troubleshooting
Lamp is defect/broken Contact your local sales office for replacement Fuse of the lamp is Replace with same type broken and value (see chapters ‘technical data’ and ‘security advices’) © 2013 by KW Metalltechnik... -
Page 16: Warranty
In case of misfunction please contact your local sales office first. In case you have to send back the unit to your sales office please use the original cardboard box and foam parts. Do not forget to install the transportation locks ! © 2013 by KW Metalltechnik... -
Page 17: Technical Data
13.25 lbs Size of original (max.) 210 x 300 8.5 x 11 inch Recommended size of 230 x 350 9.1 x 13.8 carrier inch Design Metal case, microprocessor control, dual fans, automatic overheat protection, CE © 2013 by KW Metalltechnik...
Need help?
Do you have a question about the Thermal-Imager A4 and is the answer not in the manual?
Questions and answers
drukt zijkanten links en rechts niet goed af
The KW Metalltechnik Thermal-Imager A4 may not be printing the left and right edges correctly if the carrier is not inserted properly along the insert guides. Improper alignment can cause the image to shift, leaving the edges unprinted. Ensure the carrier is placed opal side up and slid fully into the slot along the guides.
This answer is automatically generated
drukt zijkanten niet goed
The KW Metalltechnik Thermal-Imager A4 may not be printing the edges correctly if the document or carrier is not inserted properly. The manual states that the carrier should be placed with the opal side up and slid into the slot along the insert guides as far as possible. Improper insertion can cause misalignment, leading to incomplete or incorrect edge printing. Additionally, incorrect speed settings may also affect print quality.
This answer is automatically generated
When powering the machine on the red light stays on and the fans stay running. Even when the machine is cool. I can’t get it to do anything else.
If the red light stays on and the fans run continuously when powering on the KW Metalltechnik Thermal-Imager A4, it likely indicates that the lamp is defective or broken. You should contact your local sales office for a replacement.
This answer is automatically generated
