Inday DA4X-R User Manual

Multimedia Accessories
www.inday.com
DA4X-R
SPDIF 4x1
Digital Audio Switcher
Toslink and Coax Inputs
With IR Remote Control
& RS-232 Serial Option
(Compatible with the RGB4X-R)
Overview And Uses
The DA4X-R is a 4x1 SPDIF Digital Audio
Switcher. It can take up to 8 inputs ( 4-Toslink
and 4-Coax) and send one of those inputs to
both outputs simultaneously.
The inputs can be any standard Consumer
digital Audio type such as:
- SPDIF( IEC 958) format Audio.
- Toslink/Coax
- DTS/Dolby Digital/AC3/PCM
Please note that If you connect both Toslink
and Coax to a single input, it will default to the
Coax input, if a signal is present.
The DA4X-R does not "process" the audio in
any way. So if the source is DTS encoded on
the input, it will be DTS encoded on the output.
The only conversion that takes place is be-
tween the Optical and Coax.
There are 3 ways to control the RGB4X-R.
1– Front Panel Switch for cycling through the
inputs. Each press advances the input.
2– IR Remote Control for direct selection of
desired input. Visit www.inday.com to
download "Universal" remote configuration
files, such as the Philips Pronto ™.
3- RS-232 Serial Port (optional) for direct com-
puter control and status. Useful for integrating
into advanced automated systems. See "RS-
232 Control" section for further information.
Setup
Connect your Digital Audio sources, such as
HDTV Receivers, DVD Players, CD Players to
the Inputs of the DA4X-R.
Connect one or both of the outputs to your
Digital Receiver/Amplifier.
See the following diagram for typical connec-
tions.

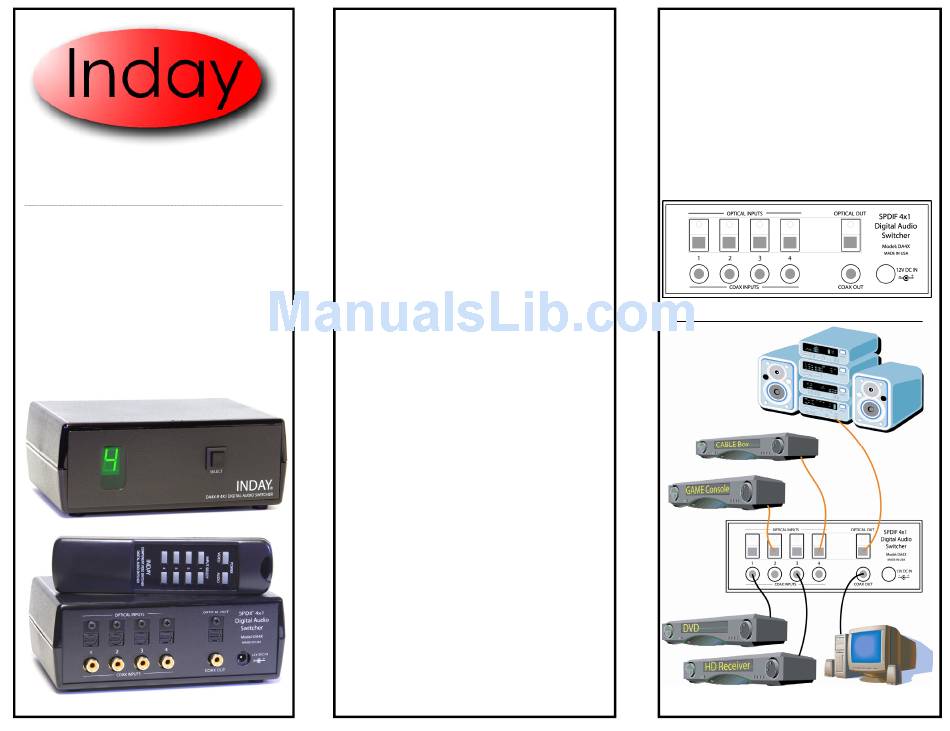

Figure 1 -Connectors
Figure 2 - Home Theater Configuration
