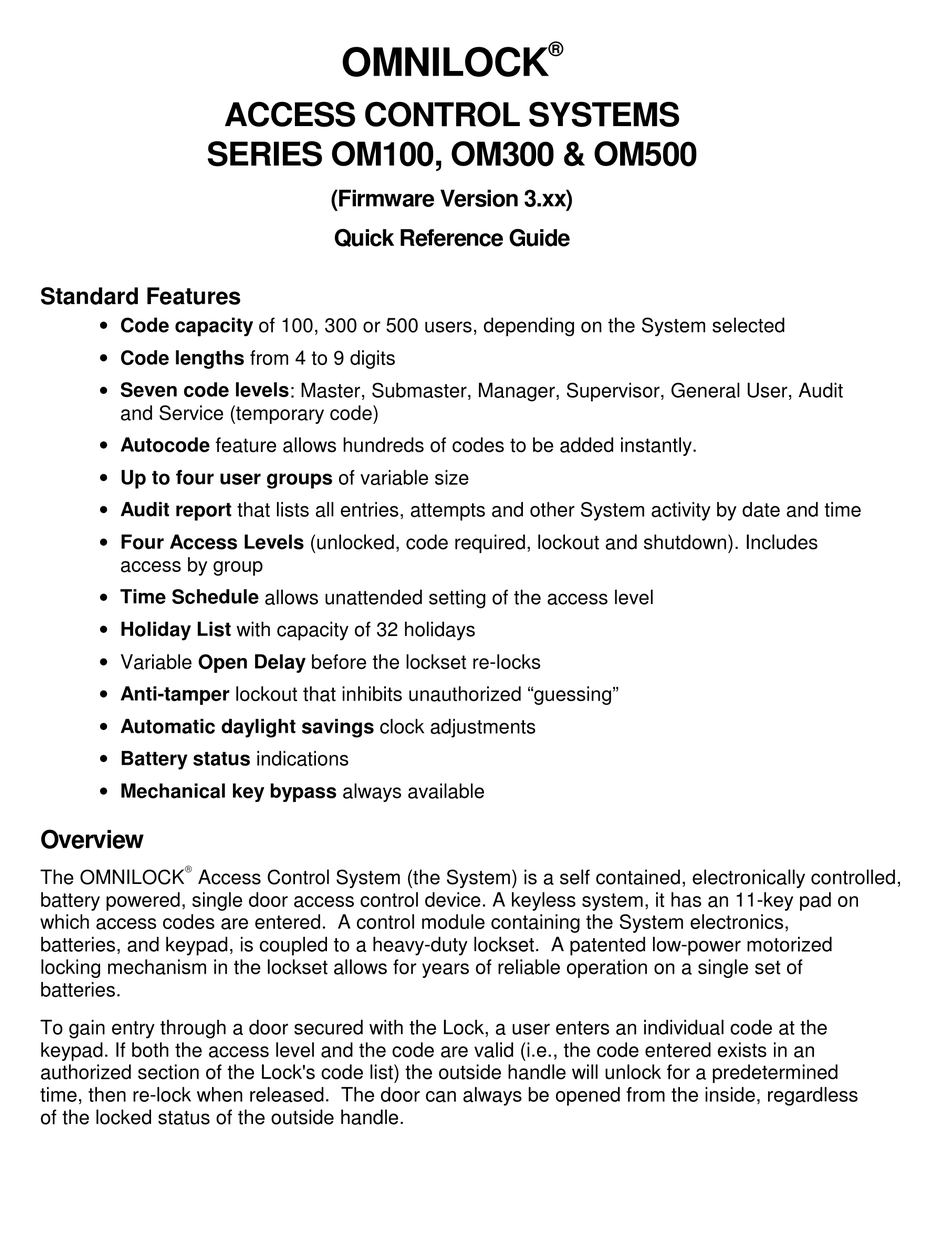

OMNILOCK OM100 SERIES Quick Reference Manual

SERIES OM100, OM300 & OM500

Standard Features

• Code capacity of 100, 300 or 500 users, depending on the System selected
• Code lengths from 4 to 9 digits
• Seven code levels: Master, Submaster, Manager, Supervisor, General User, Audit
and Service (temporary code)
• Autocode feature allows hundreds of codes to be added instantly.
• Up to four user groups of variable size
• Audit report that lists all entries, attempts and other System activity by date and time
• Four Access Levels (unlocked, code required, lockout and shutdown). Includes
access by group
• Time Schedule allows unattended setting of the access level
• Holiday List with capacity of 32 holidays
• Variable Open Delay before the lockset re-locks
• Anti-tamper lockout that inhibits unauthorized "guessing"
• Automatic daylight savings clock adjustments
• Battery status indications
• Mechanical key bypass always available

Overview


The OMNILOCK Access Control System (the System) is a self contained, electronically controlled,
battery powered, single door access control device. A keyless system, it has an 11-key pad on
which access codes are entered. A control module containing the System electronics,
batteries, and keypad, is coupled to a heavy-duty lockset. A patented low-power motorized
locking mechanism in the lockset allows for years of reliable operation on a single set of
batteries.
To gain entry through a door secured with the Lock, a user enters an individual code at the
keypad. If both the access level and the code are valid (i.e., the code entered exists in an
authorized section of the Lock's code list) the outside handle will unlock for a predetermined
time, then re-lock when released. The door can always be opened from the inside, regardless
of the locked status of the outside handle.
OMNILOCK
ACCESS CONTROL SYSTEMS
(Firmware Version 3.xx)
Quick Reference Guide
®
