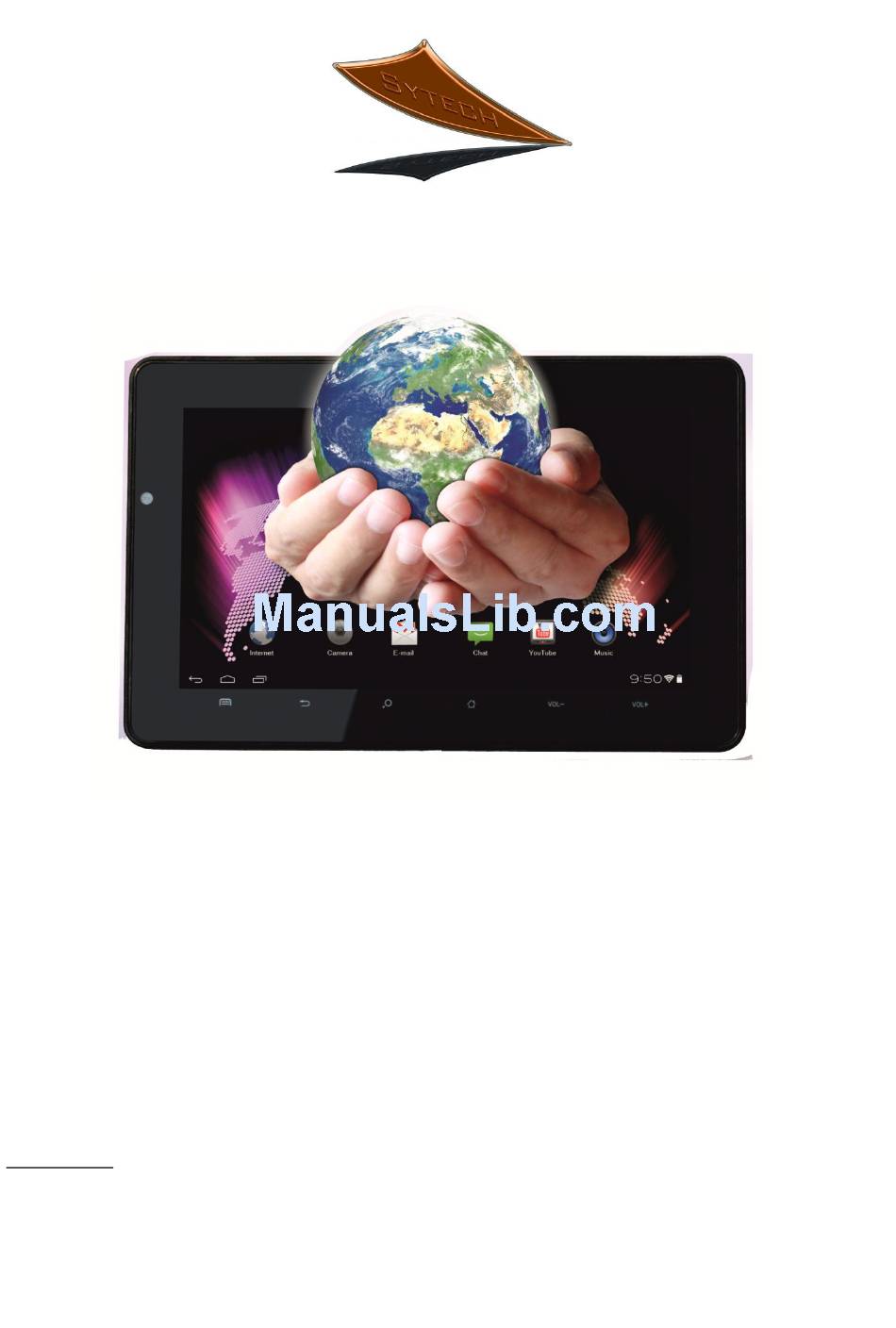

OPHION Tablet
SY-Z17M8
7" Personal Android Tablet
User Manual
Use of the Manual
To ensure proper use of the tablet, read this user manual carefully before first use.
These instructions are based on the factory settings of the device.
It may be possible that some of the images and screenshots in this manual do not match the final product.
It is possible that the contents in this user manual do not match the final performance of the unit due to firmware upgrades.
Please visit www.sytech.es for the latest version of the user manual and firmware upgrades.
Advertisement
Table of Contents
Related Manuals for Sytech OPHION SY-Z17M8
Summary of Contents for Sytech OPHION SY-Z17M8
-
Page 1: User Manual
It may be possible that some of the images and screenshots in this manual do not match the final product. It is possible that the contents in this user manual do not match the final performance of the unit due to firmware upgrades. Please visit www.sytech.es for the latest version of the user manual and firmware upgrades. -
Page 2: Care And Maintenance
WELCOME Sytech thanks you for buying the OPHION SY-Z17M8 7” multi touch screen display tablet which has been specially designed to fulfil your needs and allow you to experience the new portable entertainment generation with just a few touches! Thanks to the Android operating system you can gain access to the internet, check your e-mail or even watch or listen to multimedia content anywhere at anytime. -
Page 3: Contents Of Package
CONTENTS OF PACKAGE OPHION SY-Z17M8 Tablet 8GB User Manual USB OTG 2.0 High speed Cable for PC connection AC/DC power adaptor – 100-240V AC 50-60Hz Leather pouch In ear Earphones PICTURE DESCRIPTION Front Camera 11. MIC Menu 12. Earphone Jack Back 13. -
Page 4: Battery And Power Management
TURNING ON AND OFF THE UNIT To switch on your OPHION SY-Z17M8 tablet, press the On/Off button (1), located on the top right hand side of the unit, for a few seconds. Before being able to use the unit you will have to unlock the device. Drag the padlock towards the right (wave icons will be shown to indicate in which direction to move the padlock). -
Page 5: Main Screen
MAIN SCREEN 1. Search 7. Settings/Menu 2. Return 8. Applications/Widgets on desktop 3. Home 9. Time 4. Tabs 10. Battery level 5. Volume Down 11. Applications/Widgets menu 6. Volume Up GENERAL SETTINGS... - Page 6 Set your OPHION tablets parameters to fit your needs. Enter into the settings menu and a list of options will appear. Wireless & Networks Wi-Fi Turn the Wi-Fi on or off. Data Usage Press this option to see the data usage of your OPHION tablet More Press this option to see more options under the Wireless and Networks settings.
- Page 7 Widgets are applications, which allow easy access to some applications. In fact, it is more than a shortcut to an application as when you place them on your home screen like icons, they can show you the time, current weather or even your e-mail inbox without launching the application.
-
Page 8: Setting Up The Wi-Fi Network
6. Drop and place the icon in the desired position on the desktop. The icon will now appear on your desktop as shown below. Once the widget is on the desktop, you can move it around or delete it. To do this you must press and hold on the widget until it is highlighted. - Page 9 Once the authentication process has been completed; the device will save the data so that the next time you turn on the device it will automatically establish connection with the network (when in range) without having to repeat the authentication process. Your OPHION SY-Z17M8 tablet is now ready to surf the internet! NOTE: The OPHION SY-Z17M8 is...
-
Page 10: Internet Browser
INTERNET BROWSER Your device comes with a powerful Web Browser which has already been pre-installed. The browser will allow you to surf the internet quickly and easily. When the device is connected to a Wi-Fi network, tap on the browser application icon (1) from the desktop or from the applications menu to begin using the internet. - Page 11 Homepage Tap on the address bar once (1). The current address will be highlighted and the keypad screen will appear. Type the desired webpage address and press enter (2). Tabs The different tabs will be shown on the top part of your browser. In order to view all the pages that are currently opened, simply press on the desired tab (1).
- Page 12 Menu Options Press the Menu Button (1) on the top right corner of the screen to access the different options as shown below. Refresh Press this button to reload the page. Forward Press this button to move a page forward in your browser New Tab Press this button to open a new tab New Incognito Tab...
-
Page 13: E-Mail Setup
E-MAIL SETUP The OPHION SY-Z17M8 is also made to send and receive e-mails. In order to set up your e-mail on the device, follow the steps as shown below. 1) Click on the “E-Mail” application (1) 2) Insert your email address and the password. Once the setup process has been completed, you will begin to receive your e-mails on your OPHION tablet. - Page 14 Mail Box Features Folders New Emails Compose New Email Search Refresh / Check for new e-mails E-mail settings Received mail...
-
Page 15: Music Player
MUSIC PLAYER 1 – Playlist 7 – Previous Song 2 – Shuffle 8 – Music Options 3 – Repeat all songs/Repeat current song 9 – Volume Up 4 – Duration of Song 10 – Volume Down 5 – Next Song 11 –... -
Page 16: Video Player
VIDEO PLAYER 1 – Time elapsed 2 – Video Title 3 – Volume Down 4 – Volume Up 5 – Previous Video 6 – Pause 7 – Next Video 8 – Options (Aspect Ratio, Video Track, Repeat Mode) 9 – Restart... -
Page 17: Picture Gallery
PICTURE GALLERY To view pictures on your OPHION tablet, access the picture folder and tap on any picture (1) The image will be shown in full screen mode and thumbnails of the next and previous images will appear as a bar below. To view the next or previous image simply flick through the images (2) Press the Share button on the screen to share the picture via Email or Social Media (3). - Page 18 Settings Slideshow Press this button to view all the pictures as a presentation. Tap on the screen to return to normal viewing mode. Edit Press this button to change the effects, lighting, colour and size and shape of the image. Rotate Left Turn the image 90º...
- Page 19 CAMERA The OPHION tablet has an integrated frontal and rear camera of 0.3 MP and 2MP respectively which allows you to take pictures on the go. Camera Front camera/Rear Camera switch 5. Panoramic Mode Shutter 6. Video Recorder Mode Settings 7.
- Page 20 Video Recorder When you press on the Video Camera icon, the following screen will appear and the dot on the right will turn red. Press the Record button (1) and the device will begin recording. The Time elapsed will be shown on the top left corner. During recording it is possible to zoom in and out by moving the circular icon from –...
- Page 21 Panoramic View The camera also has the capability of taking pictures in panoramic mode. Press the Panoramic View Icon and the following screen will appear. All the images taken with the camera will be saved in your picture folders. You may access these pictures by exiting the camera application and then going into the picture gallery.
- Page 22 CONNECTING THE TABLET TO A PC Once you have connected the tablet to the PC, press the USB device icon that appears on the bottom of the screen (1) Select the “USB CONNECTED” option (2)
- Page 23 The following screen will appear. Press the “Turn on USB storage” (3) button and the device is now connected to the PC. At this point, some applications which you are using will be unavailable until the device has been disconnected from the PC. To disconnect the device from the PC, press the “Turn off USB storage”...
-
Page 24: Troubleshoot
TROUBLESHOOT Below are a few problems that you may encounter during the use of your OPHION SY-Z17M8 tablet. Please read the following guide carefully. However if a major problem has been encountered with the device, please contact Sytech Service Centre for further assistance. - Page 25 My OPHION SY-Z17M8 battery charge level runs out very quickly / Works very slowly from the first time I got it In order to preserve the battery charge for the longest time possible, always make sure that not too many applications are running in the background.
-
Page 26: Declaration Of Conformity
Tel: 902 430 967 Fax: 91 8864285 NIF: B83254763 Manufacturing country: China Sytech® SY-Z17M8-OPHION The following product complies with the Directive 1999/5/EC of the European parliament and of the Council of 9 March 1999 ROHS standard:2002/95/EC Restriction of Hazardous Substance...
