Page 1: Counting Scale

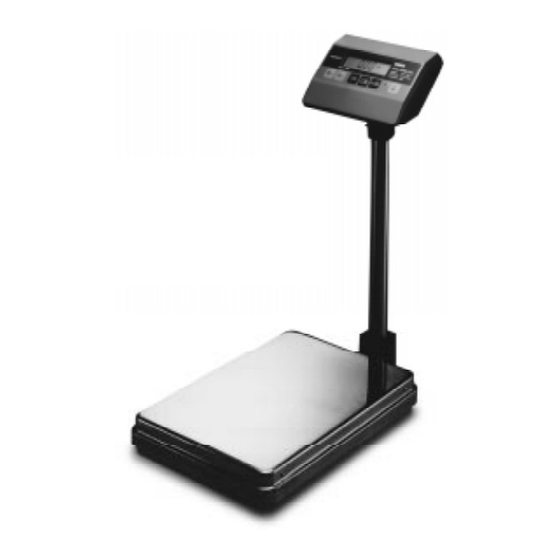

Kubota KA-10 Series Scale Conversion to Counting Scale 16851... -
Page 2: Table Of Contents
Converting to Counting Scale ............2 Zero and Span Adjustment Changes..........3 Dead Load Adjustment Changes ...........4 Kubota KA-10 Limited Warranty ..........5 Copyright ©1999 Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. - Page 3 Introduction Unless modiÞed at the factory by special request, the Kubota KA-10HB ßoor scale models are shipped as legal-for-trade scales that are Handbook 44 certiÞed. If your scale was ordered as a counting scale, the model number will not include the HB designation, and the counting feature of the scale will be enabled.
- Page 4 Note: When the counting scale is enabled, the scale is no longer legal-for-trade according to Handbook 44. Stickers provided are to be applied over HB portion of model number on the front and back of the indicator Kubota KA-10 Conversion to Counting Scale...
- Page 5 Zero and Span Adjustment Changes Use the following steps to adjust zero and span changes. 1. Remove the four screws that secure the metal backplate covering the CPU board. 2. With power off, press the slide switch located on the left hand side of CPU board down to span position (see Figure 2 on page 4).
- Page 6 4. When dead load adjustment is complete, turn power off and return slide switch upward for normal operation. 5. Replace cover metal back plate cover over the CPU board. Metal Backplate Normal Display Slide Switch Span Mode Battery Compartment Figure 2. Location of Slide Switch Kubota KA-10 Conversion to Counting Scale...
- Page 7 Kubota KA-10 Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems properly installed by a Distributor or Original Equipment Manufacturer (OEM) will operate per written speciÞcations as conÞrmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for one (1) year.
