argon audio Stream1 User Manual

Hide thumbs Also See for Stream1:

Advertisement

Quick Links

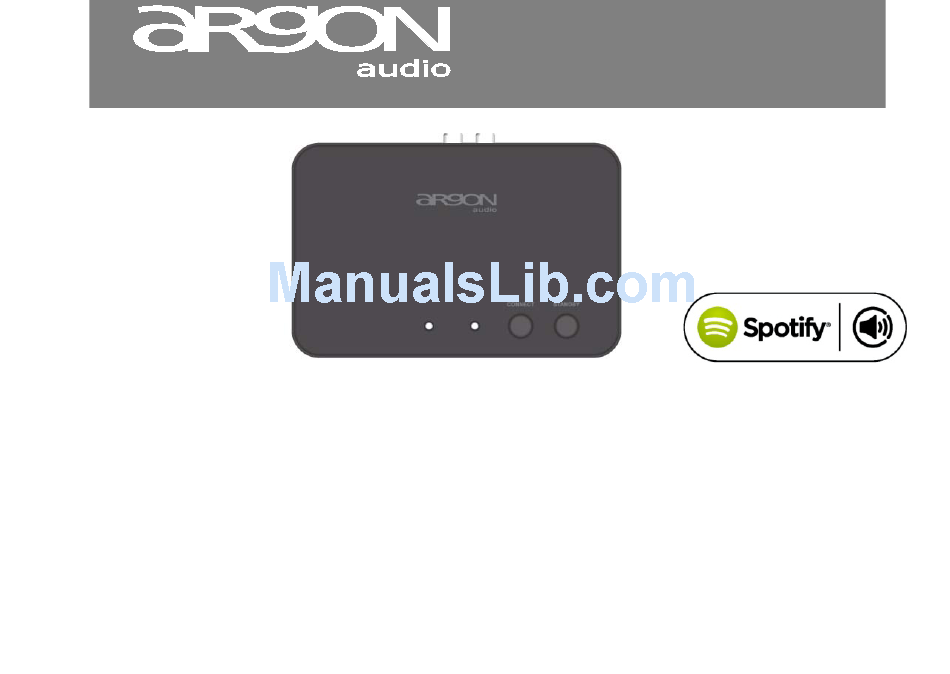

Stream 1
Dear Customer,
Quality has always been our driving force and founding Argon Audio is a natural
extension of this philosophy.
We have 20 years' experience in creating and specifying high quality products,
manufacturing them and selling them on to end users with Value-for-Money as the
primary aim. And Argon Audio is a brand fully compliant with these values. Design,
features and quality standards are all specified in Denmark and manufacturing takes
place in the Far East, where quality vendors are highly competitive - and as a result
supply outstanding Value-for-Money products. – To the delight of both ourselves and
our customers!
Congratulations with your Stream1, may it bring years of enjoyment.
w w w . a r g o n a u d i o . c o m
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Stream1 and is the answer not in the manual?

Questions and answers

Related Manuals for argon audio Stream1

Summary of Contents for argon audio Stream1

  • Page 1 Stream 1 Dear Customer, Quality has always been our driving force and founding Argon Audio is a natural extension of this philosophy. We have 20 years’ experience in creating and specifying high quality products, manufacturing them and selling them on to end users with Value-for-Money as the primary aim.

  • Page 2: Table Of Contents

    Introduction Controls and connectors Getting started/setup Internet radio portal registration Setting up a music server Setting up Stream1 for “Play To” Windows 7 streaming media feature. UNDOK app Troubleshooting and error messages Glossary w w w . a r g o n a u d i o . c o m...

  • Page 3: Introduction

    Stream 1 • 1. Introduction Servicing is required when the product has been damaged. Do not attempt to service this Safety Instructions product yourself. Opening or removing covers Please store this instruction manual for future may expose you to dangerous voltages or reference.
  • Page 4 Stream 1 Stream1 also provides the following features: Features; • UNDOK Wi-Fi Remote control from an Apple This manual describes how to use the Argon iPhone, iPad iPod touch and Android, using the Stream1, an advanced but easy-to-use LAN/Wi-Fi UNDOK Wireless Device Remote Control...

  • Page 5: Controls And Connectors

    • 2. Controls and connectors Main controls The Stream1 is fully and only controlled from UNDOK app. (There are no operating controls on Stream1 itself). Operation can also be done from the Spotify app. For basic first time set-up the UNDOK app has to be used.
  • Page 6 Stream 1 Connectors (backside) As shown below Stream1 has connectors/buttons (from left to right) for the following: • Ethernet/LAN cable to Router connection • RCA analogue stereo output • Spdiff/optical output • DC power in (5 V) w w w . a r g o n a u d i o . c o m...

  • Page 7: Getting Started/Setup

    All operations are done from your mobile device. Your Argon Stream1 has Spotify Connect built in. Spotify Connect lets you control the music playing on Argon Stream1, using the Spotify app on your mobile; tablet or PC. You need Spotify Premium to use Connect...

  • Page 8: Internet Radio Portal Registration

    Stream 1 4. Internet radio portal registration Argon Stream1 uses the Frontier Silicon Internet radio portal website that allows you to organise your favourite’s lists and also listen to Internet radio on a computer. w w w . a r g o n a u d i o . c o m...
  • Page 9 Stream 1 To register your Stream1 with the portal, switch to Internet radio mode as described in Section 4, and then obtain your adapter’s unique portal access code by selecting Menu > Station list > Help > Get access code >.

  • Page 10: Setting Up A Music Server

    Stream 1 Setting up a music server In order for Stream1 to play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like Stream1 to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre.
  • Page 11 Stream 1 Notice; it may show; Argon Stream1, “Unknown device”, “Frontier Silicon” or the Jupiter logo as shown below. Make sure that the Adapter has access to the shared media by selecting it and clicking Allow. You can also set a name for the shared media in Settings… Click OK to close the dialogue boxes.

  • Page 12: Windows 7 Streaming Media Feature

    Stream 1 6. Setting up for “Play To” Windows 7 streaming media feature To set-up Argon Stream1 to be controlled and to stream music via Windows Media Player 12 (Windows 7 only), perform the following steps: Ensure that the PC is connected to the network.
  • Page 13 In the Devices and Printers window a icon *) will appear and you are now ready to stream your Windows media music files to Stream1. *) To change the name of your device, right click on icon and choose properties. Then choose UPnP and click on “device webpage”...
  • Page 14 One of the new Windows 7 features includes a feature called “Play To” and this lets your PC running Windows 7 control Stream1 to push media and use as a universal remote control for your media collection. Stream1 supports the industry standard DLNA (Digital Living Network Alliance) 1.5 digital media renderer.
  • Page 15 Stream 1 In the Play To dialog box, use the playback controls to play, pause, or stop the media stream, and to change to the next or previous item in the list. w w w . a r g o n a u d i o . c o m...
  • Page 16 Stream 1 Use “Play To” elsewhere in Windows 7 Outside of Windows Media Player, you can stream media to Stream1 with “Play To” by right-clicking music files. To select music files and stream them to Stream1, follow these steps: Click the files you want to stream to Stream1.
  • Page 17 Stream 1 7. UNDOK Wireless Device Remote Control The UNDOK Argon Audio Wireless Device Remote Control is an application for IOS and Android devices that allows users to control Argon radios from these devices. Using the Wireless Device Remote Control application, you can navigate between the radio’s music modes and browse and play content remotely.
  • Page 18 Stream 1 Obtaining and installing the UNDOK Wireless Device Remote Control application To install the UNDOK Wireless Device Remote Control application on the Phone: In the Phone’s main menu, open the App Store/Play store by clicking the App Store icon: App Store icon w w w .
  • Page 19 Stream 1 In the App/Play Store, search for UNDOK Select UNDOK – wireless device remote control. w w w . a r g o n a u d i o . c o m...
  • Page 20 Stream 1 Tap the entry UNDOK – Wireless Device Remote Control. The application details screen opens Tap Install. The UNDOK Wireless Device Remote Control application is downloaded and installed onto your Phone. w w w . a r g o n a u d i o . c o m...

  • Page 21: Troubleshooting

    Check that network is working between a computer and the network router Router restricts access to listed Obtain the Stream1 MAC address from Menu > System MAC addresses settings > Network > View settings and add to router list. Note: Stream1 has separate MAC addresses for wired and wireless networks;...
  • Page 22 Stream 1 Problem Cause Solutions Cannot connect Internet connection down Check that Internet is working for a computer to Internet connected to the same network Firewall preventing access Check the following ports are open: UDP and TCP ports 80 and 123; DNS port 53.

  • Page 23: Glossary

    Stream 1 Specifications: Glossary Type: Spotify Connect, Internet Radio and UpnP Streaming Media Player (USB) Mass Storage Class (device) Inputs: Ethernet/Wi-Fi, 5V DC power via Mini USB User Interface Output: RCA stereo, Spdif Optical, 3,5mm. Main voltage: 220-240V, 50/60Hz UPnP Universal Plug and Play Output sensitivity: 2000mV (RCA) analogue Optical output max.24bit/192Khz...
