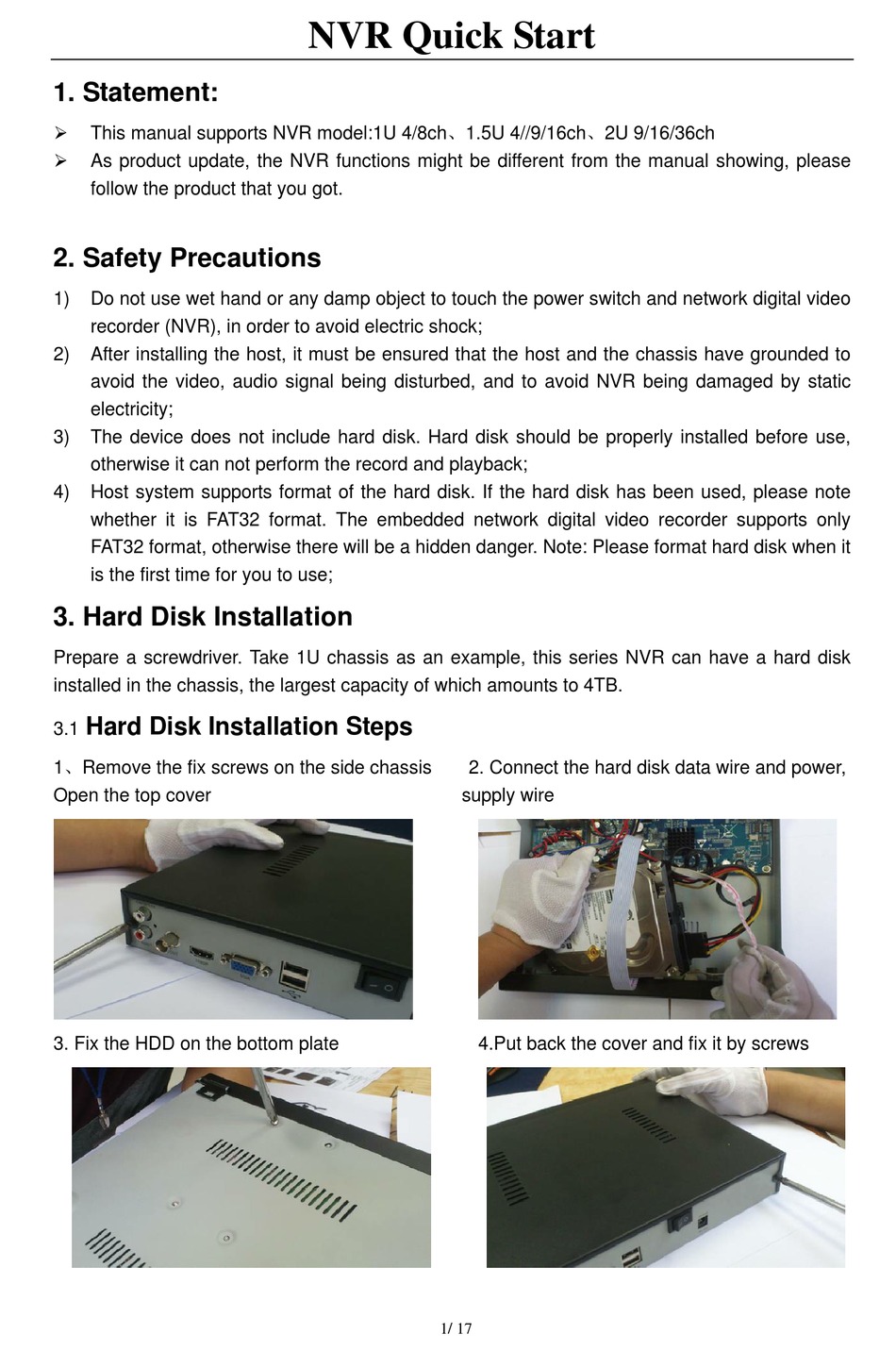

1. Statement:
This manual supports NVR model:1U 4/8ch、1.5U 4//9/16ch、2U 9/16/36ch
As product update, the NVR functions might be different from the manual showing, please
follow the product that you got.

2. Safety Precautions

1)
Do not use wet hand or any damp object to touch the power switch and network digital video
recorder (NVR), in order to avoid electric shock;
2)
After installing the host, it must be ensured that the host and the chassis have grounded to
avoid the video, audio signal being disturbed, and to avoid NVR being damaged by static
electricity;
3)
The device does not include hard disk. Hard disk should be properly installed before use,
otherwise it can not perform the record and playback;
4)
Host system supports format of the hard disk. If the hard disk has been used, please note
whether it is FAT32 format. The embedded network digital video recorder supports only
FAT32 format, otherwise there will be a hidden danger. Note: Please format hard disk when it
is the first time for you to use;

3. Hard Disk Installation

Prepare a screwdriver. Take 1U chassis as an example, this series NVR can have a hard disk
installed in the chassis, the largest capacity of which amounts to 4TB.
Hard Disk Installation Steps
3.1
1、Remove the fix screws on the side chassis
Open the top cover
3. Fix the HDD on the bottom plate
NVR Quick Start
2. Connect the hard disk data wire and power,
supply wire
4.Put back the cover and fix it by screws
1/ 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1U and is the answer not in the manual?

Questions and answers

Summary of Contents for RYD 1U

  • Page 1: Safety Precautions

    3. Hard Disk Installation Prepare a screwdriver. Take 1U chassis as an example, this series NVR can have a hard disk installed in the chassis, the largest capacity of which amounts to 4TB.

  • Page 2: Rear Panel Interface

    NVR Quick Start 4.1 Rear Panel Interface 4.1.1 1U 4/8ch rear panel 4.1.2 1.5U 4/9ch rear panel 4.1.3 1.5U 16ch rear panel 2/ 17...
  • Page 3 NVR Quick Start 4.1.4 2U 9/16ch rear panel 5. 2U 36ch rear panel 5.1 Host Side Operation 5.1.1 Start System Plug power cable, press power switch, the power led will be on and the NVR will start. After booting, the video output default to multi-window output mode. If the booting time is within the record setting time period, the system will auto enable the record function.
  • Page 4 NVR Quick Start Login, input the user name: admin and password blank (default to be blank) in the input box Click icon， Power Off: click “Power off” button, the device will shutdown. Reboot: click “Reboot” button, the device will reboot. Login: click “Login”...

  • Page 5: Network Setting

    NVR Quick Start 2）Display setting：set monitor lightness, contrast, saturation, color 3) Language：select different language according to the necessary, after that need restart the device 4) Skin：there are blue and black two color for selection 5) Screen： 1、4、9、16、25、36 screens are optional, 6) Automa ic logout time: system automatic logout and lock time, 7) Rotation interval:...
  • Page 6 NVR Quick Start configuration, click Save to logout, then the image will come out. A –Area is cameras IP address searching area——click Search to get the camera IP addresses in LAN B- Area is camera IP address modification area——double click IP camera in A area, B area is Camera network data, some cameras can change IP address directly in B area.
  • Page 7 NVR Quick Start 6.3.2 Drag to Change Channel Sequence Right click to select 【IP channelSetting】【Drag to change channel sequence】, then drag the image as 6.3.1, IP camera will reconnect in the new channel, during this process, the image will lost for some while till connect the image connect sucessfully. 6.3.3 Digital Zooming Zoom In During image preview and playback, roll mouse...

  • Page 8: Manual Capture

    NVR Quick Start 6.4 Manual Capture 【Capture】, it supports all Right click to bring main menu, click channels manual capturing. After capture, there is information to hint capturing is successful or failure or this channel does not support capture. The image of capture resolution is D1 by JPG Format, and it is saved in special area, the recording file will not overlay it.
  • Page 9 NVR Quick Start Stream, Main Stream (Event) for selection Main Stream：double click to show single image or full screens image are main stream, also recording playback is main stream. Sub Stream：9/16/25/36 screens display are using sub stream, IE or mobile reviewing are sub stream also.
  • Page 10 NVR Quick Start 7.1.2 Schedule Record Right click to bring main menu, click 【Setting】 ChannelSchedule Record, the default setting is 24 hours recording, user recording plan according to the necessary and copy it to other channel Notice: If NVR stop recording in a regular time, please check schedule record status, the schedule might be in wrong, please adjust them to manual...

  • Page 11: Record Backup

    NVR Quick Start 7.3 Record Backup Before back up,please make sure the hard disk has been saved with video. Playback Backup: click Back Up icon in area C of 7.2 Playback Preview Backup: Right click bring main menu, click 【Backup】to enter the backup interface, as right picture shows Video backup best way is to play back recorded video firstly, then select the backup time and channel,...
  • Page 12 NVR Quick Start 7.5 System Setting 7.5.1 HDD Setting 【Setting】SystemHDD setting Right click ,click In order to ensure a linear drive file management to better identify and write disk space Recommend to format the HDD first before the recording, format the hard drive safe and fast, to end with about 1-3 seconds.
  • Page 13 NVR Quick Start 8.1 IE Viewing. 8.1.1 Router Setting Because the router brands and models are various , now we take TP-LINK router as an example. 1） Open the IE explore , enter the Gateway in the address, eg: http://192.168.1.1 2) In the open page ,enter the user name and password , the default user name of TP-Link is :admin , password is admin.
  • Page 14 NVR Quick Start 9.1 Mobile View Operation Instruction: This operation guide is about how to install and use the mobile software in the mobile phones with Android, Blackberry, windows mobile, iPhone, Symbrian software. Att: The mobile port is the device port +3, like: Device port, 5050, then the mobile port is 5053 9.1.1 Client Software Obtaining You can obtain the mobile surveillance client software from the CD or our technical department.
  • Page 15 NVR Quick Start ☆ Instruction: 1) Download and install vMEye.cod & vMEye.alx via BlackBerry Desktop Manager. Click ‘options’ and find vMEye in application, then click and find edit privilege to set all privileges as allow. If a part of privileges can’t be set-up as allow, you just ignore it and click save.
  • Page 16 NVR Quick Start will arise as below: 2) Click vMEye program icon, and the initial interface after running appears as right: Appendix: NVR Faults and Troubleshooting 1. Device Fails to Start or Restart Continuously 2. Failure to Use Remote Controller Possible Reasons: Possible Reasons: 1) NVR’s upgrading wrong program leads to the...
  • Page 17 NVR Quick Start right connected to internet, or check if there is an IP conflict. 9. There is no sound when preview or playback the NVR, why? 1) Check if there is an audio in your IPC: you can test it through IE or the built-in client or through computer.
