Summary of Contents for Spot-on NovaGear NG-54

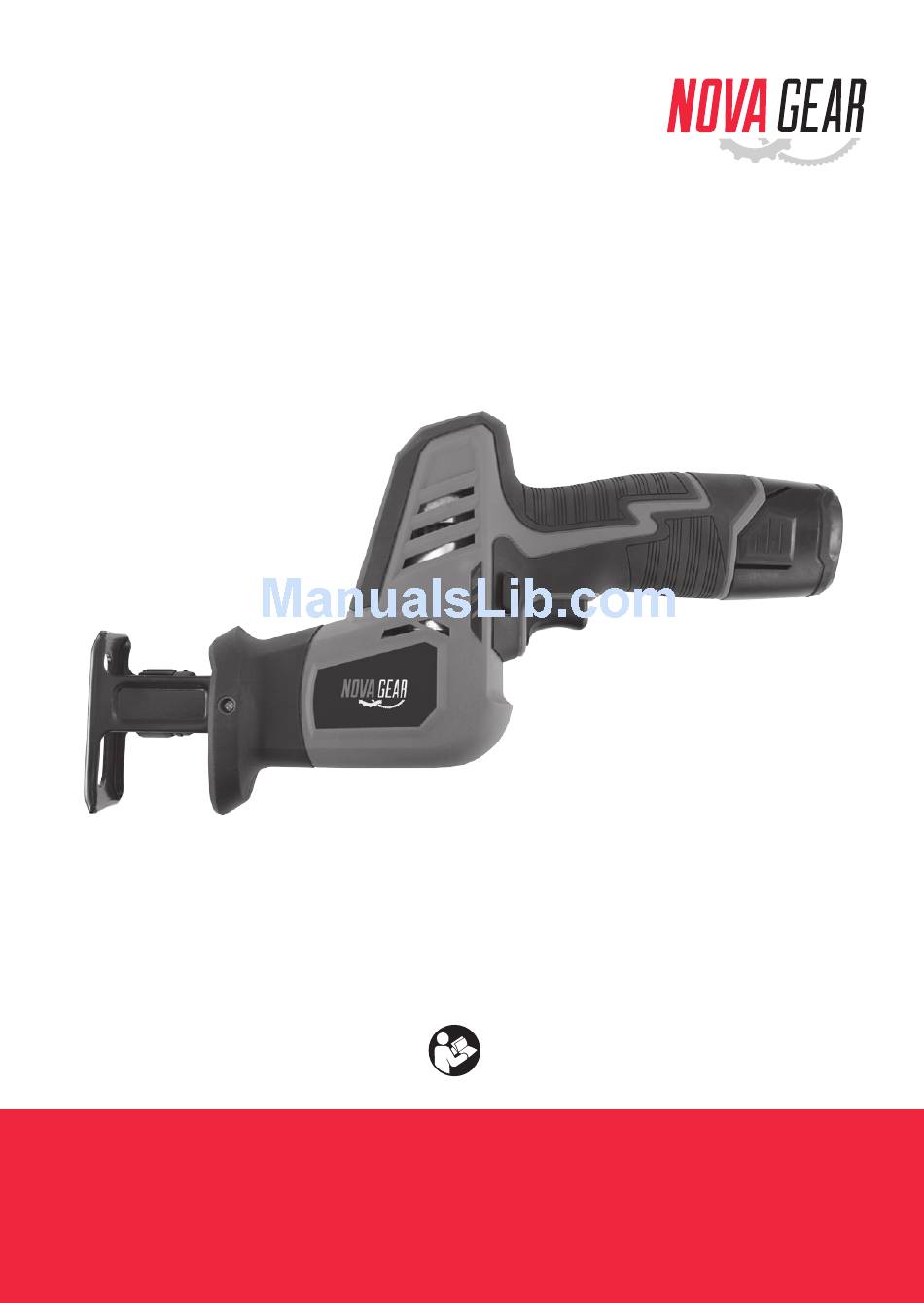

- Page 1 NG-54 12V RECIPROCATING SAW CAUTION: Read the operating Battery and charger sold separately instructions to reduce the risk of inquiry PRODUCT CODE: 40044 INSTRUCTION MANUAL...
-
Page 2: Electrical Safety
SAFETY use may result in risk of fire, electric shock or electrocution. › Do not place any object on top of the CAUTION: Read the operating charger or place the charger on a soft instructions to reduce the risk of inquiry. surface that may result in excessive internal heat. -
Page 3: General Safety
› DO NOT store or use the tool and Save these instructions and other battery pack in locations where the documents supplied with this tool for temperature may reach or exceed future reference. 40ºC (such as outside sheds or metal buildings in summer). -
Page 4: Personal Safety
electric shock. Prevent unintentional starting. d) Do not abuse the cord. Never Ensure the switch is in the off- use the cord for carrying, pulling position before connecting to power or unplugging the power tool. Keep source and/or battery pack, picking cord away from heat, oil, sharp up or carrying the tool. - Page 5 rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing...
-
Page 6: Reciprocating Saws
is also highly recommended that you wear a dust mask, ear protection and padded gloves. › Hold the power tool with a firm grip. › Secure the work piece. A work piece clamped with clamping devices or in a vice, is held more secure than by hand. - Page 7 as you could be cut. be required depending on ambient › Do not touch the blade after it has temperature and operation being been in use for an extended period. It performed. could be hot and burn you. OVER CURRENT PROTECTION Should the battery be overloaded and the maximum current draw be LITHIUM-ION BATTERY &...
-
Page 8: Intended Use
INTENDED USE The cordless reciprocating saw is designed to cut through steel, aluminium, wood and conduit in conjunction with the appropriate blade. The equipment may only be used for the tasks it is designed to handle. Any other use is deemed to be a case of misuse. -
Page 9: Product Overview
PRODUCT OVERVIEW IDENTIFICATION 1. LED light ACCESSORIES INCLUDED 2. Stationary shoe › 1x cutting blade 3. On / off trigger 4. Lock-off button BATTERY AND CHARGER 5. Battery level indicator 6. Battery release button This tool is compatible with the (battery not included) NG-6020 battery and NG-61 charger. -
Page 10: Installing The Battery
INSTALLING AND REMOVING THE BATTERY Always switch off the reciprocating saw before insertion or removal of the battery. INSTALLING THE BATTERY › Hold the reciprocating saw upright and pick up the battery in your opposite hand. Place two fingers over the battery release buttons and insert the battery until it clicks into place (Fig. -
Page 11: Installing A Blade
normal room temperature will shorten battery life. › Never store batteries in a uncharged condition. Recharge them immediately after they are uncharged. › All batteries gradually lose their charge. The higher the temperature the quicker they lose their charge. If you store your reciprocating saw for long periods of time without using it, recharge the batteries every month or... -
Page 12: Removing A Blade
mechanism will clamp the blade firmly in place (Fig. 4). 3. Twist collar in the opposite direction of the arrow to ensure that the blade is locked into the clamp. 4. Tug on blade to make sure it is securely locked in place. -
Page 13: Operation
OPERATION LOCK OFF BUTTON The lock-off button is a safety device designed to reduce the possibility of a user accidentally starting the saw. This button must be pressed before the on / off trigger can be squeezed (Fig. 5). NOTE: The lock-off button can be pressed from either the left or right side of the handle. -
Page 14: Led Light
LED LIGHT › The saw has one LED Light built into the unit (Fig. 7). › The LED light turns on automatically when you press the on / off trigger. › The LED light illuminates dark areas in tight corners to assist with cutting. This helps achieve a more accurate result in your work piece. -
Page 15: General Cutting
Caution: Verify the following every PLUNGE CUTTING time the reciprocating saw is used: 1. Clearly mark the work piece to locate 1. The blade is sharp and in good the position of the cut. condition. 2. Clamp the work piece to a workbench 2. -
Page 16: Metal Cutting
› When not in use, the reciprocating and repairs please contact saw should be stored in a dry, frost free Spot-on on 1300 658 338 or location, out of reach of children. visit www.spoton.com.au. › Keep ventilation slots of the... -
Page 17: Warranty
If you have any concerns or wish to Separate to the above Australia make a warranty claim please contact Consumer Law, Spot-on offers a global your retailer or Spot-on Laser and Tool warranty. Company on 1300 658 338. Spot-on Laser and Tool Company PTY LTD... - Page 18 NOTES...
- Page 20 Spot-on Laser and Tool Company | 1300 658 338 | www.spoton.com.au...
