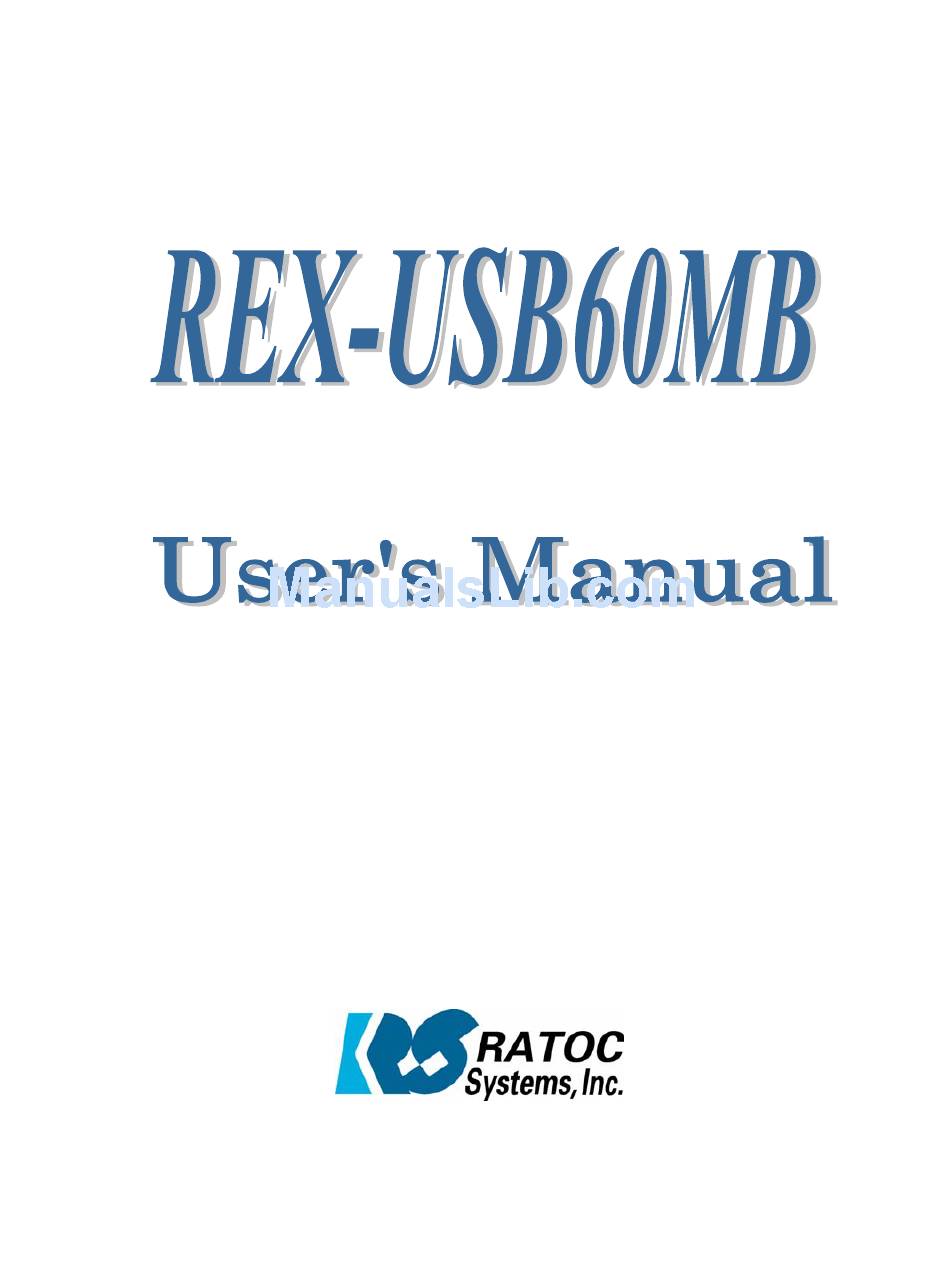

Ratos Systems REX-USB60MB User Manual

Usb serial converter micro usb type
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USB Serial Converter
(Micro USB B type)
2014.02
Rev. 1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REX-USB60MB and is the answer not in the manual?

Questions and answers

Summary of Contents for Ratos Systems REX-USB60MB

  • Page 1 USB Serial Converter (Micro USB B type) 2014.02 Rev. 1.01...

  • Page 2: Table Of Contents

    Contents 1.Introduction ..............2 1-1. Overview ................2 1-2. Package Contents ..............2 1-3. System Requirements and Restrictions ......2 1-4. RS-232C connector Pin Assignment ........3 2.Installation and Operation on Android OS ..4 2-1. Installation of USB60Term application ......4 2-2.

  • Page 3: Introduction

    1.Introduction 1-1. Overview ● REX-USB60MB is a USB to serial converter. Compatible with Universal Serial Bus specifications Rev. 1.1. ● Up to 230.4Kbps data transfer rate. ●Micro USB (B type Male) Easy to connect Android tablet or smart phone. ●Power/Transmit/Receive LED indicators for monitoring communication status.

  • Page 4: Rs-232C Connector Pin Assignment

    1-4. RS-232C connector Pin Assignment The pin assignment of the connector is below: This DB9pin connector is compatible with ANSI/EIA/TIA-574 specifications. 1 2 3 4 5 Anchor [#4-40] 6 7 8 9 For using inch screw D-Sub9pin Male Direction Signal Pin# Meaning Name...

  • Page 5: Installation And Operation On Android Os

    2. Installation and Operation on Android OS Please make sure that the Android tablet meets the following specifications: • USB port is Micro-USB B or AB • Android OS version is 3.2, 4.0 or later • USB Host mode is available 2-1.

  • Page 6: How To Operate Usb60Term

    2-2. How to operate USB60Term When the USB60Term starts, the below window will show: Display the status of detecting USB Serial Status of detecting USB Converter, this status shows “Connected” or “Not Serial Converter connected”. The button for changing serial parameter. After changing the parameter values, tap the 2 “To setting”...
  • Page 7 How to send data When tapping the send data field, the software keyboard shows up. Then, enter the send data. You can set multiple lines with a new-line. After entering the send data, tap the “Send” button or the “Send with CR+LF”...
  • Page 8 How to change serial parameter After tapping the “To setting” button, you can change serial parameter values. When edit is ready, the “To setting” button will be changed to the “Configure” button. And the back-ground color of serial parameter values will be changed in light blue.

  • Page 9: Specifications

    3. Specifications Product Name REX-USB60MB Serial Input/Output level RS-232C level USB Specification USB(Universal Serial Bus) Specifications Rev. 1.1 Connector ：Micro-USB B male RS-232C：D-Sub9 male (with anchor [#4-40]) Number of I/O ports 1 port Unit Dimensions 3.35[L] x 1.1[W] x 0.43[H] in (85[L] x 28[W] x 11[H] mm) Cable Length Approx.
