Summary of Contents for elero Centero

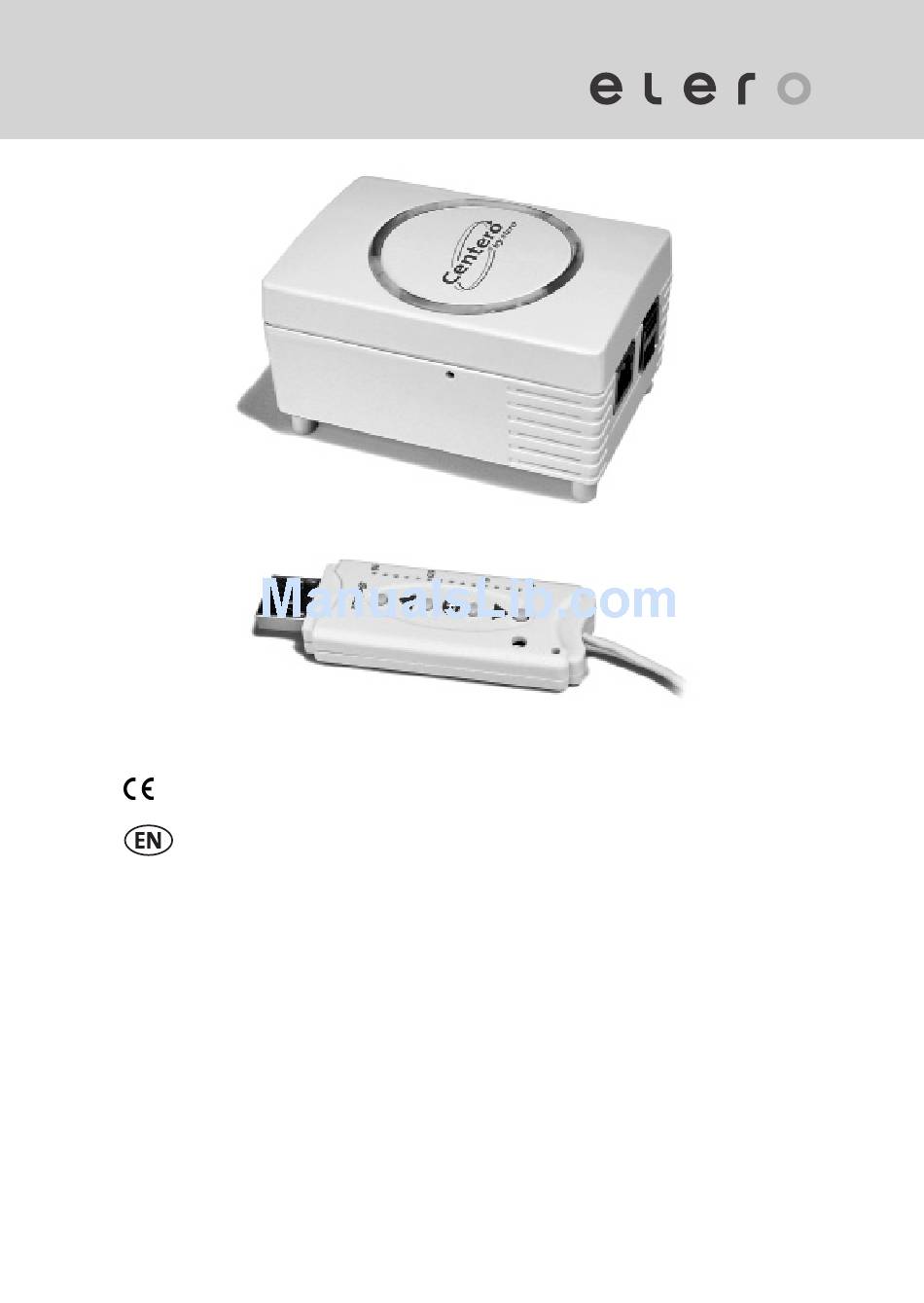

- Page 1 Centero 0682 Operating instructions (translation) Keep the operating instructions in a safe place! 2011569_EN_0913...
- Page 2 Translation from the original German version. All other documents in different languages are translations of the original version. All rights reserved in the event of registration of patents, working models or design patents. Ⓒ elero GmbH 2 | EN...
-
Page 3: Table Of Contents
3.4.1 Connections on the Centero Server 3.4.2 Status indicator of the Centero Server 3.4.3 Power supply of the Centero Server 3.4.4 Centero Transmitter Stick 3.4.5 Status indicator of the Centero Transmitter Stick Connections Teaching-in the Centero Transmitter Stick into one or multiple receivers 3.6.1 Programming intermediate positions in the... - Page 4 App Centero 3.7.1 Initial login on the Centero Server 3.7.2 Range of functions of the app Centero 3.7.3 Working with the app Centero Menu structure of the app Centero 3.8.1 Rooms menu 3.8.2 Devices menu 3.8.3 Scenes menu 3.8.4 Settings menu Specifi...
-
Page 5: General
All activities on and with this device may only be perfor- med as they are explained in these Operating Instructions. Please store this document for the Centero System for later use. If you pass the device on to someone else, please hand them these Operating Instructions as well. -
Page 6: Standards And Directives
The Centero domestic automation solution by elero connects the control of these applications via devices with the Apple iOS operating system, such as iPhone, iPad or iPad mini. The solution requires an existent system (home network with WLAN and internet connection). -
Page 7: Warranty And Liability
Further fi elds of application have to be arranged with the manufacturer, elero GmbH Antriebstechnik (see Chapter 8, Address). The operator will be solely responsible for damages resul- ting from improper use of the device. The manufacturer cannot be held liable for personal or material damages caused by misuse or procedural errors, and by improper operation and commissioning. -
Page 8: Safety
General Using the Centero Server and the Centero Transmitter Stick in combination with device based on Apple iOS and with the elero app “Centero” installed, you can confi gure and opera- te all taught-in bidirectional receivers. Ⓒ elero GmbH 8 | EN... -
Page 9: Scope Of Supply
Principle of function The Centero Server remains powered on at all times and is integrated into the home network. When the app Centero is executed, it automatically con- nects to the Centero Server. Using the app Centero and the Centero Server, you can operate all taught-in receivers. -
Page 10: Connections On The Centero Server
Bottom view: 2 connecting contacts for power supply Latch (locking) for the adapters used 3.4.2 Status indicator of the Centero Server The status indicator on the upper side of the casing signals different operating statuses. green lit: power supply right green fl... -
Page 11: Power Supply Of The Centero Server
3.4.3 Power supply of the Centero Server WARNING! Danger of injury due to electric current. Only change the wiring of the Centero Server when it is dead resp. disconnected from the live socket. • There are concealable connecting contacts with a latch on the bottom side of the Centero Server;... -
Page 12: Status Indicator Of The Centero Transmitter Stick
STOP/P button DOWN button Select button 3.4.5 Status indicator of the Centero Transmitter Stick A radio signal is signalled on the Centero Transmitter Stick by the status indicator light: The different colours have the following meaning: orange fl ashing Channel (transmitter) not taught-in... -
Page 13: Connections
Connections To be able to use the Centero Server as central control, the Centero Server must be connected to an unoccupied LAN connection of a router. Requirements: Apple iOS device (e.g. iPhone, iPad, iPad mini) with elero app Centero, home network with WLAN router. - Page 14 Important: The Centero Transmitter Stick has no battery. To teach- in the Centero Transmitter Stick into a receiver you must connect the stick to a USB port using the supplied USB extension cable. You can connected the stick to the Centero Server, a USB port on your PC, or a USB charger.
-
Page 15: Programming Intermediate Positions In The Receiver
Centero Server. This must be considered especially if the Centero Server was used as power source for the Centero Transmitter Stick during the teach-in procedure. In this case you must remove the Centero Transmitter... - Page 16 2. The shutters will move to the registered ventilation / turning position. When no ventilation / turning position has been registered, the shutters will move to the top end position. Ⓒ elero GmbH 16 | EN...
-
Page 17: Deleting A Transmitter Channel In The Receiver
3.6.3 Connecting the Centero Transmitter Stick to the Centero Server Plug the taught-in Centero Transmitter Stick into one of the two USB ports of the Centero Server (directly or by means of the supplied USB extension cable). The information about taught-in transmitters will be trans- ferred to the Centero Server. -
Page 18: App Centero
App Centero The "Centero" app can be found in the App Store (iTunes Store) by typing in the keywords "elero" or "Centero" and can then be downloaded and installed. 3.7.1 Initial login on the Centero Server When a device is new, the Centero Server must be searched and found fi... -
Page 19: Menu Structure Of The App Centero
Menu structure of the app Centero The user interface contains four main menus to manage and control the registered receivers (taught-in into the Cen- tero Transmitter Stick). Rooms create delete Devices create configure delete operate Scenes create time-controlled scene timer... -
Page 20: Devices Menu
Receivers already taught-in into the Centero Transmitter Stick will be displayed in the "Devices" menu automatically after the stick has been plugged into the Centero Server. You will always be informed about the steps to take and the related status notifi cations by the intuitive guidance with corresponding dialogues. - Page 21 Chapter 3.6 will be automatically displayed in this menu. The information will be read in again each time the Centero Transmitter Stick is electrically con- nected to the Centero Server. When you have progressed into the dialogue, you can return to the main level by tapping the Devices button (top left section of the menu bar).
- Page 22 "pull" or "slide" on your handheld device screen from the side. When feedback is received from a bidirectional receiver, the visualisation of the slider may also show the controller in a centre position, Ⓒ elero GmbH 22 | EN...
-
Page 23: Scenes Menu
When a device has been selected via the Rooms or De- vices menu you can control it using the displayed control panel Thanks to the communication of all devices via the Centero Server, the switching states are constantly updated within the app. - Page 24 App Centero: "Scenes" main menu (example) Exemplary illustration: Actions accessible from the "Scenes" main menu: • a) Creating scenes • b) Timed scene Timer function resp. astro function • c) Deleting scenes a) Creating scenes You can add a new scene in the Edit dialogue by tapping on +.
- Page 25 Kas- sel are set for this function. You can read out and apply your location from the geogra- phic coordinates of your iOS devices (cf. "Settings" menu). Ⓒ elero GmbH 25 | EN...
-
Page 26: Settings Menu
When you do this, a red Delete button will be shown on the right arrow of the list item. 3.8.4 Settings menu From the "Settings" menu you can access the following sub-menus: Ⓒ elero GmbH 26 | EN... - Page 27 Delete button and confi rm the safety prompt. b) Remote Control To control the Centero Server even when you cannot ac- cess the home network via WLAN. • Activation of the option for using the Centero Server via the internet, current status (active or not active) is visible.
- Page 28 Requirements: • The Centero Server is in the same network as the iOS device with the app Centero. • A working internet connection is required. 1. Tap the Remote Control button (bottom section in the menu). 2. Follow the provided dialogue.
-
Page 29: Specifi Cations
Permissible ambient 0 to 55 temperature [°C] Dimensions (L x W x H) 95 x 65 x 49 [mm] Weight [g] Centero Transmitter Stick Specifi cations Interface USB 2.0 Protection class IP 20 Permissible ambient 0 to 55 temperature [°C]... -
Page 30: Cleaning And Maintaining The Device
We hereby declare that the following product(s) comply with the Directives of the European Communities. Centero Product Designation: (Centero Server / Centero Transmitter Stick) Description: Radio transmitter for bidirectional control of shutter, sunshade, and other shade systems, as well as electric lighting and heating equipment... -
Page 31: Troubleshooting
Troubleshooting Fault Cause Solution App Centero does iPhone or iPad is Using your iPhone not connect to the not in the WLAN or iPad, select the Centero Server. of the router into WLAN of the router which the Centero into which the Server is plugged. -
Page 32: Repair
This receiver cannot be operated with the app Centero. Repair If you have any questions, please refer to your specialised company. Please always state the following information: Item number and item designation on the nameplate ... -
Page 33: Address
Packaging Your Centero Server and Centero Transmitter Stick are wrapped in a packaging for protection against damages during transport. Packagings are raw materials and can by recycled or returned to the raw material cycle. -
Page 34: Legal Notes
Names and trademarks such as elero, Centero, Centero Server, and Centero Transmitter Stick are protected brands of elero GmbH. Apple, App Store (iTunes Store), iOS, iPho- ne, iPad, and iPad mini are registered trademarks of Apple Corporation in the U.S. and/or other countries. All other trademarks (such as product names, logos, commercial designations) are protected for the benefi...
