Summary of Contents for Systec & Solutions WAVE 221 PC
-

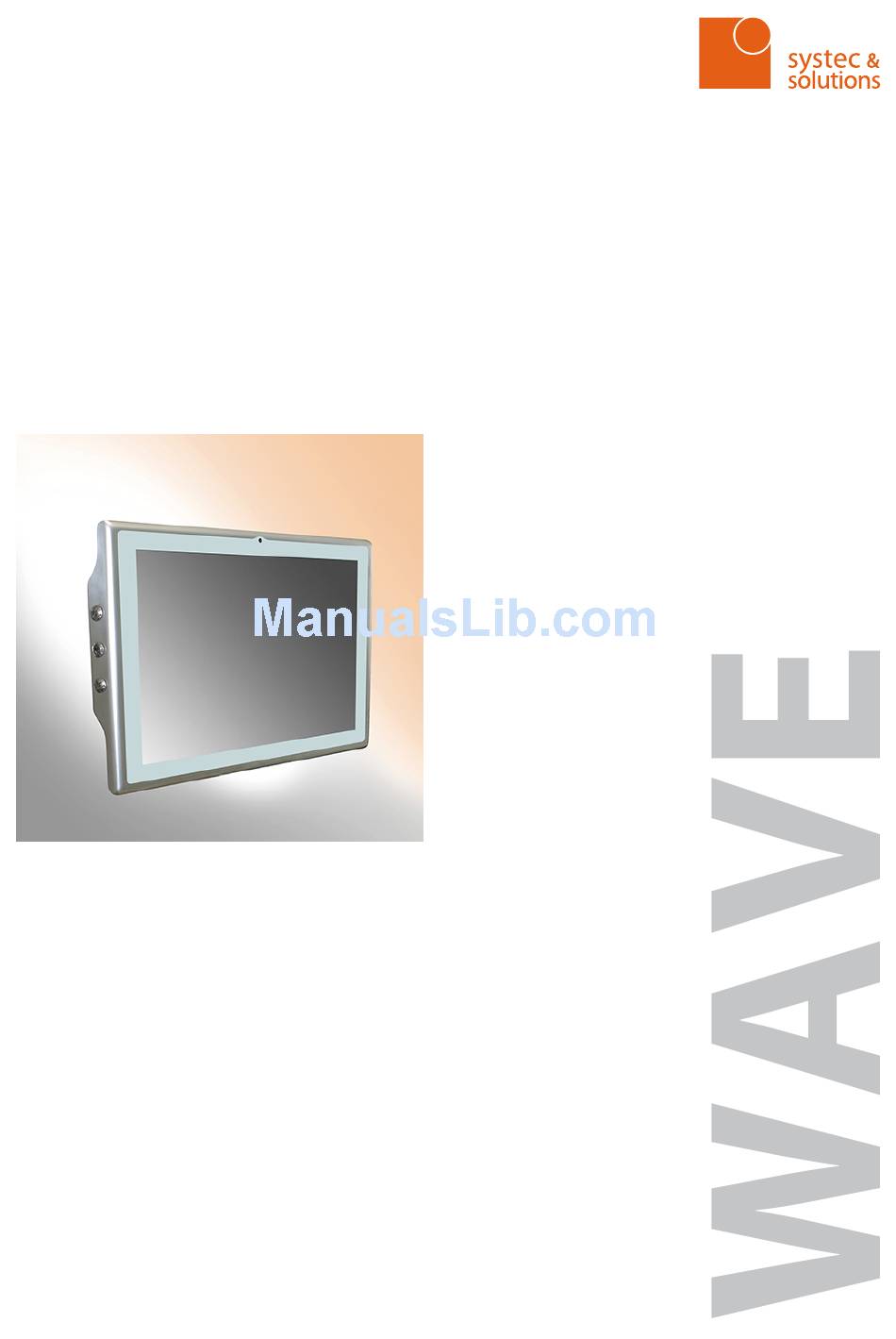

Page 1: Instructions For Use
INSTRUCTIONS FOR USE INDUSTRIAL PC WAVE 221 PC Read the instructions prior to performing any task! - Page 2 Systec & Solutions GmbH Emmy-Noether-Straße 17 D–76131 Karlsruhe Telephone: 0721 6644 400 Fax: 0721 6644 444 email: talk@systec-solutions.com Internet: www.systec-solutions.com © 2013 WAVE, 1, en_US, 16.12.2014 WAVE 221 PC - Industrial PC...
-
Page 3: Table Of Contents
5.7 Hard disk LED (optional)..............30 Repairs......................31 Storage......................33 7.1 Unmounting the device..............33 7.2 Storing the device................35 Packaging and transport..............37 8.1 Packaging the device............... 37 8.2 Transporting the device..............37 Disposal......................39 Site information..................41 WAVE 221 PC - Industrial PC... - Page 4 Table of contents WAVE 221 PC - Industrial PC...
-
Page 5: General Information
1.1 Information on the user guide This translation of the original user guide is an integral part of the WAVE 221 PC and provides you with information on the set-up, use, storage and disposal of the device. Before beginning any work, read the user guide and always keep it in an accessible place. - Page 6 General information Copyright notice WAVE 221 PC - Industrial PC...
-
Page 7: Safety
Safety notices Safety 2.1 Designated use WAVE 221 PC is an HMI PC system. WAVE 221 PC is used to implement control and operating concepts and to display and manipulate infor- mation in industrial and commercial environments. It is nonetheless possible for improper use to introduce hazards. For correct operation and safe use it is therefore important to comply with the information and instructions in this document. -
Page 8: Important Safety Notes
– Never plug in or unplug the power supply plug when live with voltage. – The supply cable must not be supplied with voltage until assembly has completely finished. WAVE 221 PC - Industrial PC... - Page 9 (ca. 3%). The total dis- charge protection facility powers the device down, which may cause data to be lost. – Save your data regularly. – Check the charge capacity regularly. – Don’t allow it to drop below 5%. WAVE 221 PC - Industrial PC...
- Page 10 Safety Important safety notes WAVE 221 PC - Industrial PC...
-
Page 11: Product Description
HDD the internal HDD disk. disk) OSD (on-screen display) Fig. 2: Rear view of PC The OSD button on the back of the monitor is used to switch the PC ON and OFF. WAVE 221 PC - Industrial PC... -
Page 12: Type Plate
3.2 Type plate The product designation and identification will be found on the type plate. This is always located on the rear of the device and contains the following information: Fig. 4: Position of type plate WAVE 221 PC - Industrial PC... -
Page 13: Technical Data For The Device
(optional) IP protection factor IP65 Intel ® Atom ™ D2550 1.86 GHz Intel Core ® ™ Intel ® Core ™ i7-3555LE 3.20 GHz 2 GB DDR3, max. 8 GB DDR3 (Atom max. 4GB) WAVE 221 PC - Industrial PC... - Page 14 100 ‒ 240 V AC, 50 ‒ 60 Hz, 2,0 ‒ 0,9 A Protection of supply lead (Low voltage max. 16 A, the supply lead should be specified. Mean power consumption in oper- 65 - 80 W (depending on configuration) ating mode WAVE 221 PC - Industrial PC...
-
Page 15: Dimensions
0 °C ‒ +40 °C Humidity 10 % ‒ 90 %; non condensing Dimensions (in mm without key- board hinge) Width Height Depth Weight Net weight ca. 10 kg 3.4 Dimensions Fig. 6: Dimensions of front of device WAVE 221 PC - Industrial PC... -
Page 16: External Connectors
3.5 External connectors 3.5.1 Overview of external connections The following illustration shows the connectors that are located on the back of the WAVE 221 PC. Fig. 9: Overview of the interfaces on the back (depending on the configura- tion) WAVE 221 PC - Industrial PC... -
Page 17: Description Of The External Connections
= 15-pole HD-D "VGA" socket for connecting basic computer Fig. 13: VGA socket with pinout USB connection = 4-pole USB socket (type A) for connecting components: VoIP hardware components and/or touchscreen and/or keyboard Fig. 14: USB socket with pinout WAVE 221 PC - Industrial PC... - Page 18 (12‑24V DC) GF-7,62. The corresponding plug carries the designation Phoenix Con- tact PC 4/ 2-ST-7,62. Fig. 16: 2-pole Phoenix Contact socket for the power supply Pin Designation Significance Ground (GND) 0V Power supply + WAVE 221 PC - Industrial PC...
-
Page 19: Conformity
EN 61000-6-2:2005 – EN 61000-4-2:2007 Oben aufgeführtes Produkt erfüllt die Anforderungen der Richtlinie 2006/95/EG auf Basis der folgenden Norm: – EN 60950-1:2006 BESCHEINIGUNG Die Einhaltung der Schutzanforderung wurde festgestellt am all- seitig geschlossenem Gehäuse. WAVE 221 PC - Industrial PC... - Page 20 Commission’s requirements. Systec & Solutions GmbH Emmy-Noether-Straße 17 D–76131 Karlsruhe Germany Phone +49 721 6634 400 Fax +49 721 6634 444 talk@systec-solutions.com www.systec-solutions.com Karlsruhe, December 1, 2014 Karl G. Linder WAVE 221 PC - Industrial PC...
-
Page 21: Starting Up
Make sure the ambient temperature does not exceed the specified maximum value (see Ä Chapter 3.3 “Technical data for the device” on page 13). When installing the equipment also observe Ä Chapter 3.4 “Dimen- sions” on page 15. WAVE 221 PC - Industrial PC... -
Page 22: Mounting The Device
Working on heavy equipment may lead to serious injuries. – Always have two people when working with heavy equipment. Hold the WAVE 221 PC firmly so that it is level with the equip- ment rack adapter. WAVE 221 PC - Industrial PC... - Page 23 Ä Chapter 3.5 “External connectors” on page 16 – and the requirement for the electrical supply lead Ä Chapter 3.3 “Technical data for the device” on page 13. WAVE 221 PC - Industrial PC...
- Page 24 Starting up Mounting the device Fig. 18: Interface plate on the rear of the WAVE 221 PC (depending on the configuration) Connect up all the cables between the interface plate and the equipment rack adapter. Tighten the screws on the mains plug.
-
Page 25: Operation
5.1 Switching the device on Fig. 20: ON/OFF button for switching on and off Press the ON/OFF button between the dummy plugs on the left- hand side of the WAVE 221 PC. ð The system goes into operation. 5.2 Switching the device off NOTICE! Loss of data due to failure to save it. -
Page 26: Cleaning The Device
ð The touchscreen is correctly calibrated. 5.4 Cleaning the device To prevent malfunctions or incorrect data entry due to inadvertent operations: Switch the device off before cleaning it (see Ä Chapter 5.2 “Switching the device off” on page 25). WAVE 221 PC - Industrial PC... - Page 27 Alkaline carbonate Ferric chloride(FeCl2) Castor oil 10% formic acid Acetic acid <10% Nitric acid <10% Ammonia <10% Ethanol Hydrochloric acid <10% Amyl acetate Ethyl Salt water Ethanol Ethyl acetate Oxygen Ether Varnish Sulfuric acid <10% WAVE 221 PC - Industrial PC...
- Page 28 Resistant to 24-hours' exposure to household chemicals at 50°C with no visible damage: Ariel Gumption Top Job Ajax Jet Dry Grape juice Domestos Coffee Downey Lenor Vortex Fantastic Milk Wisk Formula 409 PersiI Windex WAVE 221 PC - Industrial PC...
-
Page 29: Using The Optional Usb Connection
WAVE 221 PC. ð The optional USB connection is firmly screwed shut. 5.6 Setting up the WLAN (optional) The WLAN antenna together with the WLAN USB stick are located in the equipment rack adapter. WAVE 221 PC - Industrial PC... -
Page 30: Hard Disk Led (Optional)
Install the WLAN driver from the supplied USB stick. ð The WLAN is set up. 5.7 Hard disk LED (optional) The hard disk LED flashes when the internal HDD hard disk is accessed. This is, however, possible only for HDD disks. WAVE 221 PC - Industrial PC... -
Page 31: Repairs
If you encounter a product fault while using the device: – immediately switch it off (see Ä Chapter 5.2 “Switching the device off” on page 25). The device is defective. Send an e‑mail to support@systec-hardware.com or Fill out a support form at http://www.systec-hardware.com/de/hardware-support.html. WAVE 221 PC - Industrial PC... - Page 32 Repairs WAVE 221 PC - Industrial PC...
-
Page 33: Storage
Working on live equipment may give rise to material damage. – Before you carry out any work on a device: Disconnect it from the power supply. You will need the following tools: Allan key (4) for M5 x 16 WAVE 221 PC - Industrial PC... - Page 34 Lift the device off the equipment rack adapter and hold it firmly. ð You can now see the interface plate on the rear of the device. Fig. 22: Interface plate on the rear of the WAVE 221 PC (depending on the configuration) Release the screws on the mains plug.
-
Page 35: Storing The Device
Always shield the equipment from solar radiation. Avoid mechanical vibration and shocks. Avoid cold weather and extreme temperature fluctuations. Pay attention to the information in the “Technical data” section. Ä Chapter 3.3 “Technical data for the device” on page 13 WAVE 221 PC - Industrial PC... - Page 36 Storage Storing the device WAVE 221 PC - Industrial PC...
-
Page 37: Packaging And Transport
Avoid extreme temperature fluctuations. Pay attention to the information in the “Technical data” section. When the consignment is delivered, immediately check it for possible transport damage and deal appropriately with any detected transport damage or non-obvious defects. WAVE 221 PC - Industrial PC... - Page 38 Packaging and transport Transporting the device WAVE 221 PC - Industrial PC...
-
Page 39: Disposal
Systec-Services GmbH for proper dis- posal. Do not dispose of the equipment via your local municipal col- lection centers. Under the WEEE Directive these may be used only for privately used equipment. WAVE 221 PC - Industrial PC... - Page 40 Disposal WAVE 221 PC - Industrial PC...
-
Page 41: Site Information
VAT ID no. as per §27a Value Added Tax Act: DE 815434969 ©Systec & Solutions GmbH / All rights reserved Technical modifications reserved All trademarks and registered trademarks mentioned are the property of their respective owners WAVE 221 PC - Industrial PC...
