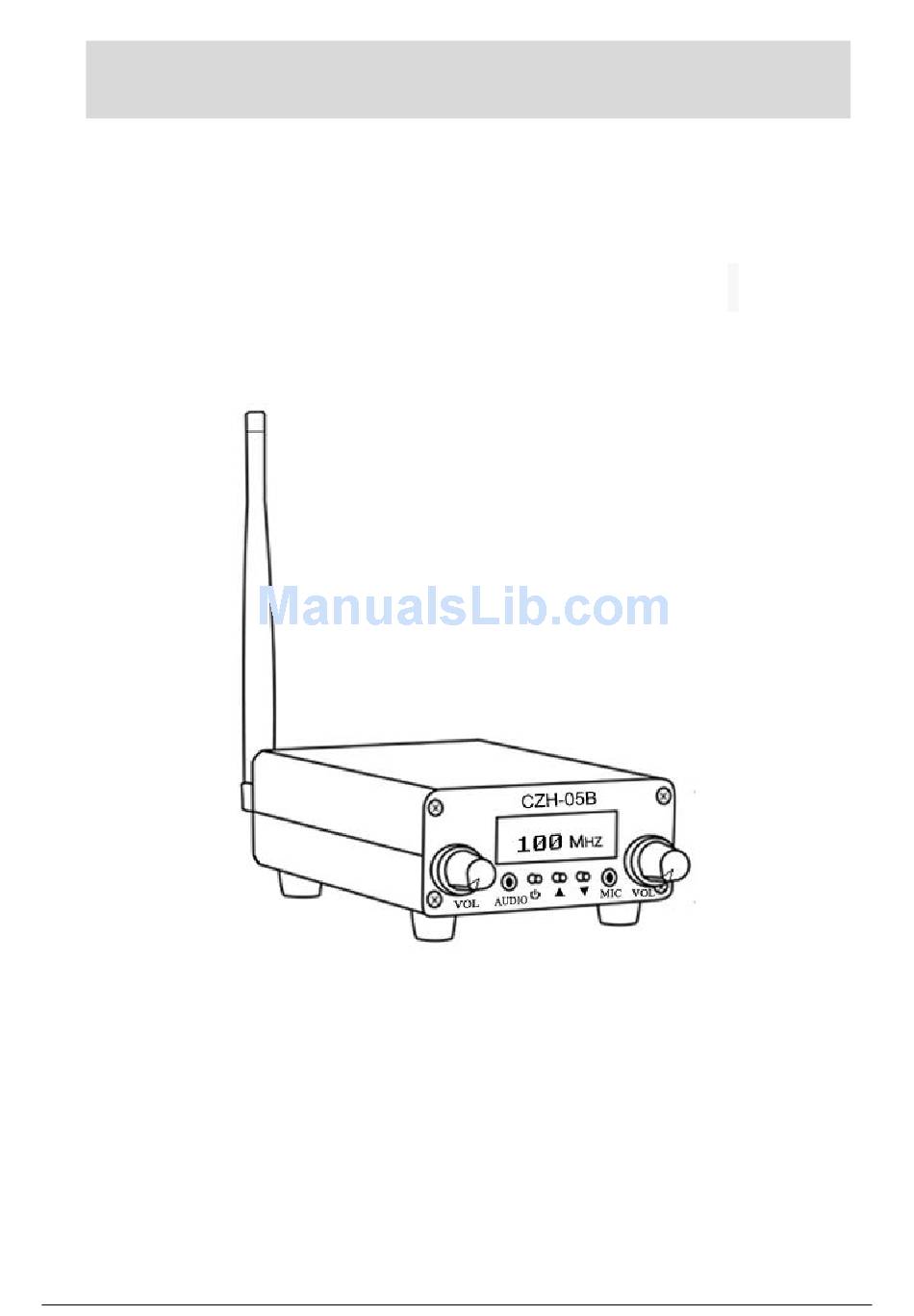

- Page 1 ® CZH-05B FM Transmitter Instruction Manual Before use, please read it carefully and properly keep...
- Page 2 CZH-05B FM Transmitter Instruction Manual CAUTION: Never operate the transmitter without connecting a suitable antenna or dummy 50Ohm load to the output otherwise there is a serious danger of destruction of the output stage of the transmitter. Copyright of This manual CopyRight owned by the company, all rights reserved. The manual without permission of the company, not in any form or method to copy, transmit, copy, or translated into any language or computer language.

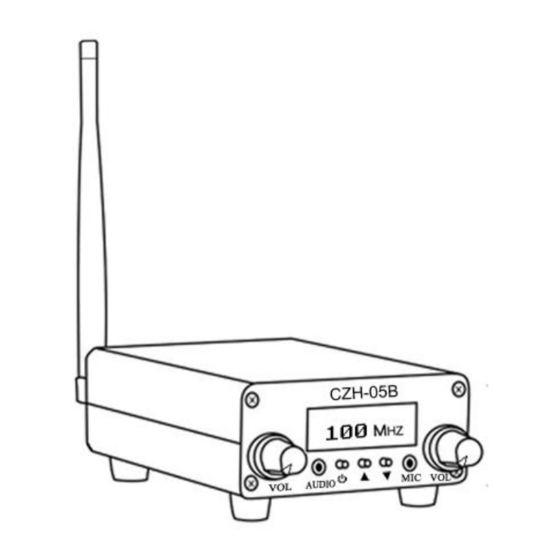

- Page 3 CZH-05B FM Transmitter Instruction Manual Introducing the CZH FM Transmitter Thank you for purchasing our transmitter, This stereo FM transmitter can easily build a wonderful FM radio station. This one have a beautiful aluminum alloy cover. We presents a brand new 500mW PLL FM Stereo Transmitter for FM stereo broadcasting. built in LCD display with blue backlight,Built in microcontroller for frequency control and display.
- Page 4 CZH-05B FM Transmitter Instruction Manual Hardware Basics 1、 Audio volume 2、 MIC volume 3、 3.5mm Jack for Audio Cable input 4、 3.5mm Jack for electret microphone (And the computer use the same microphone) input 5、 Power Button (On/Off) 6、 "+"Frequency Up Button (To increase the radio frequency) 7、...
- Page 5 CZH-05B FM Transmitter Instruction Manual 10、 Antenna socket Installation Instruction Connect the Antenna to FM Transmitter. Connect the FM Transmitter to AC Adapter, then plug AC adapter to power outlet. * Note: When the Power supply is connected, the “OFF” signal will be show on LCD Digital Display.
- Page 6 CZH-05B FM Transmitter Instruction Manual 1.Press Power Button to turn on the FM Transmitter 2.Adjust the FM frequency channels: (Radio frequency channels adjustment range is 76.0MHz~108.0MHz.) 3.Press Frequency Up/Down Button to increase/decrease 0.1MHz radio frequency channels on the Transmitter. 4.Press and hold the Frequency Up/Down Button to continuously increase/decrease radio frequency channels on the Digital Transmitter.
- Page 7 CZH-05B FM Transmitter Instruction Manual Step 3: Press the power switch " " confirm settings, The LCD screen display "108.00MHz". This is the highest frequency of use, Through the "▲/▼" can be changed it, adjustable range: 76-108Mhz.. Again press the power switch "...
- Page 8 Sea communication ★Only for reference, also the covering distance is concern with the antenna and environment. CZH FM Transmitter, it's owners, and employees accept no responsibility whatsoever for any consequences arising from the use or misuse of unlicensed or unapproved equipment.
