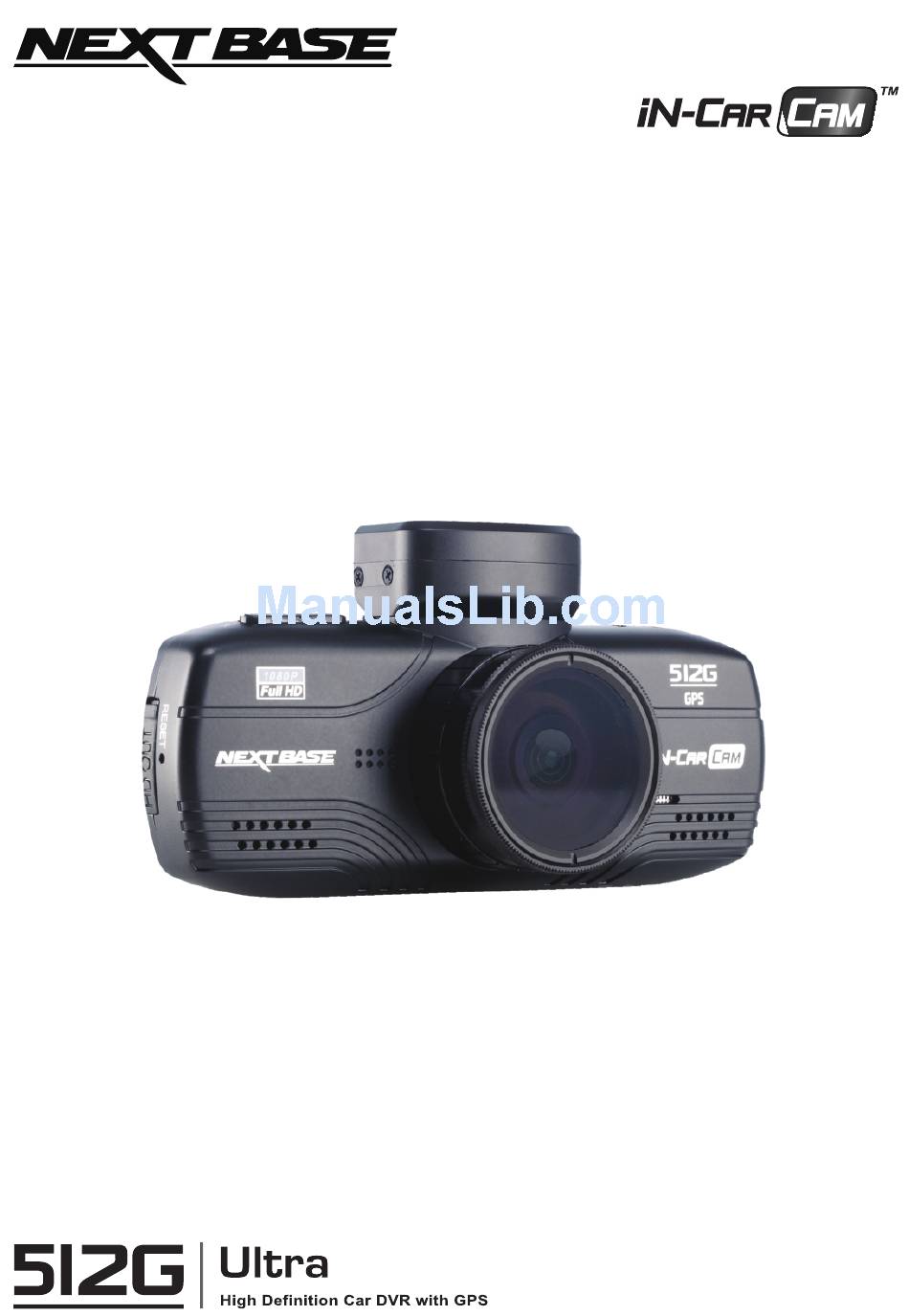

High definition car dvr with gps
Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 512G Ultra and is the answer not in the manual?

Questions and answers

Related Manuals for NextBase 512G Ultra

Summary of Contents for NextBase 512G Ultra

  • Page 1 Instruction Manual...

  • Page 3: Introduction To Using An In-Car Cam

    INTRODUCTION TO USING AN iN-CAR CAM The Nextbase range of cameras have been designed specifically with ease of use in mind, it is recommended NOT to change the default settings, which have been carefully selected to give the best performance for day to day use. The polarising filter (after adjustment) will significantly improve the recorded picture quality, by removing reflections from the windscreen itself.

  • Page 4: Table Of Contents

    ..................VIDEO MODE ........................ PHOTO MODE ......................PLAYBACK MODE ......................GENERAL SETTINGS MENU ..................MASS STORAGE & PC CAMERA ................VIDEO & AUDIO OUTPUT ..................... NEXTBASE REPLAY SOFTWARE FOR WINDOWS ............ NEXTBASE REPLAY SOFTWARE FOR MAC .............. TROUBLE SHOOTING ....................

  • Page 5: Precautions

    PRECAUTIONS Please read this manual carefully before operation and keep it for future reference. It will be helpful should you encounter any operational problem. WARNING: Do not expose this product to rain, moisture or water under any circumstances, doing so may result in the risk of electric shock or fire. CAUTION: To reduce the risk of electric shock, do not perform any servicing other than that contained in the instruction manual unless you are qualified to do so.

  • Page 6: Product Specification

    PRODUCT SPECIFICATION Model Number / Name NBDVR512G / NEXTBASE iN-CAR CAM 512G ULTRA Power Requirements 5V / 1.5A (USB socket) Power Supply 12-24Vdc Car Power Cable (supplied) Fuse Type: 20mm Glass Fast Blow 2A Output: 5Vdc Sensor Resolution 2M Pixel (2,000,000 Pixel) Lens Type / Angle / Aperture 6G / 140°...

  • Page 7: Package Contents

    Guide Product appearance may differ slightly to that shown above. PRODUCT FEATURES Thank you for purchasing this NEXTBASE iN-CAR CAM product, in this section we will outline some of the features available with this device. 2.7" 16:9 LCD Colour Screen Large screen for ease of use and viewing the playback of recorded videos and photos.

  • Page 8: Parts & Controls

    3. Mounting point Attached the supplied window mount here. 4. AV Out socket For use with an AV Cable (sold separately), please contact your local Nextbase retailer to purchase. 5. Mini USB socket Connect the supplied car power cable or USB data cable here.
  • Page 9 PARTS & CONTROLS (CONTD.) Please see below to identify the parts and controls of your iN-CAR CAM. 8. RESET button In the unlikely event the iN-CAR CAM becomes unresponsive press the RESET button to restart the iN-CAR CAM. 9. HD OUT socket (under dust cover) For use with the supplied High Definition cable.
  • Page 10 PARTS & CONTROLS (CONTD.) Please see below to identify the parts and controls of your iN-CAR CAM. 13. Menu button Press to open the menu within current mode, press twice to open the general settings. 14. Microphone button Press to turn off / on the microphone, only available whilst in video mode. 15.

  • Page 11: In Vehicle Installation

    IN VEHICLE INSTALLATION Please follow the instructions below for correct installation of the iN-CAR CAM. 12-24V DC The above diagram is for illustration purposes only. 1. Open dust cover and insert a suitable memory card (8-32Gb Class 10) in to the iN-CAR CAM, with the gold contacts facing the back of the device.
  • Page 12 IN VEHICLE INSTALLATION (CONTD.) 12-24V DC The above diagram is for illustration purposes only. 4. The angle and position of the iN-CAR CAM can be adjusted by loosening the locking clamp and moving as required, remembering to re-tighten the clamp. 5.
  • Page 13 IN VEHICLE INSTALLATION (CONTD.) Please read and follow the notes below for the safe operation of your iN-CAR CAM within your vehicle. As per the installation instructions, it is advised to install the iN-CAR CAM so it does NOT obstruct the drivers view of the road, preferably on the passenger side of the vehicle and behind the rear view mirror.

  • Page 14: Video Mode

    VIDEO MODE The information given below explains the various items that are displayed on the screen when your iN-CAR CAM is in Video mode, some items will only be displayed once the relevant function has been selected within the Video menu, as described below. 17 16 1.
  • Page 15 5. GPS Stamp Turn On / Off both the GPS co-ordinates and speed stamp that are shown on recorded files. When a recording is viewed using the NEXTBASE Replay both the GPS co-ordinates and speed information remains available. Default Setting: On...
  • Page 16 VIDEO MODE (CONTD.) Video settings menu continued. 11. Driver Fatigue Warning Set the timer which will display an image of a hot beverage to serve as a reminder to take sufficient rest when on a long journey. Default Setting: Off 12.

  • Page 17: Photo Mode

    PHOTO MODE The information given below explains the various items that are displayed on the screen when your iN-CAR CAM is in Photo mode, some items will only be displayed once the relevant function has been selected within the Photo menu, as described below. AUTO 1.
  • Page 18 PHOTO MODE (CONTD.) Photo settings menu The Photo settings menu is accessed by pressing the menu button whilst in Photo mode. Use the up and down buttons to highlight settings and press the OK button to enter the options screen. Select the required option and press OK to confirm, press menu once more to exit.

  • Page 19: Playback Mode

    PLAYBACK MODE The information given below explains the various items that are displayed on the screen when your iN-CAR CAM is in Playback mode. Video Playback 15_0530_180233_006 1080P 30/05/15 18:02 / II MODE: :PREV :NEXT 1. Video: indicates the iN-CAR CAM is displaying a video. 2.
  • Page 20 PLAYBACK MODE (CONTD.) The information given below explains the various items that are displayed on the screen when your iN-CAR CAM is in Playback mode. Photo Playback 15_0530_180235_007 3264 x 2448 30/05/15 18:23 1. Photo: indicates the iN-CAR CAM is displaying a photo. 2.

  • Page 21: General Settings Menu

    GENERAL SETTINGS MENU The General Settings menu is accessed by pressing the menu button twice, use the up and down buttons to highlight function and press the OK button to enter the options screen. Select the required option and press OK to confirm, press menu once more to exit. Note: - Menus are not accessible whilst the iN-CAR CAM is recording.
  • Page 22 GENERAL SETTINGS MENU (CONTD.) 10. Auto Power Off Adjust the timing of the Auto Power Off function, this can be used to continue recording in event of loss of power within in the vehicle. Default Setting: 10 Seconds 11. Password Settings Set the TV Mode as required.

  • Page 23: Mass Storage & Pc Camera

    MASS STORAGE & PC CAMERA Use the supplied USB cable to connect the iN-CAR CAM to your PC, doing so will power on the camera with two functions available, as described below. Use the up and down buttons to select required function and press OK to confirm selection. - Mass Storage - PC Camera Using the iN-CAR CAM with a Windows PC:...

  • Page 24: Video & Audio Output

    · The controls upon the iN-CAR CAM operate normally. Please contact your local NEXTBASE dealer for accessory purchases. Note: - An external power supply may be required when viewing recordings via the AV or HD output of the iN-CAR CAM, e.g.

  • Page 25: Nextbase Replay Software For Windows

    - NBDVR512G NEXTBASE Replay Software for Mac Note: - The instruction manual and installation files are also available for download from the Nextbase UK website: www.nextbase.co.uk, if required. Should you experience any difficulties during installation please do not hesitate to call our English speaking technical support team on +44 (0)2920 866429, lines are open during normal business operating hours: 09:00-17:30hrs.
  • Page 26 NEXTBASE REPLAY SOFTWARE FOR WINDOWS (CONTD.) Installation: Open the ‘NBDVR512G NEXTBASE Replay for Windows' folder and then open the folder with the required version, based upon your preferred speed units (MPH or KMH). Run the ‘setup.exe’, for some operating systems a security warning may appear, click ‘RUN’ to proceed.
  • Page 27 InstallShield ….' window will open, as shown below. NEXTBASE Replay - InstallShield Wizard Welcome to the InstallShield Wizard for NEXTBASE Replay The InstallShield (R) Wizard will install NEXTBASE Replay on your computer. To continue, click Next. WARNING: This program is protected by copyright law and international treaties.
  • Page 28 NEXTBASE REPLAY SOFTWARE FOR WINDOWS (CONTD.) The 'Customer Information’ window will open, as shown below. NEXTBASE Replay - InstallShield Wizard Customer Information Please enter your information User Name: Organization: InstallShield < Back Next > Cancel If required enter your preferred User Name and Organization, this is optional and fields can be left blank.
  • Page 29 Finish Cancel Installation now is complete, press 'Finish' to close the InstallShield Wizard window. The NEXTBASE Replay icon will now be available on your desktop. Note: - For some operating systems additional / different steps may be required. - Some anti-virus software may consider the installation of this software as a threat, this is normal and not a cause for concern, please toggle off the anti-virus software, or choose to allow the installation to continue.
  • Page 30 Using the NEXTBASE Replay software: To use the NEXTBASE Replay software to view your recorded files, you need to add the files to the players ‘file list’. This is a very simple process, but first you need to have the files available upon your computer.
  • Page 31 NEXTBASE REPLAY SOFTWARE FOR WINDOWS (CONTD.) Features & Controls The key below explains the various information displayed within the NEXTBASE Replay software when using a Windows platform. VIEW HELP 02/06/2015 15:35:44 NBDVR512G 29MPH N 51 35 4.92 W 3 13 14.87 Z: 1.05...
  • Page 32 - Multiple routes on the will be seen on the map when more than one recording has been selected. - A working internet connection MUST be available upon the PC for NEXTBASE Replay to be able to show the map, as this is downloaded from Google.

  • Page 33: Nextbase Replay Software For Mac

    - NBDVR512G NEXTBASE Replay Software for Mac Note: - The instruction manual and installation files are also available for download from the Nextbase UK website: www.nextbase.co.uk, if required. Should you experience any difficulties during installation please do not hesitate to call our English speaking technical support team on +44 (0)2920 866429, lines are open during normal business operating hours: 09:00-17:30hrs.
  • Page 34 NEXTBASE Replay for Mac NEXTBASE Replay for Manual (English).pdf Windows NBDVR Open the 'NBDVR512G NEXTBASE Replay for Mac' folder and then open the folder with the required version based upon your preferred speed units (MPH or KMH). Finder File Edit...
  • Page 35 NEXTBASE REPLAY SOFTWARE FOR MAC (CONTD.) Once you have selected the required version the NEXTBASE Replay app will be available, as shown below. Finder File Edit View Window Help NBDVR NBDVR NBDVR512G Instruction NEXTBASE Replay for Mac NEXTBASE Replay for Manual (English).pdf...
  • Page 36 Using the NEXTBASE Replay: To use the NEXTBASE Replay software to view your recorded files, you need to add the files to the players ‘file list’. This is a very simple process, but first you need to have the files available upon your computer.
  • Page 37 NEXTBASE REPLAY SOFTWARE FOR MAC (CONTD.) Features & Controls The key below explains the various information displayed within the NEXTBASE Replay software when using a Mac platform. NEXTBASE Replay Open About 02/06/2015 15:35:44 NBDVR512G 29MPH N 51 35 4.92 W 3 13 14.87 Z: 1.05...
  • Page 38 - Multiple routes on the will be seen on the map when more than one recording has been selected. - A working internet connection MUST be available upon the PC for NEXTBASE Replay to be able to show the map, as this is downloaded from Google.

  • Page 39: Trouble Shooting

    PC, as this may be required for the necessary driver to be loaded correctly. Disconnect and reconnect the In-CAR CAM. Contact NEXTBASE for the required driver. The sucker will not stay in Ensure that the protective cover (plastic film) has been removed place upon my windscreen.
  • Page 40 SD card” on screen. option to re-format the SD card from within the iN-CAR CAM. The NEXTBASE Replay map NEXTBASE Replay requires a working internet connection to open will not open. the map. Enable the internet connection or switch off any firewalls / internet security which may be blocking internet access.
  • Page 41 SETUP. Go to Time Zone / DST and select GMT +1.00 for British Summer Time, as an example. Unresolved issues. Reset the iN-CAR CAM to the default settings within the Setup Menu and try again. Should the problem persist call the helpline (02920) 866429 or email: support@nextbase.co.uk...
  • Page 42 NOTES...
  • Page 44 NBDVR512G-IM-ENG-R02...
