Page 1: Alarm Receiver

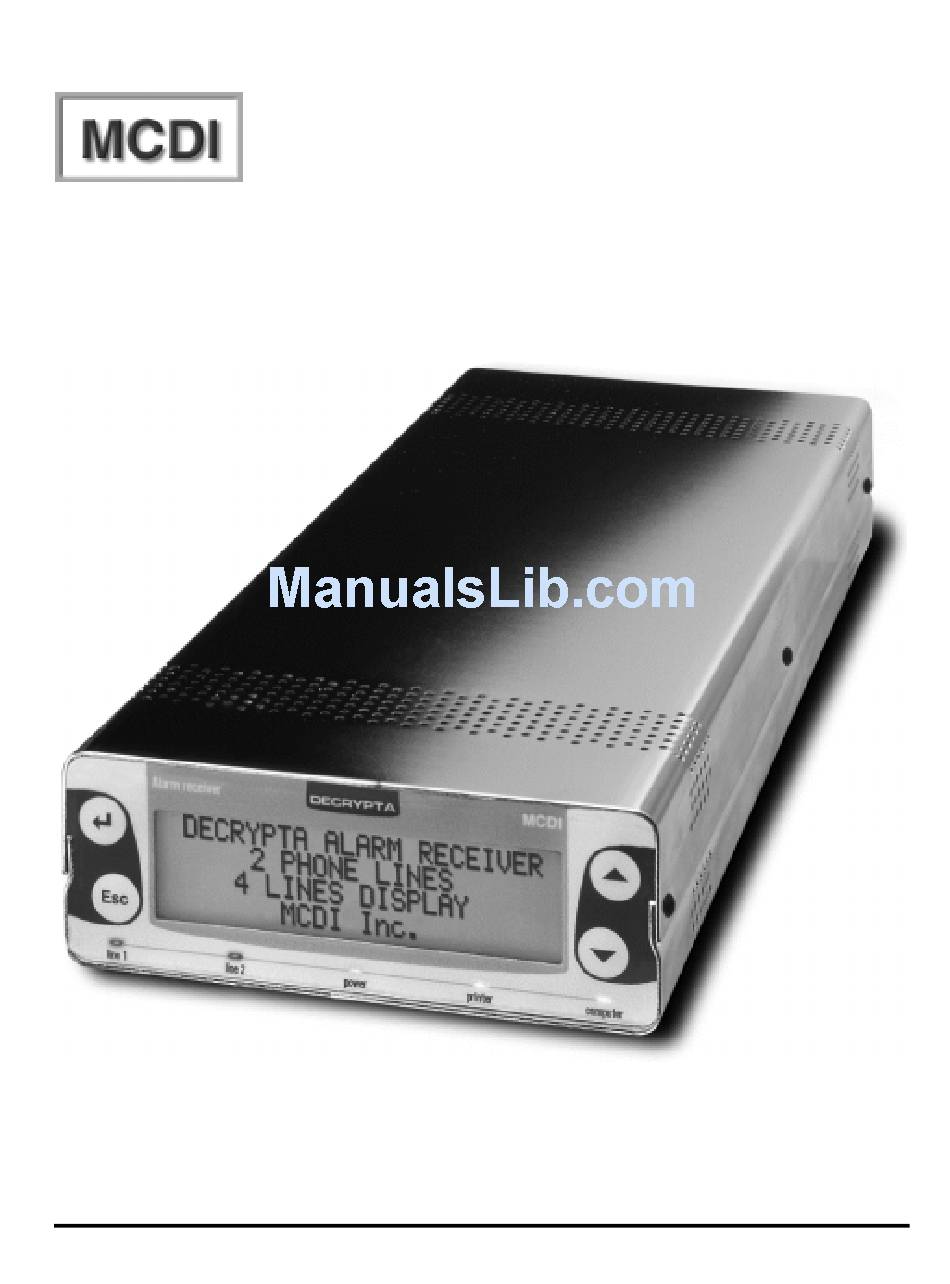

DECRYPTA ALARM RECEIVER v001211 MCDI Inc. Internet: http://www.mcdi.com 86 Claude-Champagne Avenue, Montreal, QC, Canada H3X 2L1 Telephone: +514-481-1067 Fax: +514-481-1487... -
Page 2: Table Of Contents
Formats and characters transmitted..................................12 Receiving..........................................12 Listen-in, Two way voice....................................12 Transmission to computer and printer in DECRYPTA Native mode ......................12 Transmission to computer and printer in ADEMCO 685 / Surgard emulation mode ..................14 Messages from DECRYPTA to DECRYPTA printer port:..........................14 Warranty ..........................................14 Legal compliance and Warning ....................................14... -
Page 3: Alarm Receiver Decrypta
Double Phone connector type RJ11 on Rev 4 and Rev 5 . Connect Green and Red only on each connector Power connector A twelve (12) volt power input connector is located at the back of DECRYPTA. A 3 foot wire is supplied. Connect red wire to positive side and black wire to negative side of power source Alert/WarningBuzzer On board buzzer is available for alert warning when Computer is absent. -
Page 4: Installing Decrypta Receiver
Power the DECRYPTA from any 12 volt source. Connect DECRYPTA to a computer serial port using the supplied null modem cable. It is recommended to connect a printer to the DECRYPTA parallel port. This printer insures a full hard copy backup of all signals received by DECRYPTA. -
Page 5: Setting Up Decrypta - Firmware Version 5.1.5
Setup program display description and commands Address section Address part of display shows address fields for all DECRYPTA and TLR+/SA-TLR+ receivers installed with PC. Move cursor to desired DECRYPTA using UP/DN arrows. Press <Enter> to move to Parameter section on right part of display. - Page 6 Yes = Zero removed in 3x1 and 4x1 No = zero present (default) Tells DECRYPTA receiver not to insert a zero in front of the account number and in front of the alarm code, for incoming 3 x 1 and 4 x 1.
-
Page 7: Transmission Rate
Yes = Check printer on DECRYPTA port No= Do not check for printer (default) By default DECRYPTA does not verify printer status on parallel port but sends data to be printed as if a printer was connected to this port. - Page 8 Page 7 Operating guide for Alarm Receiver D E C R Y P T A DESCRIPTION OF DECRYPTA DISPLAY DECRYPTA – FRONT VIEW LCD DISPLAY CARRIAGE RETURN ESCAPE DOWN LINE 1 and LINE 2 leds PRINTER LED COMPUTER LED POWER LED...
- Page 9 Page 8 Operating guide for Alarm Receiver D E C R Y P T A DECRYPTA DESCRIPTIONS OF INTERNAL MENUS Alarm Receiver Start up menu On power up Version 1.0.0. MCDI Inc. Configuration menu Congifuration Mode To enter configuration, press...
- Page 10 Page 9 Operating guide for Alarm Receiver D E C R Y P T A -DECRYPTA- Enabling Sescoa SS format Choice Option to select from yes or no _____________________________ Sescoa SS to choose and continue to next menu -DECRYPTA- Enabling 3x2 instead of 4x1...
- Page 11 Page 10 Operating guide for Alarm Receiver D E C R Y P T A -DECRYPTA- Enabling CALLER ID to PC Choice Option to select from yes or no _____________________________ Caller ID to PC to choose and continue to next menu...
- Page 12 :::::: 00/12/07 :::::: 00:12:04 IDLE MODE When not in configuration nor receiving signals, Decrypta displays date on first line and time on second line TYPICAL DISPLAYS–INCOMING SIGNALS 4X2, CALLER ID NATIVE FORMAT 15:30:27__12/07/00 LINE 1: TIME AND DATE 12 6161 F6 LINE 2: RECEIVER AND LINE NUMBER;...
-
Page 13: Formats And Characters Transmitted
Once the line is seized by Central station local telephone, the hang-up action of DECRYPTA will have no effect. To close communication with alarm signal site in the first 180 seconds when DECRYPTA is in action, operator must press any key on the telephone keypad before hanging up. - Page 14 Line number (Receiver Option) Account number Event code or modifier Zone type FBI super Fast Zone Group (Partition) Type(E or R) (Contact ID) Ø Zero MCDI Inc. Internet: http://www.mcdi.com 86 Claude-Champagne Avenue, Montreal, QC, Canada H2V 2X1 Telephone: +514-481-1067 Fax: +514-481-1487...
-
Page 15: Transmission To Computer And Printer In Ademco 685 / Surgard Emulation Mode
Warranty The Electronic products of MCDI Inc. are under a five year limited warranty. Material is repaired or exchanged, free of charge, when returned to MCDI service points, post paid. Abused or misused equipment is not covered by this warranty. - Page 16 This device is installed in a computer. This work should be done by a qualified computer technician. Avoid using during electrical storm. There may be a remote risk of electrical shock from lightning. MCDI Inc. Internet: http://www.mcdi.com 86 Claude-Champagne Avenue, Montreal, QC, Canada H2V 2X1...
-
Page 17: Ec Declaration Of Conformity
1) The power required by the host and the total of all adapter cards installed within the host environment, together with any auxiliary apparatus, shall not exceed the power specification of the host apparatus. The power requirements for the DECRYPTA receiver are: From External Battery (standby) 2) It is essential that, when other option cards are introduced which use or generate a hazardous voltage, the minimum creepages and clearances specified in the table below are maintained. - Page 18 Operating guide for Alarm Receiver D E C R Y P T A Host: Expansion TLR + Card Power Supply Unit or other source of excessive voltage MCDI Inc. Internet: http://www.mcdi.com 86 Claude-Champagne Avenue, Montreal, QC, Canada H2V 2X1 Telephone: +514-481-1067 Fax: +514-481-1487...
-
Page 19: Technical Data Sheet For Decrypta
Page 18 Operating guide for Alarm Receiver D E C R Y P T A Technical data sheet for DECRYPTA Description Features • Mobile without need of reconfiguration. • is the ideal receiver for mobile surveillance Internal buffer 800 to 1000 events.
